trigger_suzuki.h File Reference

Functions
void	initializeSuzukiG13B (TriggerWaveform *s)
void	initializeSuzukiK6A (TriggerWaveform *s)

Function Documentation

initializeSuzukiG13B()

void initializeSuzukiG13B

(

TriggerWaveform *

s

)

Definition at line 12 of file trigger_suzuki.cpp.

                                              {
    s->initialize(FOUR_STROKE_CAM_SENSOR, SyncEdge::RiseOnly);

    float w = 5;
    float specialTooth = 20;

    s->addEvent720(180 - w, TriggerValue::RISE);
    s->addEvent720(180, TriggerValue::FALL);

    s->addEvent720(2 * specialTooth + 180 - w, TriggerValue::RISE);
    s->addEvent720(2 * specialTooth + 180, TriggerValue::FALL);

    s->addEvent720(360 - w, TriggerValue::RISE);
    s->addEvent720(360, TriggerValue::FALL);

    s->addEvent720(540 - w, TriggerValue::RISE);
    s->addEvent720(540, TriggerValue::FALL);

    s->addEvent720(720 - w, TriggerValue::RISE);
    s->addEvent720(720, TriggerValue::FALL);

    s->setTriggerSynchronizationGap(0.22);
    s->setSecondTriggerSynchronizationGap(1);
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

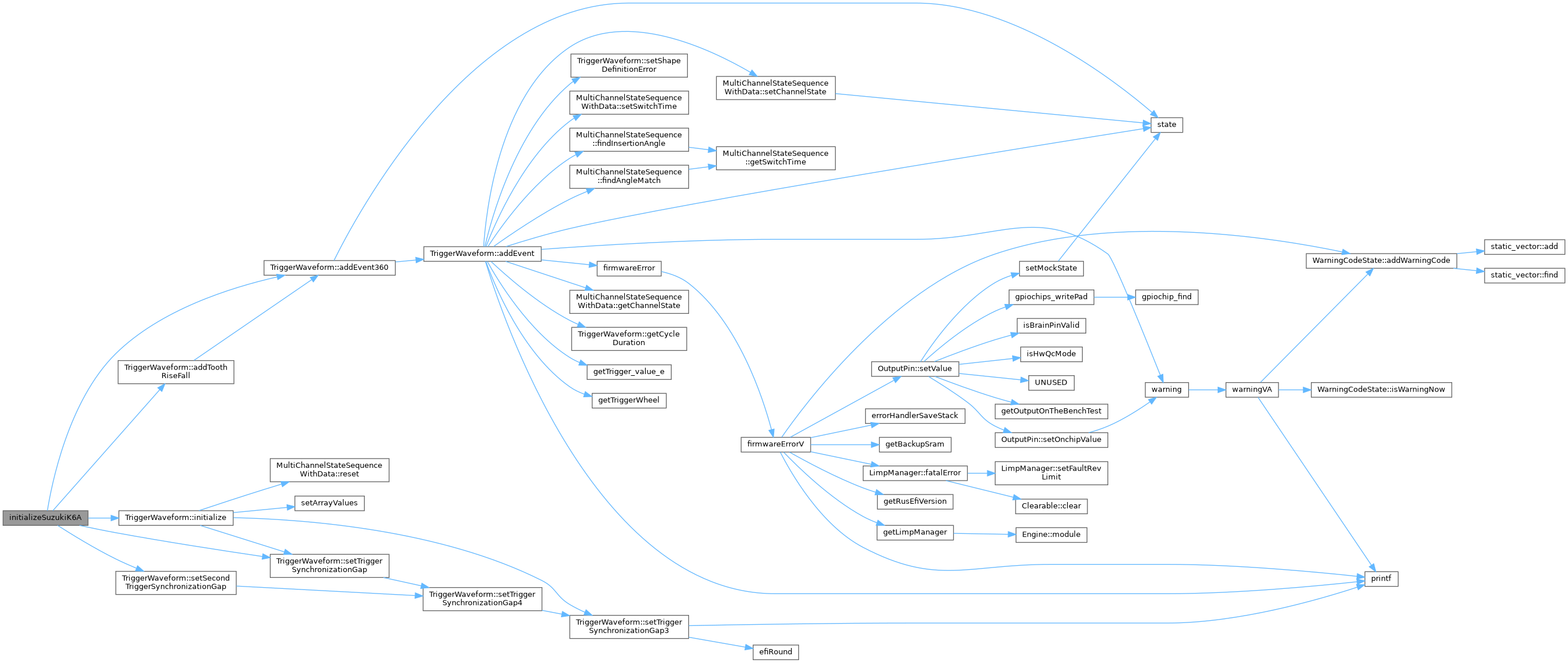

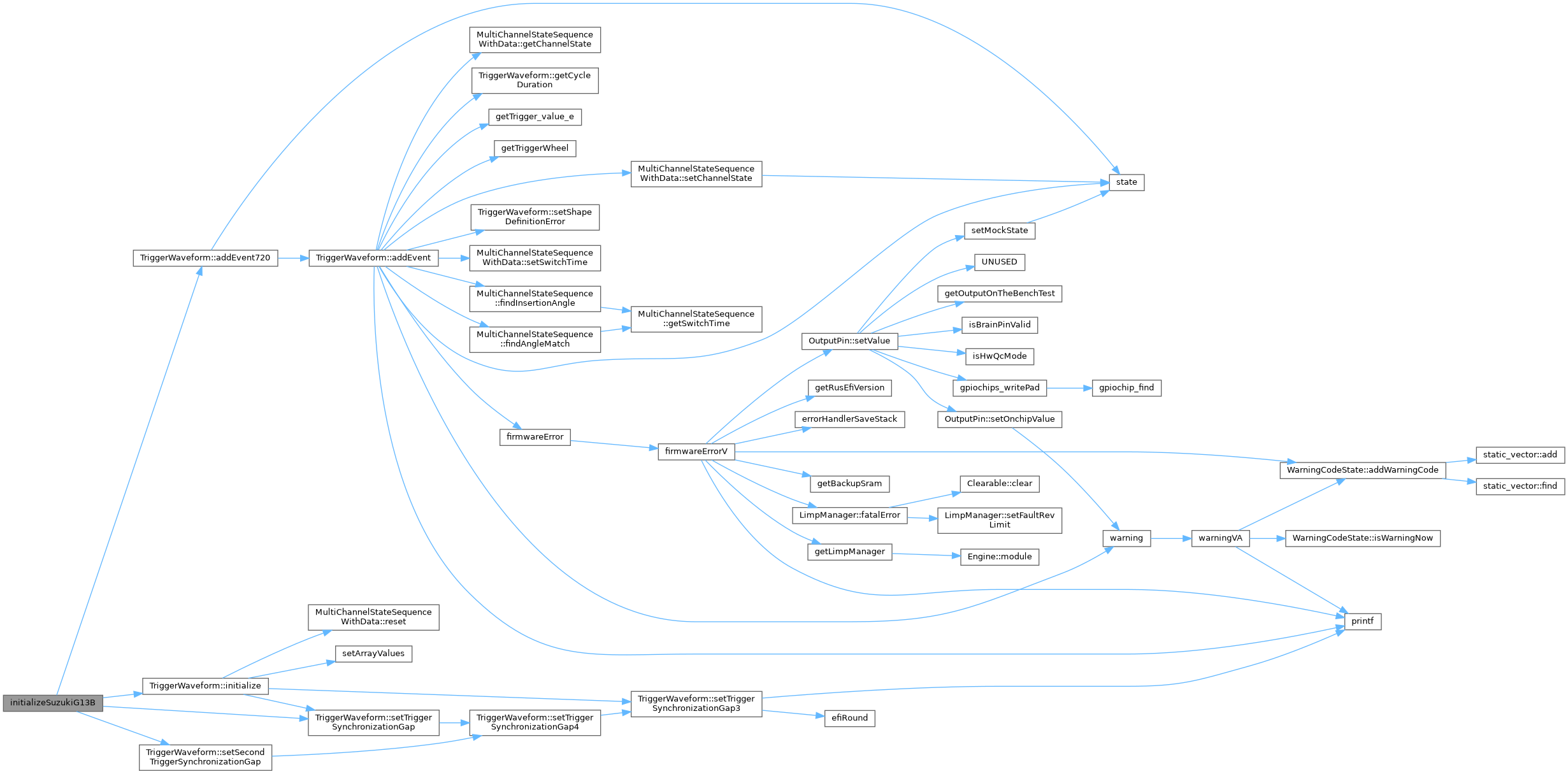

Here is the call graph for this function:

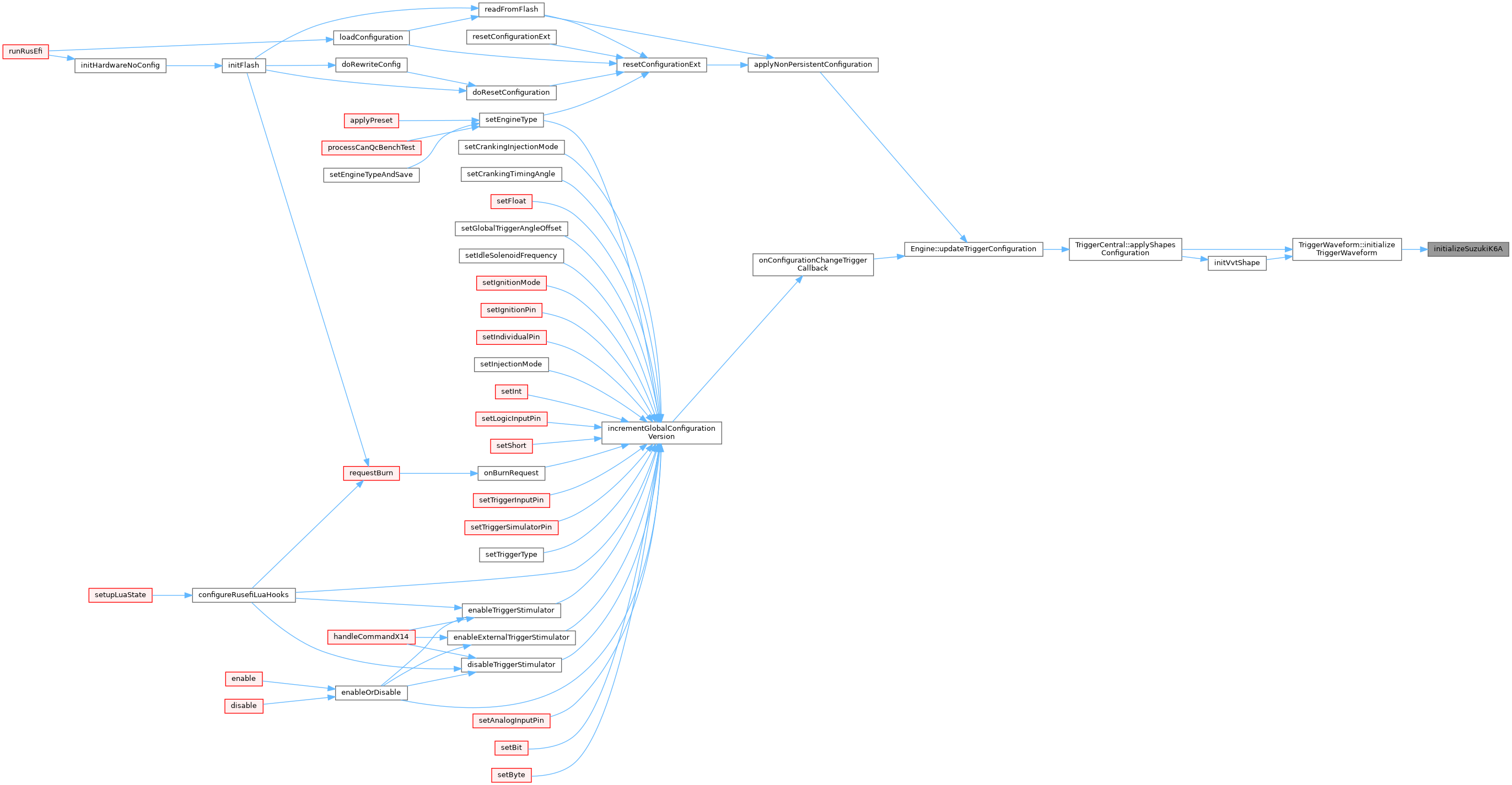

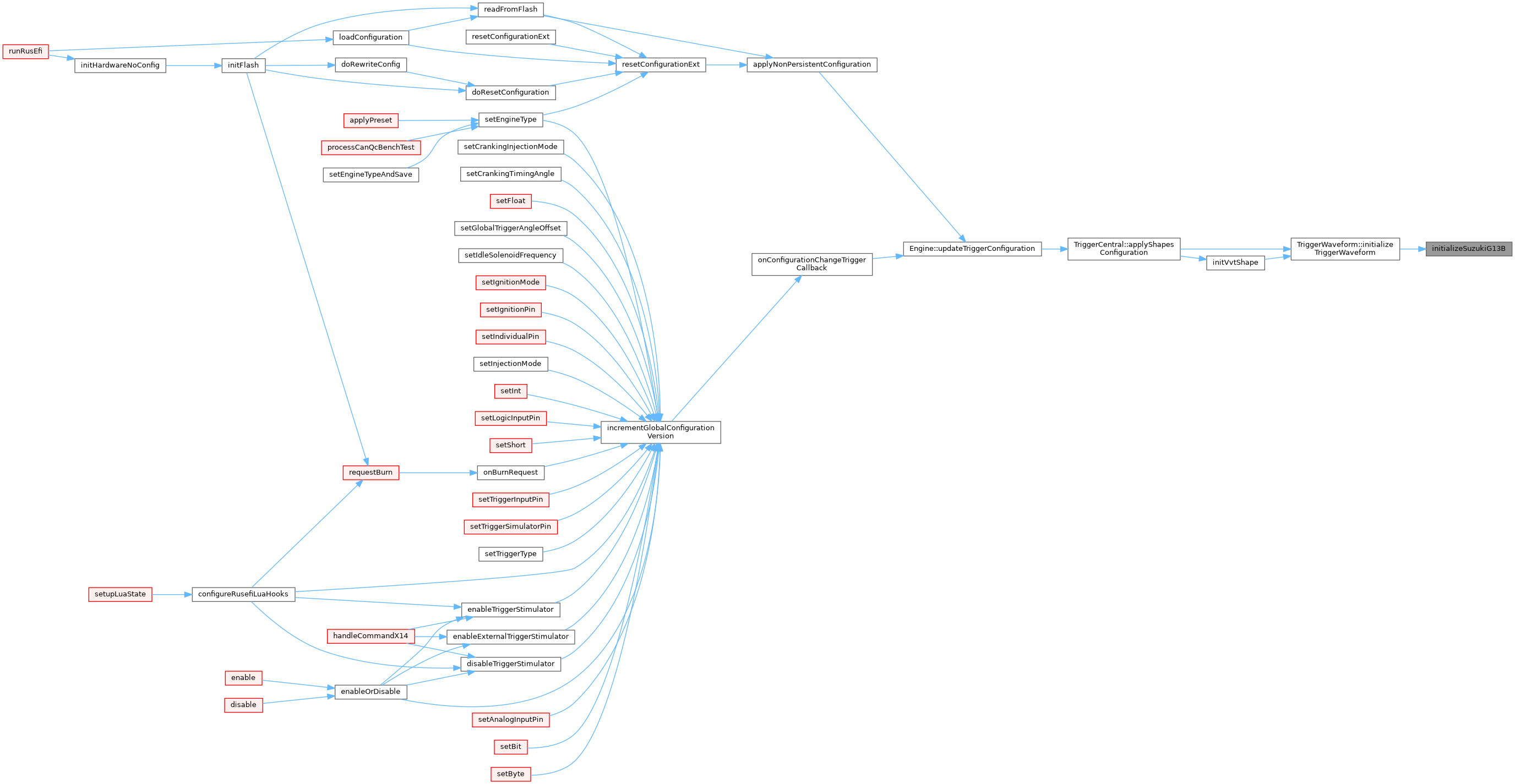

Here is the caller graph for this function:

initializeSuzukiK6A()

void initializeSuzukiK6A

(

TriggerWaveform *

s

)

Definition at line 37 of file trigger_suzuki.cpp.

                                             {
    s->initialize(FOUR_STROKE_CAM_SENSOR, SyncEdge::RiseOnly);
    float w = 5;

  int secondTooth = 15;

  // a bit lame: we start with falling front of first tooth
  s->addEvent360(5, TriggerValue::FALL);

  s->addToothRiseFall(secondTooth, w);
  s->addToothRiseFall(43, w);

  s->addToothRiseFall(120, w);
  s->addToothRiseFall(120 + secondTooth, w);
  s->addToothRiseFall(158, w);
  s->addToothRiseFall(158 + secondTooth, w);

  s->addToothRiseFall(240, w);
  s->addToothRiseFall(240 + secondTooth, w);
  s->addToothRiseFall(283, w);

  // a bit lame: we end with rising front of first tooth
  s->addEvent360(360, TriggerValue::RISE);

    s->setTriggerSynchronizationGap(4.47);
    s->setSecondTriggerSynchronizationGap(0.65);
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

Here is the call graph for this function:

Here is the caller graph for this function:
