Functions
void	initialize2jzGE3_34_simulation_shape (TriggerWaveform *s)

void	initializeUzCam (TriggerWaveform *s)

Function Documentation

◆ initialize2jzGE3_34_simulation_shape()

void initialize2jzGE3_34_simulation_shape ( TriggerWaveform * s )

https://rusefi.com/forum/viewtopic.php?f=5&t=1720

Definition at line 17 of file trigger_toyota.cpp.

                                                              {
    s->initialize(FOUR_STROKE_CAM_SENSOR, SyncEdge::Rise);

    float camD = 720 / 6; // 120

    float crankDelta = 720 / 36 / 2; // 10

    float camAngle = 1;
    float crankAngle = 2 * crankDelta; // skipping two teeth

    for (int i = 0; i < 10; i++) {
        s->addEvent720(crankAngle + 5, TriggerValue::RISE, TriggerWheel::T_SECONDARY);
        s->addEvent720(crankAngle + crankDelta, TriggerValue::FALL, TriggerWheel::T_SECONDARY); // 120
        crankAngle += 10;
    } // 2 + 10

    camAngle += camD;
    s->addEvent720(camAngle, TriggerValue::RISE, TriggerWheel::T_PRIMARY); // 120
    s->addEvent720(camAngle + 3, TriggerValue::FALL, TriggerWheel::T_PRIMARY);

    for (int i = 0; i < 12; i++) {
        s->addEvent720(crankAngle + 5, TriggerValue::RISE, TriggerWheel::T_SECONDARY);
        s->addEvent720(crankAngle + crankDelta, TriggerValue::FALL, TriggerWheel::T_SECONDARY); // 120
        crankAngle += 10;
    } // 2 + 22


    camAngle += camD;

    for (int i = 0; i < 12; i++) {
        s->addEvent720(crankAngle + 5, TriggerValue::RISE, TriggerWheel::T_SECONDARY);
        s->addEvent720(crankAngle + crankDelta, TriggerValue::FALL, TriggerWheel::T_SECONDARY); // 120
        crankAngle += crankDelta;
    } // 2 + 34

    camAngle += camD;
    s->addEvent720(camAngle, TriggerValue::RISE, TriggerWheel::T_PRIMARY); // 360
    s->addEvent720(camAngle + 3, TriggerValue::FALL, TriggerWheel::T_PRIMARY);

    crankAngle += 20; // skipping two teeth one more time
    for (int i = 0; i < 10; i++) {
        s->addEvent720(crankAngle + 5, TriggerValue::RISE, TriggerWheel::T_SECONDARY);
        s->addEvent720(crankAngle + crankDelta, TriggerValue::FALL, TriggerWheel::T_SECONDARY); // 120
        crankAngle += crankDelta;
    } // 2 + 10

    camAngle += camD;

    for (int i = 0; i < 12; i++) {
        s->addEvent720(crankAngle + 5, TriggerValue::RISE, TriggerWheel::T_SECONDARY);
        s->addEvent720(crankAngle + crankDelta, TriggerValue::FALL, TriggerWheel::T_SECONDARY); // 120
        crankAngle += crankDelta;
    } // 2 + 22

    camAngle += camD;
    s->addEvent720(camAngle, TriggerValue::RISE, TriggerWheel::T_PRIMARY); // 600
    s->addEvent720(camAngle + 3, TriggerValue::FALL, TriggerWheel::T_PRIMARY);


    for (int i = 0; i < 12; i++) {
        s->addEvent720(crankAngle + 5, TriggerValue::RISE, TriggerWheel::T_SECONDARY);
        s->addEvent720(crankAngle + crankDelta, TriggerValue::FALL, TriggerWheel::T_SECONDARY); // 120
        crankAngle += 10;
    } // 2 + 32
    camAngle += camD;

    s->shapeWithoutTdc = true;
    s->isSynchronizationNeeded = false;
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

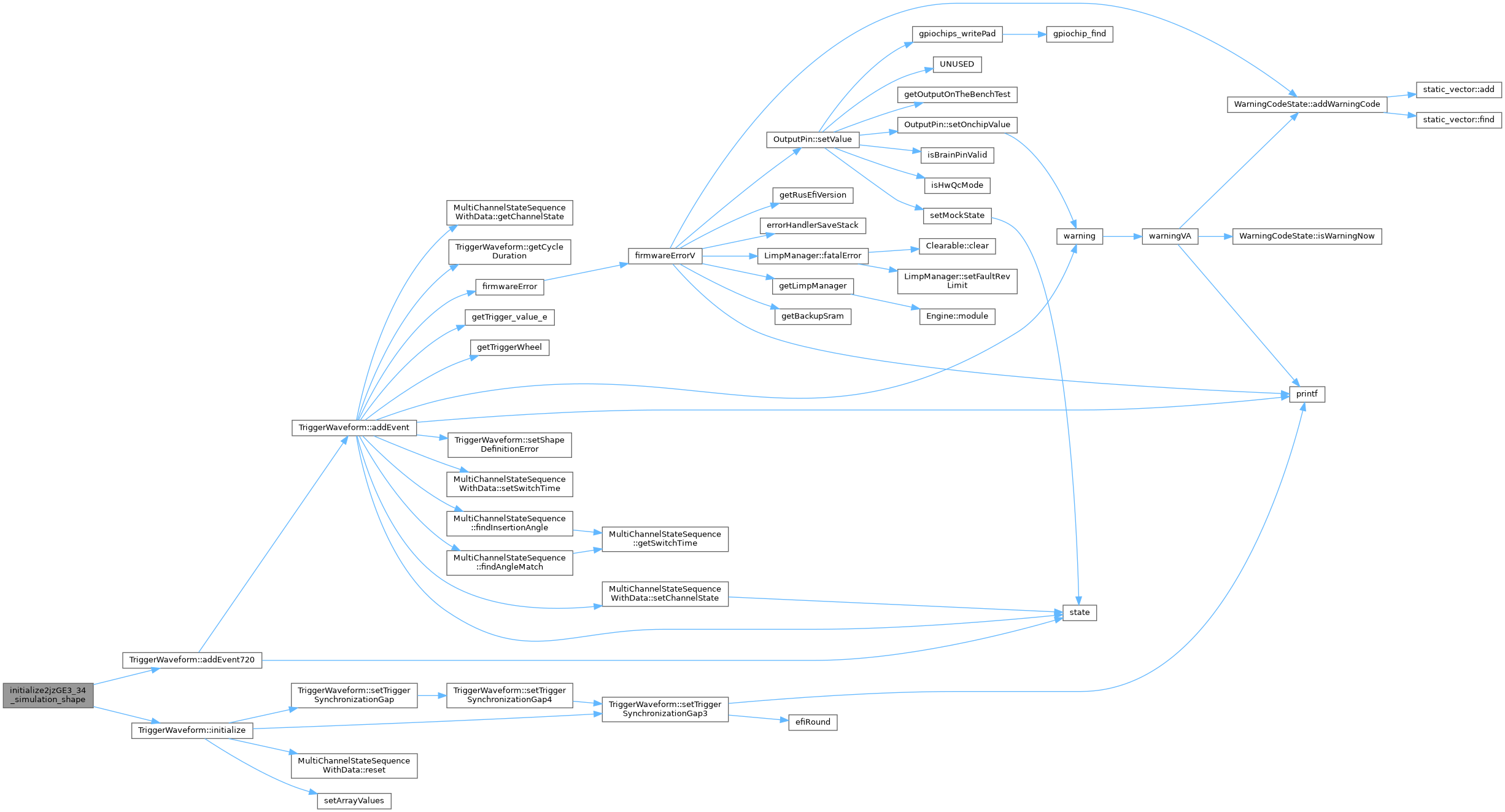

Here is the call graph for this function:

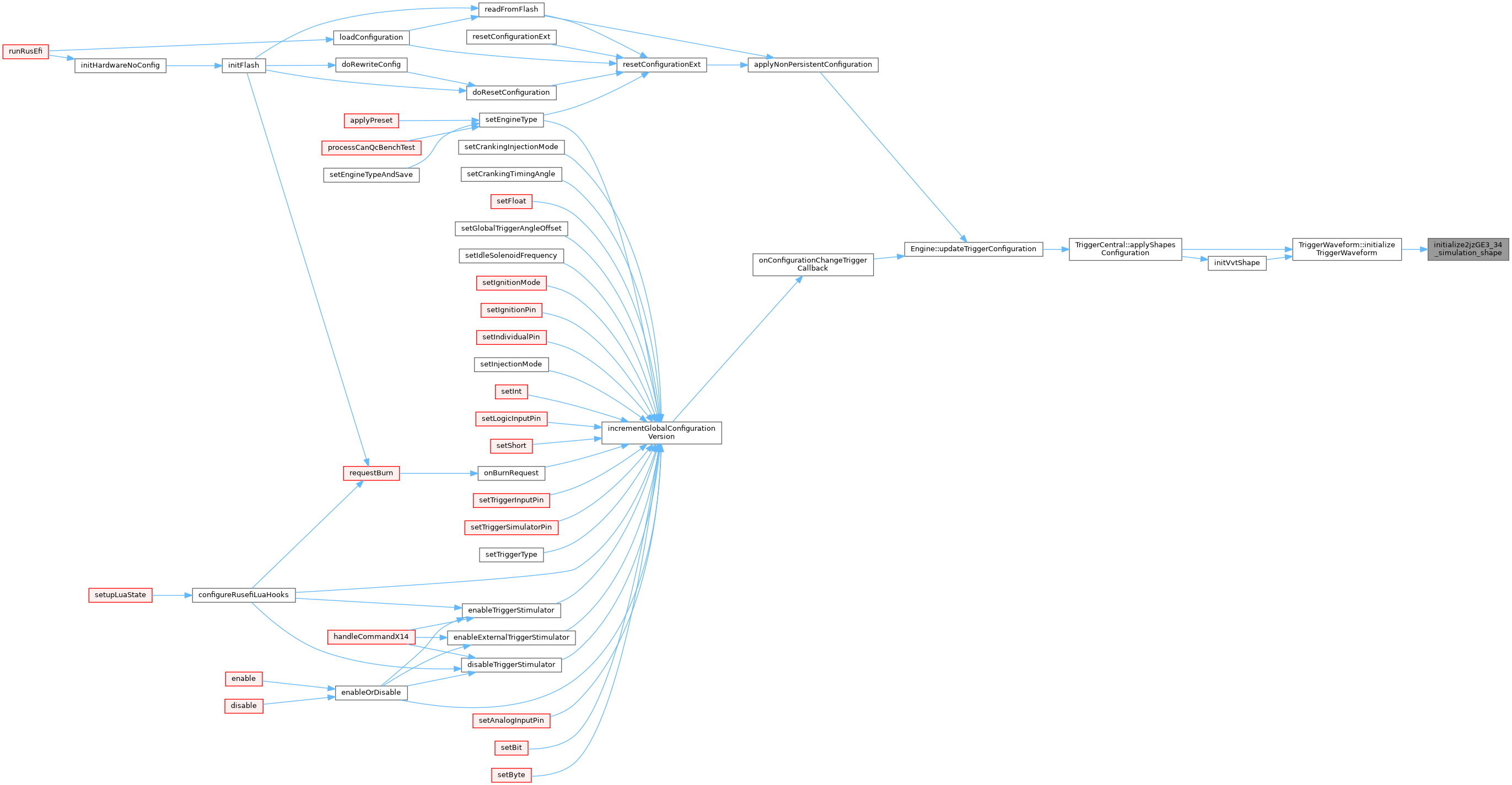

Here is the caller graph for this function:

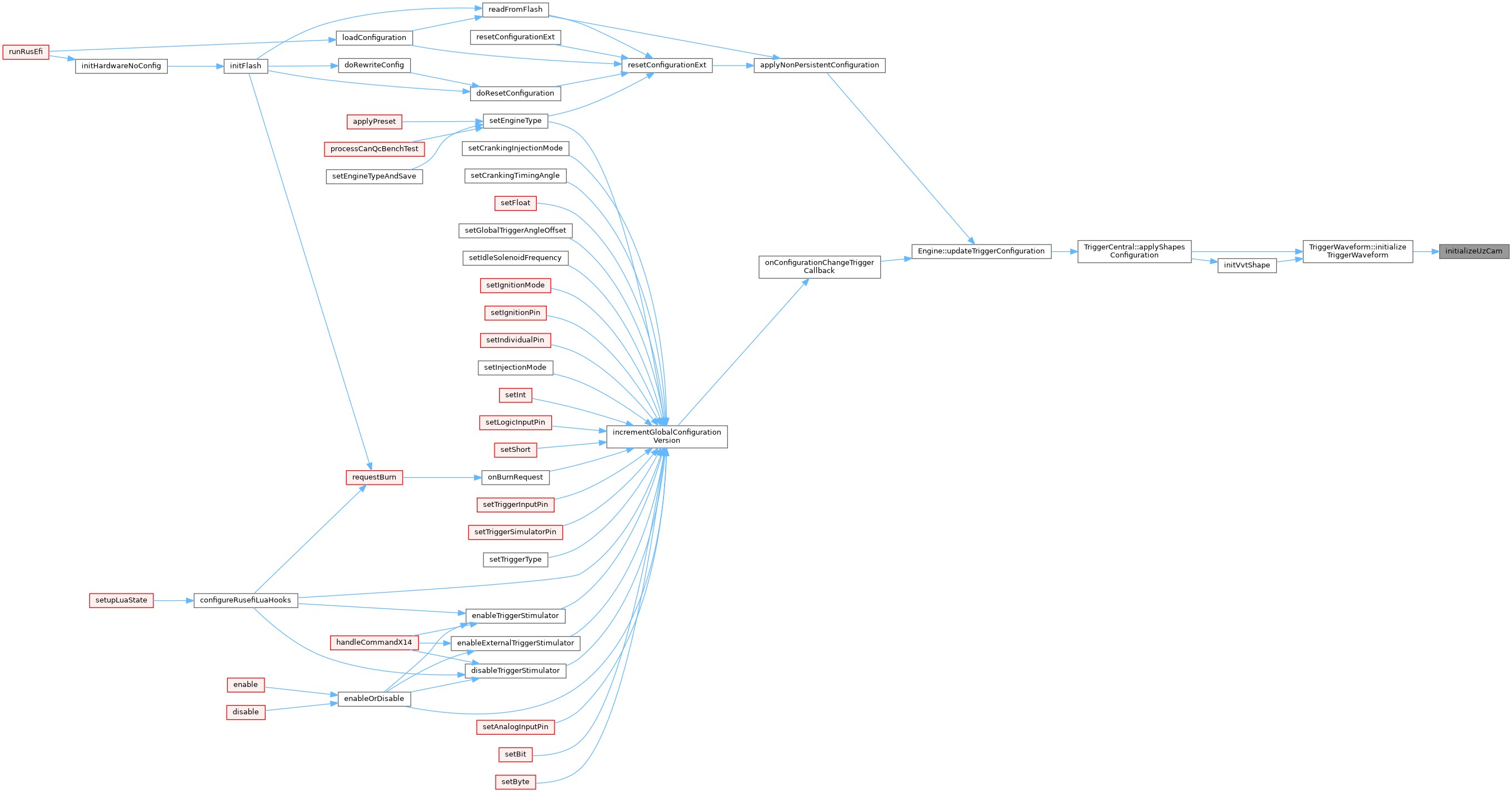

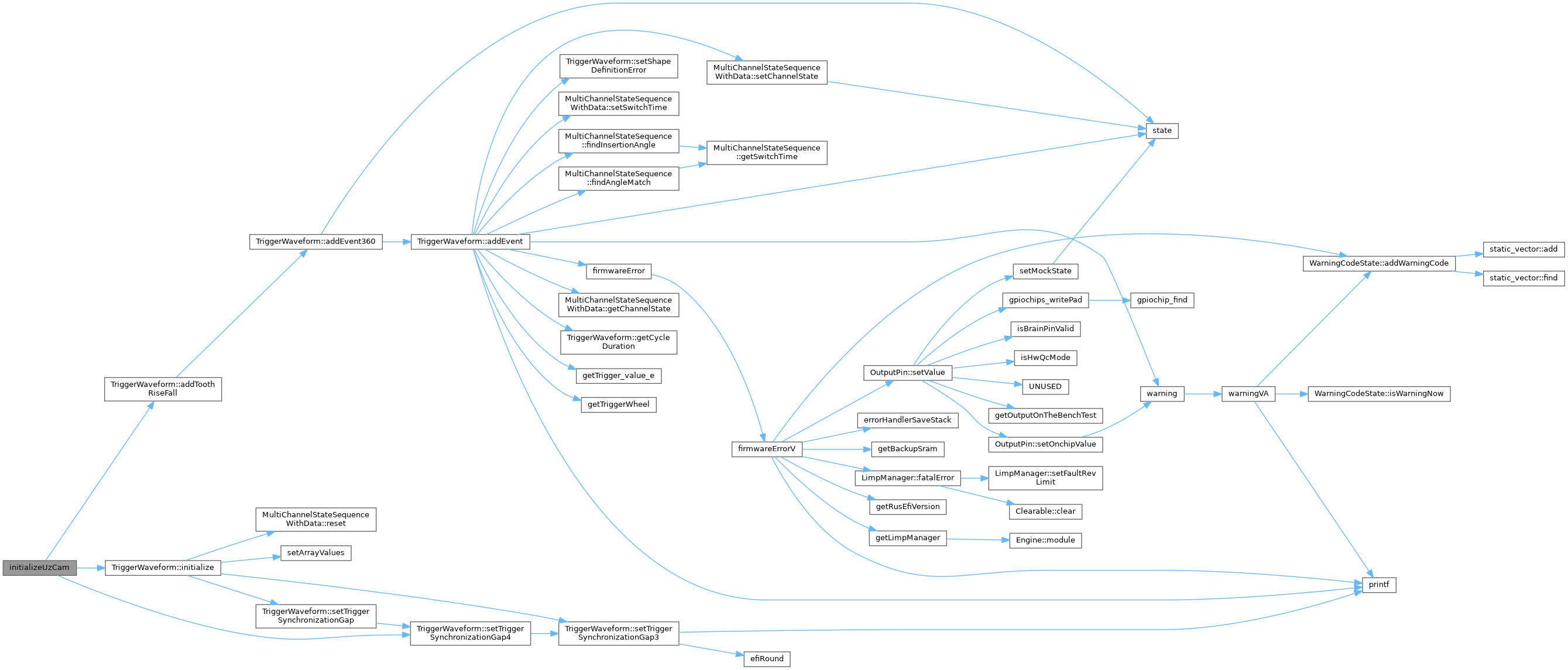

◆ initializeUzCam()

void initializeUzCam ( TriggerWaveform * s )

Definition at line 87 of file trigger_toyota.cpp.

                                         {
    s->initialize(FOUR_STROKE_CAM_SENSOR, SyncEdge::RiseOnly);
    int width = 5;

    s->addToothRiseFall(135, width);
    s->addToothRiseFall(270, width);
    s->addToothRiseFall(360, width);

    s->setTriggerSynchronizationGap4(/*gapIndex*/0, 1.5);
    s->setTriggerSynchronizationGap4(/*gapIndex*/1, 0.67);
}
