board_configuration_uaefi121.cpp File Reference

Functions
Gpio	getCommsLedPin ()
Gpio	getRunningLedPin ()
Gpio	getWarningLedPin ()
static void	setupDefaultSensorInputs ()
static void	uaefi_121boardDefaultConfiguration ()
int	getBoardMetaDcOutputsCount ()
int	getBoardMetaOutputsCount ()
int	getBoardMetaLowSideOutputsCount ()
Gpio *	getBoardMetaOutputs ()
void	setup_custom_board_overrides ()

Variables
static Gpio	OUTPUTS []
static Gpio	SBC_OUTPUTS []

Function Documentation

getBoardMetaDcOutputsCount()

int getBoardMetaDcOutputsCount

(

)

Definition at line 76 of file board_configuration_uaefi121.cpp.

                                 {
    return 2;
}

getBoardMetaLowSideOutputsCount()

int getBoardMetaLowSideOutputsCount

(

)

Definition at line 126 of file board_configuration_uaefi121.cpp.

                                      {
    if (engineConfiguration->engineType == engine_type_e::GM_SBC) {
        return getBoardMetaOutputsCount() - 3;
    }
    return getBoardMetaOutputsCount() - 1 - 6;
}

Here is the call graph for this function:

getBoardMetaOutputs()

Gpio * getBoardMetaOutputs

(

)

Definition at line 133 of file board_configuration_uaefi121.cpp.

                            {
    if (engineConfiguration->engineType == engine_type_e::GM_SBC) {
        return SBC_OUTPUTS;
    }
    return OUTPUTS;
}

getBoardMetaOutputsCount()

int getBoardMetaOutputsCount

(

)

Definition at line 119 of file board_configuration_uaefi121.cpp.

                               {
    if (engineConfiguration->engineType == engine_type_e::GM_SBC) {
        return efi::size(SBC_OUTPUTS);
    }
    return efi::size(OUTPUTS);
}

Referenced by getBoardMetaLowSideOutputsCount().

Here is the caller graph for this function:

getCommsLedPin()

Gpio getCommsLedPin

(

)

See https://rusefi.com/s/uaefi121

Author

Andrey Belomutskiy, (c) 2012-2023

Definition at line 13 of file board_configuration_uaefi121.cpp.

                      {
    return Gpio::MM100_LED3_BLUE;
}

getRunningLedPin()

Gpio getRunningLedPin

(

)

Definition at line 17 of file board_configuration_uaefi121.cpp.

                        {
    // this one is used to drive tach pin 43
    return Gpio::Unassigned;
}

getWarningLedPin()

Gpio getWarningLedPin

(

)

Definition at line 22 of file board_configuration_uaefi121.cpp.

                        {
    return Gpio::MM100_LED4_YELLOW;
}

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 140 of file board_configuration_uaefi121.cpp.

                                    {
    custom_board_DefaultConfiguration = uaefi_121boardDefaultConfiguration;
    custom_board_ConfigOverrides = setMegaUaefiBoardConfigOverrides;
}

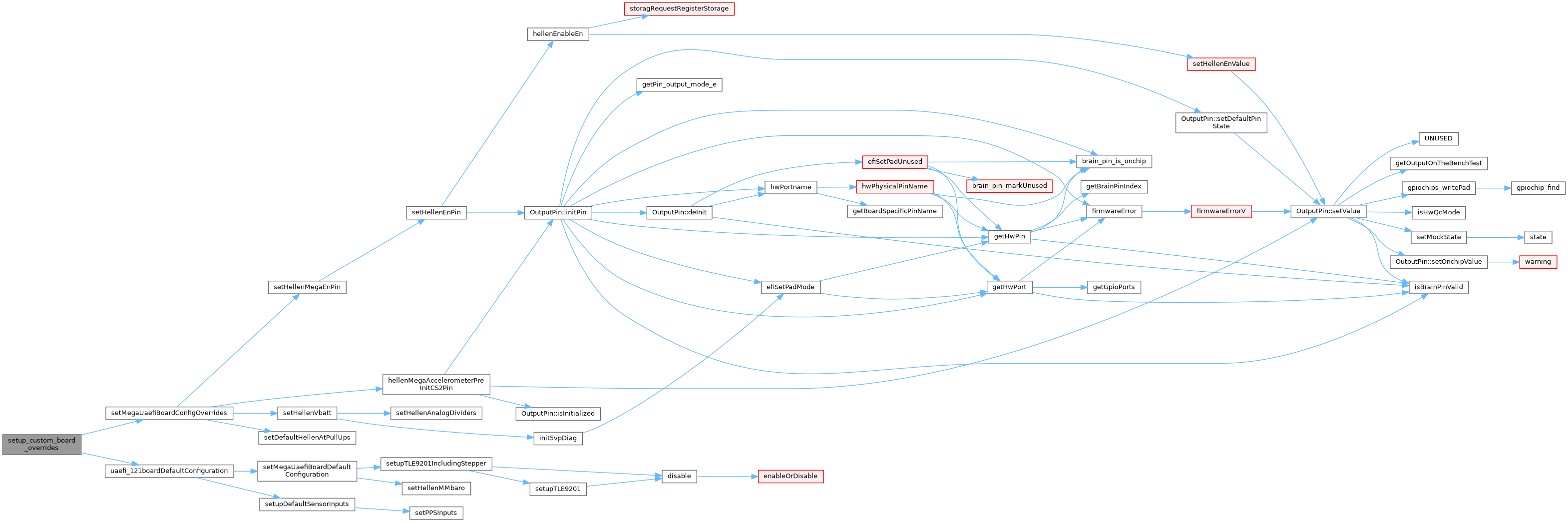

Here is the call graph for this function:

setupDefaultSensorInputs()

static void setupDefaultSensorInputs ( )

static

Definition at line 26 of file board_configuration_uaefi121.cpp.

                                       {
    engineConfiguration->tps1_1AdcChannel = MM100_IN_TPS_ANALOG;
    engineConfiguration->tps1_2AdcChannel = MM100_IN_AUX1_ANALOG;
    engineConfiguration->map.sensor.hwChannel = MM100_IN_MAP1_ANALOG;

    setPPSInputs(MM100_IN_PPS_ANALOG, MM100_IN_AUX2_ANALOG);

    engineConfiguration->clt.adcChannel = MM100_IN_CLT_ANALOG;
    engineConfiguration->iat.adcChannel = MM100_IN_IAT_ANALOG;

    engineConfiguration->triggerInputPins[0] = Gpio::MM100_UART8_TX; // VR2 max9924 is the safer default
    engineConfiguration->camInputs[0] = Gpio::MM100_IN_D2; // HALL2
    engineConfiguration->camInputs[1] = Gpio::MM100_IN_D3; // HALL3

  engineConfiguration->vehicleSpeedSensorInputPin = Gpio::MM100_IN_D1;  // HALL1
}

Referenced by uaefi_121boardDefaultConfiguration().

Here is the call graph for this function:

Here is the caller graph for this function:

uaefi_121boardDefaultConfiguration()

static void uaefi_121boardDefaultConfiguration ( )

static

Definition at line 43 of file board_configuration_uaefi121.cpp.

                                                 {
  setMegaUaefiBoardDefaultConfiguration();

  engineConfiguration->mainRelayPin = Gpio::MM100_IGN7;
  engineConfiguration->fuelPumpPin = Gpio::MM100_IGN8;

  engineConfiguration->enableSoftwareKnock = true;

    // SPI3 for on-board EGT
    engineConfiguration->is_enabled_spi_3 = true;
    // MOSI not needed, we have one-way communication here
    engineConfiguration->spi3misoPin = Gpio::C11;
    engineConfiguration->spi3sckPin = Gpio::C10;
    engineConfiguration->max31855_cs[0] = Gpio::A15;
    engineConfiguration->max31855spiDevice = SPI_DEVICE_3;

        engineConfiguration->injectionPins[0] = Gpio::MM100_MEGA_UAEFI_INJ1;
    engineConfiguration->injectionPins[1] = Gpio::MM100_INJ2;
    engineConfiguration->injectionPins[2] = Gpio::MM100_INJ3;
    engineConfiguration->injectionPins[3] = Gpio::MM100_INJ4;
    engineConfiguration->injectionPins[4] = Gpio::MM100_INJ5;
    engineConfiguration->injectionPins[5] = Gpio::MM100_INJ6;

    engineConfiguration->ignitionPins[0] = Gpio::MM100_IGN1;
    engineConfiguration->ignitionPins[1] = Gpio::MM100_IGN2;
    engineConfiguration->ignitionPins[2] = Gpio::MM100_IGN3;
    engineConfiguration->ignitionPins[3] = Gpio::MM100_IGN4;
    engineConfiguration->ignitionPins[4] = Gpio::MM100_IGN5;
    engineConfiguration->ignitionPins[5] = Gpio::MM100_IGN6;

    setupDefaultSensorInputs();
}

Referenced by setup_custom_board_overrides().

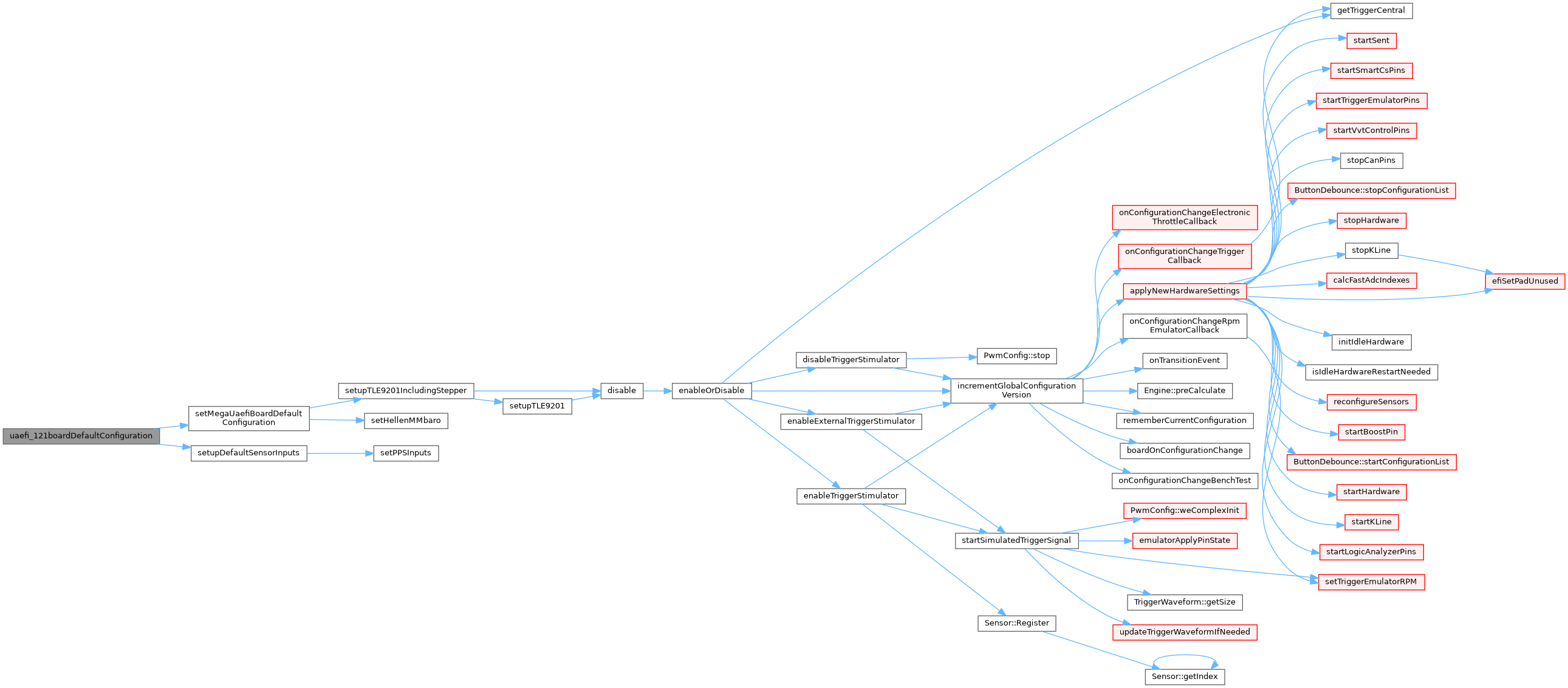

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

OUTPUTS

Gpio OUTPUTS[]

static

Initial value:

= {
    Gpio::MM100_MEGA_UAEFI_INJ1,
    Gpio::MM100_INJ2,
    Gpio::MM100_INJ3,
    Gpio::MM100_INJ4,
    Gpio::MM100_INJ5,
    Gpio::MM100_INJ6,
    Gpio::MM100_SPI2_CS,
    Gpio::MM100_MEGA_UAEFI_SPI2_SCK,
    Gpio::MM100_INJ7,
    Gpio::MM100_INJ8,
    Gpio::MM100_OUT_PWM1,
    Gpio::MM100_OUT_PWM2,
    Gpio::MM100_IGN7,
    Gpio::MM100_IGN8,
    Gpio::MM100_LED2_GREEN,
    Gpio::MM100_IGN1,
    Gpio::MM100_IGN2,
    Gpio::MM100_IGN3,
    Gpio::MM100_IGN4,
    Gpio::MM100_IGN5,
    Gpio::MM100_IGN6,
}

Definition at line 80 of file board_configuration_uaefi121.cpp.

                        {
    Gpio::MM100_MEGA_UAEFI_INJ1, // 44a INJ_1
    Gpio::MM100_INJ2, // 45a INJ_2
    Gpio::MM100_INJ3, // 46a INJ_3
    Gpio::MM100_INJ4, // 47a INJ_4
    Gpio::MM100_INJ5, // 48a INJ_5
    Gpio::MM100_INJ6, // 49a INJ_6
    Gpio::MM100_SPI2_CS, // 50a INJ_7
    Gpio::MM100_MEGA_UAEFI_SPI2_SCK, // 51a INJ_8
    Gpio::MM100_INJ7, // 14a LS1
    Gpio::MM100_INJ8, // 15a LS2
    Gpio::MM100_OUT_PWM1, // 16a LS3
    Gpio::MM100_OUT_PWM2, // 88a LS4
    Gpio::MM100_IGN7, // 86a LS5_HOT
    Gpio::MM100_IGN8, // 87a LS6_HOT fuelpump
    Gpio::MM100_LED2_GREEN, // 43a High Side Output
    Gpio::MM100_IGN1, // Coil 1
    Gpio::MM100_IGN2, // Coil 2
    Gpio::MM100_IGN3, // Coil 3
    Gpio::MM100_IGN4, // Coil 4
    Gpio::MM100_IGN5, // Coil 5
    Gpio::MM100_IGN6, // Coil 6
};

Referenced by getBoardMetaOutputs(), and getBoardMetaOutputsCount().

SBC_OUTPUTS

Gpio SBC_OUTPUTS[]

static

Initial value:

= {
    Gpio::MM100_MEGA_UAEFI_INJ1,
    Gpio::MM100_INJ2,
    Gpio::MM100_INJ3,
    Gpio::MM100_INJ4,
    Gpio::MM100_INJ5,
    Gpio::MM100_INJ6,
    Gpio::MM100_SPI2_CS,
    Gpio::MM100_MEGA_UAEFI_SPI2_SCK,
  Gpio::MM100_IGN8,
    Gpio::MM100_IGN1,
    Gpio::MM100_IGN2,

}

Definition at line 104 of file board_configuration_uaefi121.cpp.

                            {
    Gpio::MM100_MEGA_UAEFI_INJ1, // 44a INJ_1
    Gpio::MM100_INJ2, // 45a INJ_2
    Gpio::MM100_INJ3, // 46a INJ_3
    Gpio::MM100_INJ4, // 47a INJ_4
    Gpio::MM100_INJ5, // 48a INJ_5
    Gpio::MM100_INJ6, // 49a INJ_6
    Gpio::MM100_SPI2_CS, // 50a INJ_7
    Gpio::MM100_MEGA_UAEFI_SPI2_SCK, // 51a INJ_8
  Gpio::MM100_IGN8, // 87a LS6_HOT fuelpump
    Gpio::MM100_IGN1, // Coil 1
    Gpio::MM100_IGN2, // Coil 2

};

Referenced by getBoardMetaOutputs(), and getBoardMetaOutputsCount().

Go to the source code of this file.
