engine_configuration.cpp File Reference

Detailed Description

Utility method related to the engine configuration data structure.

Date

Nov 22, 2013

Author

Andrey Belomutskiy, (c) 2012-2020

This file is part of rusEfi - see http://rusefi.com

rusEfi is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 3 of the License, or (at your option) any later version.

rusEfi is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program. If not, see http://www.gnu.org/licenses/.

Definition in file engine_configuration.cpp.

Functions
void	rememberCurrentConfiguration ()
static void	fillAfterString (char *string, int size)
static void	wipeStrings ()
void	onBurnRequest ()
PUBLIC_API_WEAK void	boardBeforeTuneDefaults ()
PUBLIC_API_WEAK void	boardOnConfigurationChange (engine_configuration_s *)
void	incrementGlobalConfigurationVersion (const char *msg)
void	setConstantDwell (floatms_t dwellMs)
	Sets the same dwell time across the whole getRpm() range set dwell X.
void	setFuelTablesLoadBin (float minValue, float maxValue)
void	setWholeIatCorrTimingTable (float value)
void	setWholeTimingTable (angle_t value)
void	prepareVoidConfiguration (engine_configuration_s *p_engineConfiguration)
void	setDefaultBasePins ()
void	setDefaultSdCardParameters ()
static void	setDefaultIdleSpeedTarget ()
void	setTargetRpmCurve (float rpm)
static void	setDefaultGppwmParameters ()
static void	setDefaultBoostOpenLoopParameters ()
static void	setDefaultEngineNoiseTable ()
static void	setDefaultCanSettings ()
static void	setDefaultScriptParameters ()
static void	setDefaultIdleOpenLoopParameters ()
static void	setDefaultEngineConfiguration ()
	Global default engine configuration This method sets the global engine configuration defaults. These default values are then overridden by engine-specific defaults and the settings are saved in flash memory.
void	loadConfiguration ()
void	resetConfigurationExt (configuration_callback_t boardCallback, engine_type_e engineType)
void	emptyCallbackWithConfiguration (engine_configuration_s *p_engineConfiguration)
void	resetConfigurationExt (engine_type_e engineType)
void	applyNonPersistentConfiguration ()
void	setCamOperationMode ()
void	setCrankOperationMode ()
void	commonFrankensoAnalogInputs ()
void	setBoardDefaultConfiguration ()
	Board-specific configuration defaults.
void	setBoardConfigOverrides ()
PUBLIC_API_WEAK int	hackHellenBoardId (int detectedId)
PUBLIC_API_WEAK void	onBoardStandBy ()
PUBLIC_API_WEAK_SOMETHING_WEIRD int	getBoardMetaOutputsCount ()
PUBLIC_API_WEAK int	getBoardMetaLowSideOutputsCount ()
PUBLIC_API_WEAK Gpio *	getBoardMetaOutputs ()
PUBLIC_API_WEAK int	getBoardMetaDcOutputsCount ()

Variables
std::optional< setup_custom_board_overrides_type >	custom_board_DefaultConfiguration
std::optional< setup_custom_board_overrides_type >	custom_board_ConfigOverrides
std::optional< setup_custom_board_config_type >	custom_board_OnConfigurationChange
static bool	hasRememberedConfiguration = false
engine_configuration_s &	activeConfiguration = reinterpret_cast<persistent_config_container_s*>(getFlashAddrFirstCopy())->persistentConfiguration.engineConfiguration
bool	isActiveConfigurationVoid = true
static engine_configuration_s	activeConfigurationLocalStorage

Function Documentation

applyNonPersistentConfiguration()

void applyNonPersistentConfiguration

(

)

Definition at line 698 of file engine_configuration.cpp.

                                       {
#if EFI_PROD_CODE
    efiAssertVoid(ObdCode::CUSTOM_APPLY_STACK, hasLotsOfRemainingStack(), "apply c");
    efiPrintf("applyNonPersistentConfiguration()");
#endif

#if EFI_ENGINE_CONTROL
    engine->updateTriggerConfiguration();
#endif // EFI_ENGINE_CONTROL
}

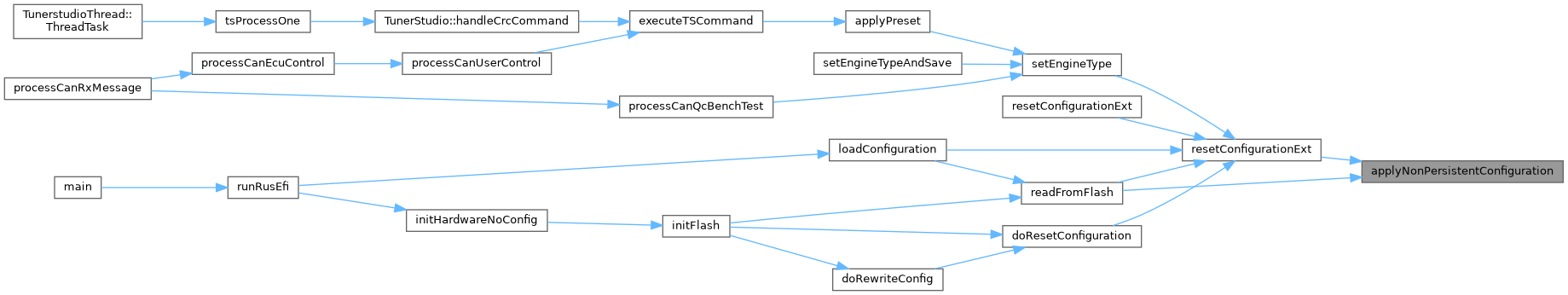

Referenced by readFromFlash(), and resetConfigurationExt().

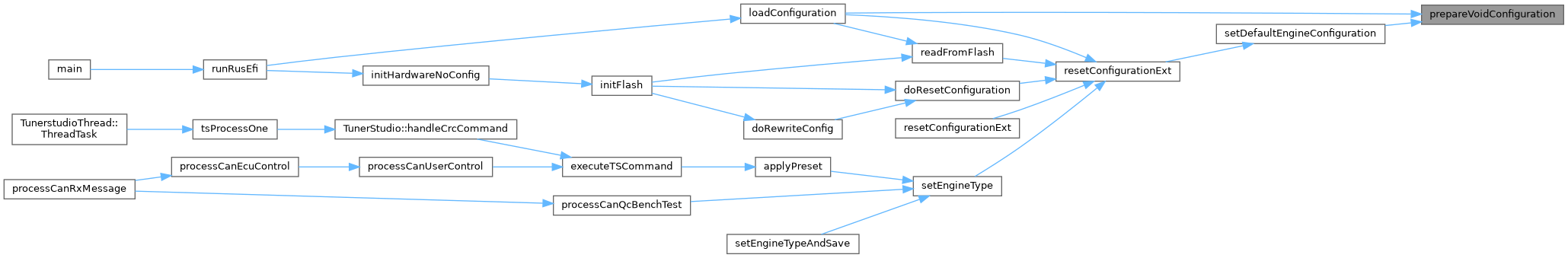

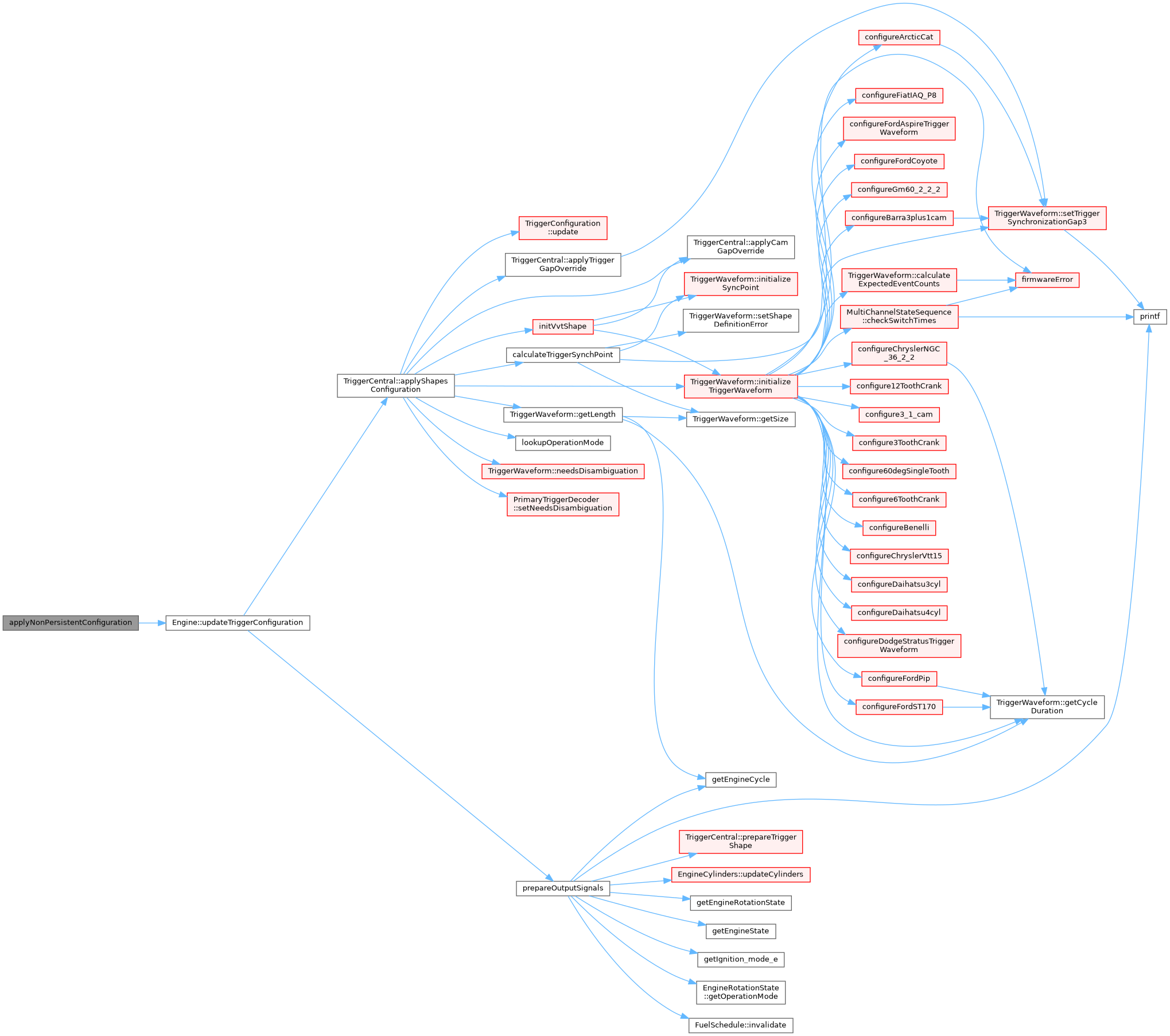

Here is the call graph for this function:

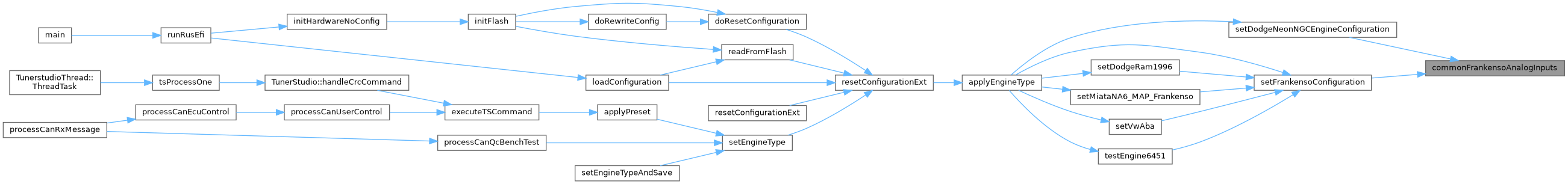

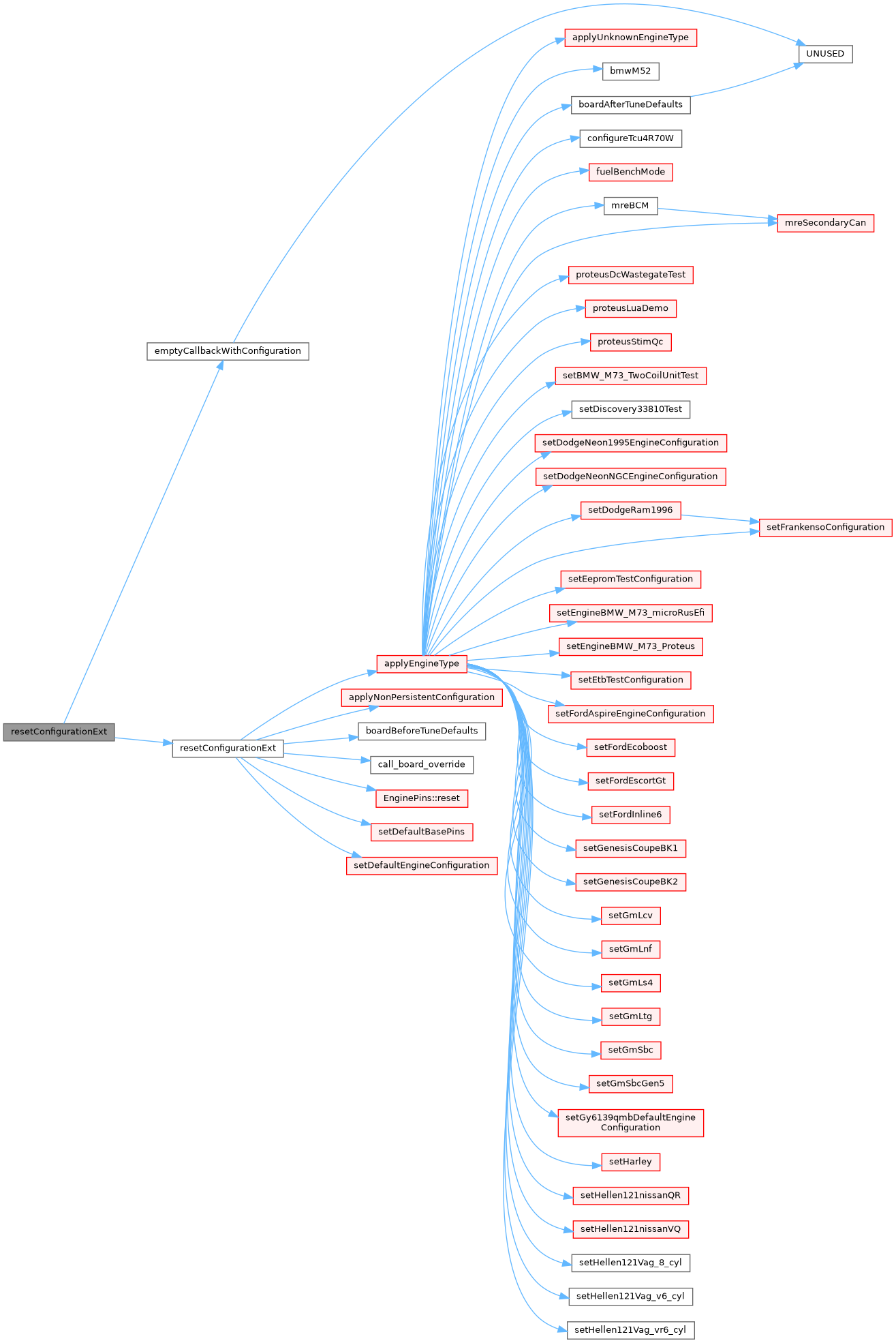

Here is the caller graph for this function:

boardBeforeTuneDefaults()

PUBLIC_API_WEAK void boardBeforeTuneDefaults

(

)

this hook is about https://github.com/rusefi/rusefi/wiki/Custom-Firmware and https://github.com/rusefi/rusefi/wiki/Canned-Tune-Process todo: why two hooks? is one already dead?

Definition at line 125 of file engine_configuration.cpp.

{ }

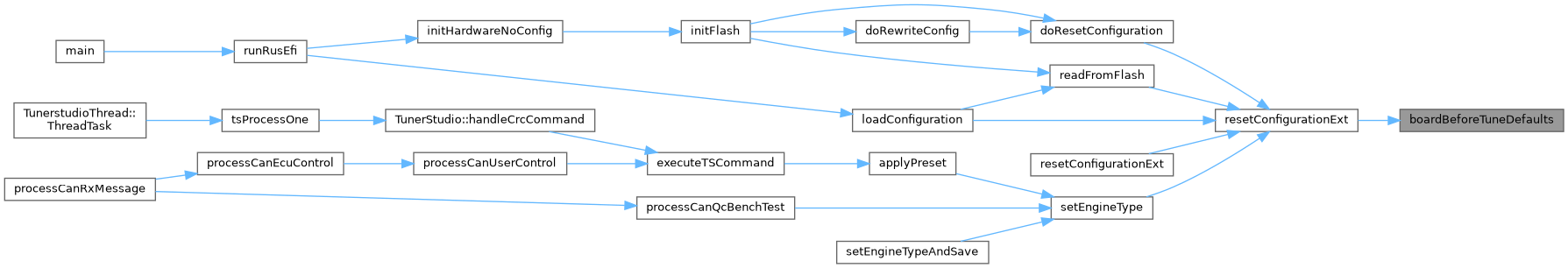

Referenced by resetConfigurationExt().

Here is the caller graph for this function:

boardOnConfigurationChange()

PUBLIC_API_WEAK void boardOnConfigurationChange

(

engine_configuration_s *

previousConfiguration

)

Definition at line 128 of file engine_configuration.cpp.

{ }

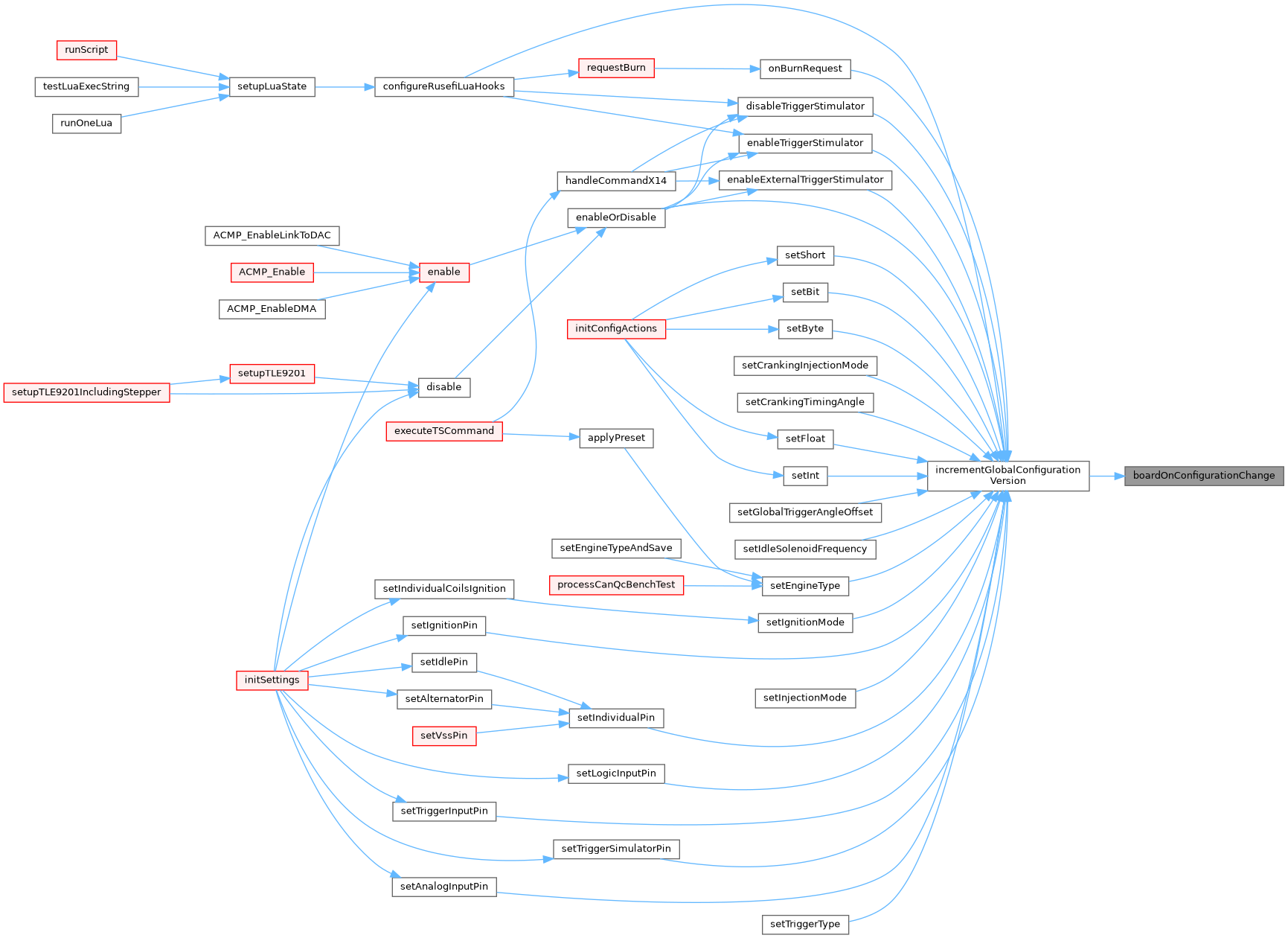

Referenced by incrementGlobalConfigurationVersion().

Here is the caller graph for this function:

commonFrankensoAnalogInputs()

void commonFrankensoAnalogInputs

(

)

VBatt

Definition at line 718 of file engine_configuration.cpp.

                                   {
    /**
     * VBatt
     */
    engineConfiguration->vbattAdcChannel = EFI_ADC_14;
}

Referenced by setDodgeNeonNGCEngineConfiguration(), and setFrankensoConfiguration().

Here is the caller graph for this function:

emptyCallbackWithConfiguration()

void emptyCallbackWithConfiguration

(

engine_configuration_s *

p_engineConfiguration

)

Definition at line 690 of file engine_configuration.cpp.

                                                                                    {
    UNUSED(p_engineConfiguration);
}

Referenced by resetConfigurationExt().

Here is the call graph for this function:

Here is the caller graph for this function:

fillAfterString()

static void fillAfterString ( char *  string, int  size  )

static

Definition at line 101 of file engine_configuration.cpp.

                                                    {
    // we have to reset bytes after \0 symbol in order to calculate correct tune CRC from MSQ file
    for (int i = std::strlen(string) + 1; i < size; i++) {
        string[i] = 0;
    }
}

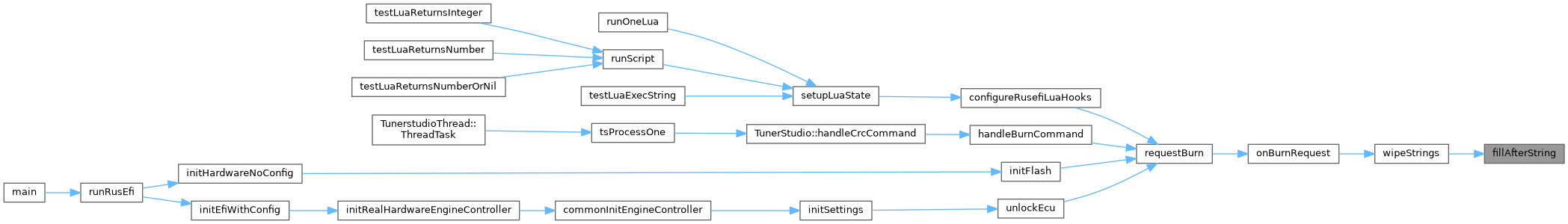

Referenced by wipeStrings().

Here is the caller graph for this function:

getBoardMetaDcOutputsCount()

PUBLIC_API_WEAK int getBoardMetaDcOutputsCount

(

)

Definition at line 740 of file engine_configuration.cpp.

{ return 0; }

getBoardMetaLowSideOutputsCount()

PUBLIC_API_WEAK int getBoardMetaLowSideOutputsCount

(

)

Definition at line 738 of file engine_configuration.cpp.

{ return getBoardMetaOutputsCount(); }

Here is the call graph for this function:

getBoardMetaOutputs()

PUBLIC_API_WEAK Gpio * getBoardMetaOutputs

(

)

Definition at line 739 of file engine_configuration.cpp.

{ return nullptr; }

getBoardMetaOutputsCount()

PUBLIC_API_WEAK_SOMETHING_WEIRD int getBoardMetaOutputsCount

(

)

Definition at line 736 of file engine_configuration.cpp.

{ return 0; }

Referenced by getBoardMetaLowSideOutputsCount().

Here is the caller graph for this function:

hackHellenBoardId()

PUBLIC_API_WEAK int hackHellenBoardId

(

int

detectedId

)

Definition at line 732 of file engine_configuration.cpp.

{ return detectedId; }

incrementGlobalConfigurationVersion()

void incrementGlobalConfigurationVersion

(

const char *

msg

)

this is the top-level method which should be called in case of any changes to engine configuration online tuning of most values in the maps does not count as configuration change, but 'Burn' command does

this method is NOT currently invoked on ECU start - actual user input has to happen! See 'preCalculate' or 'startHardware' which are invoked BOTH on start and configuration change

Definition at line 137 of file engine_configuration.cpp.

                                                           {
  onTransitionEvent(TransitionEvent::GlobalConfigurationVersion);
    assertStackVoid("increment", ObdCode::STACK_USAGE_MISC, EXPECTED_REMAINING_STACK);
    if (!hasRememberedConfiguration) {
        criticalError("too early to invoke incrementGlobalConfigurationVersion %s", msg);
    }
    engine->globalConfigurationVersion++;
#if EFI_DETAILED_LOGGING
    efiPrintf("set globalConfigurationVersion=%d", globalConfigurationVersion);
#endif /* EFI_DETAILED_LOGGING */

    applyNewHardwareSettings();

    boardOnConfigurationChange(&activeConfiguration);
    call_board_override(custom_board_OnConfigurationChange, &activeConfiguration);

    engine->preCalculate();

#if EFI_ELECTRONIC_THROTTLE_BODY
    onConfigurationChangeElectronicThrottleCallback(&activeConfiguration);
#endif /* EFI_ELECTRONIC_THROTTLE_BODY */

#if EFI_ENGINE_CONTROL && EFI_PROD_CODE
    onConfigurationChangeBenchTest();
#endif

#if EFI_SHAFT_POSITION_INPUT
    onConfigurationChangeTriggerCallback();
#endif /* EFI_SHAFT_POSITION_INPUT */
#if EFI_EMULATE_POSITION_SENSORS && ! EFI_UNIT_TEST
    onConfigurationChangeRpmEmulatorCallback(&activeConfiguration);
#endif /* EFI_EMULATE_POSITION_SENSORS */

    engine->engineModules.apply_all([](auto & m) {
            m.onConfigurationChange(&activeConfiguration);
        });
    rememberCurrentConfiguration();
}

Referenced by configureRusefiLuaHooks(), disableTriggerStimulator(), enableExternalTriggerStimulator(), enableOrDisable(), enableTriggerStimulator(), onBurnRequest(), setAnalogInputPin(), setBit(), setByte(), setCrankingInjectionMode(), setCrankingTimingAngle(), setEngineType(), setFloat(), setGlobalTriggerAngleOffset(), setIdleSolenoidFrequency(), setIgnitionMode(), setIgnitionPin(), setIndividualPin(), setInjectionMode(), setInt(), setLogicInputPin(), setShort(), setTriggerInputPin(), setTriggerSimulatorPin(), and setTriggerType().

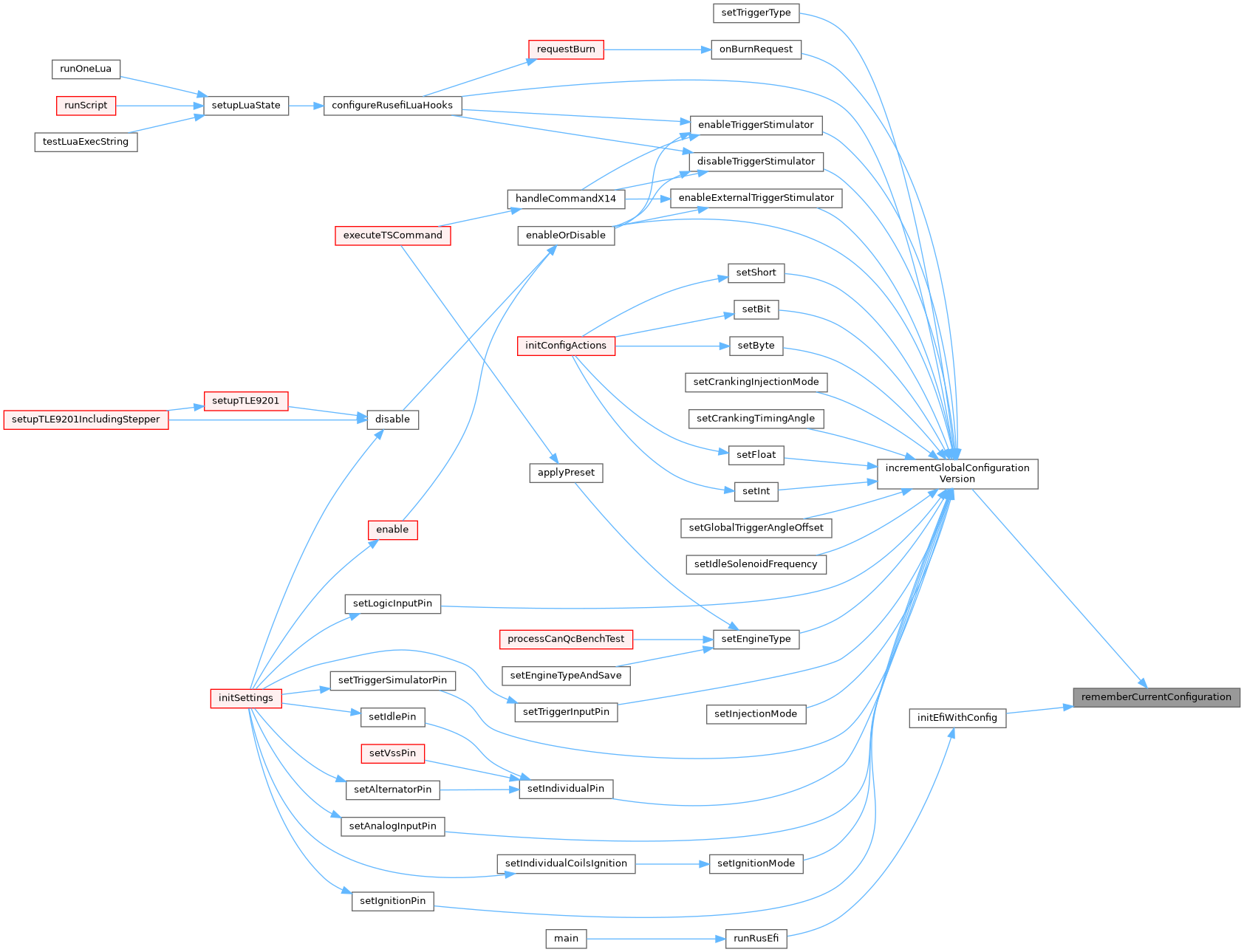

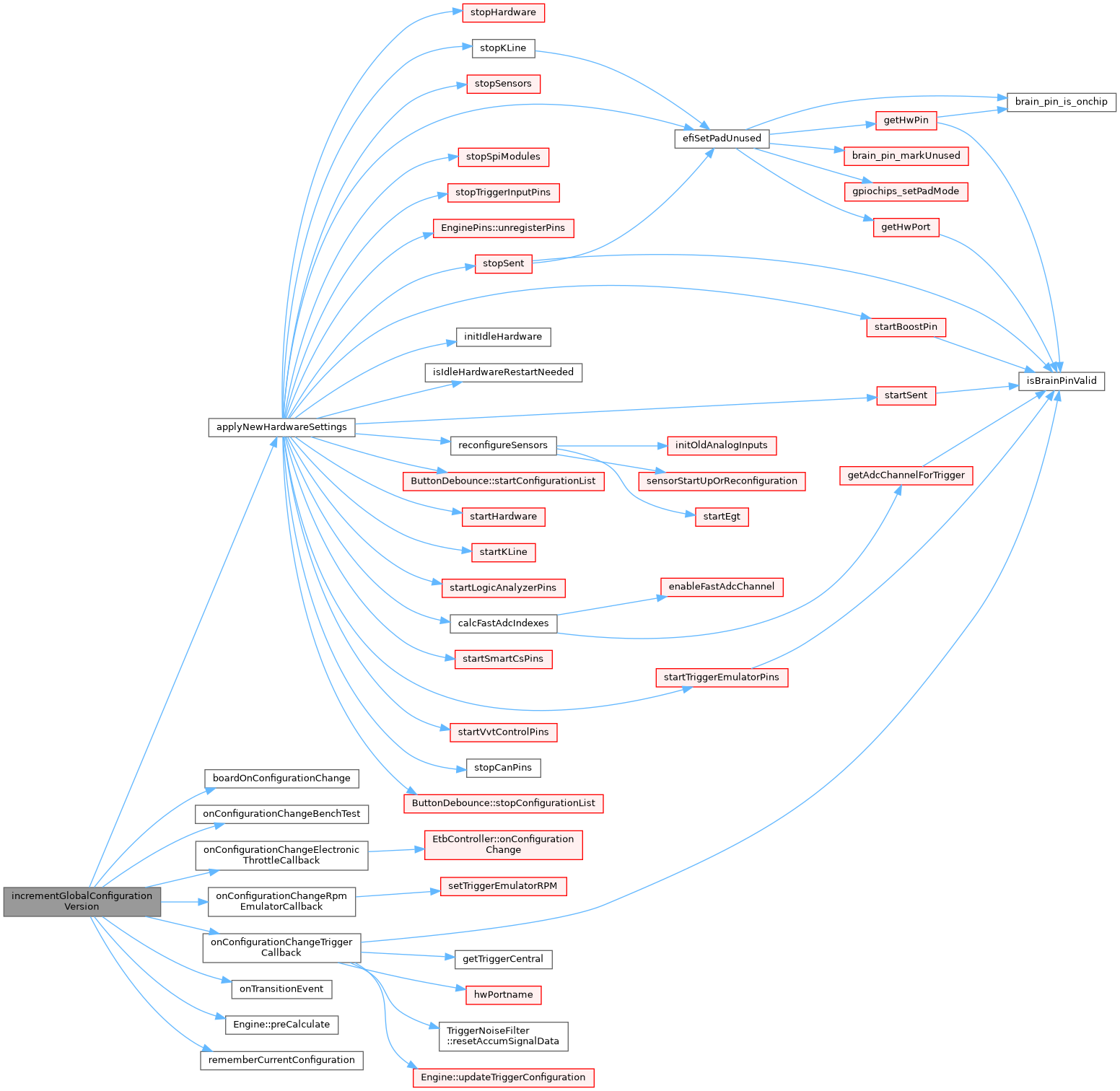

Here is the call graph for this function:

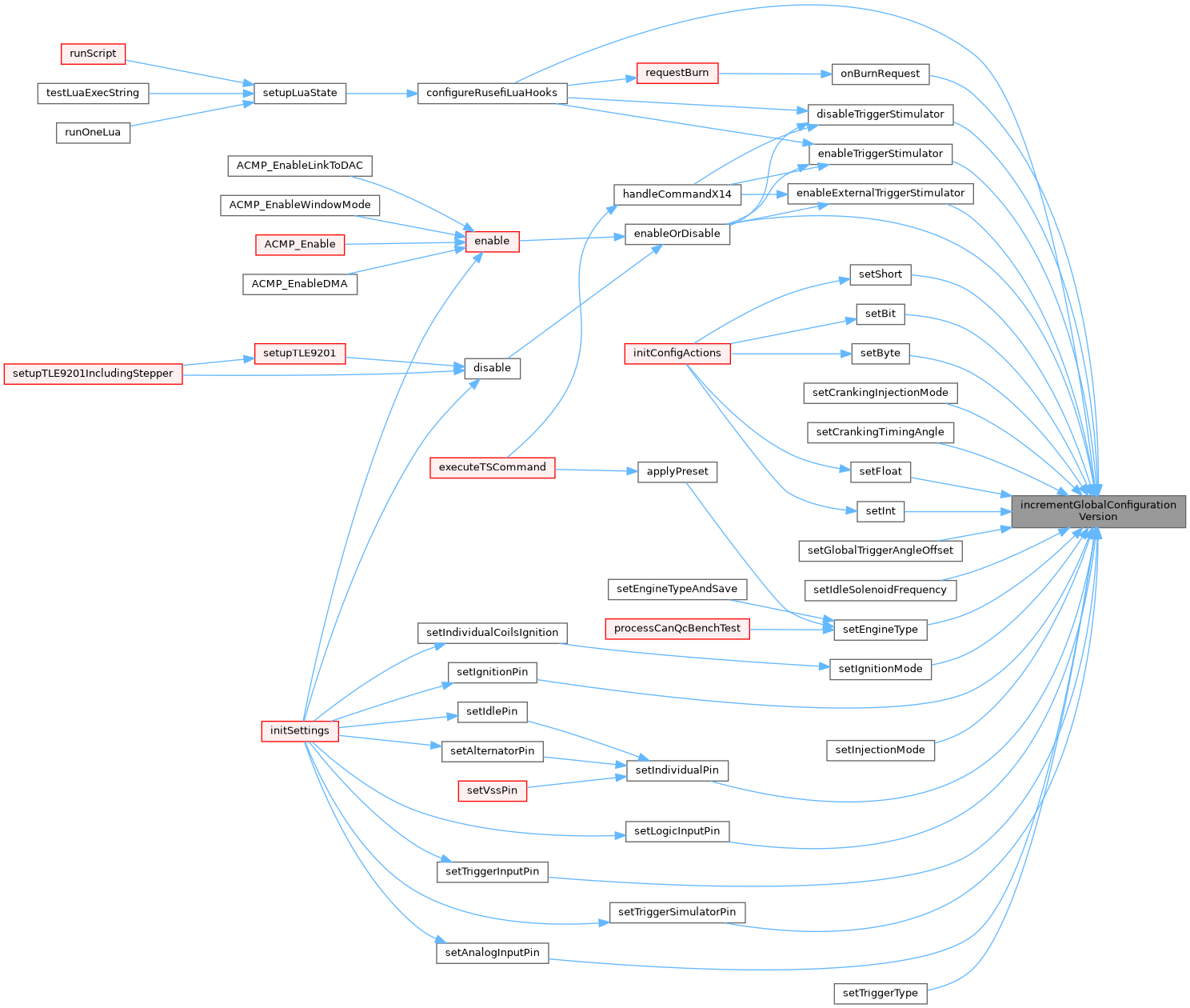

Here is the caller graph for this function:

loadConfiguration()

void loadConfiguration

(

)

Definition at line 632 of file engine_configuration.cpp.

                         {

#if ! EFI_ACTIVE_CONFIGURATION_IN_FLASH
    // Clear the active configuration so that registered output pins (etc) detect the change on startup and init properly
    prepareVoidConfiguration(&activeConfiguration);
#endif /* EFI_ACTIVE_CONFIGURATION_IN_FLASH */

    /* If board have any storage */
#if EFI_CONFIGURATION_STORAGE
    if (IGNORE_FLASH_CONFIGURATION) {
        engineConfiguration->engineType = DEFAULT_ENGINE_TYPE;
        resetConfigurationExt(engineConfiguration->engineType);
        writeToFlashNow();
    } else {
        // this call reads configuration from flash memory or sets default configuration
        // if flash state does not look right.
        readFromFlash();
    }
#else
    // This board doesn't load configuration, initialize the default
    engineConfiguration->engineType = DEFAULT_ENGINE_TYPE;
    resetConfigurationExt(engineConfiguration->engineType);
#endif /* EFI_CONFIGURATION_STORAGE */

    // Force any board configuration options that humans shouldn't be able to change
    call_board_override(custom_board_ConfigOverrides);
}

Referenced by runRusEfi().

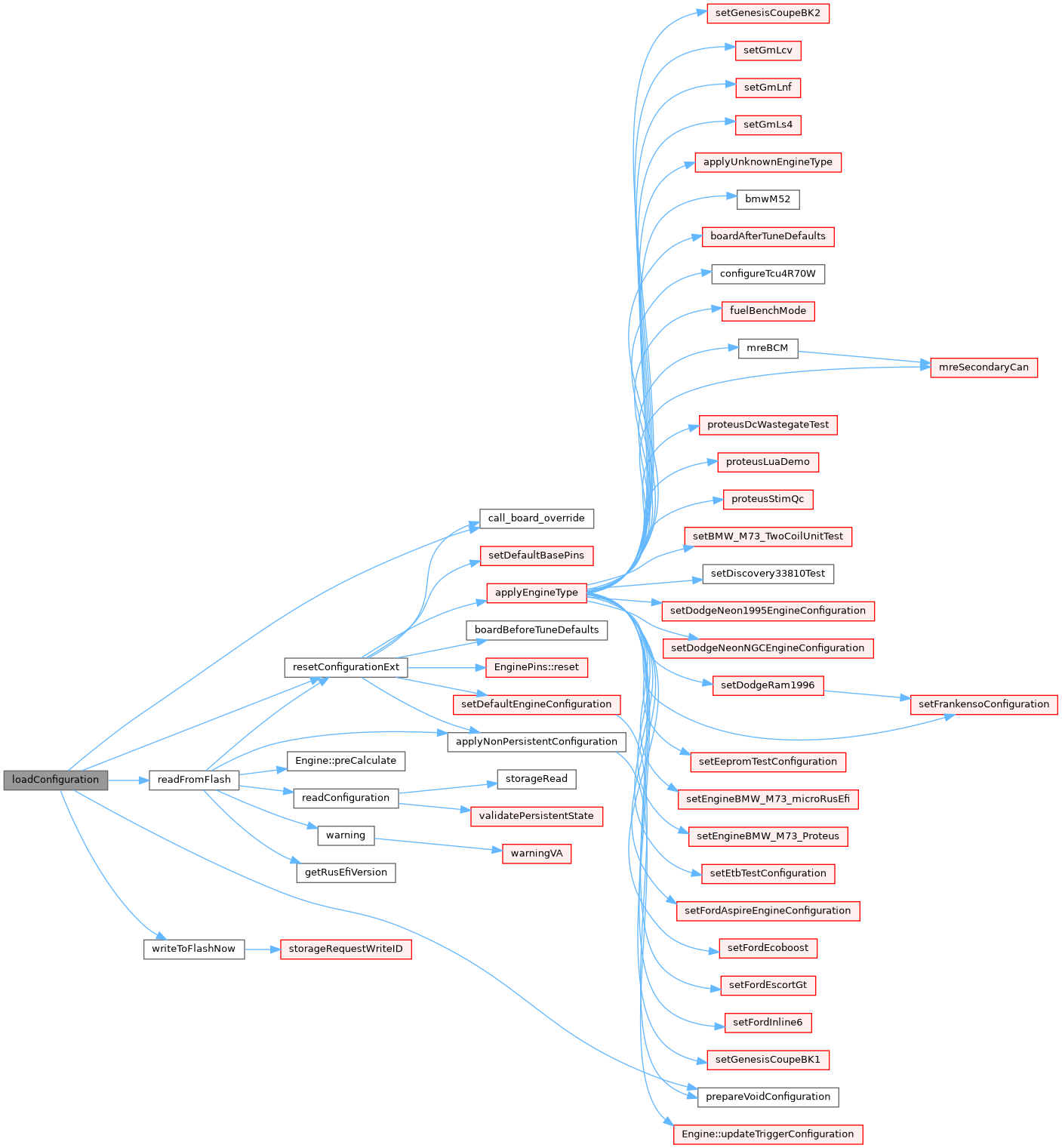

Here is the call graph for this function:

Here is the caller graph for this function:

onBoardStandBy()

PUBLIC_API_WEAK void onBoardStandBy

(

)

Definition at line 734 of file engine_configuration.cpp.

{ }

onBurnRequest()

void onBurnRequest

(

)

Definition at line 114 of file engine_configuration.cpp.

                     {
  onTransitionEvent(TransitionEvent::BurnRequest);
    wipeStrings();

    incrementGlobalConfigurationVersion("burn");
}

Referenced by requestBurn().

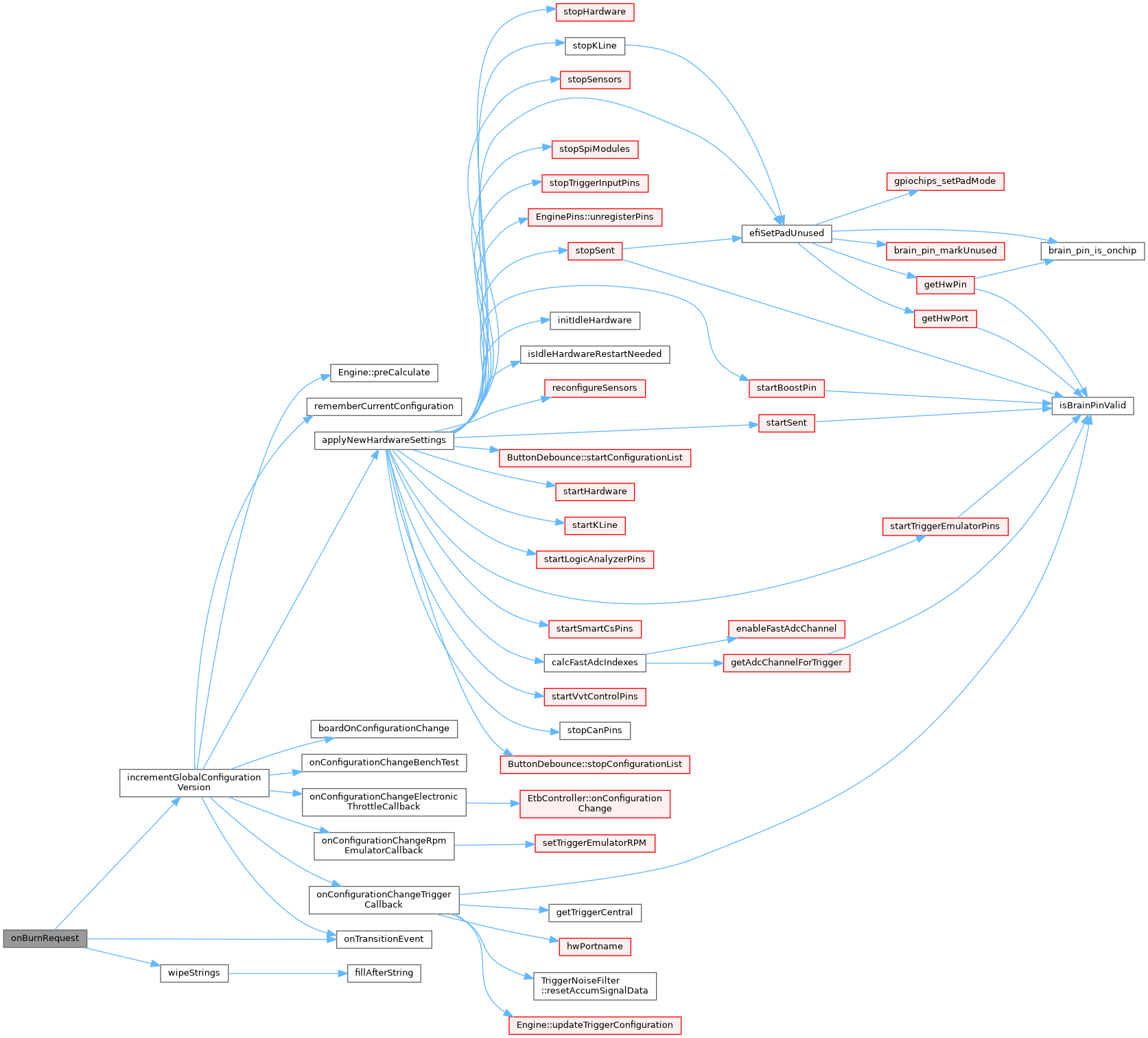

Here is the call graph for this function:

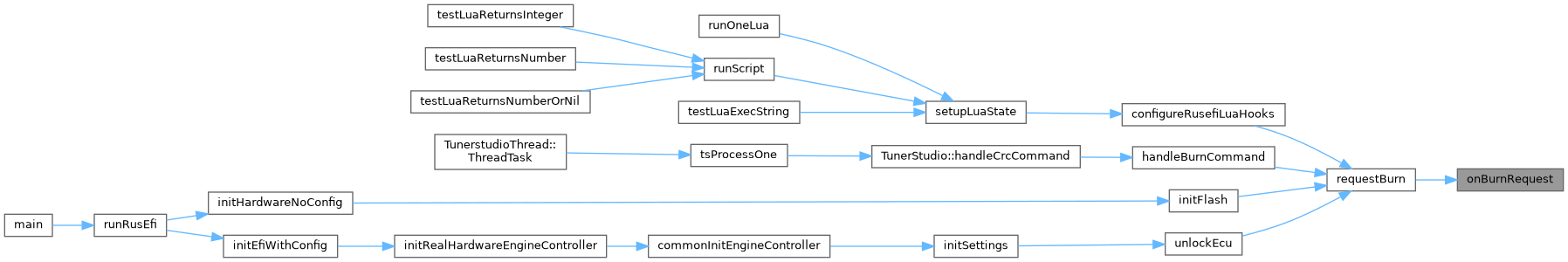

Here is the caller graph for this function:

prepareVoidConfiguration()

void prepareVoidConfiguration

(

engine_configuration_s *

p_engineConfiguration

)

Definition at line 226 of file engine_configuration.cpp.

                                                                             {
    criticalAssertVoid(p_engineConfiguration != nullptr, "ec NULL");
    efi::clear(p_engineConfiguration);

    p_engineConfiguration->clutchDownPinMode = PI_PULLUP;
    p_engineConfiguration->clutchUpPinMode = PI_PULLUP;
    p_engineConfiguration->brakePedalPinMode = PI_PULLUP;
}

Referenced by loadConfiguration(), and setDefaultEngineConfiguration().

Here is the caller graph for this function:

rememberCurrentConfiguration()

void rememberCurrentConfiguration

(

)

Definition at line 92 of file engine_configuration.cpp.

                                    {
#if ! EFI_ACTIVE_CONFIGURATION_IN_FLASH
    memcpy(&activeConfiguration, engineConfiguration, sizeof(engine_configuration_s));
#else
    isActiveConfigurationVoid = false;
#endif /* EFI_ACTIVE_CONFIGURATION_IN_FLASH */
    hasRememberedConfiguration = true;
}

Referenced by incrementGlobalConfigurationVersion(), and initEfiWithConfig().

Here is the caller graph for this function:

resetConfigurationExt() [1/2]

void resetConfigurationExt	(	configuration_callback_t	boardCallback,
		engine_type_e	engineType
	)

boardCallback is invoked after configuration reset but before specific engineType configuration

Let's apply global defaults first

custom board engine defaults. Yes, this overlaps with (older) engine_type_e approach.

Definition at line 660 of file engine_configuration.cpp.

                                                                                             {
    enginePins.reset(); // that's mostly important for functional tests
    /**
     * Let's apply global defaults first
     */
    setDefaultEngineConfiguration();

    /**
     * custom board engine defaults. Yes, this overlaps with (older) engine_type_e approach.
     */
    boardBeforeTuneDefaults();

    // set initial pin groups
    setDefaultBasePins();

    if (boardCallback != nullptr) {
        boardCallback(engineConfiguration);
    }

#if EFI_PROD_CODE
    // call board-specific configuration setup, if needed (for custom boards only)
    call_board_override(custom_board_DefaultConfiguration);
    call_board_override(custom_board_ConfigOverrides);
#endif // EFI_PROD_CODE

    engineConfiguration->engineType = engineType;
    applyEngineType(engineType);
    applyNonPersistentConfiguration();
}

Referenced by doResetConfiguration(), loadConfiguration(), readFromFlash(), resetConfigurationExt(), and setEngineType().

Here is the call graph for this function:

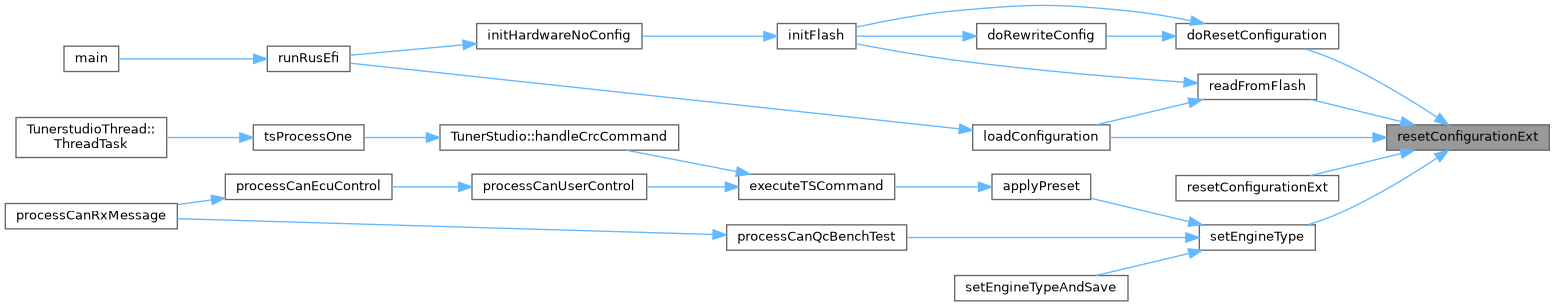

Here is the caller graph for this function:

resetConfigurationExt() [2/2]

void resetConfigurationExt

(

engine_type_e

engineType

)

Definition at line 694 of file engine_configuration.cpp.

                                                     {
    resetConfigurationExt(&emptyCallbackWithConfiguration, engineType);
}

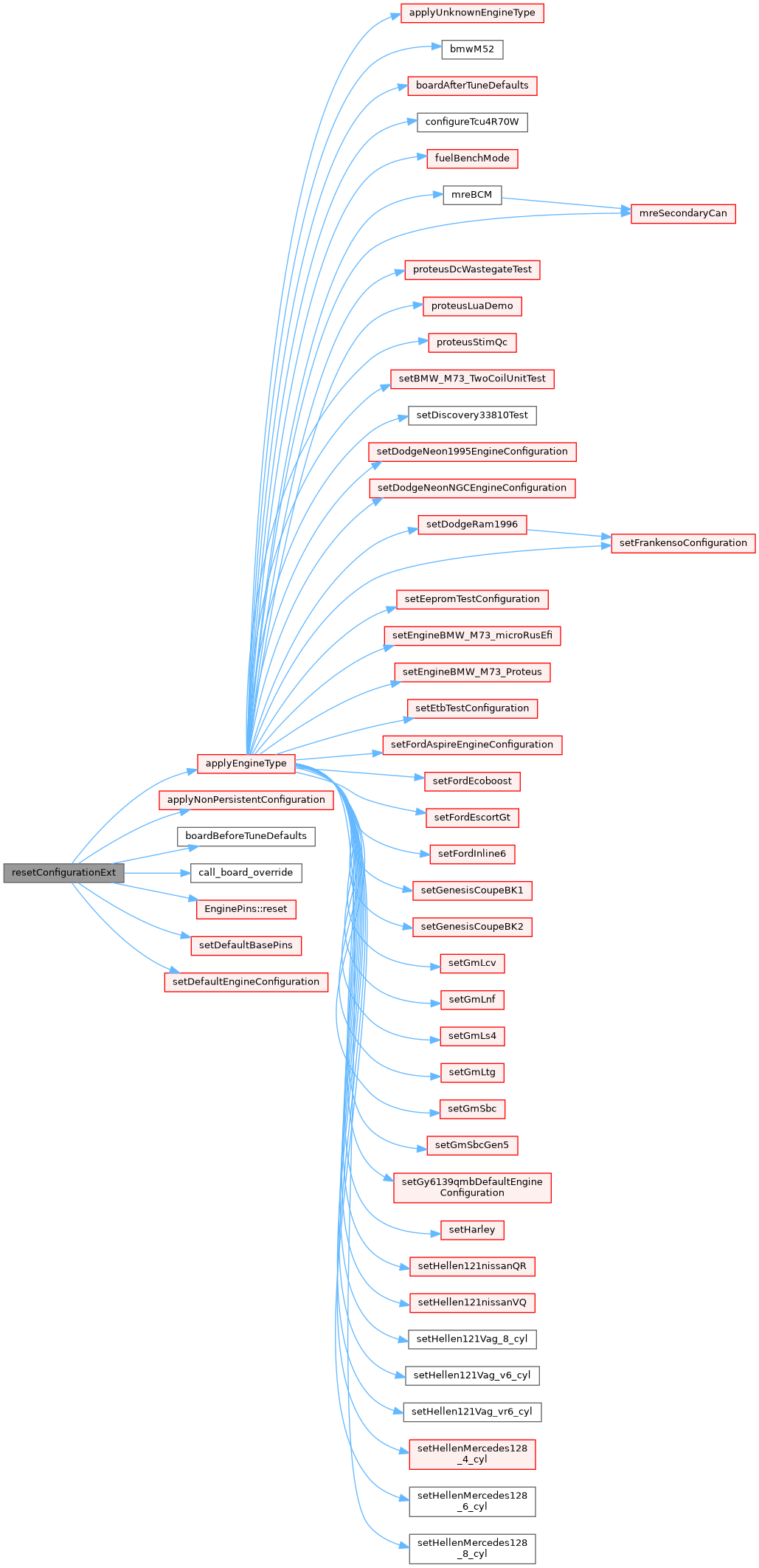

Here is the call graph for this function:

setBoardConfigOverrides()

void setBoardConfigOverrides

(

)

Definition at line 728 of file engine_configuration.cpp.

                               {
  // time to force migration to custom_board_ConfigOverrides
}

setBoardDefaultConfiguration()

void setBoardDefaultConfiguration

(

)

Board-specific configuration defaults.

Definition at line 725 of file engine_configuration.cpp.

                                    {
  // custom_board_DefaultConfiguration
}

setCamOperationMode()

void setCamOperationMode

(

)

Definition at line 709 of file engine_configuration.cpp.

                           {
    engineConfiguration->skippedWheelOnCam = true;
}

Referenced by setFordInline6(), setSubaruEG33Defaults(), and setTestCamEngineConfiguration().

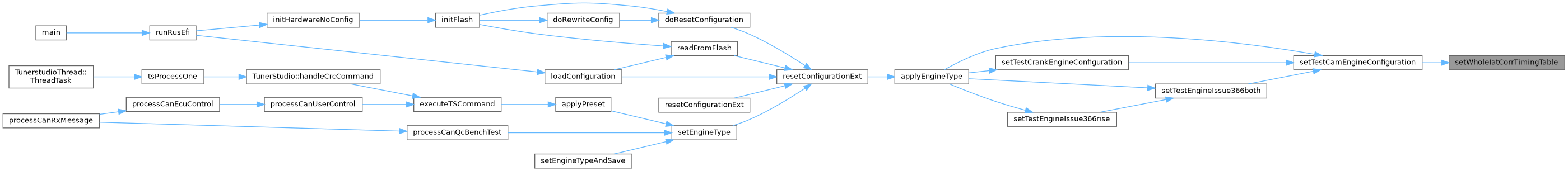

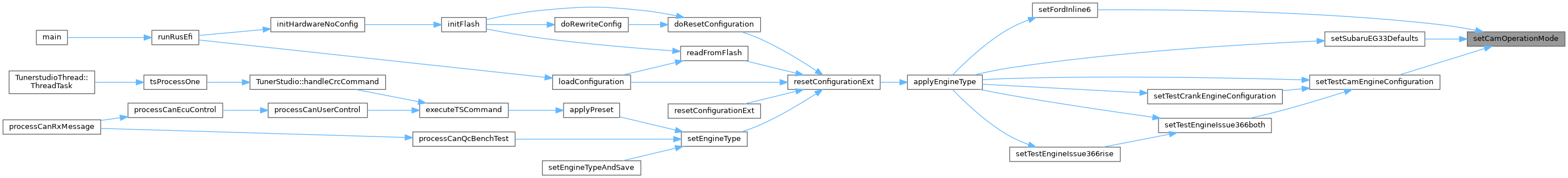

Here is the caller graph for this function:

setConstantDwell()

void setConstantDwell

(

floatms_t

dwellMs

)

Sets the same dwell time across the whole getRpm() range set dwell X.

Definition at line 180 of file engine_configuration.cpp.

                                         {
    for (int i = 0; i < DWELL_CURVE_SIZE; i++) {
        config->sparkDwellRpmBins[i] = 1000 * i;
    }
    setArrayValues(config->sparkDwellValues, dwellMs);
}

Referenced by setDefaultIgnition(), setFordInline6(), setTestCamEngineConfiguration(), and setValue().

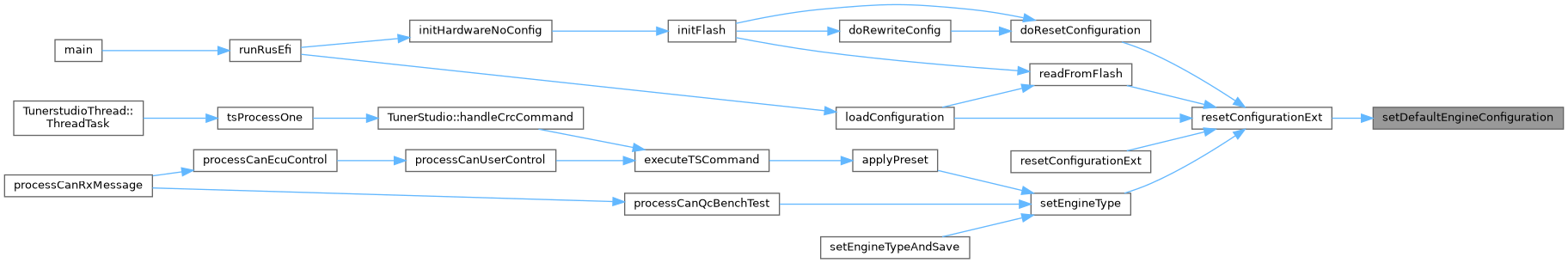

Here is the call graph for this function:

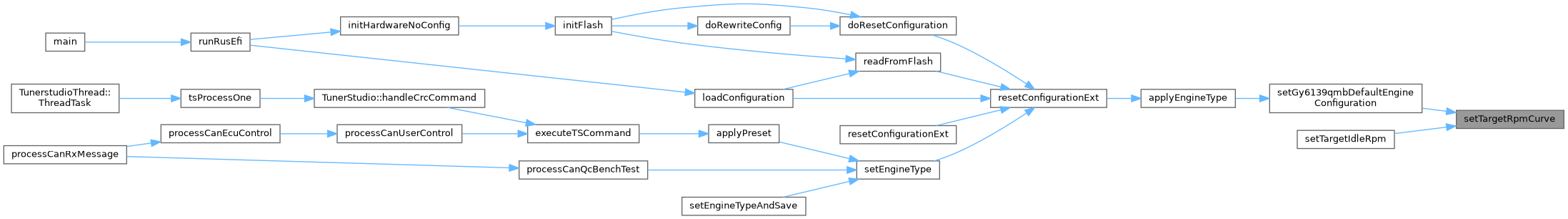

Here is the caller graph for this function:

setCrankOperationMode()

void setCrankOperationMode

(

)

Definition at line 713 of file engine_configuration.cpp.

                             {
    // this is related to 'setDefaultBaseEngine' having 'skippedWheelOnCam = true' which is a weird fact by itself
    engineConfiguration->skippedWheelOnCam = false;
}

Referenced by commonPassatB6(), cypressBoardDefaultConfiguration(), hellen112_17_boardDefaultConfiguration(), hellen121_nissan_boardDefaultConfiguration(), hellen88_boardDefaultConfiguration(), hellen_honda_k_boardDefaultConfiguration(), m73engine(), setEtbTestConfiguration(), setGy6139qmbDefaultEngineConfiguration(), setTestCrankEngineConfiguration(), setTestVVTEngineConfiguration(), setToyota_2jz_vics(), setVwAba(), super_uaefi_boardDefaultConfiguration(), and uaefi_boardDefaultConfiguration().

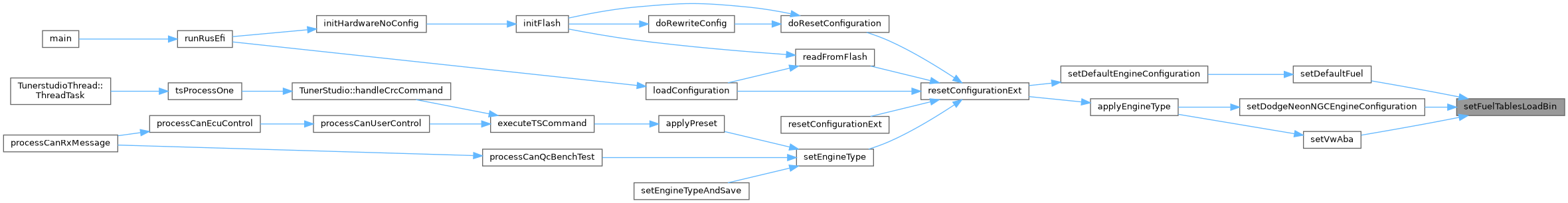

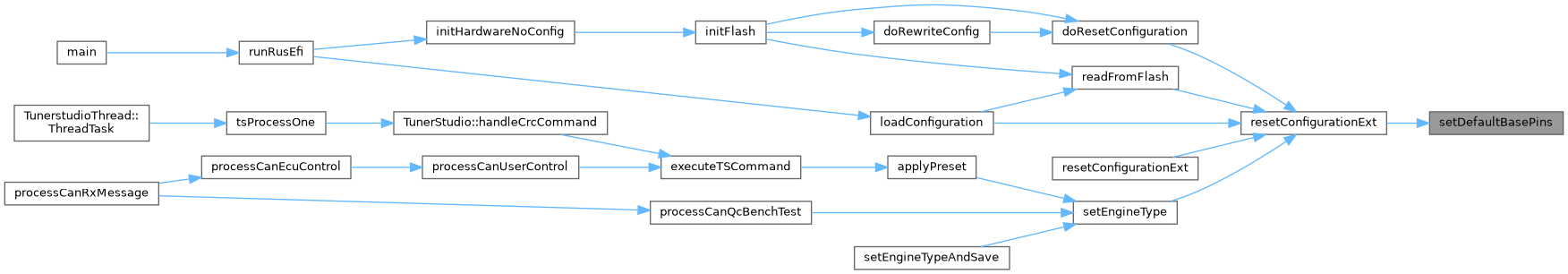

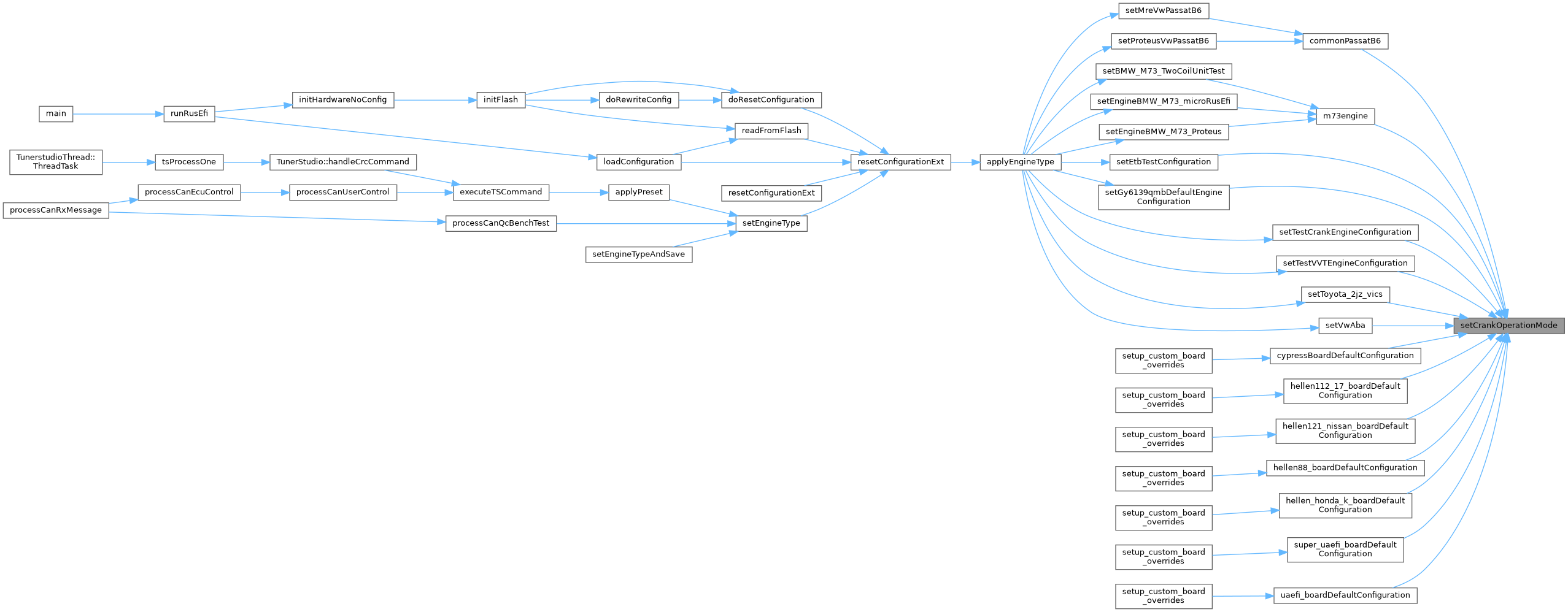

Here is the caller graph for this function:

setDefaultBasePins()

void setDefaultBasePins

(

)

Definition at line 235 of file engine_configuration.cpp.

                          {
#if EFI_PROD_CODE
    // call overrided board-specific serial configuration setup, if needed (for custom boards only)
    // needed also by bootloader code
    setPinConfigurationOverrides();
#endif /* EFI_PROD_CODE */

    // set UART pads configuration based on the board
// needed also by bootloader code
#ifdef TS_SECONDARY_UxART_PORT
    engineConfiguration->binarySerialTxPin = Gpio::C10;
    engineConfiguration->binarySerialRxPin = Gpio::C11;
#endif // TS_SECONDARY_UxART_PORT

    engineConfiguration->tunerStudioSerialSpeed = TS_DEFAULT_SPEED;
    engineConfiguration->uartConsoleSerialSpeed = 115200;
}

Referenced by resetConfigurationExt().

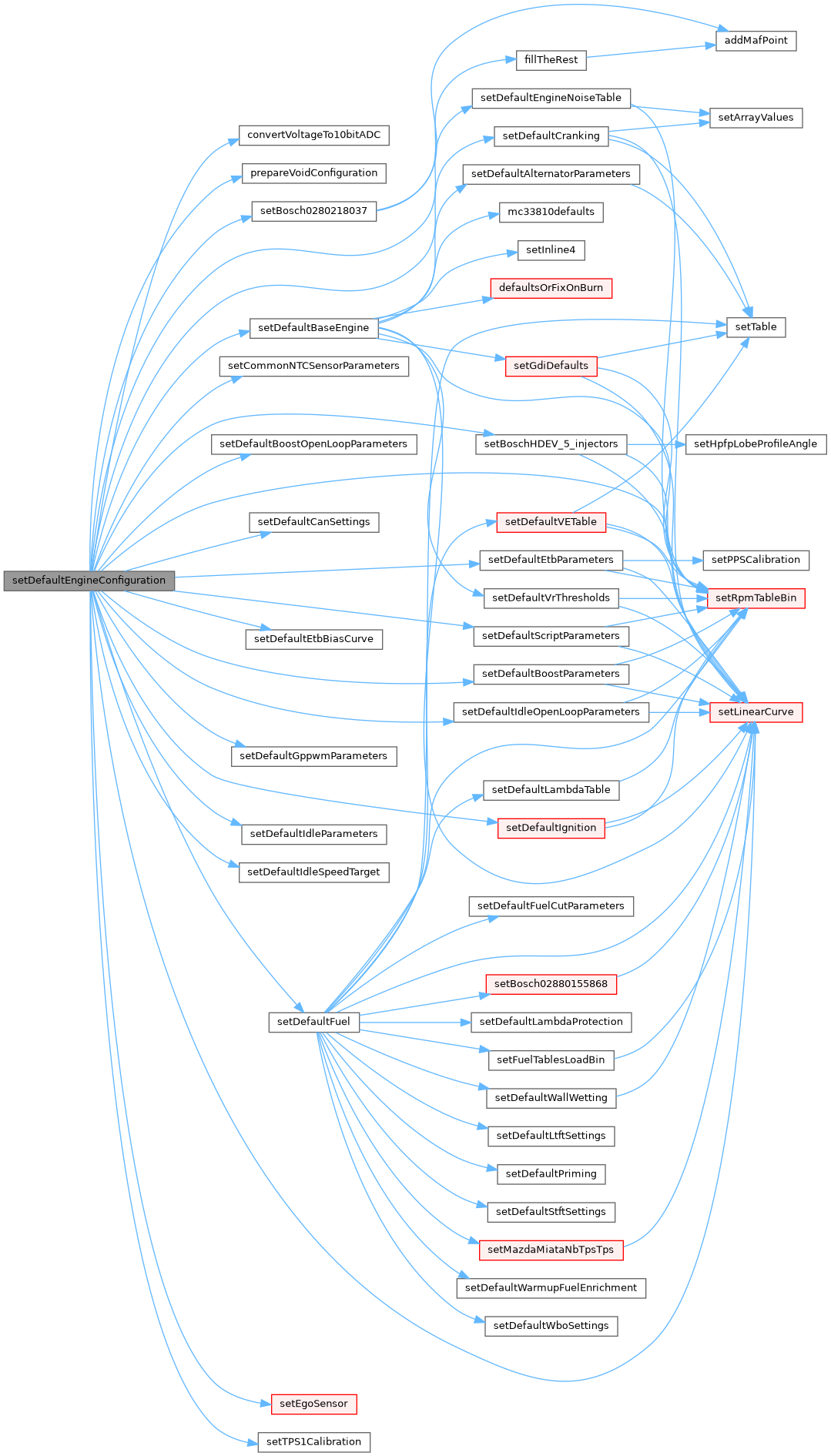

Here is the call graph for this function:

Here is the caller graph for this function:

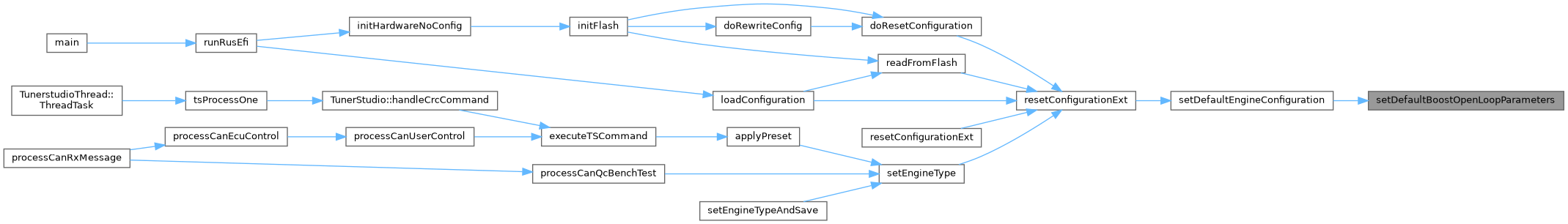

setDefaultBoostOpenLoopParameters()

static void setDefaultBoostOpenLoopParameters ( )

static

Definition at line 313 of file engine_configuration.cpp.

                                                {
    engineConfiguration->boostOpenLoopYAxis = GPPWM_Tps;
}

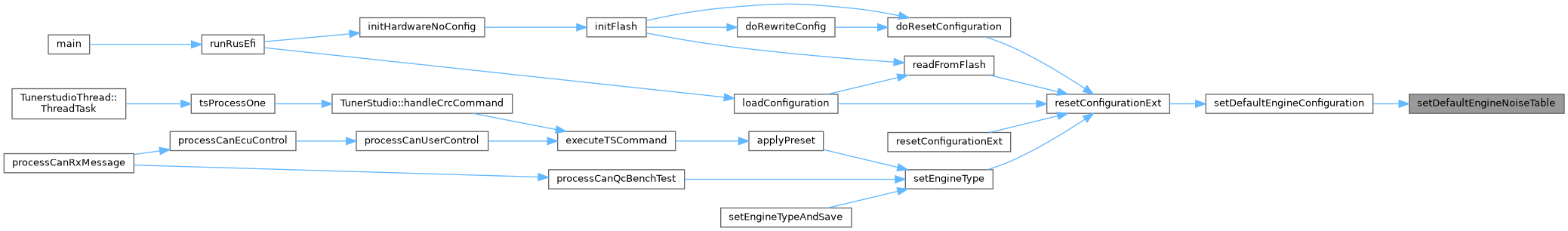

Referenced by setDefaultEngineConfiguration().

Here is the caller graph for this function:

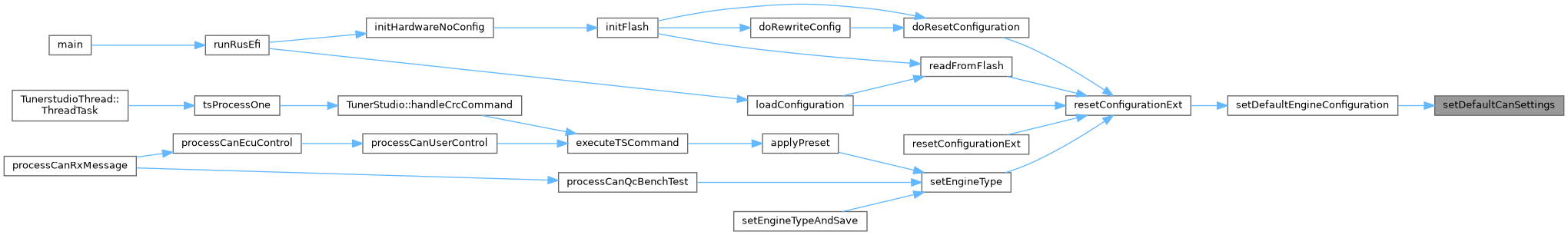

setDefaultCanSettings()

static void setDefaultCanSettings ( )

static

Definition at line 328 of file engine_configuration.cpp.

                                    {
    // OBD-II default rate is 500kbps
    engineConfiguration->canBaudRate = B500KBPS;
    engineConfiguration->can2BaudRate = B500KBPS;
#if (EFI_CAN_BUS_COUNT >= 3)
    engineConfiguration->can3BaudRate = B500KBPS;
#endif

    engineConfiguration->canSleepPeriodMs = 50;
    engineConfiguration->canReadEnabled = true;
    engineConfiguration->canWriteEnabled = true;
    engineConfiguration->canVssScaling = 1.0f;

    // Don't enable, but set default address
    engineConfiguration->verboseCanBaseAddress = CAN_DEFAULT_BASE;
}

Referenced by setDefaultEngineConfiguration().

Here is the caller graph for this function:

setDefaultEngineConfiguration()

static void setDefaultEngineConfiguration ( )

static

Global default engine configuration This method sets the global engine configuration defaults. These default values are then overridden by engine-specific defaults and the settings are saved in flash memory.

This method is invoked only when new configuration is needed:

• recently re-flashed chip
• flash version of configuration failed CRC check or appears to be older then FLASH_DATA_VERSION
• 'rewriteconfig' command
• 'set engine_type X' command

This method should only change the state of the configuration data structure but should NOT change the state of anything else.

This method should NOT be setting any default pinout

Idle control defaults

between variation between different sensor and weather and fabrication tolerance five percent looks like a safer default

Definition at line 380 of file engine_configuration.cpp.

                                            {
#if (! EFI_UNIT_TEST)
    efi::clear(persistentState.persistentConfiguration);
#endif
    prepareVoidConfiguration(engineConfiguration);

#if EFI_BOOST_CONTROL
    setDefaultBoostParameters();
#endif

  setDefaultCanSettings();

    engineConfiguration->sdCardLogFrequency = 50;

    setDefaultGppwmParameters();
    setDefaultBoostOpenLoopParameters();
    setDefaultScriptParameters();

#if EFI_ENGINE_CONTROL
    setDefaultBaseEngine();
    setDefaultFuel();
    setDefaultIgnition();
    setDefaultCranking();

    // VVT closed loop, totally random values!
    engineConfiguration->auxPid[0].pFactor = 2;
    engineConfiguration->auxPid[0].iFactor = 0.005;
    engineConfiguration->auxPid[0].dFactor = 0;
    engineConfiguration->auxPid[0].offset = 33;
    engineConfiguration->auxPid[0].minValue = 10;
    engineConfiguration->auxPid[0].maxValue = 90;

    engineConfiguration->vvtOutputFrequency = DEFAULT_SOLENOID_FREQUENCY; // VVT solenoid control

    engineConfiguration->isCylinderCleanupEnabled = true;

    engineConfiguration->auxPid[0].minValue = 10;
    engineConfiguration->auxPid[0].maxValue = 90;
    engineConfiguration->auxPid[1].minValue = 10;
    engineConfiguration->auxPid[1].maxValue = 90;

    engineConfiguration->turboSpeedSensorMultiplier = 1;

#if EFI_IDLE_CONTROL
    setDefaultIdleParameters();
#endif /* EFI_IDLE_CONTROL */

#if EFI_ELECTRONIC_THROTTLE_BODY
    setDefaultEtbParameters();
    setDefaultEtbBiasCurve();
#endif /* EFI_ELECTRONIC_THROTTLE_BODY */

    setBosch0280218037();

    engineConfiguration->mapMinBufferLength = 1;
    engineConfiguration->vvtActivationDelayMs = 6000;

    engineConfiguration->startCrankingDuration = 3;

    engineConfiguration->maxAcRpm = 5000;
    engineConfiguration->maxAcClt = 100;
    engineConfiguration->maxAcTps = 75;

    initTemperatureCurve(IAT_FUEL_CORRECTION_CURVE, 1);

    initBoostTemperatureCurve(config->cltBoostCorrBins, config->cltBoostCorr, 1.0f);
    initBoostTemperatureCurve(config->iatBoostCorrBins, config->iatBoostCorr, 1.0f);
    initBoostTemperatureCurve(config->cltBoostAdderBins, config->cltBoostAdder, 0.0f);
    initBoostTemperatureCurve(config->iatBoostAdderBins, config->iatBoostAdder, 0.0f);

    engineConfiguration->alternatorControl.minValue = 0;
    engineConfiguration->alternatorControl.maxValue = 90;

    setLinearCurve(config->scriptCurve1Bins, 0, 100, 1);
    setLinearCurve(config->scriptCurve1, 0, 100, 1);

    setLinearCurve(config->scriptCurve2Bins, 0, 100, /*precision*/1);
    setLinearCurve(config->scriptCurve2, 30, 170, 1);

    setLinearCurve(config->scriptCurve3Bins, 0, 100, 1);
    setLinearCurve(config->scriptCurve4Bins, 0, 100, 1);
    setLinearCurve(config->scriptCurve5Bins, 0, 100, 1);
    setLinearCurve(config->scriptCurve6Bins, 0, 100, 1);

    setLinearCurve(config->alsIgnRetardLoadBins, 2, 10, /*precision*/1);
    setRpmTableBin(config->alsIgnRetardrpmBins);
    setLinearCurve(config->alsFuelAdjustmentLoadBins, 2, 10, /*precision*/1);
    setRpmTableBin(config->alsFuelAdjustmentrpmBins);
    setLinearCurve(config->fuelLevelBins, 0, 5);


    setRpmTableBin(engineConfiguration->map.samplingAngleBins);
    setLinearCurve(engineConfiguration->map.samplingAngle, 100, 130, 1);
    setRpmTableBin(engineConfiguration->map.samplingWindowBins);
    setLinearCurve(engineConfiguration->map.samplingWindow, 50, 50, 1);

#if VVT_TABLE_SIZE == 8
    setLinearCurve(config->vvtTable1LoadBins, 20, 120, 10);
    setLinearCurve(config->vvtTable2LoadBins, 20, 120, 10);
#else
    setLinearCurve(config->vvtTable1LoadBins, 20, 120, 5);
    setLinearCurve(config->vvtTable2LoadBins, 20, 120, 5);
#endif
    setRpmTableBin(config->vvtTable1RpmBins);
    setRpmTableBin(config->vvtTable2RpmBins);

    setDefaultEngineNoiseTable();

    // is this same old setCommonNTCSensor?
    engineConfiguration->clt.config = {0, 23.8889, 48.8889, 9500, 2100, 1000, 1500};

    setCommonNTCSensorParameters(&engineConfiguration->iat);

    // wow unit tests have much cooler setDefaultLaunchParameters method
    engineConfiguration->launchRpm = 3000;
//  engineConfiguration->launchTimingRetard = 10;
    engineConfiguration->launchRpmWindow = 500;
    engineConfiguration->launchSpeedThreshold = 30;

    engineConfiguration->engineSnifferRpmThreshold = 2500;

    /**
     * Idle control defaults
     */
    setDefaultIdleSpeedTarget();
    //  setTargetRpmCurve(1200);

    engineConfiguration->idleRpmPid.pFactor = 0.05;
    engineConfiguration->idleRpmPid.iFactor = 0.002;

    engineConfiguration->idleRpmPid.minValue = -20;
    engineConfiguration->idleRpmPid.maxValue = 20;
    /**
     * between variation between different sensor and weather and fabrication tolerance
     * five percent looks like a safer default
     */
    engineConfiguration->idlePidDeactivationTpsThreshold = 5;

    engineConfiguration->idle.solenoidFrequency = DEFAULT_SOLENOID_FREQUENCY;
    // set idle_position 50
    setDefaultIdleOpenLoopParameters();
//  engineConfiguration->idleMode = IM_AUTO;
    engineConfiguration->idleMode = idle_mode_e::IM_MANUAL;

    engineConfiguration->useStepperIdle = false;

    setLinearCurve(config->iacCoastingRpmBins, 0, 8000, 1);

#if !EFI_UNIT_TEST
    engineConfiguration->analogInputDividerCoefficient = 2;
#endif


    setTPS1Calibration(convertVoltageTo10bitADC(0),
            convertVoltageTo10bitADC(5),
            convertVoltageTo10bitADC(5),
            convertVoltageTo10bitADC(0));

    engineConfiguration->tps2Min = convertVoltageTo10bitADC(0);
    engineConfiguration->tps2Max = convertVoltageTo10bitADC(5);
    engineConfiguration->tps2SecondaryMin = convertVoltageTo10bitADC(5);
    engineConfiguration->tps2SecondaryMax = convertVoltageTo10bitADC(0);

    engineConfiguration->idlePositionMin = PACK_MULT_VOLTAGE * 0;
    engineConfiguration->idlePositionMax = PACK_MULT_VOLTAGE * 5;
    engineConfiguration->wastegatePositionClosedVoltage = 0.0;
    engineConfiguration->wastegatePositionOpenedVoltage = 5.0;
    engineConfiguration->tpsErrorDetectionTooLow = -10; // -10% open
    engineConfiguration->tpsErrorDetectionTooHigh = 110; // 110% open

    engineConfiguration->oilPressure.v1 = 0.5f;
    engineConfiguration->oilPressure.v2 = 4.5f;
    engineConfiguration->oilPressure.value1 = 0;
    engineConfiguration->oilPressure.value2 = 689.476f; // 100psi = 689.476kPa

    engineConfiguration->mapLowValueVoltage = 0;
    // todo: start using this for custom MAP
    engineConfiguration->mapHighValueVoltage = 5;

    engineConfiguration->cylinderBore = 87.5;

    setBoschHDEV_5_injectors();

    setEgoSensor(ES_14Point7_Free);

    engineConfiguration->adcVcc = 3.0;

    engineConfiguration->map.sensor.type = MT_MPX4250;

    engineConfiguration->baroSensor.type = MT_CUSTOM;
    engineConfiguration->baroSensor.lowValue = 0;
    engineConfiguration->baroSensor.highValue = 500;

#if EFI_PROD_CODE
    engineConfiguration->engineChartSize = 300;
#else
    // need more events for automated test
    engineConfiguration->engineChartSize = 400;
#endif

#if EFI_PROD_CODE || EFI_SIMULATOR
    // some tests broke with map averaging, see https://github.com/rusefi/rusefi/issues/7868
    engineConfiguration->isMapAveragingEnabled = true;
#endif
    engineConfiguration->isWaveAnalyzerEnabled = true;

    engineConfiguration->acIdleRpmTarget = 900;
    engineConfiguration->acDelay = engine_configuration_defaults::AC_DELAY;
    engineConfiguration->minAcPressure = engine_configuration_defaults::MIN_AC_PRESSURE;
    engineConfiguration->maxAcPressure = engine_configuration_defaults::MAX_AC_PRESSURE;
    engineConfiguration->acPressureEnableHyst = engine_configuration_defaults::AC_PRESSURE_ENABLE_HYST;
    engineConfiguration->acIdleExtraOffset = 15;

    engineConfiguration->nitrousMinimumTps = engine_configuration_defaults::NITROUS_MINIMUM_TPS;
    engineConfiguration->nitrousMinimumClt = engine_configuration_defaults::NITROUS_MINIMUM_CLT;
    engineConfiguration->nitrousMaximumAfr = engine_configuration_defaults::NITROUS_MAXIMUM_AFR;
    engineConfiguration->nitrousActivationRpm = engine_configuration_defaults::NITROUS_ACTIVATION_RPM;
    engineConfiguration->nitrousDeactivationRpm = engine_configuration_defaults::NITROUS_DEACTIVATION_RPM;
    engineConfiguration->nitrousDeactivationRpmWindow = engine_configuration_defaults::NITROUS_DEACTIVATION_RPM_WINDOW;

    engineConfiguration->triggerSimulatorRpm = DEFAULT_SELT_STIM_RPM;
    engineConfiguration->simulatorCamPosition[0] = DEFAULT_SELT_STIM_VVT0;

    engineConfiguration->alternatorPwmFrequency = DEFAULT_SOLENOID_FREQUENCY;

    engineConfiguration->isAlternatorControlEnabled = false;

    engineConfiguration->driveWheelRevPerKm = 1000;
    engineConfiguration->finalGearRatio = 1;
    engineConfiguration->vssGearRatio = 3.73;
    engineConfiguration->vssToothCount = 21;

    engineConfiguration->mapErrorDetectionTooLow = 5;
    // todo: default limits should be hard-coded for each sensor type
    // https://github.com/rusefi/rusefi/issues/4030
    engineConfiguration->mapErrorDetectionTooHigh = 410;

    setLinearCurve(config->throttleEstimateEffectiveAreaBins, 0, 100);
#endif // EFI_ENGINE_CONTROL
    #include "default_script.lua"
}

Referenced by resetConfigurationExt().

Here is the call graph for this function:

Here is the caller graph for this function:

setDefaultEngineNoiseTable()

static void setDefaultEngineNoiseTable ( )

static

Definition at line 318 of file engine_configuration.cpp.

                                         {
    setRpmTableBin(config->knockNoiseRpmBins);

    engineConfiguration->knockDetectionWindowStart = 15.0 + 5.0;
    engineConfiguration->knockSamplingDuration = 45;

    setArrayValues(config->knockBaseNoise, -20);
}

Referenced by setDefaultEngineConfiguration().

Here is the call graph for this function:

Here is the caller graph for this function:

setDefaultGppwmParameters()

static void setDefaultGppwmParameters ( )

static

Definition at line 280 of file engine_configuration.cpp.

                                        {
    // Same config for all channels
    for (size_t i = 0; i < efi::size(engineConfiguration->gppwm); i++) {
        auto& cfg = engineConfiguration->gppwm[i];
        chsnprintf(engineConfiguration->gpPwmNote[i], sizeof(engineConfiguration->gpPwmNote[0]), "GPPWM%d", i);

        // Set default axes
        cfg.loadAxis = GPPWM_Zero;
        cfg.rpmAxis = GPPWM_Rpm;

        cfg.pin = Gpio::Unassigned;
        cfg.dutyIfError = 0;
        cfg.onAboveDuty = 60;
        cfg.offBelowDuty = 50;
        cfg.pwmFrequency = 250;

        for (size_t j = 0; j < efi::size(cfg.loadBins); j++) {
            uint8_t z = j * 100 / (efi::size(cfg.loadBins) - 1);
            cfg.loadBins[j] = z;

            // Fill some values in the table
            for (size_t k = 0; k < efi::size(cfg.rpmBins); k++) {
                cfg.table[j][k] = z;
            }

        }

        for (size_t j = 0; j < efi::size(cfg.rpmBins); j++) {
            cfg.rpmBins[j] = 1000 * j;
        }
    }
}

Referenced by setDefaultEngineConfiguration().

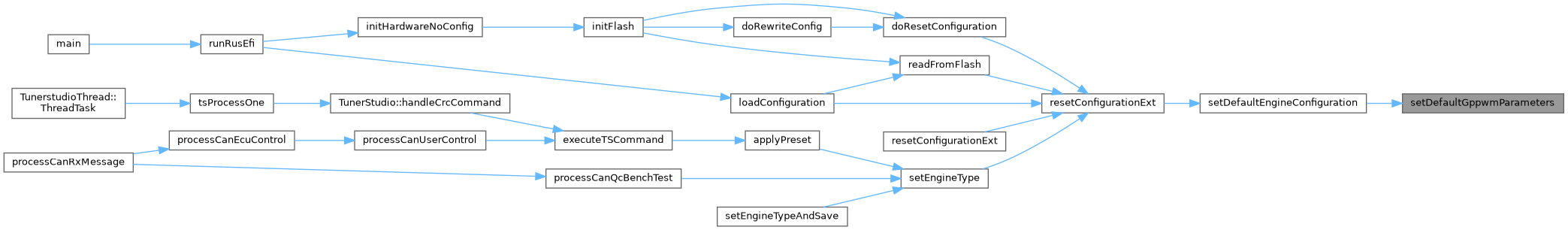

Here is the caller graph for this function:

setDefaultIdleOpenLoopParameters()

static void setDefaultIdleOpenLoopParameters ( )

static

Definition at line 356 of file engine_configuration.cpp.

                                               {
    setRpmTableBin(config->rpmIdleCorrBins);
    setLinearCurve(config->cltIdleCorrBins, CLT_CURVE_RANGE_FROM, 140, 10);
    for (size_t i = 0; i < CLT_IDLE_TABLE_RPM_SIZE; i++) {
        setLinearCurve(config->cltIdleCorrTable[i], 75.0, 50, 5);
    }
}

Referenced by setDefaultEngineConfiguration().

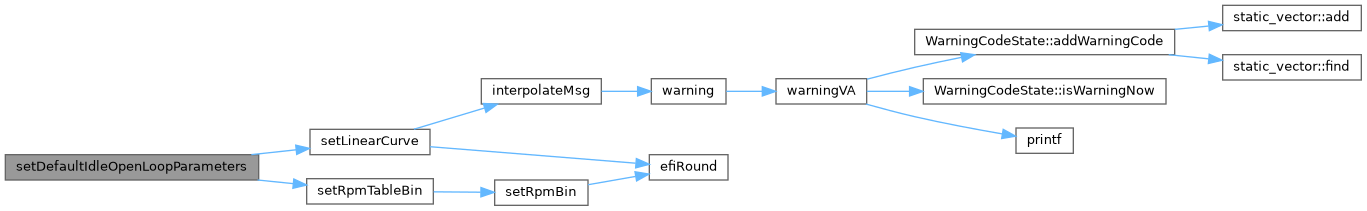

Here is the call graph for this function:

Here is the caller graph for this function:

setDefaultIdleSpeedTarget()

static void setDefaultIdleSpeedTarget ( )

static

see also setTargetRpmCurve()

Definition at line 264 of file engine_configuration.cpp.

                                        {
#if CLT_CURVE_SIZE == 16
    copyArray(config->cltIdleRpmBins, {  -30, - 20,  -10,    0,   10,   20,   30,   40,   50,  60,  70,  80,  90, 100 , 110,  120 });
    copyArray(config->cltIdleRpm,     { 1350, 1350, 1300, 1200, 1150, 1100, 1050, 1000, 1000, 950, 950, 930, 900, 900, 1000, 1100 });
#endif // CLT_CURVE_SIZE
}

Referenced by setDefaultEngineConfiguration().

Here is the caller graph for this function:

setDefaultScriptParameters()

static void setDefaultScriptParameters ( )

static

Definition at line 345 of file engine_configuration.cpp.

                                         {
    setLinearCurve(config->scriptTable1LoadBins, 20, 120, 10);
    setRpmTableBin(config->scriptTable1RpmBins);
    setLinearCurve(config->scriptTable2LoadBins, 20, 120, 10);
    setRpmTableBin(config->scriptTable2RpmBins);
    setLinearCurve(config->scriptTable3LoadBins, 20, 120, 10);
    setRpmTableBin(config->scriptTable3RpmBins);
    setLinearCurve(config->scriptTable4LoadBins, 20, 120, 10);
    setRpmTableBin(config->scriptTable4RpmBins);
}

Referenced by setDefaultEngineConfiguration().

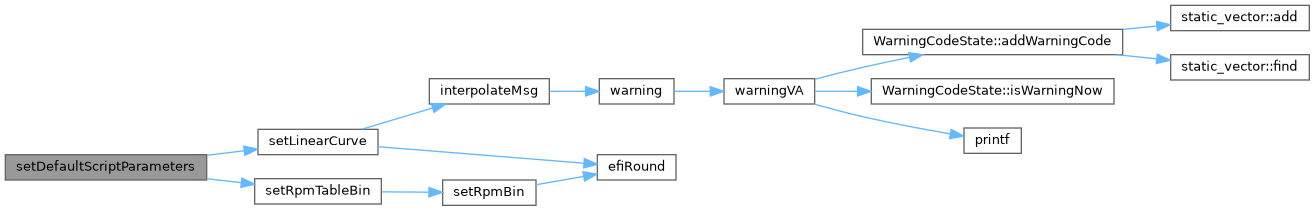

Here is the call graph for this function:

Here is the caller graph for this function:

setDefaultSdCardParameters()

void setDefaultSdCardParameters

(

)

Definition at line 255 of file engine_configuration.cpp.

                                  {
    engineConfiguration->isSdCardEnabled = true;
}

Referenced by f407_discovery_DefaultConfiguration().

Here is the caller graph for this function:

setFuelTablesLoadBin()

void setFuelTablesLoadBin	(	float	minValue,
		float	maxValue
	)

Definition at line 187 of file engine_configuration.cpp.

                                                          {
    setLinearCurve(config->injPhaseLoadBins, minValue, maxValue, 1);
    setLinearCurve(config->veLoadBins, minValue, maxValue, 1);
    setLinearCurve(config->lambdaLoadBins, minValue, maxValue, 1);
}

Referenced by setDefaultFuel(), setDodgeNeonNGCEngineConfiguration(), and setVwAba().

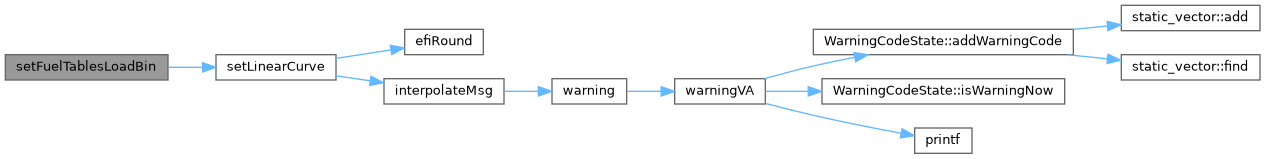

Here is the call graph for this function:

Here is the caller graph for this function:

setTargetRpmCurve()

void setTargetRpmCurve

(

float

rpm

)

see also setDefaultIdleSpeedTarget()

Definition at line 275 of file engine_configuration.cpp.

                                  {
    setLinearCurve(config->cltIdleRpmBins, CLT_CURVE_RANGE_FROM, 140, 10);
    setLinearCurve(config->cltIdleRpm, rpm, rpm, 10);
}

Referenced by setGy6139qmbDefaultEngineConfiguration(), and setTargetIdleRpm().

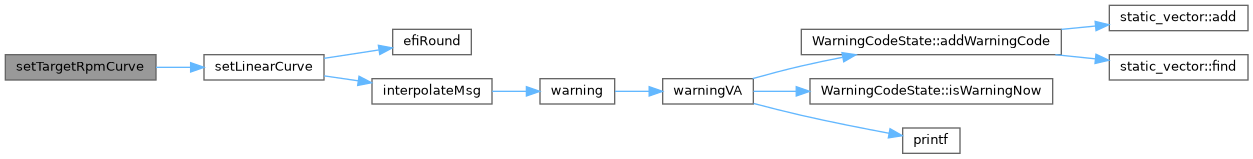

Here is the call graph for this function:

Here is the caller graph for this function:

setWholeIatCorrTimingTable()

void setWholeIatCorrTimingTable

(

float

value

)

Definition at line 193 of file engine_configuration.cpp.

                                             {
    setTable(config->ignitionIatCorrTable, value);
}

Referenced by setTestCamEngineConfiguration().

Here is the call graph for this function:

Here is the caller graph for this function:

setWholeTimingTable()

void setWholeTimingTable

(

angle_t

value

)

See also crankingTimingAngle

Definition at line 200 of file engine_configuration.cpp.

                                        {
    setTable(config->ignitionTable, value);
}

Referenced by setDodgeNeon1995EngineConfiguration(), setVwAba(), and testEngine6451().

Here is the call graph for this function:

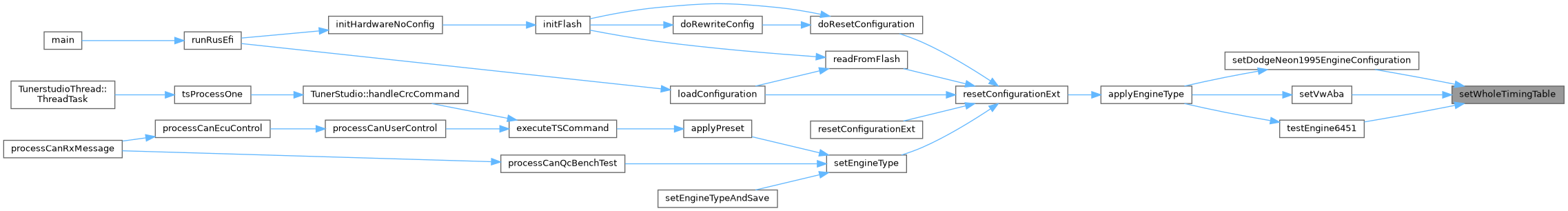

Here is the caller graph for this function:

wipeStrings()

static void wipeStrings ( )

static

Definition at line 108 of file engine_configuration.cpp.

                          {
    fillAfterString(engineConfiguration->engineMake, sizeof(vehicle_info_t));
    fillAfterString(engineConfiguration->engineCode, sizeof(vehicle_info_t));
    fillAfterString(engineConfiguration->vehicleName, sizeof(vehicle_info_t));
}

Referenced by onBurnRequest().

Here is the call graph for this function:

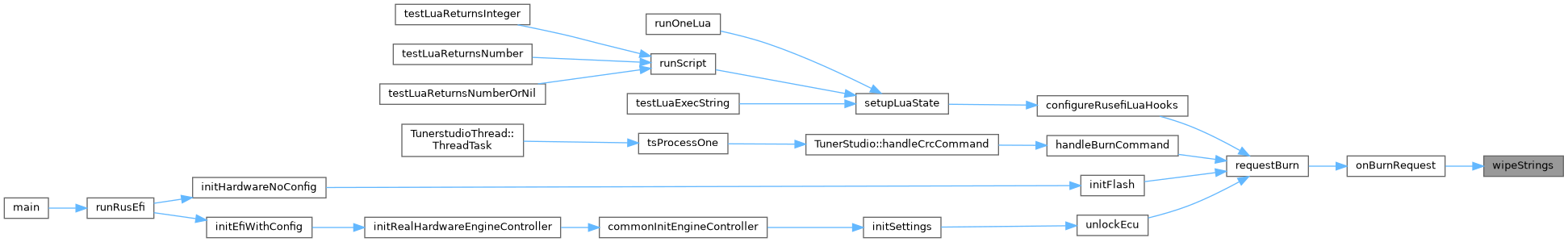

Here is the caller graph for this function:

Variable Documentation

activeConfiguration

engine_configuration_s & activeConfiguration = reinterpret_cast<persistent_config_container_s*>(getFlashAddrFirstCopy())->persistentConfiguration.engineConfiguration

& is reference in C++ (not C) Ref is a pointer that: you access with dot instead of arrow Cannot be null This is about EFI_ACTIVE_CONFIGURATION_IN_FLASH

Definition at line 84 of file engine_configuration.cpp.

Referenced by applyNewHardwareSettings(), deInitAuxDigital(), deInitOldAnalogInputs(), deinitTps(), incrementGlobalConfigurationVersion(), RegisteredOutputPin::isPinConfigurationChanged(), loadConfiguration(), rememberCurrentConfiguration(), stopKLine(), stopLogicAnalyzerPins(), stopSent(), stopSmartCsPins(), stopSwitchPins(), stopTriggerInputPins(), and turnOffTriggerInputPin().

activeConfigurationLocalStorage

engine_configuration_s activeConfigurationLocalStorage

static

Definition at line 88 of file engine_configuration.cpp.

custom_board_ConfigOverrides

std::optional<setup_custom_board_overrides_type> custom_board_ConfigOverrides

Definition at line 71 of file engine_configuration.cpp.

Referenced by TunerStudio::handleWriteChunkCommand(), loadConfiguration(), resetConfigurationExt(), and setup_custom_board_overrides().

custom_board_DefaultConfiguration

std::optional<setup_custom_board_overrides_type> custom_board_DefaultConfiguration

Definition at line 70 of file engine_configuration.cpp.

Referenced by resetConfigurationExt(), and setup_custom_board_overrides().

custom_board_OnConfigurationChange

std::optional<setup_custom_board_config_type> custom_board_OnConfigurationChange

Definition at line 72 of file engine_configuration.cpp.

Referenced by incrementGlobalConfigurationVersion(), and setup_custom_board_overrides().

hasRememberedConfiguration

bool hasRememberedConfiguration = false

static

Current engine configuration. On firmware start we assign empty configuration, then we copy actual configuration after reading settings from flash. This is useful to compare old/current (activeConfiguration) and new/future (engineConfiguration) configurations in order to apply new settings.

todo: place this field next to 'engineConfiguration'?

Definition at line 81 of file engine_configuration.cpp.

Referenced by incrementGlobalConfigurationVersion(), and rememberCurrentConfiguration().

isActiveConfigurationVoid

bool isActiveConfigurationVoid = true

Definition at line 86 of file engine_configuration.cpp.

Referenced by rememberCurrentConfiguration(), and ButtonDebounce::stopConfiguration().

Go to the source code of this file.
