thermistors.cpp File Reference

Detailed Description

Date

Feb 17, 2013

Author

Andrey Belomutskiy, (c) 2012-2020

Definition in file thermistors.cpp.

Functions
void	setDodgeSensor (ThermistorConf *thermistorConf, float pullup)
void	setAtSensor (ThermistorConf *thermistorConf, float tempLow, float rLow, float tempMid, float rMid, float tempHigh, float rHigh)
void	setCommonNTCSensorParameters (ThermistorConf *thermistorConf)
void	setCommonNTCSensor (ThermistorConf *thermistorConf, float pullup)
void	setGmCltSensor (ThermistorConf *thermistorConf)

Function Documentation

setAtSensor()

void setAtSensor	(	ThermistorConf *	thermistorConf,
		float	tempLow,
		float	rLow,
		float	tempMid,
		float	rMid,
		float	tempHigh,
		float	rHigh
	)

Definition at line 19 of file thermistors.cpp.

                                 {
    thermistorConf->config.tempC_1 = tempLow;
    thermistorConf->config.resistance_1 = rLow;

    thermistorConf->config.tempC_2 = tempMid;
    thermistorConf->config.resistance_2 = rMid;

    thermistorConf->config.tempC_3 = tempHigh;
    thermistorConf->config.resistance_3 = rHigh;
}

Referenced by setMercedesM111EngineConfiguration().

Here is the caller graph for this function:

setCommonNTCSensor()

void setCommonNTCSensor	(	ThermistorConf *	thermistorConf,
		float	pullup
	)

Definition at line 51 of file thermistors.cpp.

                                                                      {
  setCommonNTCSensorParameters(thermistorConf);
  thermistorConf->config.bias_resistor = pullup;
}

Referenced by hellen154hyundai_f7_boardDefaultConfiguration(), proteusStimQc(), setupDefaultSensorInputs(), super_uaefi_boardDefaultConfiguration(), and uaefi_boardDefaultConfiguration().

Here is the call graph for this function:

Here is the caller graph for this function:

setCommonNTCSensorParameters()

void setCommonNTCSensorParameters

(

ThermistorConf *

thermistorConf

)

18K Ohm @ -20C 2.1K Ohm @ 24C 294 Ohm @ 80C http://www.rexbo.eu/hella/coolant-temperature-sensor-6pt009107121?c=100334&at=3130

Definition at line 33 of file thermistors.cpp.

                                                                  {
    /**
     * 18K Ohm @ -20C
     * 2.1K Ohm @ 24C
     * 294 Ohm @ 80C
     * http://www.rexbo.eu/hella/coolant-temperature-sensor-6pt009107121?c=100334&at=3130
     */
    thermistorConf->config.tempC_1 = -20;
    thermistorConf->config.tempC_2 = 23.8889;
    thermistorConf->config.tempC_3 = 120;
    thermistorConf->config.resistance_1 = 18000;
    thermistorConf->config.resistance_2 = 2100;
    thermistorConf->config.resistance_3 = 100;
}

Referenced by hellen112_17_boardDefaultConfiguration(), hellen_honda_k_boardDefaultConfiguration(), miataNAcommonEngineSettings(), setCommonMazdaNB(), setCommonNTCSensor(), setDefaultEngineConfiguration(), and setHyundaiPb().

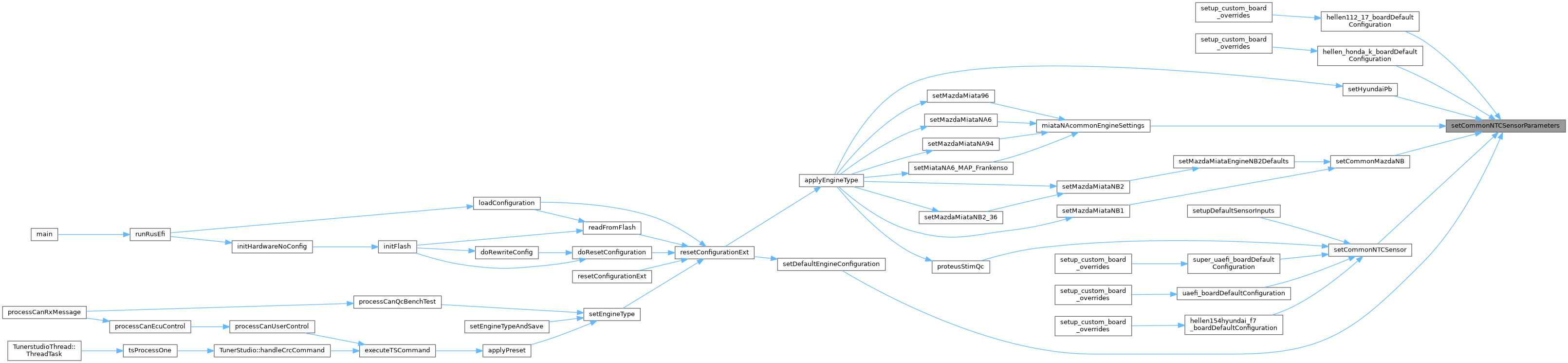

Here is the caller graph for this function:

setDodgeSensor()

void setDodgeSensor	(	ThermistorConf *	thermistorConf,
		float	pullup
	)

http://en.wikipedia.org/wiki/Thermistor http://en.wikipedia.org/wiki/Steinhart%E2%80%93Hart_equation

Definition at line 15 of file thermistors.cpp.

                                                                  {
    thermistorConf->config = {-40, 30, 120, 336660, 7550, 390, pullup};
}

Referenced by setDodgeNeonNGCEngineConfiguration(), and setDodgeRam1996().

Here is the caller graph for this function:

setGmCltSensor()

void setGmCltSensor

(

ThermistorConf *

thermistorConf

)

Definition at line 56 of file thermistors.cpp.

                                                    {
    thermistorConf->config.tempC_1 = -40;
    thermistorConf->config.tempC_2 = 40;
    thermistorConf->config.tempC_3 = 130;
    thermistorConf->config.resistance_1 = 100'000;
    thermistorConf->config.resistance_2 = 1459;
    thermistorConf->config.resistance_3 = 70;
}

Referenced by setGmGdi(), and setGmSbc().

Here is the caller graph for this function:

Go to the source code of this file.
