hardware.cpp File Reference

Detailed Description

Hardware package entry point.

Date

May 27, 2013

Author

Andrey Belomutskiy, (c) 2012-2020

Definition in file hardware.cpp.

Functions
brain_pin_e	getMisoPin (spi_device_e device)
brain_pin_e	getMosiPin (spi_device_e device)
brain_pin_e	getSckPin (spi_device_e device)
SPIDriver *	getSpiDevice (spi_device_e spiDevice)
void	lockSpi (spi_device_e device)
void	unlockSpi (spi_device_e device)
static void	initSpiModules ()
void	stopSpi (spi_device_e device)
static void	stopSpiModules ()
void	printSpiConfig (const char *msg, spi_device_e device)
void	onFastAdcComplete (adcsample_t *)
static void	calcFastAdcIndexes ()
void	applyNewHardwareSettings ()
void	setBor (int borValue)
void	boardInitHardwareEarly ()
void	boardInitHardware ()
void	boardInitHardwareExtra ()
void	initHardwareNoConfig ()
void	stopHardware ()
void	startHardware ()
PUBLIC_API_WEAK void	setPinConfigurationOverrides ()
void	initHardware ()

Variables
std::optional< setup_custom_board_overrides_type >	custom_board_InitHardwareEarly
std::optional< setup_custom_board_overrides_type >	custom_board_InitHardware
std::optional< setup_custom_board_overrides_type >	custom_board_InitHardwareExtra
bool	isSpiInitialized [SPI_TOTAL_COUNT+1]
static AdcToken	fastMapSampleIndex
static AdcToken	triggerSampleIndex
const I2CConfig	i2cfg

Function Documentation

applyNewHardwareSettings()

void applyNewHardwareSettings

(

)

this method is NOT currently invoked on ECU start todo: reduce code duplication by moving more logic into startHardware method

All 'stop' methods need to go before we begin starting pins.

We take settings from 'activeConfiguration' not 'engineConfiguration' while stopping hardware. Some hardware is restart unconditionally on change of parameters while for some systems we make extra effort and restart only relevant settings were changes.

Definition at line 311 of file hardware.cpp.

                                {
    /**
     * All 'stop' methods need to go before we begin starting pins.
     *
     * We take settings from 'activeConfiguration' not 'engineConfiguration' while stopping hardware.
     * Some hardware is restart unconditionally on change of parameters while for some systems we make extra effort and restart only
     * relevant settings were changes.
     *
     */
    ButtonDebounce::stopConfigurationList();

#if EFI_PROD_CODE
    stopSensors();
#endif // EFI_PROD_CODE

#if EFI_PROD_CODE && EFI_SHAFT_POSITION_INPUT
    stopTriggerInputPins();
#endif /* EFI_SHAFT_POSITION_INPUT */

#if EFI_PROD_CODE && EFI_SENT_SUPPORT
    stopSent();
#endif // EFI_SENT_SUPPORT

#if EFI_CAN_SUPPORT
    stopCanPins();
#endif /* EFI_CAN_SUPPORT */

    stopKLine();


    stopHardware();

#if HAL_USE_SPI
    stopSpiModules();
#endif /* HAL_USE_SPI */

    if (isPinOrModeChanged(clutchUpPin, clutchUpPinMode)) {
        // bug? duplication with stopSwitchPins?
        efiSetPadUnused(activeConfiguration.clutchUpPin);
    }

    enginePins.unregisterPins();

#if EFI_PROD_CODE
    reconfigureSensors();
#endif /* EFI_PROD_CODE */

    ButtonDebounce::startConfigurationList();

    /*******************************************
     * Start everything back with new settings *
     ******************************************/
    startHardware();

#if EFI_PROD_CODE && (BOARD_EXT_GPIOCHIPS > 0)
    /* TODO: properly restart gpio chips...
     * This is only workaround for "CS pin lost" bug
     * see: https://github.com/rusefi/rusefi/issues/2107
     * We should provide better way to gracefully stop all
     * gpio chips: set outputs to safe state, release all
     * on-chip resources (gpios, SPIs, etc) and then restart
     * with updated settings.
     * Following code just re-inits CS pins for all external
     * gpio chips, but does not update CS pin definition in
     * gpio chips private data/settings. So changing CS pin
     * on-fly does not work */
    startSmartCsPins();
#endif /* (BOARD_EXT_GPIOCHIPS > 0) */

    startKLine();

#if EFI_PROD_CODE && EFI_IDLE_CONTROL
    if (isIdleHardwareRestartNeeded()) {
         initIdleHardware();
    }
#endif

#if EFI_BOOST_CONTROL
    startBoostPin();
#endif
#if EFI_EMULATE_POSITION_SENSORS
    startTriggerEmulatorPins();
#endif /* EFI_EMULATE_POSITION_SENSORS */
#if EFI_LOGIC_ANALYZER
    startLogicAnalyzerPins();
#endif /* EFI_LOGIC_ANALYZER */
#if EFI_VVT_PID
    startVvtControlPins();
#endif /* EFI_VVT_PID */

#if EFI_PROD_CODE && EFI_SENT_SUPPORT
    startSent();
#endif

    calcFastAdcIndexes();
}

Referenced by incrementGlobalConfigurationVersion().

Here is the call graph for this function:

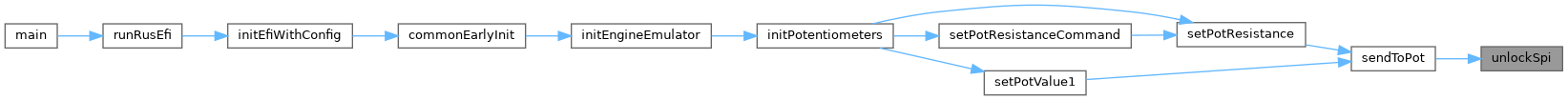

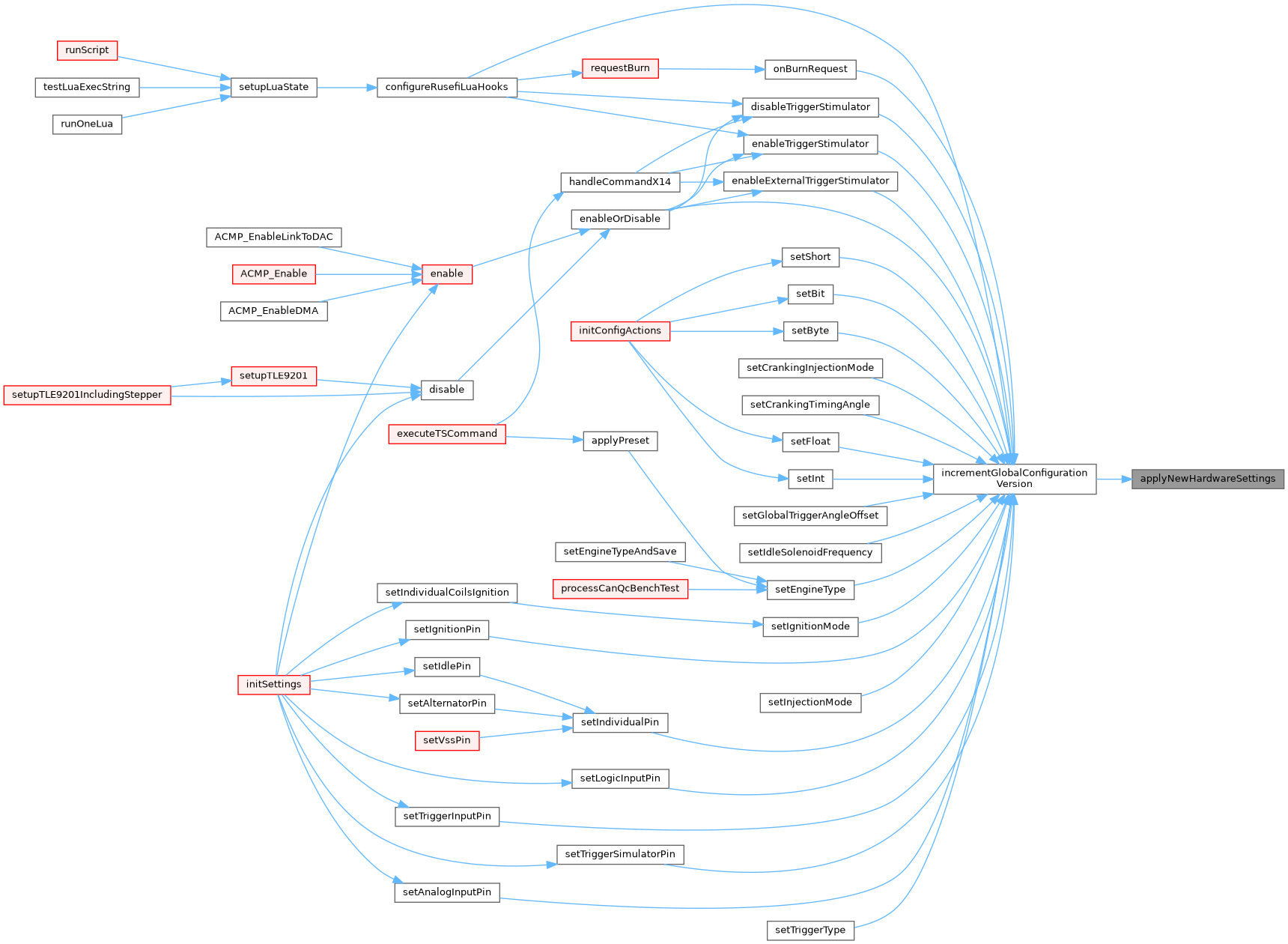

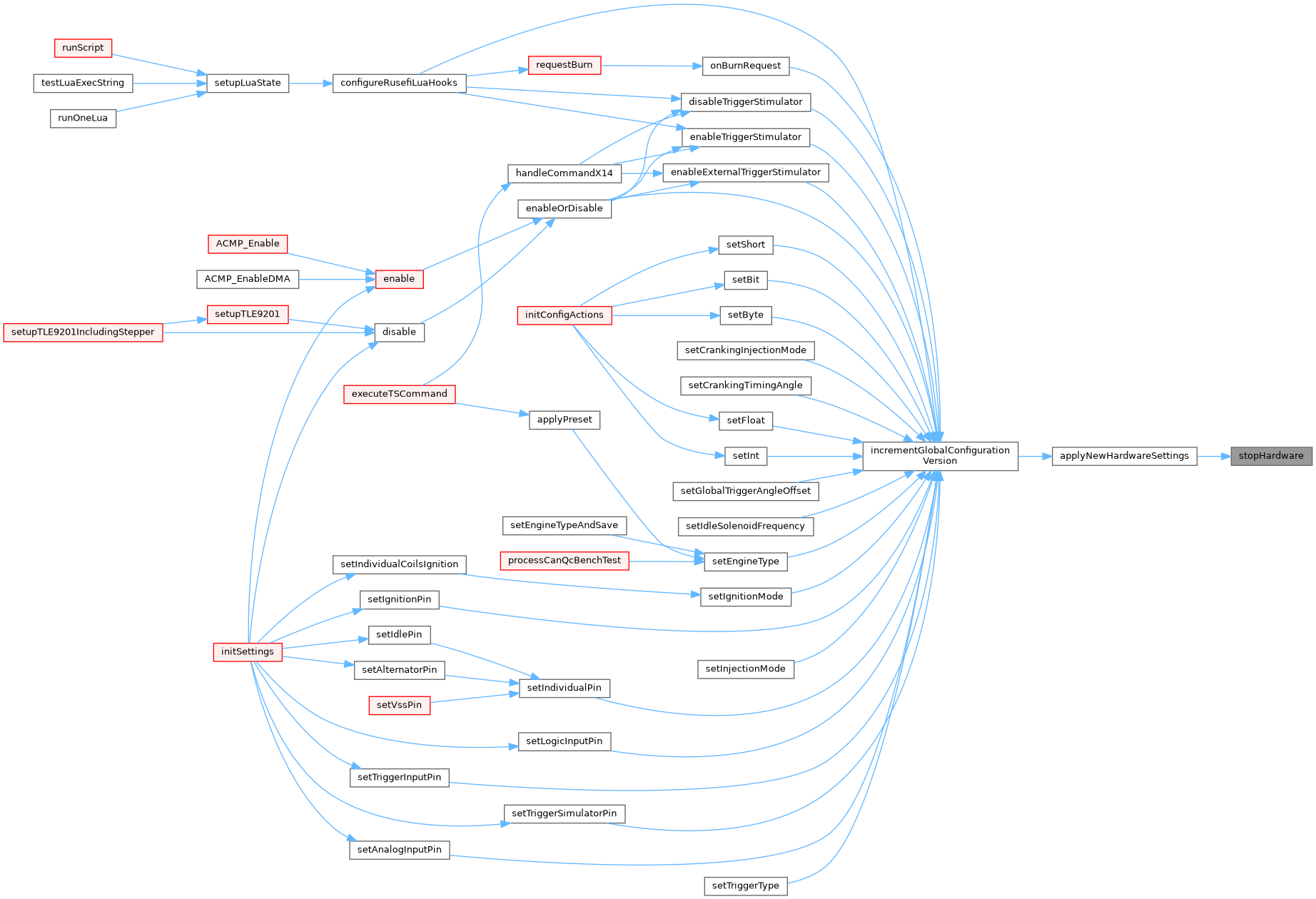

Here is the caller graph for this function:

boardInitHardware()

void boardInitHardware

(

)

Definition at line 419 of file hardware.cpp.

                         {
  // time to force migration to custom_board_InitHardware
}

Referenced by initHardware().

Here is the caller graph for this function:

boardInitHardwareEarly()

void boardInitHardwareEarly

(

)

Definition at line 416 of file hardware.cpp.

                              {
  // forcing migration to custom_board_InitHardwareEarly
}

Referenced by initHardwareNoConfig().

Here is the caller graph for this function:

boardInitHardwareExtra()

void boardInitHardwareExtra

(

)

Definition at line 422 of file hardware.cpp.

                              {
  // forcing migration to custom_board_InitHardwareExtra
}

Referenced by initHardware().

Here is the caller graph for this function:

calcFastAdcIndexes()

static void calcFastAdcIndexes ( )

static

Definition at line 296 of file hardware.cpp.

                                 {
#if HAL_USE_ADC
    fastMapSampleIndex = enableFastAdcChannel("Fast MAP", engineConfiguration->map.sensor.hwChannel);

#if HAL_TRIGGER_USE_ADC
    triggerSampleIndex = enableFastAdcChannel("Trigger ADC", getAdcChannelForTrigger());
#endif /* HAL_TRIGGER_USE_ADC */

#endif/* HAL_USE_ADC */
}

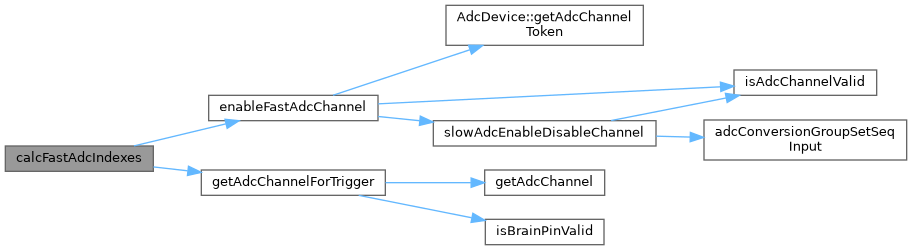

Referenced by applyNewHardwareSettings(), and initHardware().

Here is the call graph for this function:

Here is the caller graph for this function:

getMisoPin()

brain_pin_e getMisoPin

(

spi_device_e

device

)

Definition at line 86 of file hardware.cpp.

                                            {
    switch(device) {
    case SPI_DEVICE_1:
        return engineConfiguration->spi1misoPin;
    case SPI_DEVICE_2:
        return engineConfiguration->spi2misoPin;
    case SPI_DEVICE_3:
        return engineConfiguration->spi3misoPin;
    case SPI_DEVICE_4:
        return engineConfiguration->spi4misoPin;
    case SPI_DEVICE_5:
        return engineConfiguration->spi5misoPin;
    case SPI_DEVICE_6:
        return engineConfiguration->spi6misoPin;
    default:
        break;
    }
    return Gpio::Unassigned;
}

Referenced by printSpiConfig(), stopSpi(), and turnOnSpi().

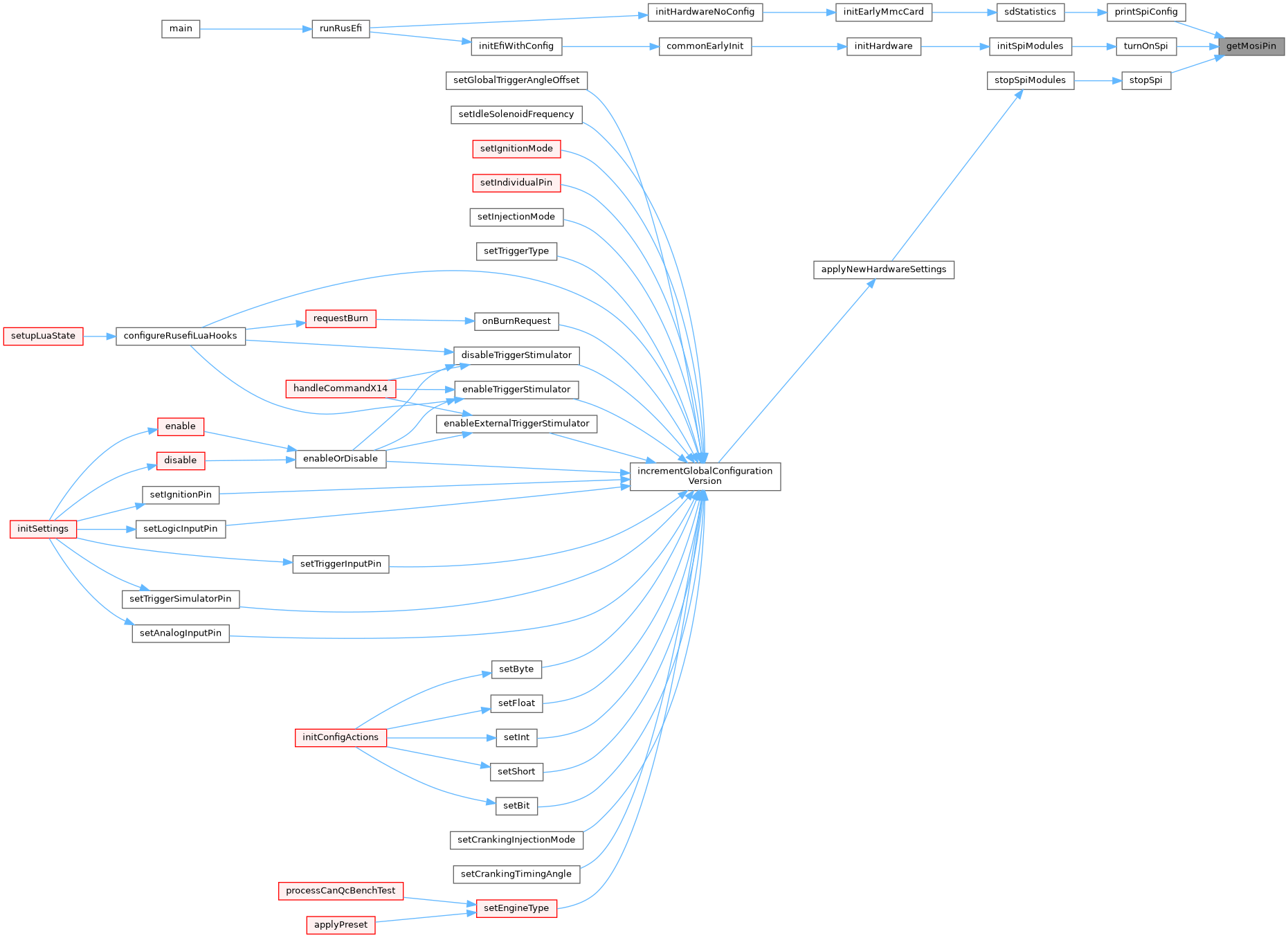

Here is the caller graph for this function:

getMosiPin()

brain_pin_e getMosiPin

(

spi_device_e

device

)

Definition at line 106 of file hardware.cpp.

                                            {
    switch(device) {
    case SPI_DEVICE_1:
        return engineConfiguration->spi1mosiPin;
    case SPI_DEVICE_2:
        return engineConfiguration->spi2mosiPin;
    case SPI_DEVICE_3:
        return engineConfiguration->spi3mosiPin;
    case SPI_DEVICE_4:
        return engineConfiguration->spi4mosiPin;
    case SPI_DEVICE_5:
        return engineConfiguration->spi5mosiPin;
    case SPI_DEVICE_6:
        return engineConfiguration->spi6mosiPin;
    default:
        break;
    }
    return Gpio::Unassigned;
}

Referenced by printSpiConfig(), stopSpi(), and turnOnSpi().

Here is the caller graph for this function:

getSckPin()

brain_pin_e getSckPin

(

spi_device_e

device

)

Definition at line 126 of file hardware.cpp.

                                           {
    switch(device) {
    case SPI_DEVICE_1:
        return engineConfiguration->spi1sckPin;
    case SPI_DEVICE_2:
        return engineConfiguration->spi2sckPin;
    case SPI_DEVICE_3:
        return engineConfiguration->spi3sckPin;
    case SPI_DEVICE_4:
        return engineConfiguration->spi4sckPin;
    case SPI_DEVICE_5:
        return engineConfiguration->spi5sckPin;
    case SPI_DEVICE_6:
        return engineConfiguration->spi6sckPin;
    default:
        break;
    }
    return Gpio::Unassigned;
}

Referenced by printSpiConfig(), stopSpi(), and turnOnSpi().

Here is the caller graph for this function:

getSpiDevice()

SPIDriver * getSpiDevice

(

spi_device_e

spiDevice

)

Returns

NULL if SPI device not specified

Definition at line 149 of file hardware.cpp.

                                                 {
    if (spiDevice == SPI_NONE) {
        return nullptr;
    }
#if STM32_SPI_USE_SPI1
    if (spiDevice == SPI_DEVICE_1) {
        return &SPID1;
    }
#endif
#if STM32_SPI_USE_SPI2
    if (spiDevice == SPI_DEVICE_2) {
        return &SPID2;
    }
#endif
#if STM32_SPI_USE_SPI3
    if (spiDevice == SPI_DEVICE_3) {
        return &SPID3;
    }
#endif
#if STM32_SPI_USE_SPI4
    if (spiDevice == SPI_DEVICE_4) {
        return &SPID4;
    }
#endif
#if STM32_SPI_USE_SPI5
    if (spiDevice == SPI_DEVICE_5) {
        return &SPID5;
    }
#endif
#if STM32_SPI_USE_SPI6
    if (spiDevice == SPI_DEVICE_6) {
        return &SPID6;
    }
#endif
    firmwareError(ObdCode::CUSTOM_ERR_UNEXPECTED_SPI, "Unexpected SPI device: %d", spiDevice);
    return nullptr;
}

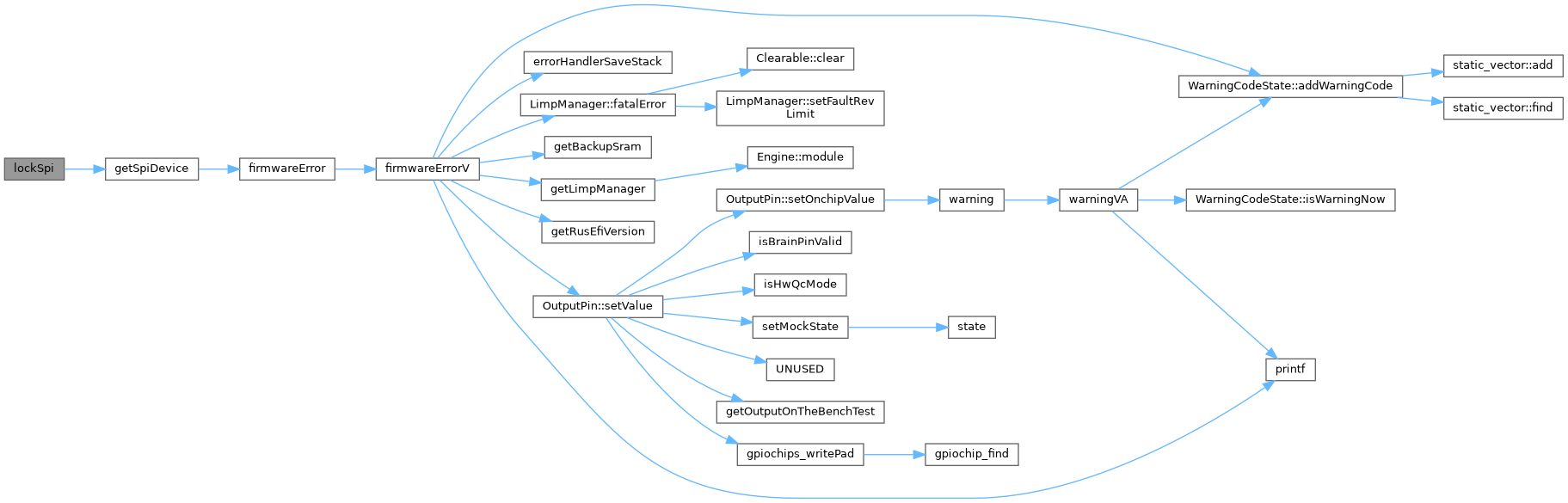

Referenced by initAccelerometer(), initializeMmcBlockDevice(), initPotentiometers(), initSmartGpio(), lockSpi(), nm_bus_init(), and unlockSpi().

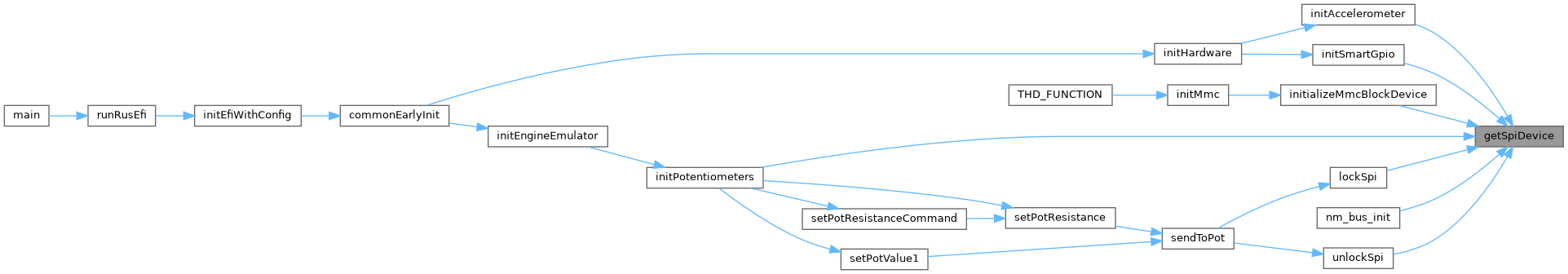

Here is the call graph for this function:

Here is the caller graph for this function:

initHardware()

void initHardware

(

)

Definition at line 538 of file hardware.cpp.

                    {
    if (hasFirmwareError()) {
        return;
    }

#if EFI_PROD_CODE && STM32_I2C_USE_I2C3
    if (engineConfiguration->useEeprom) {
        i2cStart(&EE_U2CD, &i2cfg);
    }
#endif // STM32_I2C_USE_I2C3

    boardInitHardware();
    call_board_override(custom_board_InitHardware);
#if EFI_PROD_CODE
    // this applies some board configurations
    boardOnConfigurationChange(nullptr);
#endif // EFI_PROD_CODE
    boardInitHardwareExtra();
    call_board_override(custom_board_InitHardwareExtra);

#if HAL_USE_ADC
    initAdcInputs();
#endif /* HAL_USE_ADC */

#if EFI_SOFTWARE_KNOCK
    initSoftwareKnock();
#endif /* EFI_SOFTWARE_KNOCK */

#ifdef TRIGGER_SCOPE
    initTriggerScope();
#endif // TRIGGER_SCOPE

#if HAL_USE_SPI
    initSpiModules();
#endif /* HAL_USE_SPI */

#if (EFI_PROD_CODE && BOARD_EXT_GPIOCHIPS > 0) || EFI_SIMULATOR
    // initSmartGpio depends on 'initSpiModules'
    initSmartGpio();
#endif

    // output pins potentially depend on 'initSmartGpio'
    initMiscOutputPins();

#if EFI_MC33816
    initMc33816();
#endif /* EFI_MC33816 */

#if EFI_CAN_SUPPORT
#if EFI_SIMULATOR
    // Set CAN device name
    CAND1.deviceName = "can0";
#endif

    initCan();
#endif /* EFI_CAN_SUPPORT */


#if EFI_PROD_CODE && EFI_SHAFT_POSITION_INPUT
    onEcuStartTriggerImplementation();
#endif /* EFI_SHAFT_POSITION_INPUT */
    onEcuStartDoSomethingTriggerInputPins();

#if EFI_WS2812
    initWS2812();
#endif /* EFI_LED_WS2812 */

#if EFI_ONBOARD_MEMS
    initAccelerometer();
#endif

#if EFI_BOSCH_YAW
    initBoschYawRateSensor();
#endif /* EFI_BOSCH_YAW */

#if EFI_UART_GPS
    initGps();
#endif

#if EFI_CAN_SUPPORT
    initCanVssSupport();
#endif // EFI_CAN_SUPPORT

#if EFI_CDM_INTEGRATION
    cdmIonInit();
#endif // EFI_CDM_INTEGRATION

#if EFI_PROD_CODE && EFI_SENT_SUPPORT
    initSent();
#endif

    initKLine();

#if EFI_DAC
    initDac();
#endif

    calcFastAdcIndexes();

    startHardware();

    efiPrintf("initHardware() OK!");
}

Referenced by commonEarlyInit().

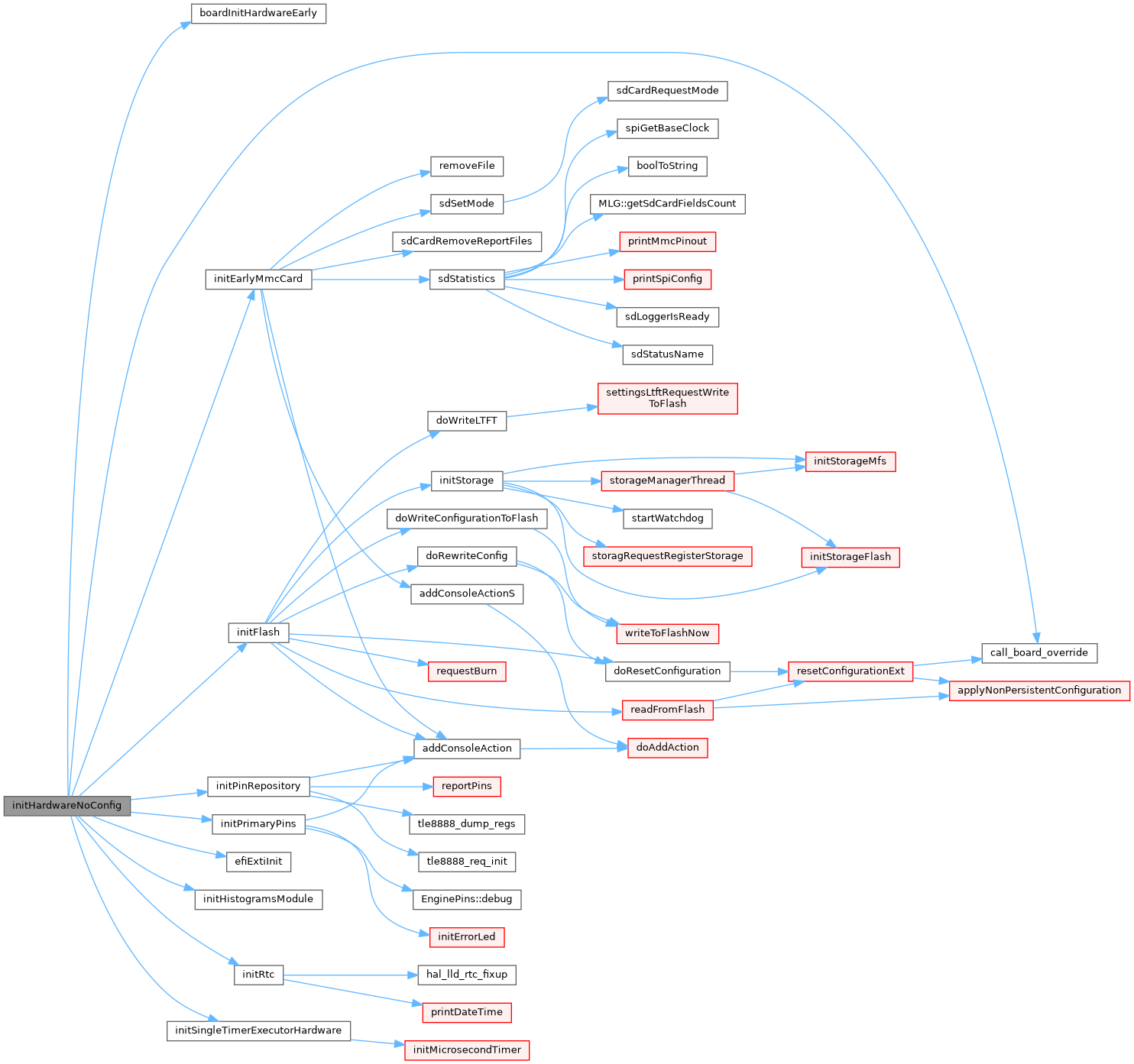

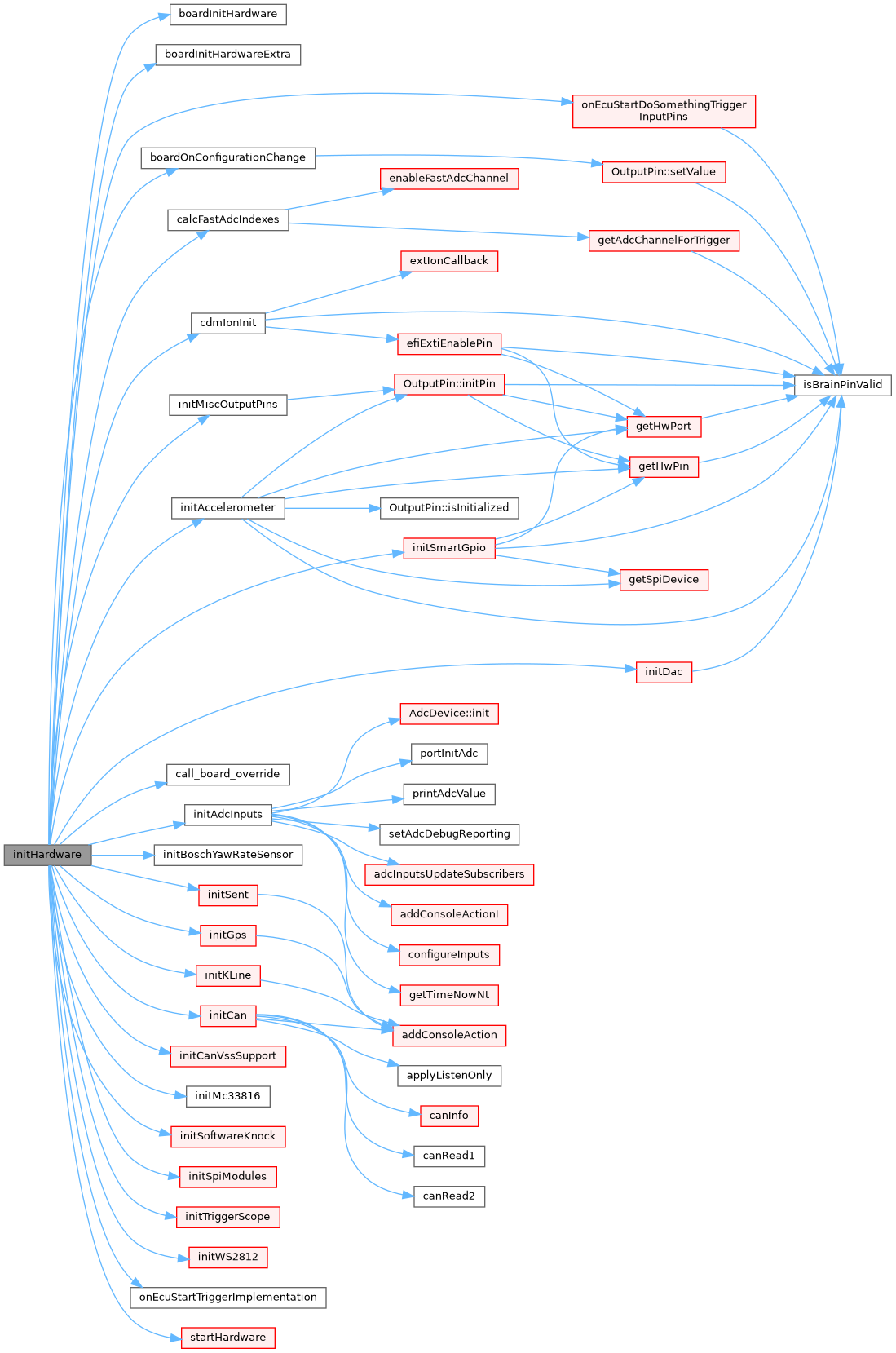

Here is the call graph for this function:

Here is the caller graph for this function:

initHardwareNoConfig()

void initHardwareNoConfig

(

)

histograms is a data structure for CPU monitor, it does not depend on configuration

We need the LED_ERROR pin even before we read configuration

Definition at line 427 of file hardware.cpp.

                            {
    efiAssertVoid(ObdCode::CUSTOM_IH_STACK, hasLotsOfRemainingStack(), "init h");

    efiPrintf("initHardware()");

#if EFI_PROD_CODE
    initPinRepository();
#endif

#if EFI_PROD_CODE
    boardInitHardwareEarly();
    call_board_override(custom_board_InitHardwareEarly);
#endif

#if EFI_HISTOGRAMS
    /**
     * histograms is a data structure for CPU monitor, it does not depend on configuration
     */
    initHistogramsModule();
#endif /* EFI_HISTOGRAMS */

#if EFI_GPIO_HARDWARE
    /**
     * We need the LED_ERROR pin even before we read configuration
     */
    initPrimaryPins();
#endif // EFI_GPIO_HARDWARE

#if EFI_PROD_CODE && EFI_SIGNAL_EXECUTOR_ONE_TIMER
    // it's important to initialize this pretty early in the game before any scheduling usages
    initSingleTimerExecutorHardware();
#endif // EFI_PROD_CODE && EFI_SIGNAL_EXECUTOR_ONE_TIMER

#if EFI_PROD_CODE && EFI_RTC
    initRtc();
#endif // EFI_PROD_CODE && EFI_RTC

#if EFI_CONFIGURATION_STORAGE
    initFlash();
#endif

#if EFI_FILE_LOGGING
    initEarlyMmcCard();
#endif // EFI_FILE_LOGGING

#if HAL_USE_PAL && EFI_PROD_CODE
    // this should be initialized before detectBoardType()
    efiExtiInit();
#endif // HAL_USE_PAL
}

Referenced by runRusEfi().

Here is the call graph for this function:

Here is the caller graph for this function:

initSpiModules()

static void initSpiModules ( )

static

Definition at line 199 of file hardware.cpp.

                             {

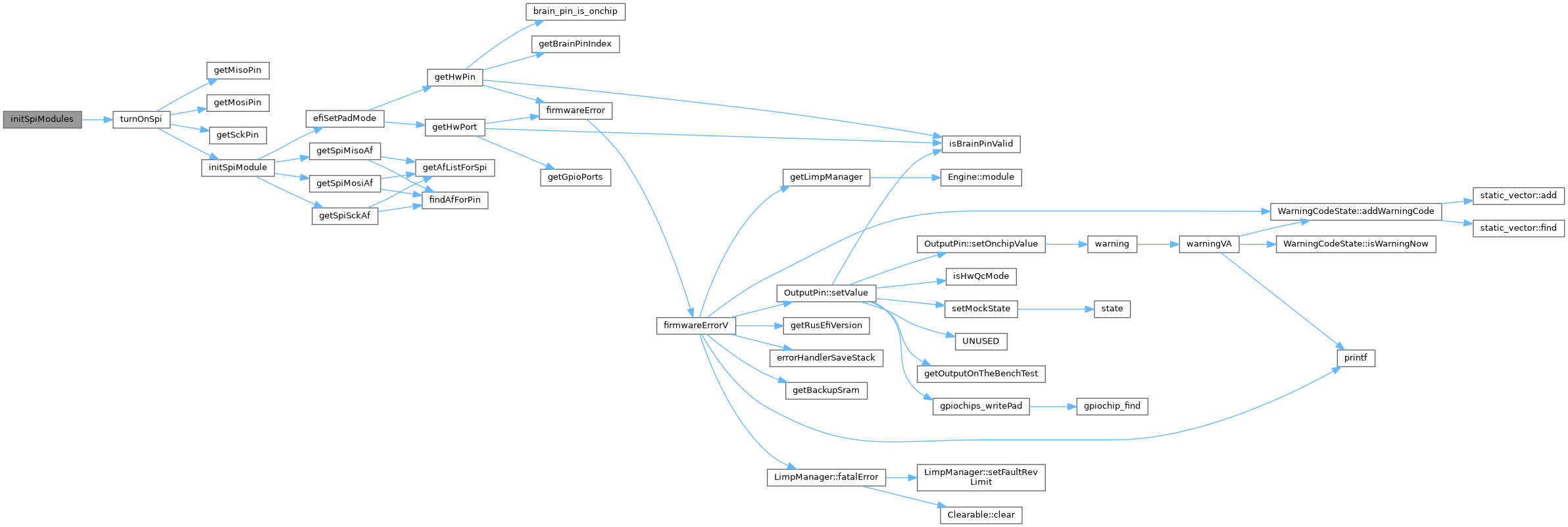

    if (engineConfiguration->is_enabled_spi_1) {
         turnOnSpi(SPI_DEVICE_1);
    }
    if (engineConfiguration->is_enabled_spi_2) {
        turnOnSpi(SPI_DEVICE_2);
    }
    if (engineConfiguration->is_enabled_spi_3) {
        turnOnSpi(SPI_DEVICE_3);
    }
    if (engineConfiguration->is_enabled_spi_4) {
        turnOnSpi(SPI_DEVICE_4);
    }
    if (engineConfiguration->is_enabled_spi_5) {
        turnOnSpi(SPI_DEVICE_5);
    }
    if (engineConfiguration->is_enabled_spi_6) {
        turnOnSpi(SPI_DEVICE_6);
    }
}

Referenced by initHardware().

Here is the call graph for this function:

Here is the caller graph for this function:

lockSpi()

void lockSpi

(

spi_device_e

device

)

Only one consumer can use SPI bus at a given time

Definition at line 190 of file hardware.cpp.

                                  {
    efiAssertVoid(ObdCode::CUSTOM_STACK_SPI, hasLotsOfRemainingStack(), "lockSpi");
    spiAcquireBus(getSpiDevice(device));
}

Referenced by sendToPot().

Here is the call graph for this function:

Here is the caller graph for this function:

onFastAdcComplete()

void onFastAdcComplete

(

adcsample_t *

)

This method is not in the adc* lower-level file because it is more business logic then hardware.

this callback is executed 10 000 times a second, it needs to be as fast as possible

Definition at line 275 of file hardware.cpp.

                                     {

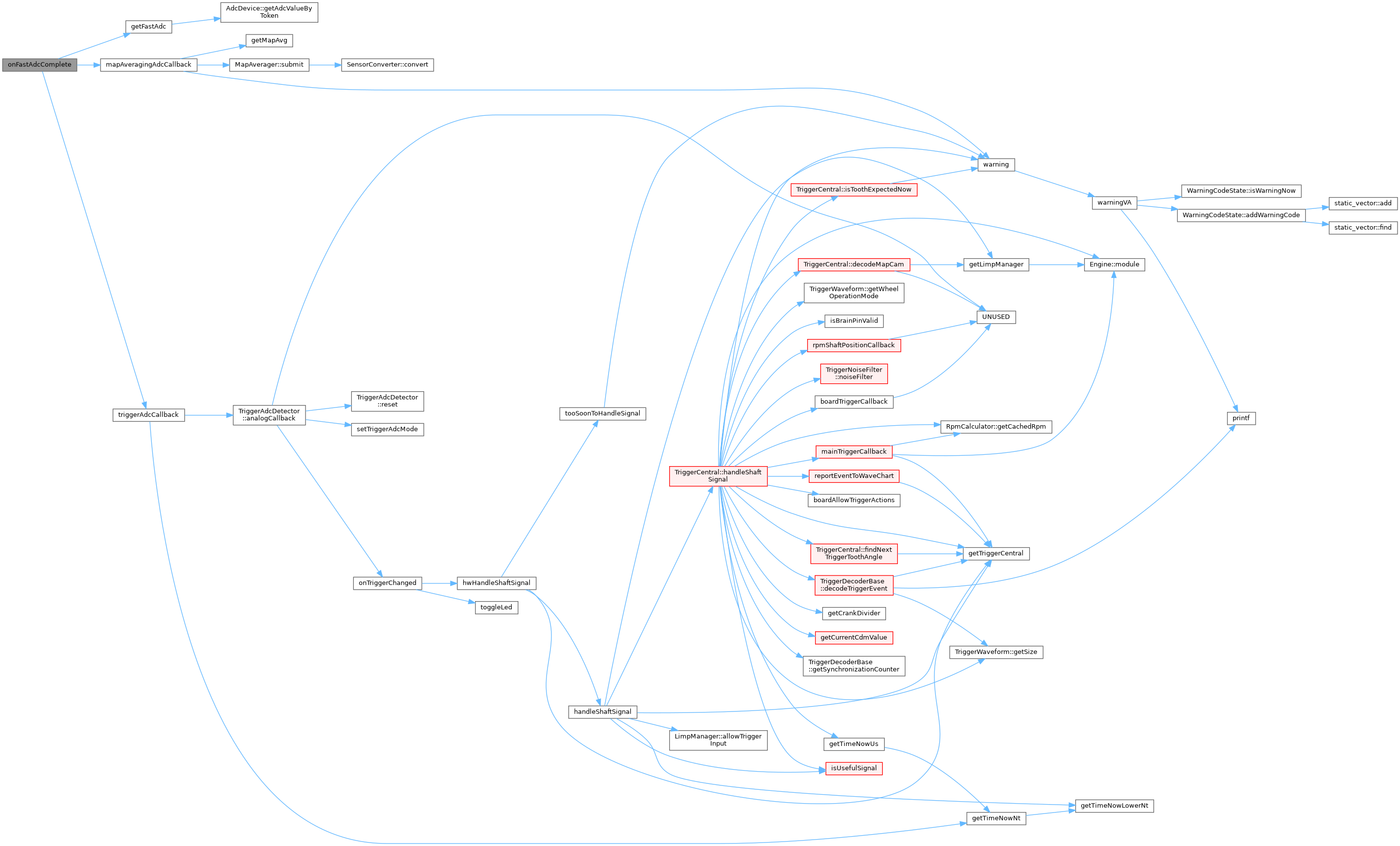

    ScopePerf perf(PE::AdcCallbackFast);

#if HAL_TRIGGER_USE_ADC
    // we need to call this ASAP, because trigger processing is time-critical
    triggerAdcCallback(getFastAdc(triggerSampleIndex));
#endif /* HAL_TRIGGER_USE_ADC */

    /**
     * this callback is executed 10 000 times a second, it needs to be as fast as possible
     */
    efiAssertVoid(ObdCode::CUSTOM_STACK_ADC, hasLotsOfRemainingStack(), "lowstck#9b");

    auto mapRaw = adcRawValueToScaledVoltage(getFastAdc(fastMapSampleIndex), engineConfiguration->map.sensor.hwChannel);
    engine->outputChannels.rawMapFast = mapRaw;
#if EFI_MAP_AVERAGING && defined (MODULE_MAP_AVERAGING)
    mapAveragingAdcCallback(mapRaw);
#endif /* EFI_MAP_AVERAGING */
}

Referenced by adc_callback(), and fastAdcDoneCB().

Here is the call graph for this function:

Here is the caller graph for this function:

printSpiConfig()

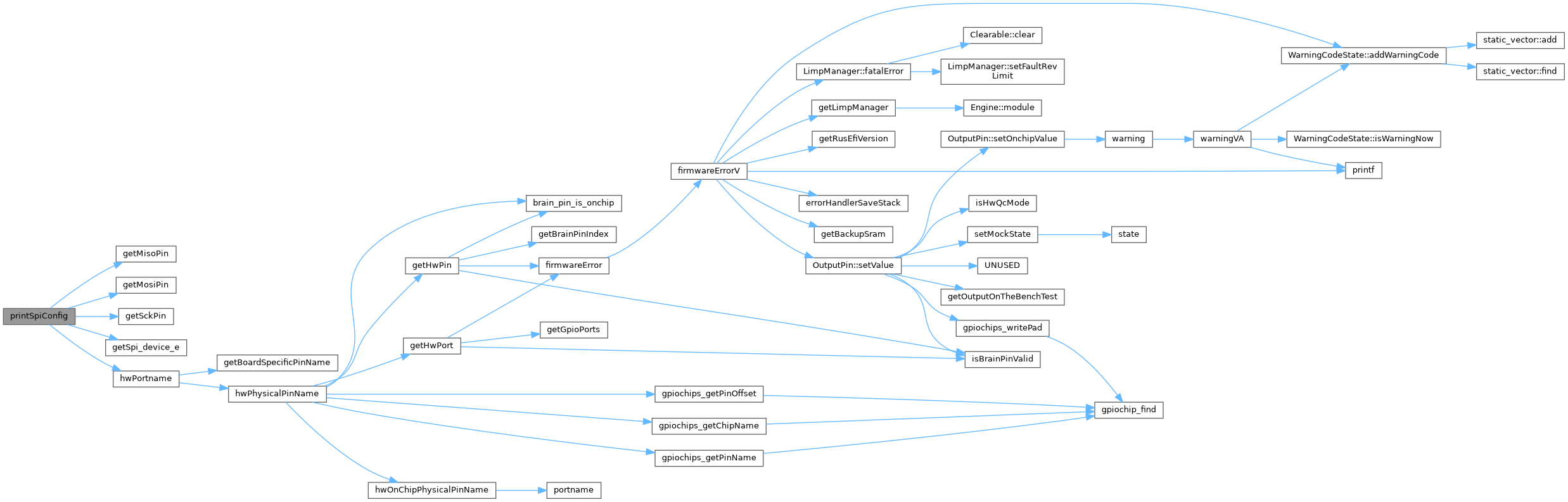

void printSpiConfig	(	const char *	msg,
		spi_device_e	device
	)

Definition at line 256 of file hardware.cpp.

                                                          {
    efiPrintf("%s %s mosi=%s", msg, getSpi_device_e(device), hwPortname(getMosiPin(device)));
    efiPrintf("%s %s miso=%s", msg, getSpi_device_e(device), hwPortname(getMisoPin(device)));
    efiPrintf("%s %s sck=%s",  msg, getSpi_device_e(device), hwPortname(getSckPin(device)));
}

Referenced by sdStatistics().

Here is the call graph for this function:

Here is the caller graph for this function:

setBor()

void setBor

(

int

borValue

)

Definition at line 409 of file hardware.cpp.

                          {
    efiPrintf("setting BOR to %d", borValue);
    BOR_Set((BOR_Level_t)borValue);
}

Here is the call graph for this function:

setPinConfigurationOverrides()

PUBLIC_API_WEAK void setPinConfigurationOverrides

(

void

)

Definition at line 528 of file hardware.cpp.

{ }

startHardware()

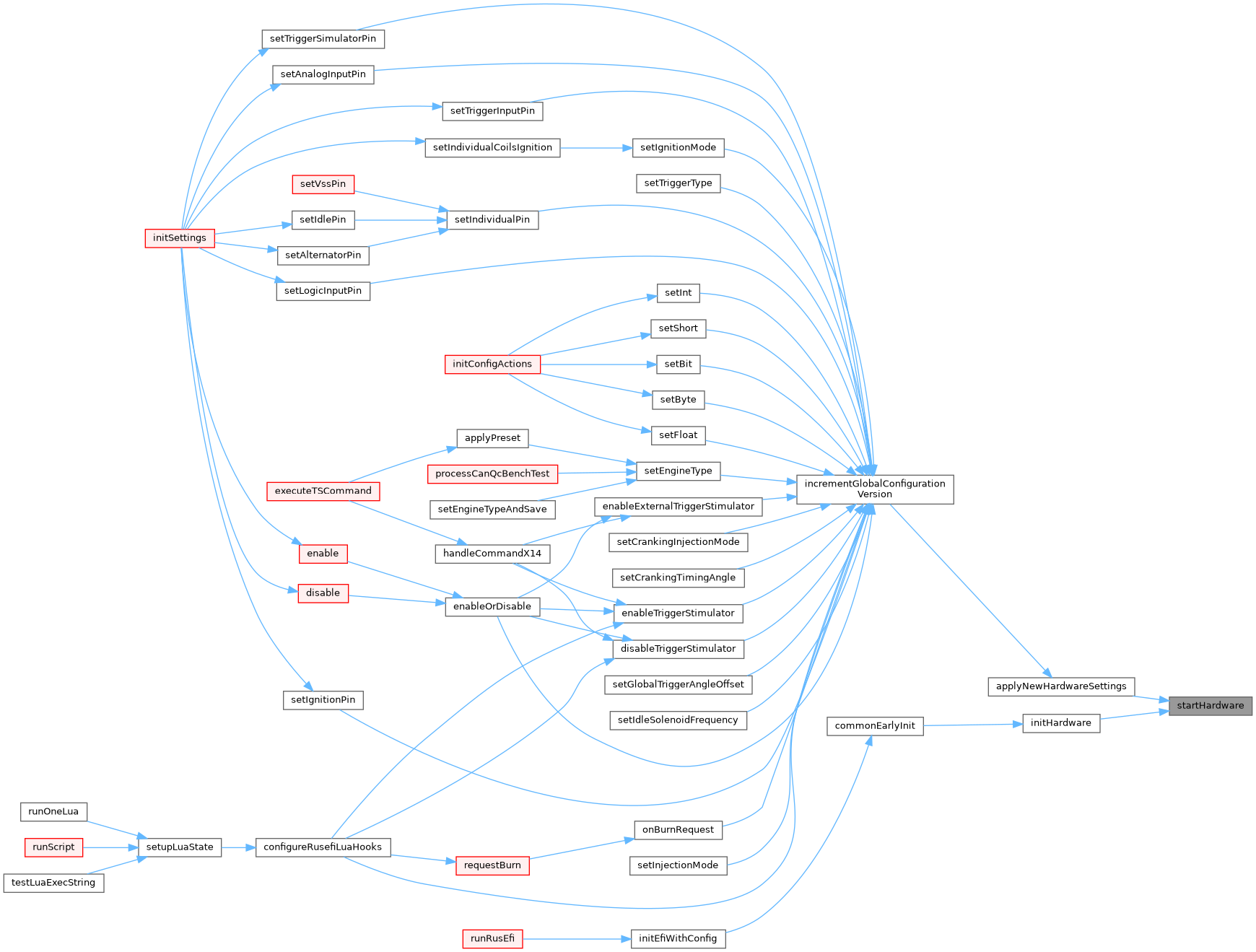

void startHardware

(

)

This method is invoked both on ECU start and configuration change At the moment we have too many system which handle ECU start and configuration change separately TODO: move move hardware code here

Definition at line 503 of file hardware.cpp.

                     {
#if EFI_SHAFT_POSITION_INPUT
    initStartStopButton();
#endif

#if EFI_PROD_CODE && EFI_SHAFT_POSITION_INPUT
    startTriggerInputPins();
#endif /* EFI_SHAFT_POSITION_INPUT */

#if EFI_ENGINE_CONTROL
    enginePins.startPins();
#endif /* EFI_ENGINE_CONTROL */

#if EFI_SHAFT_POSITION_INPUT
    validateTriggerInputs();

#endif // EFI_SHAFT_POSITION_INPUT

    startSwitchPins();

#if EFI_CAN_SUPPORT
    startCanPins();
#endif /* EFI_CAN_SUPPORT */
}

Referenced by applyNewHardwareSettings(), and initHardware().

Here is the call graph for this function:

Here is the caller graph for this function:

stopHardware()

void stopHardware

(

)

Definition at line 478 of file hardware.cpp.

                    {

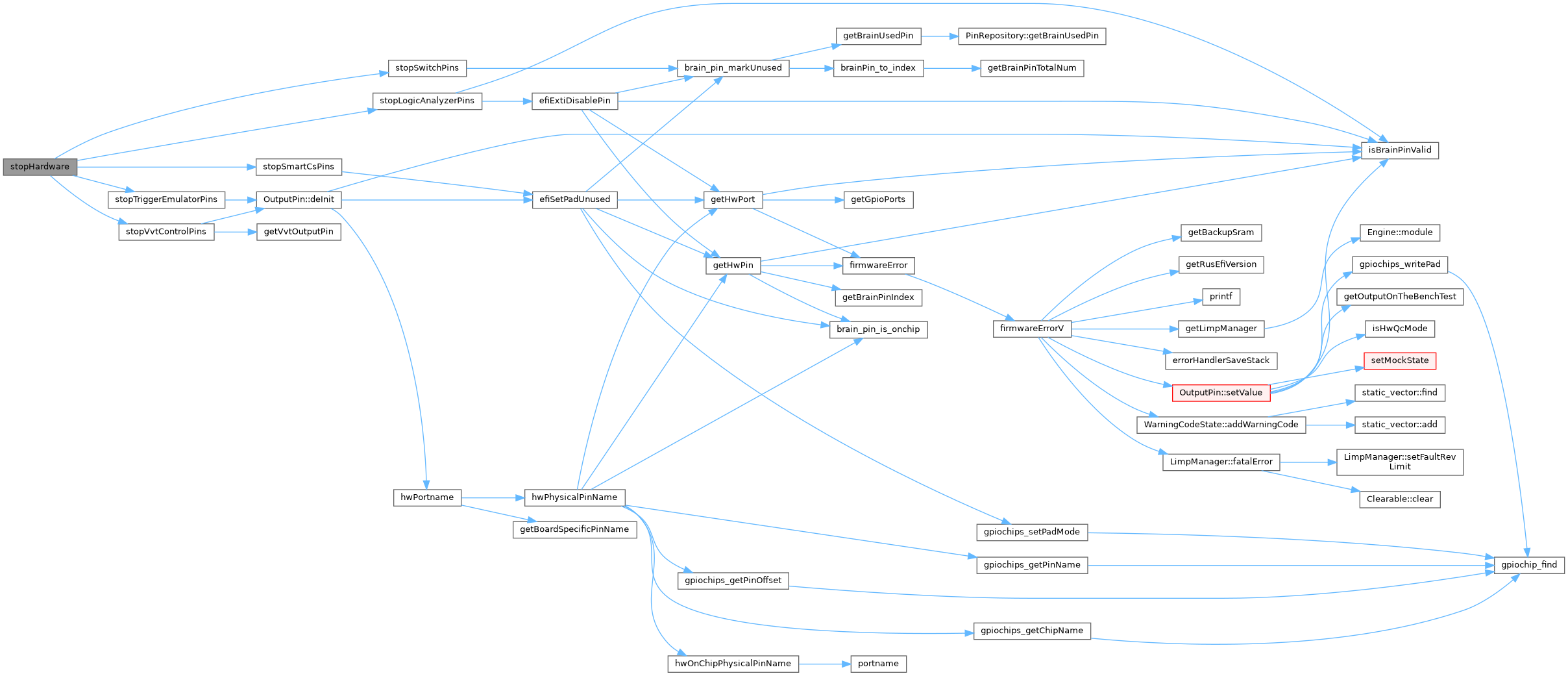

    stopSwitchPins();

#if EFI_PROD_CODE && (BOARD_EXT_GPIOCHIPS > 0)
    stopSmartCsPins();
#endif /* (BOARD_EXT_GPIOCHIPS > 0) */

#if EFI_LOGIC_ANALYZER
    stopLogicAnalyzerPins();
#endif /* EFI_LOGIC_ANALYZER */

#if EFI_EMULATE_POSITION_SENSORS
    stopTriggerEmulatorPins();
#endif /* EFI_EMULATE_POSITION_SENSORS */

#if EFI_VVT_PID
    stopVvtControlPins();
#endif /* EFI_VVT_PID */
}

Referenced by applyNewHardwareSettings().

Here is the call graph for this function:

Here is the caller graph for this function:

stopSpi()

void stopSpi

(

spi_device_e

device

)

Definition at line 220 of file hardware.cpp.

                                  {
    if (!isSpiInitialized[device]) {
        return; // not turned on
    }
    isSpiInitialized[device] = false;
    efiSetPadUnused(getSckPin(device));
    efiSetPadUnused(getMisoPin(device));
    efiSetPadUnused(getMosiPin(device));
}

Referenced by stopSpiModules().

Here is the call graph for this function:

Here is the caller graph for this function:

stopSpiModules()

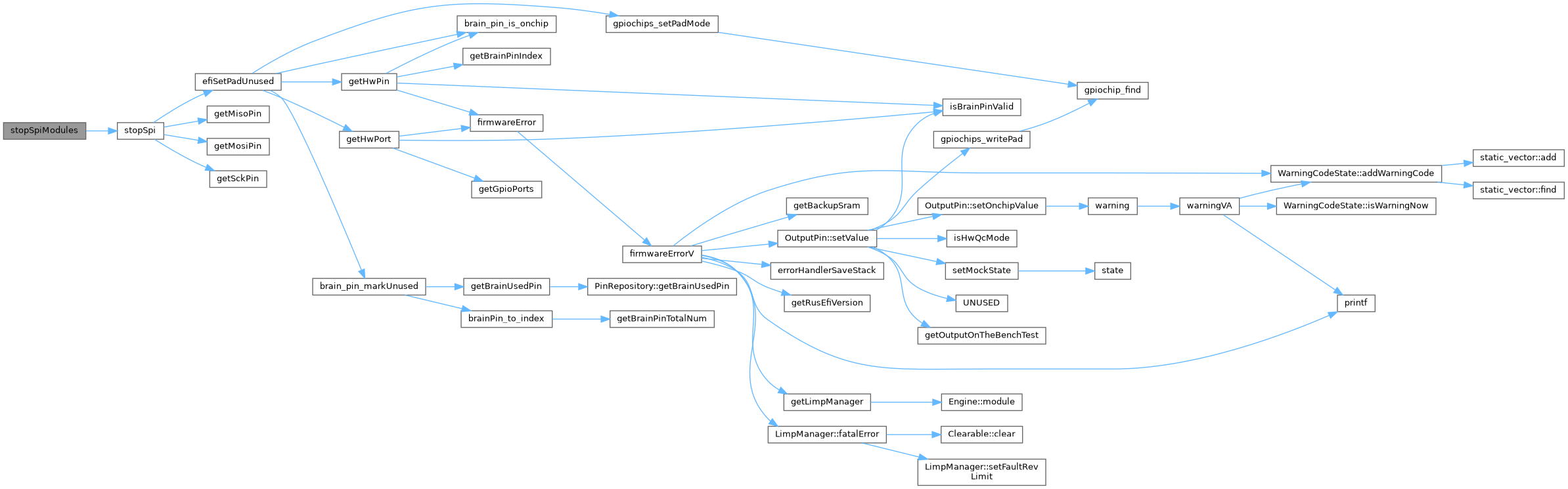

static void stopSpiModules ( )

static

Definition at line 230 of file hardware.cpp.

                             {
    if (isConfigurationChanged(is_enabled_spi_1)) {
        stopSpi(SPI_DEVICE_1);
    }

    if (isConfigurationChanged(is_enabled_spi_2)) {
        stopSpi(SPI_DEVICE_2);
    }

    if (isConfigurationChanged(is_enabled_spi_3)) {
        stopSpi(SPI_DEVICE_3);
    }

    if (isConfigurationChanged(is_enabled_spi_4)) {
        stopSpi(SPI_DEVICE_4);
    }

    if (isConfigurationChanged(is_enabled_spi_5)) {
        stopSpi(SPI_DEVICE_5);
    }

    if (isConfigurationChanged(is_enabled_spi_6)) {
        stopSpi(SPI_DEVICE_6);
    }
}

Referenced by applyNewHardwareSettings().

Here is the call graph for this function:

Here is the caller graph for this function:

unlockSpi()

void unlockSpi

(

spi_device_e

device

)

Definition at line 195 of file hardware.cpp.

                                    {
    spiReleaseBus(getSpiDevice(device));
}

Referenced by sendToPot().

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

custom_board_InitHardware

std::optional<setup_custom_board_overrides_type> custom_board_InitHardware

Definition at line 77 of file hardware.cpp.

Referenced by initHardware(), and setup_custom_board_overrides().

custom_board_InitHardwareEarly

std::optional<setup_custom_board_overrides_type> custom_board_InitHardwareEarly

Definition at line 76 of file hardware.cpp.

Referenced by initHardwareNoConfig().

custom_board_InitHardwareExtra

std::optional<setup_custom_board_overrides_type> custom_board_InitHardwareExtra

Definition at line 78 of file hardware.cpp.

Referenced by initHardware().

fastMapSampleIndex

AdcToken fastMapSampleIndex

static

Definition at line 266 of file hardware.cpp.

Referenced by calcFastAdcIndexes(), and onFastAdcComplete().

i2cfg

const I2CConfig i2cfg

Initial value:

= {
    OPMODE_I2C,
    400000,
    FAST_DUTY_CYCLE_2,
}

Definition at line 531 of file hardware.cpp.

                        {
    OPMODE_I2C,
    400000,
    FAST_DUTY_CYCLE_2,
};

Referenced by initHardware().

isSpiInitialized

bool isSpiInitialized[SPI_TOTAL_COUNT+1]

extern

Definition at line 13 of file at32_spi.cpp.

{ true, false, false, false, false, false, false };

Referenced by stopSpi(), and turnOnSpi().

triggerSampleIndex

AdcToken triggerSampleIndex

static

Definition at line 269 of file hardware.cpp.

Referenced by calcFastAdcIndexes(), and onFastAdcComplete().

Go to the source code of this file.
