pin_repository.cpp File Reference

Detailed Description

I/O pin registry code.

This job of this class is to make sure that we are not using same hardware pin for two different purposes.

Date

Jan 15, 2013

Author

Andrey Belomutskiy, (c) 2012-2020

Definition in file pin_repository.cpp.

Functions
static size_t	getBrainPinTotalNum ()
const char *&	getBrainUsedPin (size_t index)
bool	isBrainPinValid (brain_pin_e brainPin)
int	brainPin_to_index (Gpio brainPin)
bool	brain_pin_markUsed (Gpio brainPin, const char *msg)
void	brain_pin_markUnused (brain_pin_e brainPin)
void	pinDiag2string (char *buffer, size_t size, brain_pin_diag_e pin_diag)
static brain_pin_e	index_to_brainPin (unsigned int i)
static void	reportPins ()
	__attribute__ ((weak)) const char *getBoardSpecificPinName(brain_pin_e)
const char *	hwOnChipPhysicalPinName (ioportid_t hwPort, int hwPin)
const char *	hwPhysicalPinName (Gpio brainPin)
const char *	hwPortname (brain_pin_e brainPin)
void	initPinRepository (void)
bool	brain_pin_is_onchip (brain_pin_e brainPin)
bool	brain_pin_is_ext (brain_pin_e brainPin)
bool	gpio_pin_markUsed (ioportid_t port, ioportmask_t pin, const char *msg)
void	gpio_pin_markUnused (ioportid_t port, ioportmask_t pin)
const char *	getPinFunction (brain_input_pin_e brainPin)

Variables
PinRepository pinRepository	CCM_OPTIONAL
static MemoryStream	portNameStream
static char	portNameBuffer [20]

Function Documentation

__attribute__()

__attribute__

(

(weak)

)

const

Definition at line 195 of file pin_repository.cpp.

                                                                          {
    return nullptr;
}

brain_pin_is_ext()

bool brain_pin_is_ext

(

brain_pin_e

brainPin

)

Definition at line 270 of file pin_repository.cpp.

{
    if (brainPin > BRAIN_PIN_ONCHIP_LAST)
        return true;

    return false;
}

Referenced by efiReadPin(), and startSimplePwm().

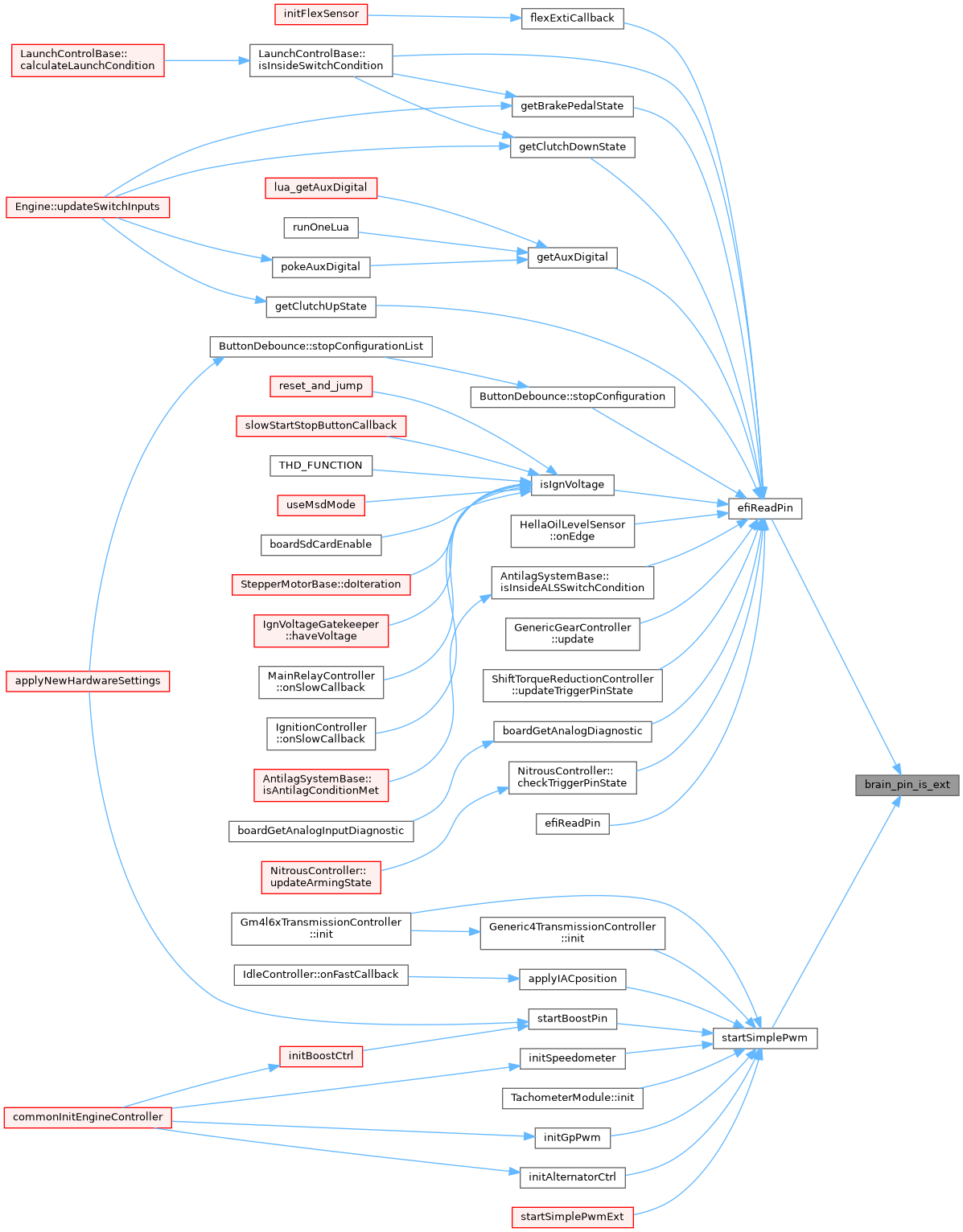

Here is the caller graph for this function:

brain_pin_is_onchip()

bool brain_pin_is_onchip

(

brain_pin_e

brainPin

)

Definition at line 262 of file pin_repository.cpp.

{
    if ((brainPin < Gpio::A0) || (brainPin > BRAIN_PIN_ONCHIP_LAST))
        return false;

    return true;
}

Referenced by directWritePad(), efiReadPin(), efiSetPadModeWithoutOwnershipAcquisition(), efiSetPadUnused(), OutputPin::getDiag(), getHwPin(), hwPhysicalPinName(), and OutputPin::initPin().

Here is the caller graph for this function:

brain_pin_markUnused()

void brain_pin_markUnused

(

brain_pin_e

brainPin

)

See also brain_pin_markUsed()

Definition at line 83 of file pin_repository.cpp.

                                                {
#ifndef EFI_BOOTLOADER
//  efiPrintf("pin_markUnused: %s", hwPortname(brainPin));
#endif
    int index = brainPin_to_index(brainPin);
    if (index < 0)
        return;

    getBrainUsedPin(index) = nullptr;
}

Referenced by deInitAuxDigital(), efiExtiDisablePin(), efiSetPadUnused(), setEepromTestConfiguration(), and stopSwitchPins().

Here is the call graph for this function:

Here is the caller graph for this function:

brain_pin_markUsed()

bool brain_pin_markUsed	(	Gpio	brainPin,
		const char *	msg
	)

See also brain_pin_markUnused()

Returns

true if this pin was already used, false otherwise

Definition at line 53 of file pin_repository.cpp.

                                                        {
#ifndef EFI_BOOTLOADER
//  efiPrintf("pin_markUsed: %s on %s", msg, hwPortname(brainPin));
#endif

    int index = brainPin_to_index(brainPin);
    if (index < 0)
        return true;

    if (pinRepository.getBrainUsedPin(index) != nullptr) {
        // hwPortname and share a buffer behind the scenes, even while they probably never use it for different
        // values here let's have an explicit second buffer to make this more reliable
        char physicalPinName[32];
        strncpy(physicalPinName, hwPhysicalPinName(brainPin), sizeof(physicalPinName) - 1);
        criticalError("Pin \"%s\" (%s) required by \"%s\" but is used by \"%s\"",
                hwPortname(brainPin),
                physicalPinName,
                msg,
                getBrainUsedPin(index));
        return true;
    }

    getBrainUsedPin(index) = msg;
    return false;
}

Referenced by efiSetPadMode().

Here is the call graph for this function:

Here is the caller graph for this function:

brainPin_to_index()

int brainPin_to_index

(

Gpio

brainPin

)

Definition at line 36 of file pin_repository.cpp.

                                     {
    if (brainPin < Gpio::A0)
        return -1;

    size_t i = brainPin - Gpio::A0;

    if (i >= getBrainPinTotalNum())
        return -1;

    return i;
}

Referenced by brain_pin_markUnused(), brain_pin_markUsed(), getPinFunction(), and setPin().

Here is the call graph for this function:

Here is the caller graph for this function:

getBrainPinTotalNum()

static size_t getBrainPinTotalNum ( )

static

Definition at line 16 of file pin_repository.cpp.

                                    {
    return BRAIN_PIN_TOTAL_PINS;
}

Referenced by brainPin_to_index(), index_to_brainPin(), and reportPins().

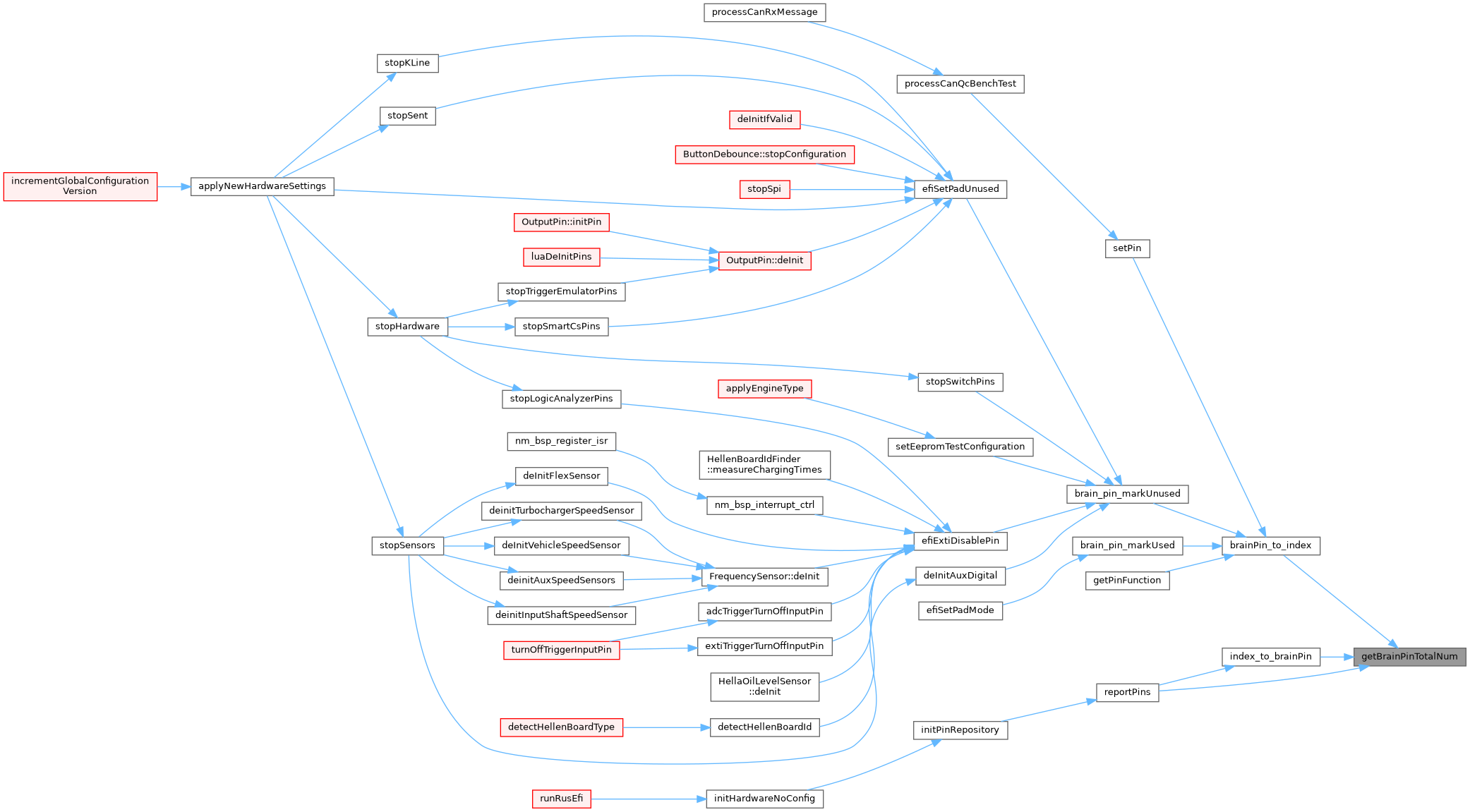

Here is the caller graph for this function:

getBrainUsedPin()

const char *& getBrainUsedPin

(

size_t

index

)

Definition at line 20 of file pin_repository.cpp.

                                            {
    return pinRepository.getBrainUsedPin(index);
}

Referenced by brain_pin_markUnused(), brain_pin_markUsed(), getPinFunction(), gpio_pin_markUnused(), gpio_pin_markUsed(), and reportPins().

Here is the call graph for this function:

Here is the caller graph for this function:

getPinFunction()

const char * getPinFunction

(

brain_input_pin_e

brainPin

)

Definition at line 313 of file pin_repository.cpp.

                                                       {
    int index;

    index = brainPin_to_index(brainPin);
    if (index < 0)
        return NULL;

    return getBrainUsedPin(index);
}

Here is the call graph for this function:

gpio_pin_markUnused()

void gpio_pin_markUnused	(	ioportid_t	port,
		ioportmask_t	pin
	)

Marks on-chip gpio port-pin as UNused. Works only for on-chip gpios To be replaced with brain_pin_markUnused later

Definition at line 307 of file pin_repository.cpp.

                                                            {
    int index = getPortPinIndex(port, pin);

    getBrainUsedPin(index) = nullptr;
}

Referenced by BitbangI2c::deinit().

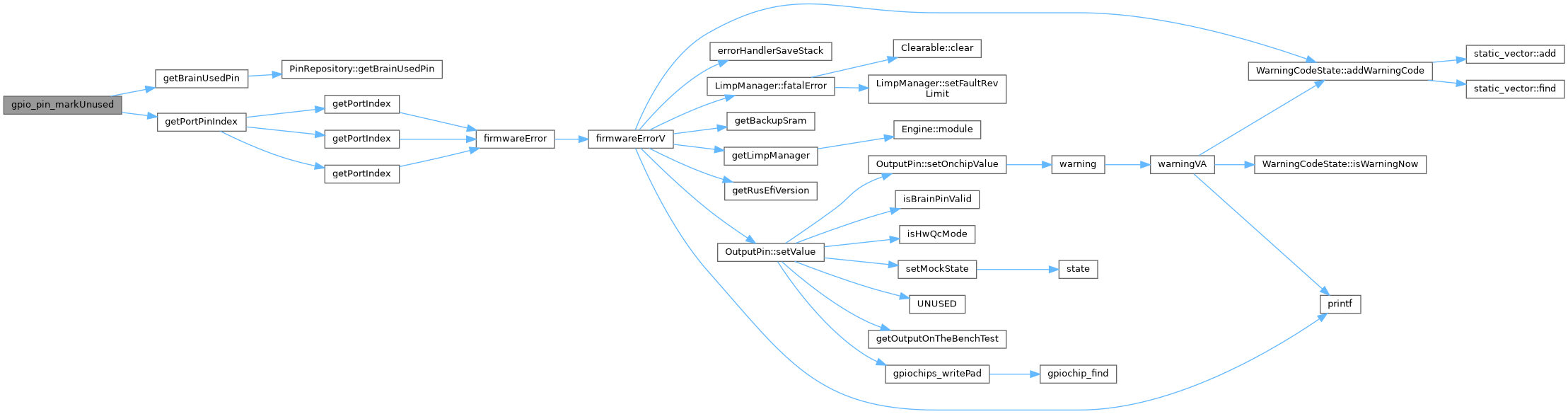

Here is the call graph for this function:

Here is the caller graph for this function:

gpio_pin_markUsed()

bool gpio_pin_markUsed	(	ioportid_t	port,
		ioportmask_t	pin,
		const char *	msg
	)

Marks on-chip gpio port-pin as used. Works only for on-chip gpios To be replaced with brain_pin_markUsed later

todo: the problem is that this warning happens before the console is even connected, so the warning is never displayed on the console and that's quite a problem!

Definition at line 283 of file pin_repository.cpp.

                                                                           {
    int index = getPortPinIndex(port, pin);
#ifndef EFI_BOOTLOADER
//  efiPrintf("pin_markUsed: %s on %s", msg, hwOnChipPhysicalPinName(port, pin));
#endif

    if (getBrainUsedPin(index) != NULL) {
        /**
         * todo: the problem is that this warning happens before the console is even
         * connected, so the warning is never displayed on the console and that's quite a problem!
         */
//      warning(ObdCode::OBD_PCM_Processor_Fault, "%s%d req by %s used by %s", portname(port), pin, msg, getBrainUsedPin(index));
        firmwareError(ObdCode::CUSTOM_ERR_PIN_ALREADY_USED_1, "%s%d req by %s used by %s", portname(port), (int)pin, msg, getBrainUsedPin(index));
        return true;
    }
    getBrainUsedPin(index) = msg;
    return false;
}

Referenced by hellen154hyundai_f7_boardInitHardware().

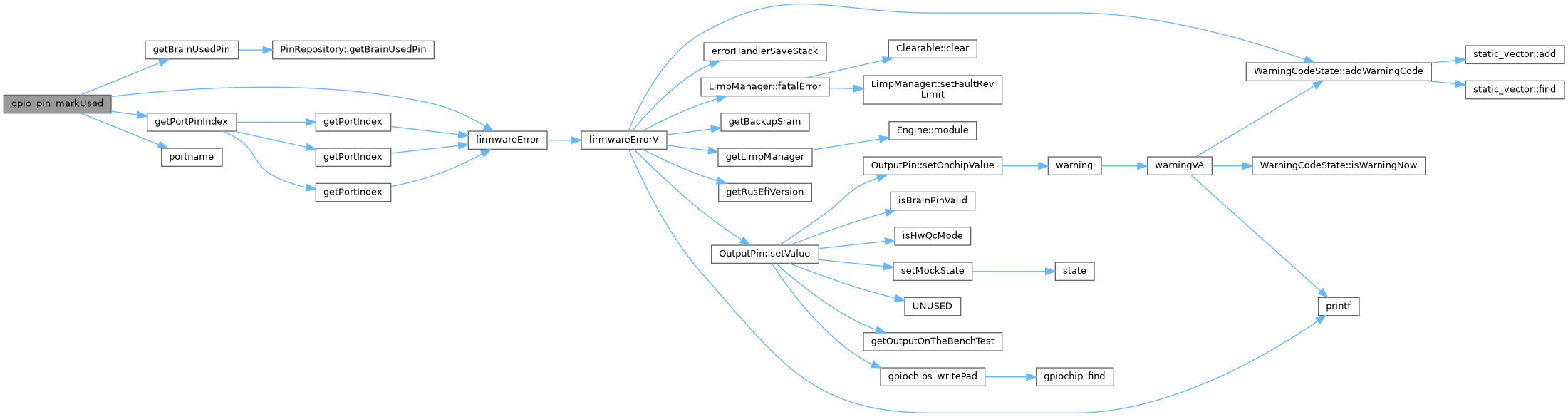

Here is the call graph for this function:

Here is the caller graph for this function:

hwOnChipPhysicalPinName()

const char * hwOnChipPhysicalPinName	(	ioportid_t	hwPort,
		int	hwPin
	)

Definition at line 199 of file pin_repository.cpp.

                                                                  {
  portNameStream.eos = 0; // reset
    if (!hwPort) {
        return "NONE";
    }
    chprintf((BaseSequentialStream *) &portNameStream, "%s%d", portname(hwPort), hwPin);
    portNameStream.buffer[portNameStream.eos] = 0; // need to terminate explicitly
  return portNameBuffer;
}

Referenced by hwPhysicalPinName().

Here is the call graph for this function:

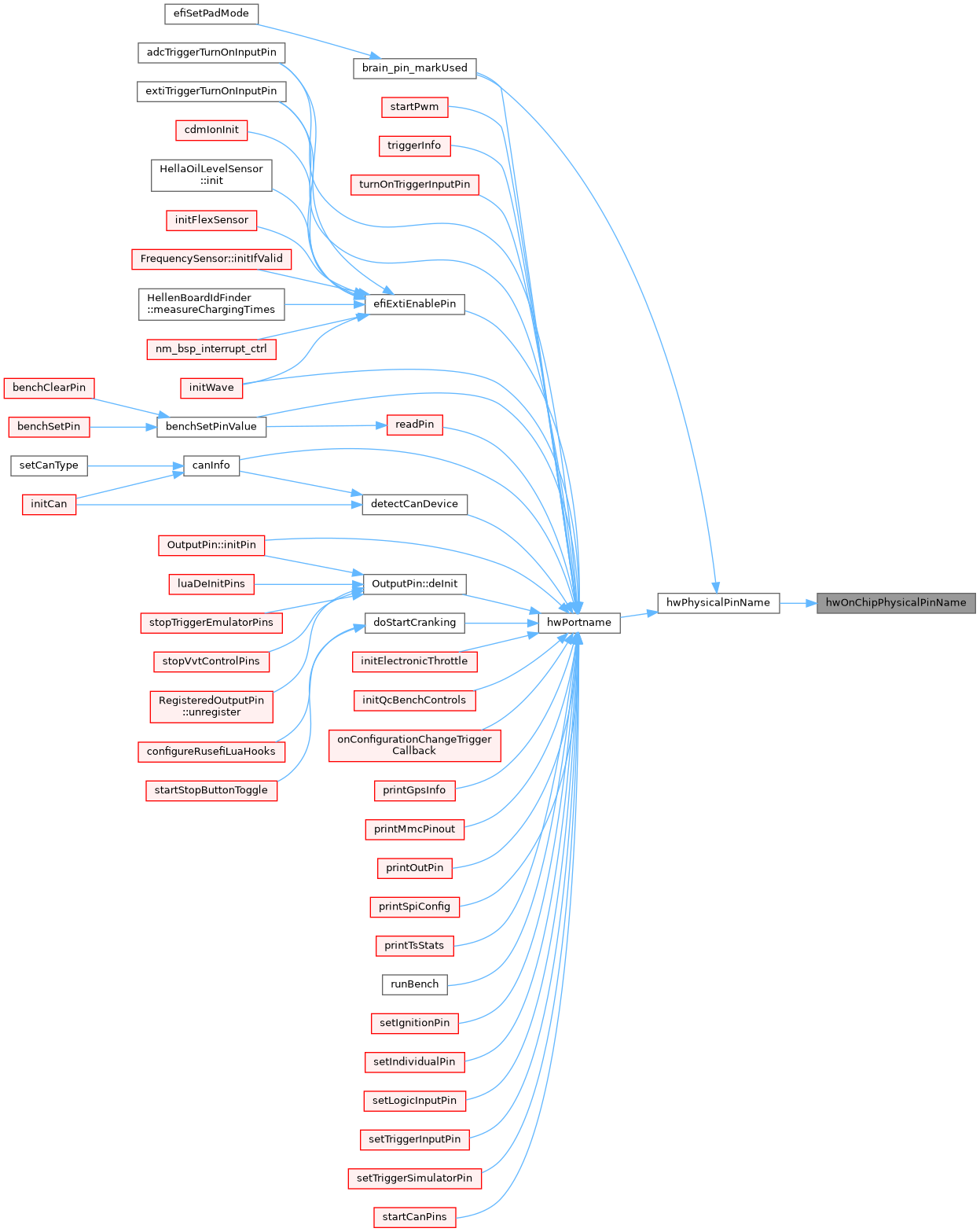

Here is the caller graph for this function:

hwPhysicalPinName()

const char * hwPhysicalPinName

(

Gpio

brainPin

)

Definition at line 209 of file pin_repository.cpp.

                                             {
    if (brainPin == Gpio::Invalid) {
        return "INVALID";
    }
    if (brainPin == Gpio::Unassigned) {
        return "NONE";
    }

    if (brain_pin_is_onchip(brainPin)) {
        ioportid_t hwPort = getHwPort("hostname", brainPin);
        int hwPin = getHwPin("hostname", brainPin);
      return hwOnChipPhysicalPinName(hwPort, hwPin);
    }
    #if (BOARD_EXT_GPIOCHIPS > 0)
        else {
        portNameStream.eos = 0; // reset
            const char *pin_name = gpiochips_getPinName(brainPin);

            if (pin_name) {
                chprintf((BaseSequentialStream *) &portNameStream, "ext:%s",
                    pin_name);
            } else {
                chprintf((BaseSequentialStream *) &portNameStream, "ext:%s.%d",
                    gpiochips_getChipName(brainPin), gpiochips_getPinOffset(brainPin));
            }
        portNameStream.buffer[portNameStream.eos] = 0; // need to terminate explicitly
        return portNameBuffer;
        }
    #endif
  return "unexpected";
}

Referenced by brain_pin_markUsed(), and hwPortname().

Here is the call graph for this function:

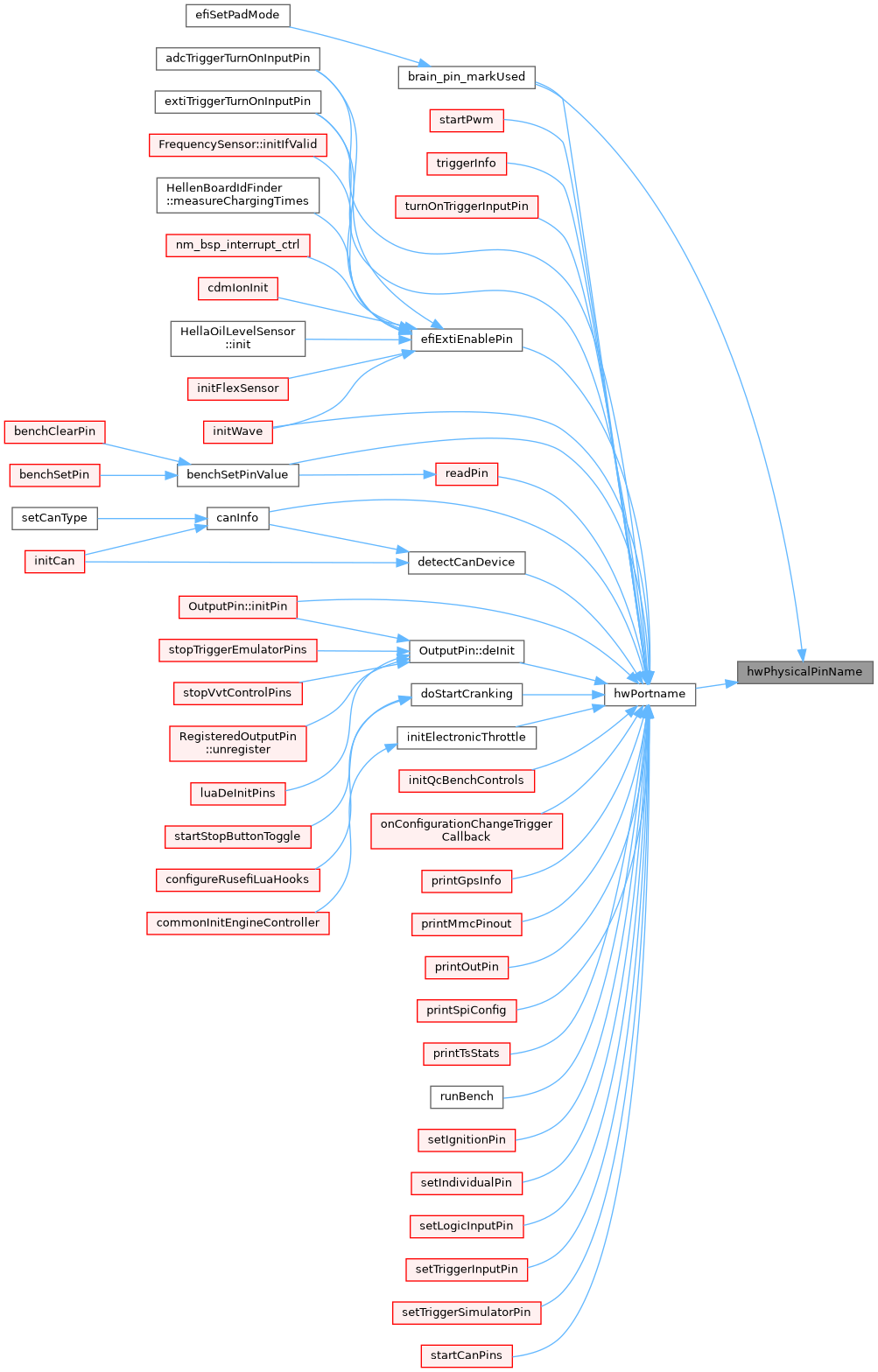

Here is the caller graph for this function:

hwPortname()

const char * hwPortname

(

brain_pin_e

brainPin

)

Definition at line 241 of file pin_repository.cpp.

                                             {
    const char * boardSpecificPinName = getBoardSpecificPinName(brainPin);
    if (boardSpecificPinName != nullptr) {
        return boardSpecificPinName;
    }
    return hwPhysicalPinName(brainPin);
}

Referenced by adcTriggerTurnOnInputPin(), benchSetPinValue(), brain_pin_markUsed(), canInfo(), OutputPin::deInit(), detectCanDevice(), doStartCranking(), efiExtiEnablePin(), extiTriggerTurnOnInputPin(), initElectronicThrottle(), OutputPin::initPin(), initQcBenchControls(), initWave(), onConfigurationChangeTriggerCallback(), printGpsInfo(), printMmcPinout(), printOutPin(), printSpiConfig(), printTsStats(), readPin(), runBench(), setIgnitionPin(), setIndividualPin(), setLogicInputPin(), setTriggerInputPin(), setTriggerSimulatorPin(), startCanPins(), startPwm(), triggerInfo(), and turnOnTriggerInputPin().

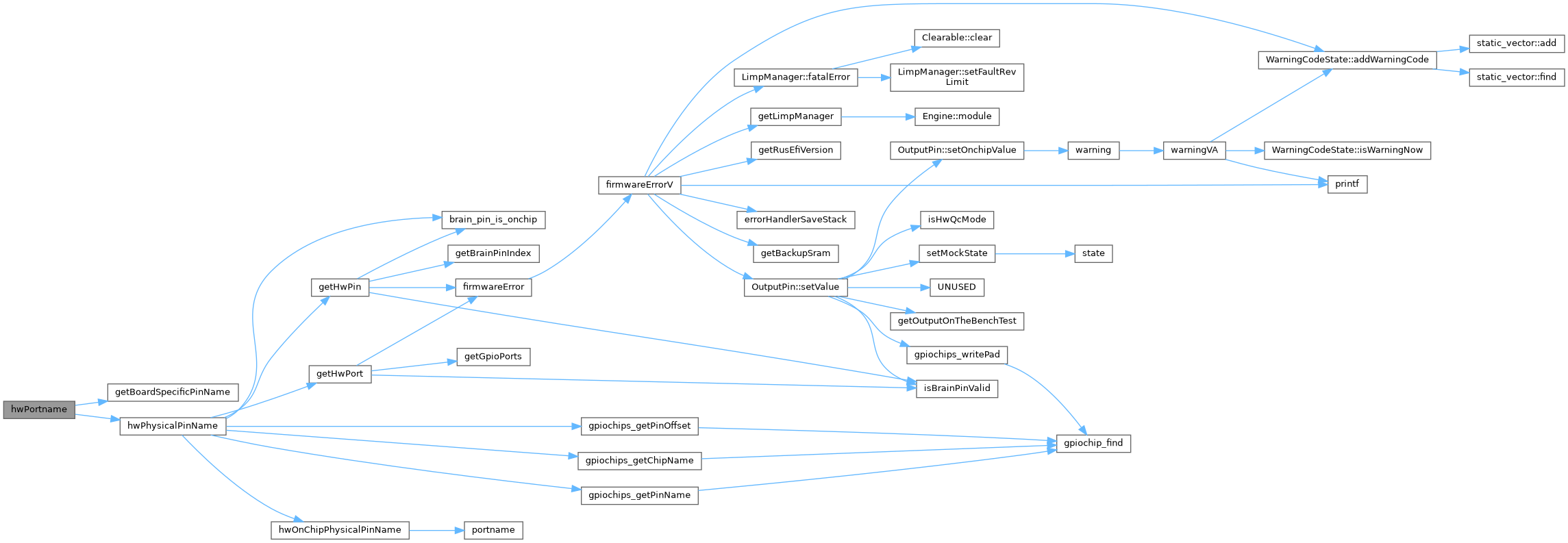

Here is the call graph for this function:

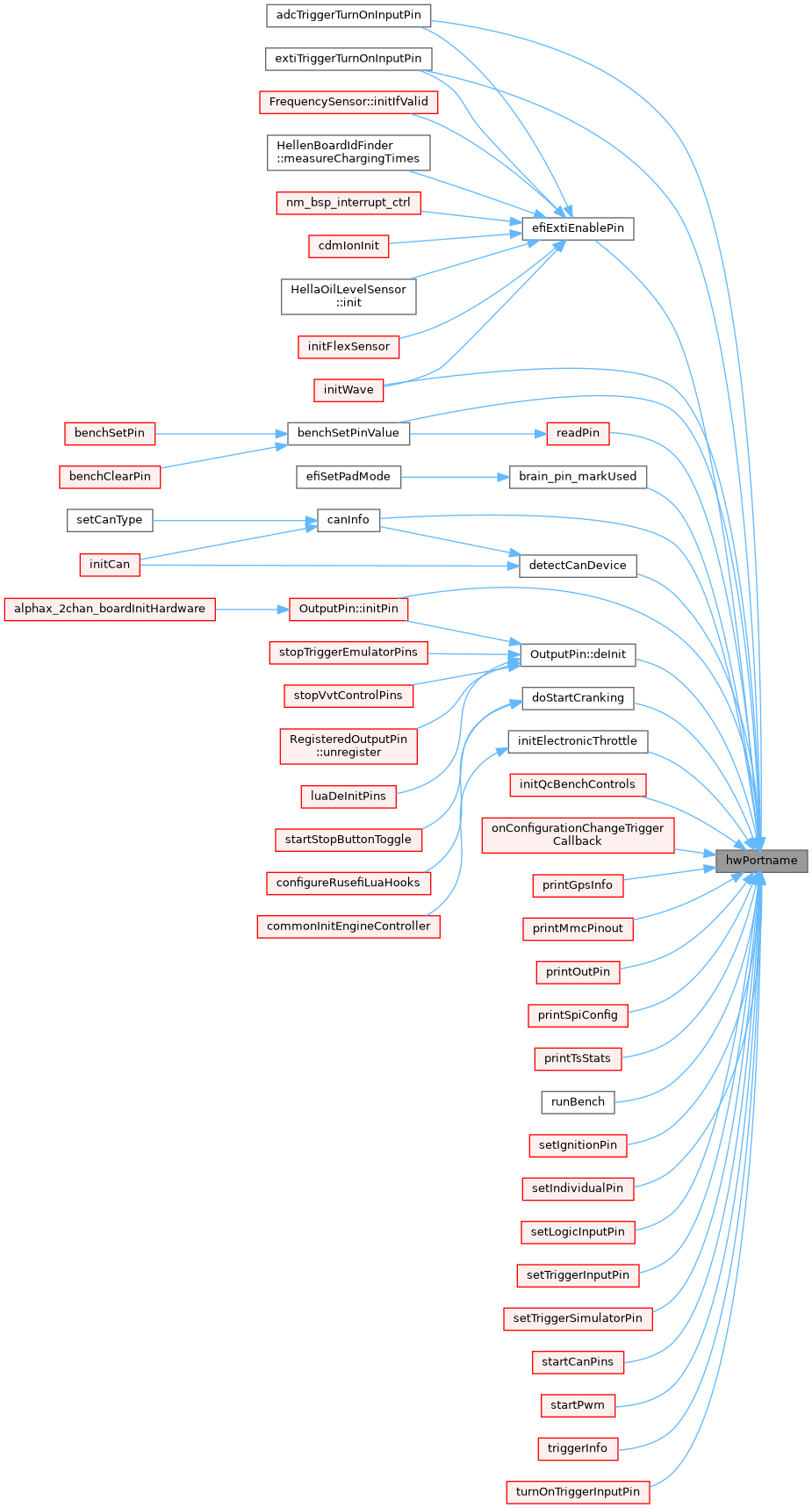

Here is the caller graph for this function:

index_to_brainPin()

static brain_pin_e index_to_brainPin ( unsigned int  i )

static

Definition at line 132 of file pin_repository.cpp.

{
    if (i < getBrainPinTotalNum())
        return Gpio::A0 + i;

    return Gpio::Invalid;
}

Referenced by reportPins().

Here is the call graph for this function:

Here is the caller graph for this function:

initPinRepository()

void initPinRepository

(

void

)

this method cannot use console because this method is invoked before console is initialized

Definition at line 249 of file pin_repository.cpp.

                             {
    /**
     * this method cannot use console because this method is invoked before console is initialized
     */

    addConsoleAction(CMD_PINS, reportPins);

#if (BOARD_TLE8888_COUNT > 0)
    addConsoleAction("tle8888", tle8888_dump_regs);
    addConsoleAction("tle8888init", tle8888_req_init);
#endif
}

Referenced by initHardwareNoConfig().

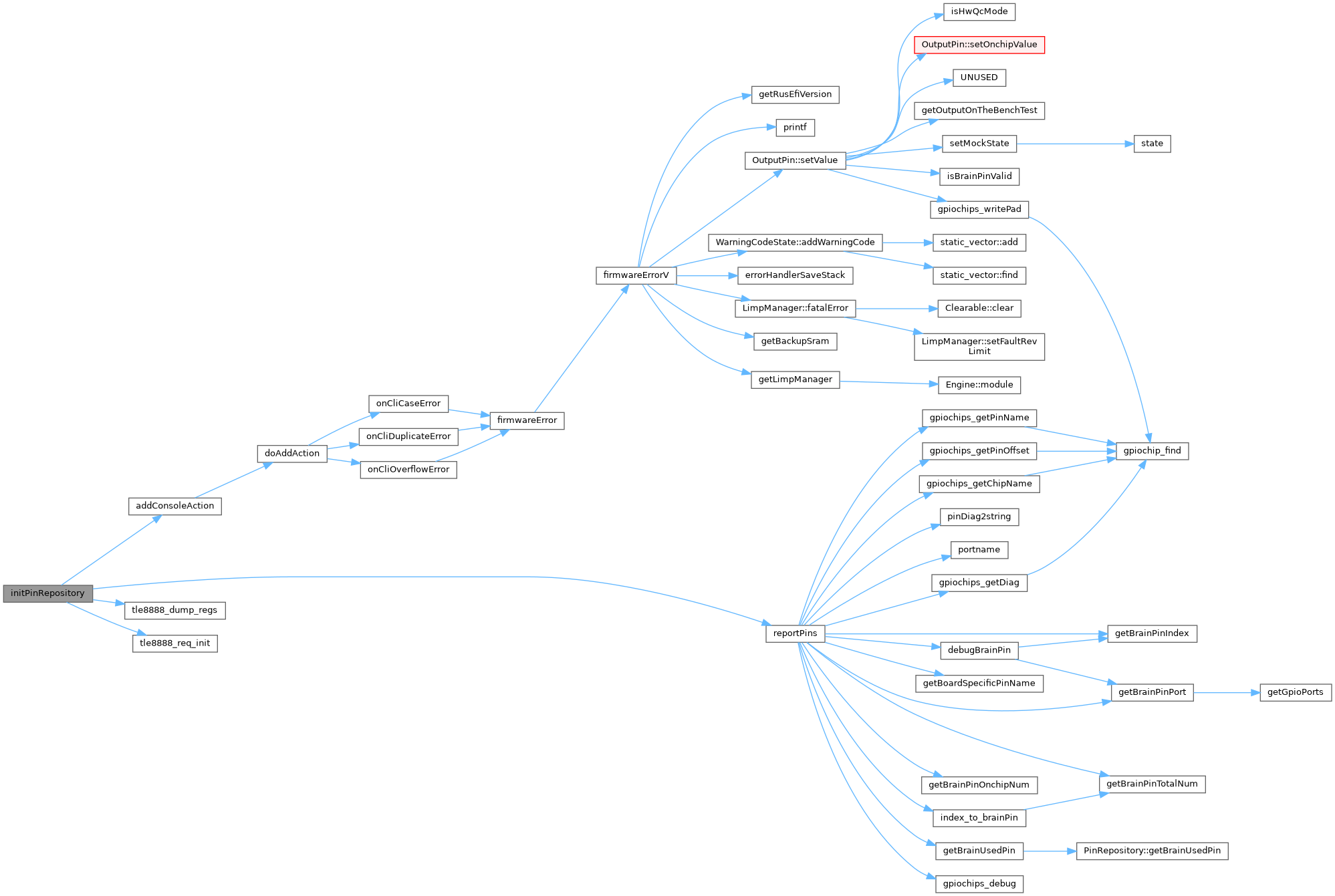

Here is the call graph for this function:

Here is the caller graph for this function:

isBrainPinValid()

bool isBrainPinValid

(

brain_pin_e

brainPin

)

Definition at line 25 of file pin_repository.cpp.

                                           {
    if ((brainPin == Gpio::Unassigned) || (brainPin == Gpio::Invalid))
        return false;

    if (brainPin > BRAIN_PIN_LAST)
        /* something terribly wrong */
        return false;

    return true;
}

Referenced by applyIACposition(), boardGetAnalogDiagnostic(), cdmIonInit(), NitrousController::checkTriggerPinState(), FrequencySensor::deInit(), HellaOilLevelSensor::deInit(), OutputPin::deInit(), deInitFlexSensor(), directWritePad(), efiExtiDisablePin(), efiExtiEnablePin(), efiReadPin(), efiSetPadMode(), getAdcChannelForTrigger(), getBrakePedalState(), getClutchDownState(), getClutchUpState(), getHwPin(), getHwPort(), TriggerCentral::handleShaftSignal(), handleVvtCamSignal(), hasAcToggle(), TachometerModule::init(), GenericGearController::init(), HellaOilLevelSensor::init(), BitbangI2c::init(), initAccelerometer(), initAlternatorCtrl(), initAuxValves(), initBoostCtrl(), initDac(), initGpPwm(), StepDirectionStepper::initialize(), FrequencySensor::initIfValid(), OutputPin::initPin(), initPotentiometers(), initSmartGpio(), initSpeedometer(), initVrThresholdPwm(), initWave(), isBoostControlSolenoidMode(), isGpsEnabled(), isIgnVoltage(), AntilagSystemBase::isInsideALSSwitchCondition(), LaunchControlBase::isInsideSwitchCondition(), isMilEnabled(), isSdCardEnabled(), lua_getAuxDigital(), lua_readpin(), onConfigurationChangeTriggerCallback(), onEcuStartDoSomethingTriggerInputPins(), AlternatorController::onFastCallback(), HarleyAcr::onSlowCallback(), SensorChecker::onSlowCallback(), printOutPin(), recalculateAuxValveTiming(), OutputPin::setValue(), startBoostPin(), startCanPins(), startSent(), startSerialChannels(), startTriggerEmulatorPins(), ButtonDebounce::stopConfiguration(), stopLogicAnalyzerPins(), stopSent(), triggerInfo(), turnOnTriggerInputPin(), turnVvtPidOn(), GenericGearController::update(), ShiftTorqueReductionController::updateTriggerPinState(), updateVrThresholdPwm(), validateConfigOnStartUpOrBurn(), and validateTriggerInputs().

pinDiag2string()

void pinDiag2string	(	char *	buffer,
		size_t	size,
		brain_pin_diag_e	pin_diag
	)

Definition at line 115 of file pin_repository.cpp.

                                                                          {
    /* use autogeneraged helpers here? */
    if (pin_diag == PIN_OK) {
        chsnprintf(buffer, size, "Ok");
    } else if (pin_diag != PIN_UNKNOWN) {
        chsnprintf(buffer, size, "%s%s%s%s%s%s",
            pin_diag & PIN_DRIVER_OFF ? "driver_off " : "",
            pin_diag & PIN_OPEN ? "open_load " : "",
            pin_diag & PIN_SHORT_TO_GND ? "short_to_gnd " : "",
            pin_diag & PIN_SHORT_TO_BAT ? "short_to_bat " : "",
            pin_diag & PIN_OVERLOAD ? "overload " : "",
            pin_diag & PIN_DRIVER_OVERTEMP ? "overtemp": "");
    } else {
        chsnprintf(buffer, size, "INVALID");
    }
}

Referenced by benchOff(), SensorChecker::onSlowCallback(), and reportPins().

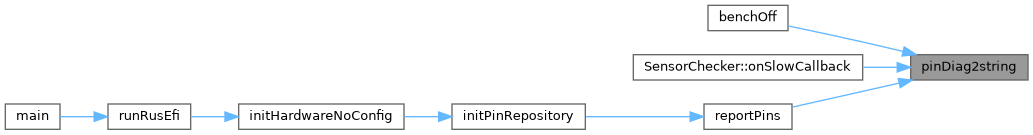

Here is the caller graph for this function:

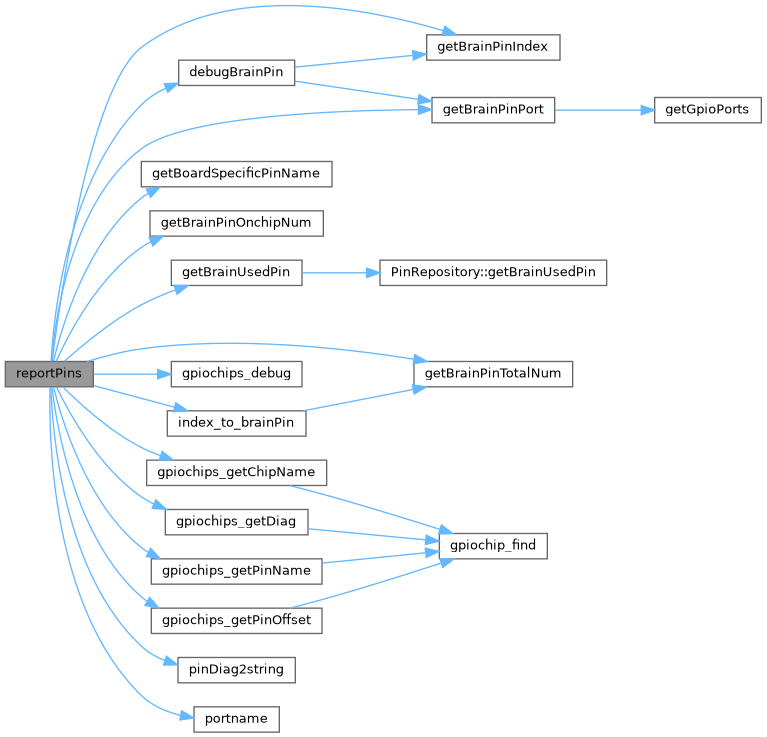

reportPins()

static void reportPins ( )

static

Definition at line 140 of file pin_repository.cpp.

                         {
    int totalPinsUsed = 0;

    for (unsigned int i = 0; i < getBrainPinOnchipNum(); i++) {
        const char *pin_user = getBrainUsedPin(i);

        /* show used pins */
        if (pin_user) {
            static char pin_state[64];
            brain_pin_e brainPin = index_to_brainPin(i);
            int pin = getBrainPinIndex(brainPin);
            ioportid_t port = getBrainPinPort(brainPin);
            debugBrainPin(pin_state, sizeof(pin_state), brainPin);

            const char *boardPinName = getBoardSpecificPinName(brainPin);
            efiPrintf("pin %s%d (%s): %s %s", portname(port), pin, boardPinName, pin_user, pin_state);
            totalPinsUsed++;
        }
    }

    #if (BOARD_EXT_GPIOCHIPS > 0)
        for (unsigned int i = getBrainPinOnchipNum() ; i < getBrainPinTotalNum(); i++) {
            static char pin_error[64];
            brain_pin_e brainPin = index_to_brainPin(i);

            const char *pin_name = gpiochips_getPinName(brainPin);
            const char *pin_user = getBrainUsedPin(i);
            brain_pin_diag_e pin_diag = gpiochips_getDiag(brainPin);

            pinDiag2string(pin_error, sizeof(pin_error), pin_diag);

            /* here show all pins, unused too */
            if (pin_name) {
                // this probably uses a lot of output buffer!
                efiPrintf("ext %s: %s diagnostic: %s",
                    pin_name, pin_user ? pin_user : "free", pin_error);
            } else {
                const char *chip_name = gpiochips_getChipName(brainPin);
                /* if chip exist */
                if (chip_name) {
                    efiPrintf("ext %s.%d: %s diagnostic: %s",
                        chip_name, gpiochips_getPinOffset(brainPin), pin_user ? pin_user : "free", pin_error);
                }
            }
            if (pin_user) {
                totalPinsUsed++;
            }
        }
    #endif

    efiPrintf("Total pins used: %d", totalPinsUsed);

    gpiochips_debug();
}

Referenced by initPinRepository().

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

CCM_OPTIONAL

PinRepository pinRepository CCM_OPTIONAL

Definition at line 14 of file pin_repository.cpp.

portNameBuffer

char portNameBuffer[20]

static

Definition at line 97 of file pin_repository.cpp.

Referenced by hwOnChipPhysicalPinName(), hwPhysicalPinName(), and PinRepository::PinRepository().

portNameStream

MemoryStream portNameStream

static

Definition at line 96 of file pin_repository.cpp.

Referenced by hwOnChipPhysicalPinName(), hwPhysicalPinName(), and PinRepository::PinRepository().

Go to the source code of this file.
