can_bench_test.cpp File Reference

Functions
bool	isHwQcMode ()
void	setHwQcMode ()
static void	directWritePad (Gpio pin, int value, const char *msg="")
static void	qcSetEtbState (uint8_t dcIndex, uint8_t direction)
static void	setPin (const CANRxFrame &frame, int value)
void	sendQcBenchEventCounters (size_t bus)
void	sendQcBenchButtonCounters ()
void	sendQcBenchAuxDigitalCounters ()
void	sendQcBenchRawAnalogValues (size_t bus)
static void	sendOutBoardMeta (size_t bus)
void	sendQcBenchBoardStatus (size_t bus)
static void	sendManualPinTest (int id)
static void	sendPinStatePackets (int pinToggleCounter, uint32_t durationsInStateMs[2])
static void	sendPinStatePackets (bench_mode_e benchModePinIdx)
static void	sendSavedBenchStatePackets ()
static void	resetPinStats (bench_mode_e benchModePinIdx)
void	processCanQcBenchTest (const CANRxFrame &frame)
void	initQcBenchControls ()

Variables
PinRepository	pinRepository
static bool	qcDirectPinControlMode = false

Function Documentation

directWritePad()

static void directWritePad ( Gpio  pin, int  value, const char *  msg = ""  )

static

Definition at line 61 of file can_bench_test.cpp.

                                                                      {
  if (!isBrainPinValid(pin)) {
    criticalError("QC of invalid pin %d %s", (int)pin, msg);
    return;
  }

#if EFI_GPIO_HARDWARE && EFI_PROD_CODE
    if (brain_pin_is_onchip(pin)) {
      palWritePad(getHwPort("can_write", pin), getHwPin("can_write", pin), value);
    } else {
#if (BOARD_EXT_GPIOCHIPS > 0)
    gpiochips_writePad(pin, value);
#endif
    }
#endif // EFI_GPIO_HARDWARE && EFI_PROD_CODE
}

Referenced by qcSetEtbState(), and setPin().

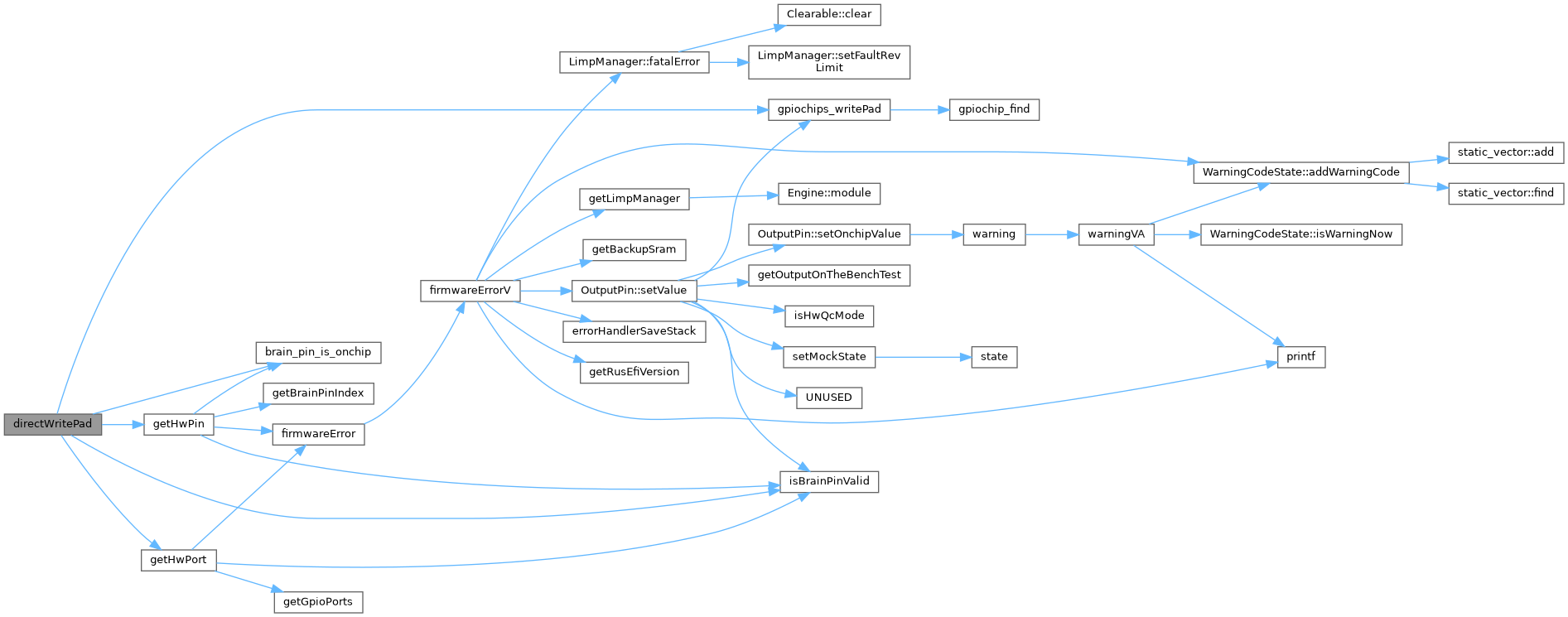

Here is the call graph for this function:

Here is the caller graph for this function:

initQcBenchControls()

void initQcBenchControls

(

)

Definition at line 341 of file can_bench_test.cpp.

                           {
#if EFI_CAN_SUPPORT && EFI_PROD_CODE
    addConsoleActionII("qc_etb", [](int index, int direction) {
        qcSetEtbState(index, direction);
    });

    addConsoleActionI("qc_output", [](int index) {
        Gpio* boardOutputs = getBoardMetaOutputs();
        criticalAssertVoid(boardOutputs != nullptr, "outputs not defined");
      Gpio pin = boardOutputs[index];
        efiSetPadModeWithoutOwnershipAcquisition("qc_output", pin, PAL_MODE_OUTPUT_PUSHPULL);

        int physicalValue = palReadPad(getHwPort("read", pin), getHwPin("read", pin));
        efiPrintf("original pin %s value %d", hwPortname(pin), physicalValue);
        palWritePad(getHwPort("write", pin), getHwPin("write", pin), 1 - physicalValue);
      sendManualPinTest(index);
    });
#endif // EFI_PROD_CODE
}

Referenced by commonEarlyInit().

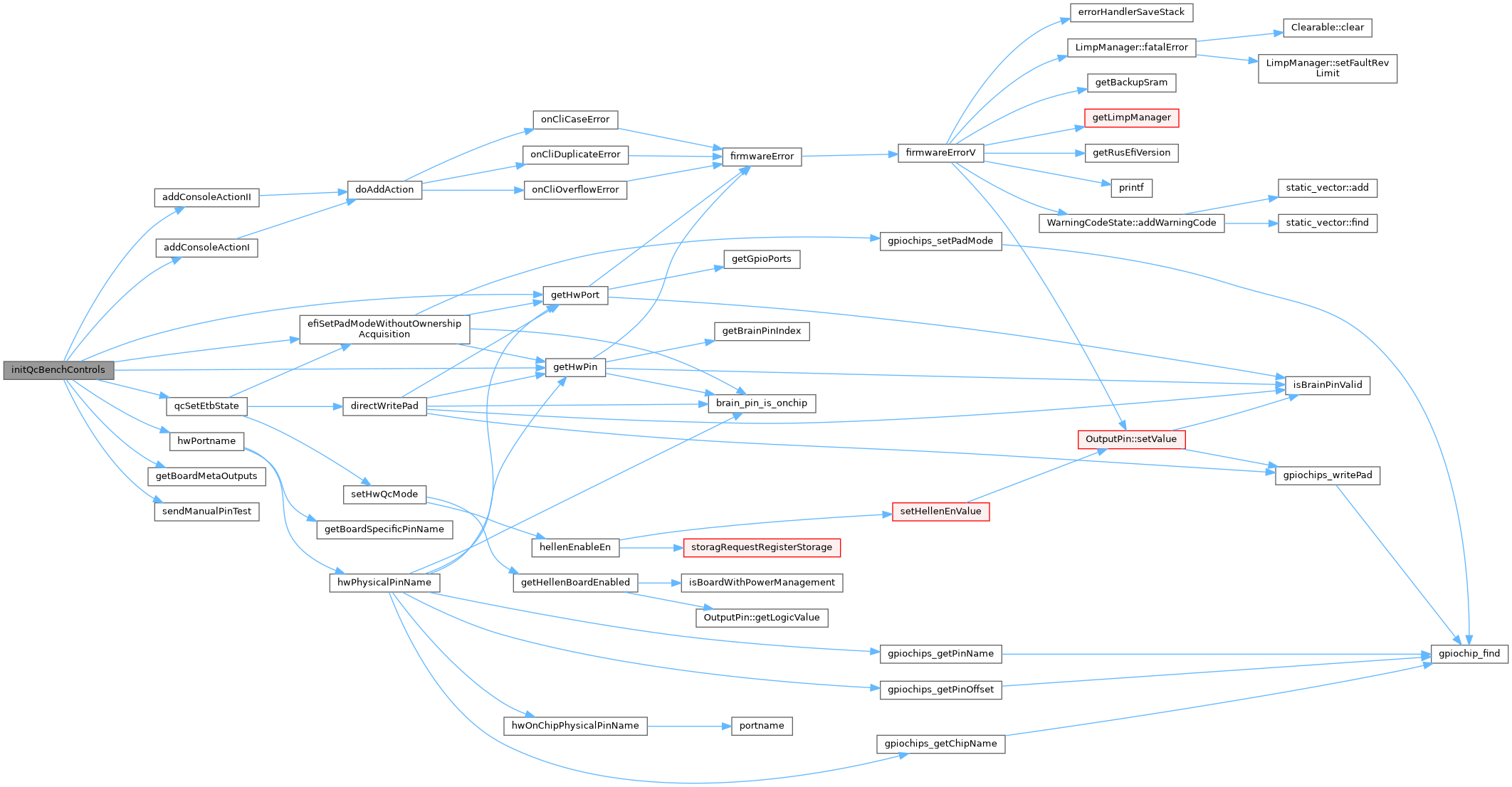

Here is the call graph for this function:

Here is the caller graph for this function:

isHwQcMode()

bool isHwQcMode

(

)

Definition at line 40 of file can_bench_test.cpp.

                   {
#if EFI_PROD_CODE
  return qcDirectPinControlMode;
#else
  return false;
#endif // EFI_PROD_CODE
}

Referenced by CanWrite::PeriodicTask(), and OutputPin::setValue().

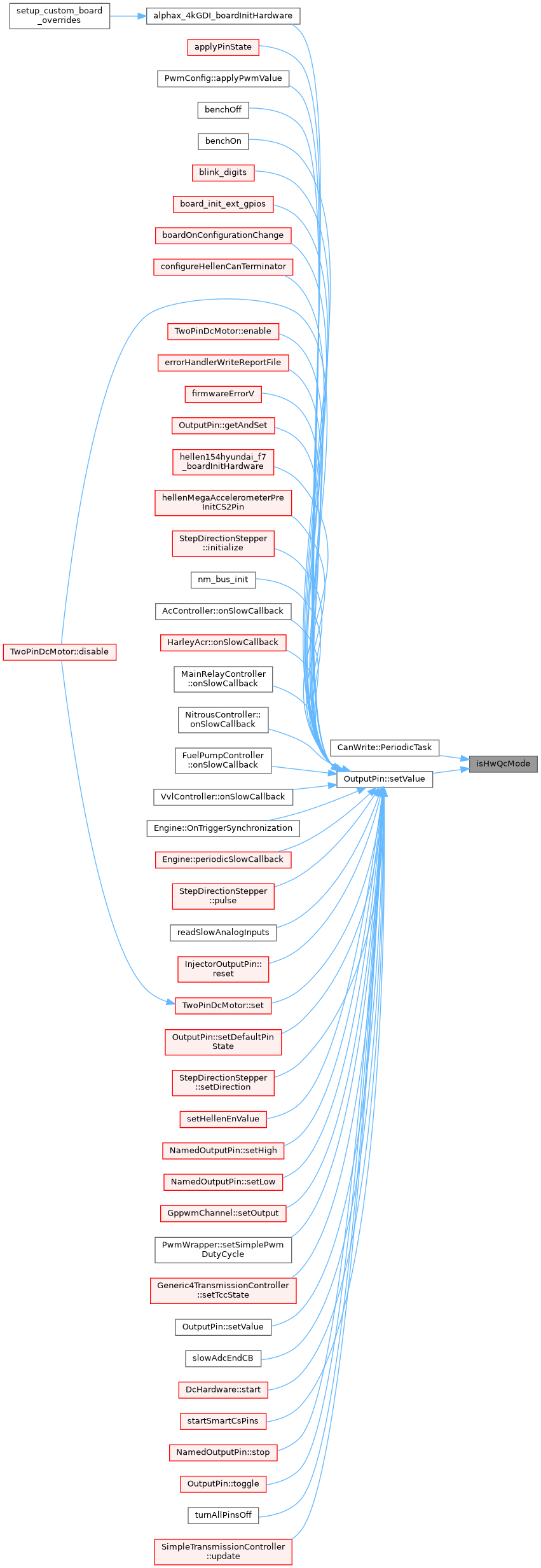

Here is the caller graph for this function:

processCanQcBenchTest()

void processCanQcBenchTest

(

const CANRxFrame &

frame

)

file can_bench_test.h

Definition at line 298 of file can_bench_test.cpp.

                                                    {
    if (CAN_EID(frame) != (int)bench_test_packet_ids_e::HW_QC_IO_CONTROL) {
        return;
    }
    if (frame.data8[0] != (int)bench_test_magic_numbers_e::BENCH_HEADER) {
        return;
    }
  setHwQcMode();
    bench_test_io_control_e command = (bench_test_io_control_e)frame.data8[1];
    if (command == bench_test_io_control_e::CAN_BENCH_GET_COUNT) {
        sendOutBoardMeta(0);
    } else if (command == bench_test_io_control_e::CAN_QC_OUTPUT_CONTROL_SET) {
      // see also "bench_setpin" console command
        setPin(frame, 1);
    } else if (command == bench_test_io_control_e::CAN_QC_OUTPUT_CONTROL_CLEAR) {
        setPin(frame, 0);
    } else if (command == bench_test_io_control_e::CAN_QC_ETB) {
        uint8_t dcIndex = frame.data8[2];
        uint8_t direction = frame.data8[3];
        qcSetEtbState(dcIndex, direction);
    } else if (command == bench_test_io_control_e::CAN_BENCH_SET_ENGINE_TYPE) {
        int eType = frame.data8[2];
        // todo: fix firmware for 'false' to be possible - i.e. more of properties should be applied on the fly
        setEngineType(eType, true);
#if EFI_PROD_CODE
        scheduleReboot();
#endif // EFI_PROD_CODE
} else if (command == bench_test_io_control_e::CAN_BENCH_START_PIN_TEST) {
        bench_mode_e benchModePinIdx = (bench_mode_e)frame.data8[2];
        // ignore previous pin state and stats
        resetPinStats(benchModePinIdx);
    } else if (command == bench_test_io_control_e::CAN_BENCH_END_PIN_TEST) {
        sendSavedBenchStatePackets();
    } else if (command == bench_test_io_control_e::CAN_BENCH_EXECUTE_BENCH_TEST) {
        int benchCommandIdx = frame.data8[2];
        handleBenchCategory(benchCommandIdx);
    } else if (command == bench_test_io_control_e::CAN_BENCH_QUERY_PIN_STATE) {
        bench_mode_e benchModePinIdx = (bench_mode_e)frame.data8[2];
        sendPinStatePackets(benchModePinIdx);
    }
}

Referenced by processCanRxMessage().

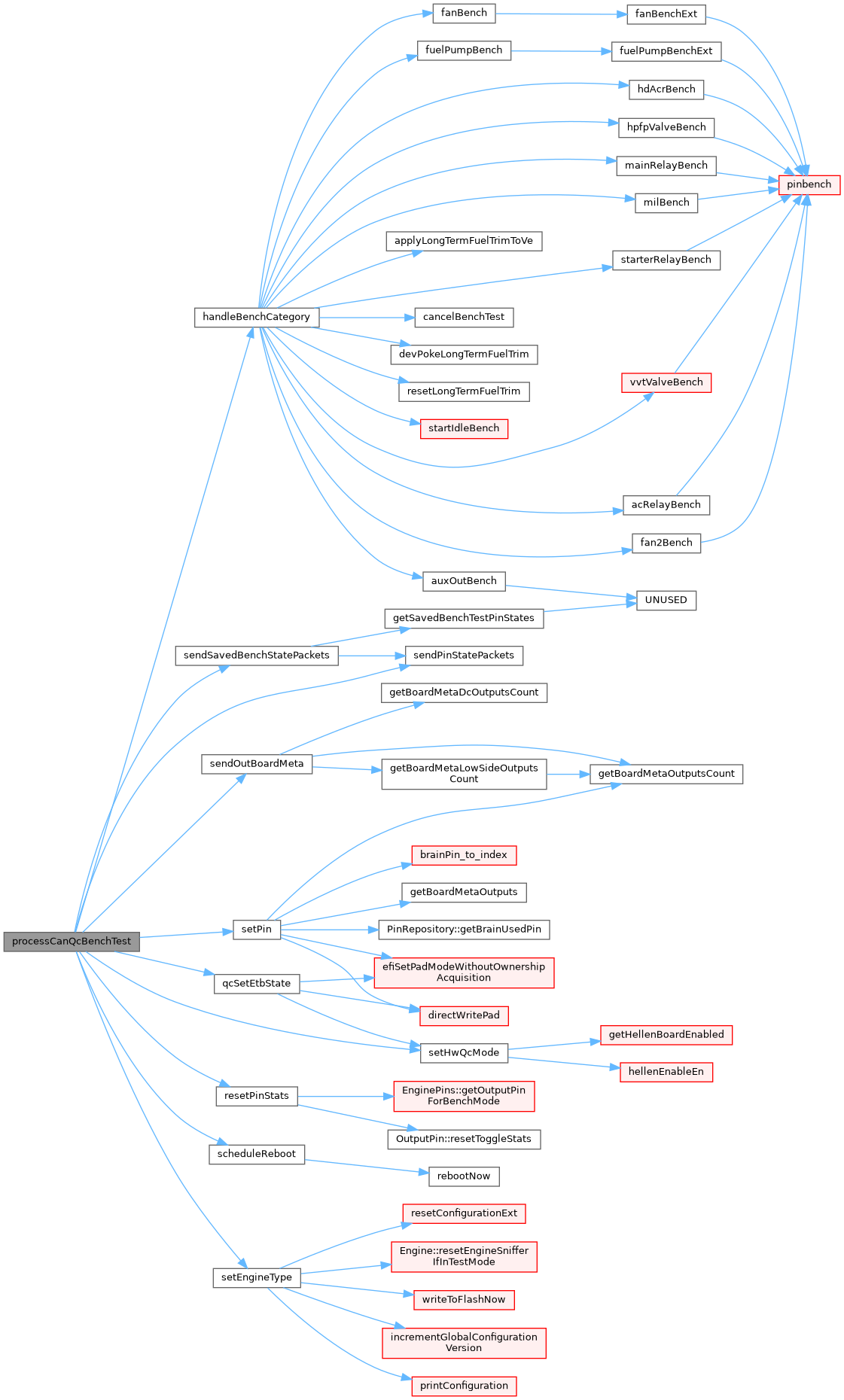

Here is the call graph for this function:

Here is the caller graph for this function:

qcSetEtbState()

static void qcSetEtbState ( uint8_t  dcIndex, uint8_t  direction  )

static

Definition at line 78 of file can_bench_test.cpp.

                                                              {
    setHwQcMode();
    const dc_io *io = &engineConfiguration->etbIo[dcIndex];
    Gpio controlPin = io->controlPin;
  directWritePad(controlPin, 1, "DC control");
    if (engineConfiguration->etb_use_two_wires) {
      // TLE7209 and L6205
      // let's force proper pin mode to work around potentially uninitialized subsystem
      efiSetPadModeWithoutOwnershipAcquisition("QC_ETB_1", io->directionPin1, PAL_MODE_OUTPUT_PUSHPULL);
      efiSetPadModeWithoutOwnershipAcquisition("QC_ETB_2", io->directionPin2, PAL_MODE_OUTPUT_PUSHPULL);

      directWritePad(io->directionPin1, direction, "DC dir1");
      directWritePad(io->directionPin2, !direction, "DC dir2");
    } else {
      // TLE9201 and VNH2SP30
      efiSetPadModeWithoutOwnershipAcquisition("QC_ETB", controlPin, PAL_MODE_OUTPUT_PUSHPULL);
      directWritePad(io->directionPin1, direction, "DC dir");
      directWritePad(io->disablePin, 0, "DC dis"); // disable pin is inverted - here we ENABLE. direct pin access due to qcDirectPinControlMode
  }
}

Referenced by initQcBenchControls(), and processCanQcBenchTest().

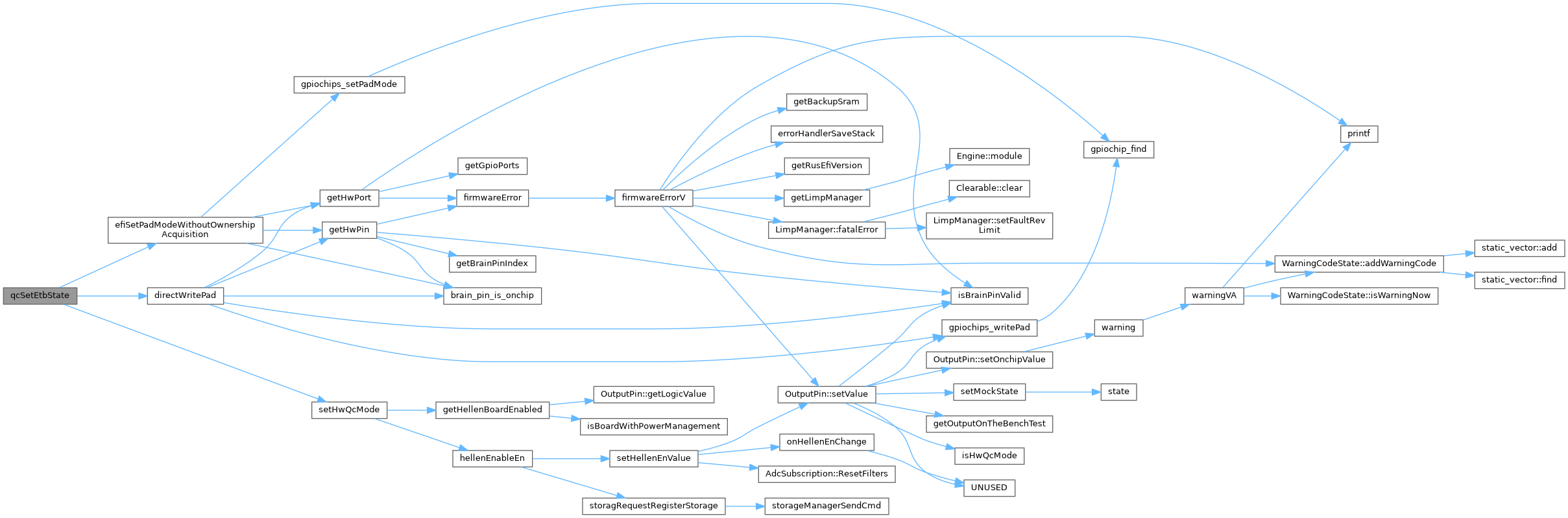

Here is the call graph for this function:

Here is the caller graph for this function:

resetPinStats()

static void resetPinStats ( bench_mode_e  benchModePinIdx )

static

Definition at line 287 of file can_bench_test.cpp.

                                                        {
    OutputPin *pin = enginePins.getOutputPinForBenchMode(benchModePinIdx);

    if (pin == nullptr)
        return;

#if EFI_SIMULATOR
    pin->resetToggleStats();
#endif // EFI_SIMULATOR
}

Referenced by processCanQcBenchTest().

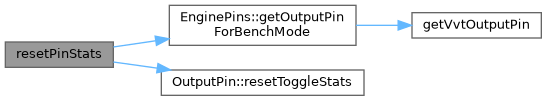

Here is the call graph for this function:

Here is the caller graph for this function:

sendManualPinTest()

static void sendManualPinTest ( int  id )

static

Definition at line 253 of file can_bench_test.cpp.

                                      {
    CanTxMessage msg(CanCategory::BENCH_TEST, (int)bench_test_packet_ids_e::MANUAL_PIN_TEST, 8, /*bus*/0, /*isExtended*/true);
    msg[0] = id;
}

Referenced by initQcBenchControls().

Here is the caller graph for this function:

sendOutBoardMeta()

static void sendOutBoardMeta ( size_t  bus )

static

Definition at line 221 of file can_bench_test.cpp.

                                         {
#if EFI_PROD_CODE
    CanTxMessage msg(CanCategory::BENCH_TEST, (int)bench_test_packet_ids_e::IO_META_INFO, 8, bus, /*isExtended*/true);
    msg[0] = (int)bench_test_magic_numbers_e::BENCH_HEADER;
    msg[1] = 0;
    msg[2] = getBoardMetaOutputsCount();
    msg[3] = getBoardMetaLowSideOutputsCount();
    msg[4] = getBoardMetaDcOutputsCount();
#endif // EFI_PROD_CODE
}

Referenced by processCanQcBenchTest(), and sendQcBenchBoardStatus().

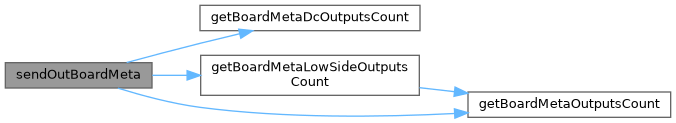

Here is the call graph for this function:

Here is the caller graph for this function:

sendPinStatePackets() [1/2]

static void sendPinStatePackets ( bench_mode_e  benchModePinIdx )

static

Definition at line 272 of file can_bench_test.cpp.

                                                              {
    OutputPin *pin = enginePins.getOutputPinForBenchMode(benchModePinIdx);
    if (pin == nullptr)
        return;
#if EFI_SIMULATOR
    sendPinStatePackets(pin->pinToggleCounter, pin->durationsInStateMs);
#endif // EFI_SIMULATOR
}

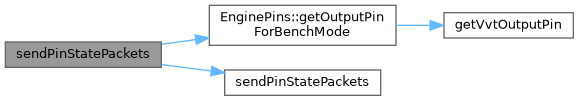

Here is the call graph for this function:

sendPinStatePackets() [2/2]

static void sendPinStatePackets ( int  pinToggleCounter, uint32_t  durationsInStateMs[2]  )

static

Definition at line 259 of file can_bench_test.cpp.

                                                                                      {
    CanTxMessage msg(CanCategory::BENCH_TEST, (int)bench_test_packet_ids_e::PIN_STATE, 8, /*bus*/0, /*isExtended*/true);
    msg[0] = TRUNCATE_TO_BYTE(pinToggleCounter >> 8);
    msg[1] = TRUNCATE_TO_BYTE(pinToggleCounter);

    for (int i = 0, mIdx = 2; i < 2; i++) {
        msg[mIdx++] = TRUNCATE_TO_BYTE(durationsInStateMs[i] >> 16);
        msg[mIdx++] = TRUNCATE_TO_BYTE(durationsInStateMs[i] >> 8);
        msg[mIdx++] = TRUNCATE_TO_BYTE(durationsInStateMs[i]);
    }
}

Referenced by processCanQcBenchTest(), sendPinStatePackets(), and sendSavedBenchStatePackets().

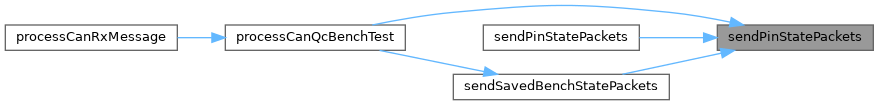

Here is the caller graph for this function:

sendQcBenchAuxDigitalCounters()

void sendQcBenchAuxDigitalCounters

(

)

Definition at line 155 of file can_bench_test.cpp.

                                     {
    CanTxMessage msg(CanCategory::BENCH_TEST, (int)bench_test_packet_ids_e::AUX_DIGITAL_COUNTERS, 8, /*bus*/0, /*isExtended*/true);
  for (int i =0;i<LUA_DIGITAL_INPUT_COUNT;i++) {
      msg[i] = TRUNCATE_TO_BYTE(engine->luaDigitalInputState[i].state.getCounter());
  }
}

Referenced by CanWrite::PeriodicTask().

Here is the call graph for this function:

Here is the caller graph for this function:

sendQcBenchBoardStatus()

void sendQcBenchBoardStatus

(

size_t

bus

)

Definition at line 232 of file can_bench_test.cpp.

                                        {
#if EFI_PROD_CODE
    CanTxMessage msg(CanCategory::BENCH_TEST, (int)bench_test_packet_ids_e::BOARD_STATUS, 8, bus, /*isExtended*/true);

    int boardId = getBoardId();
    msg[0] = TRUNCATE_TO_BYTE(boardId >> 8);
    msg[1] = TRUNCATE_TO_BYTE(boardId);

    int numSecondsSinceReset = getTimeNowS();
    msg[2] = TRUNCATE_TO_BYTE(numSecondsSinceReset >> 16);
    msg[3] = TRUNCATE_TO_BYTE(numSecondsSinceReset >> 8);
    msg[4] = TRUNCATE_TO_BYTE(numSecondsSinceReset);

    int engineType = (int) engineConfiguration->engineType;
    msg[5] = engineType >> 8;
    msg[6] = engineType;
    sendOutBoardMeta(bus);
#endif // EFI_PROD_CODE
}

Referenced by CanWrite::PeriodicTask().

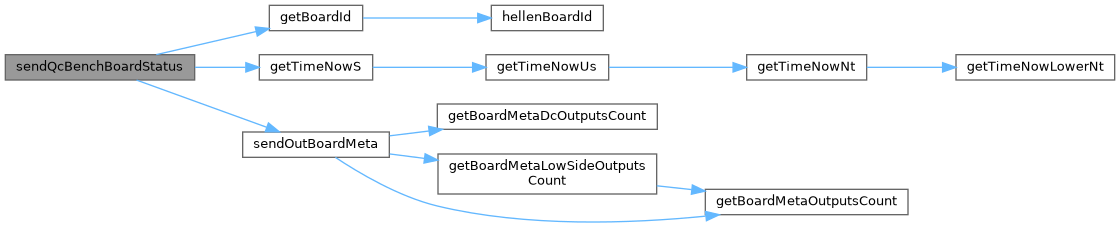

Here is the call graph for this function:

Here is the caller graph for this function:

sendQcBenchButtonCounters()

void sendQcBenchButtonCounters

(

)

Definition at line 147 of file can_bench_test.cpp.

                                 {
    CanTxMessage msg(CanCategory::BENCH_TEST, (int)bench_test_packet_ids_e::BUTTON_COUNTERS, 8, /*bus*/0, /*isExtended*/true);
    msg[0] = TRUNCATE_TO_BYTE(engine->brakePedalSwitchedState.getCounter());
    msg[1] = TRUNCATE_TO_BYTE(engine->clutchUpSwitchedState.getCounter());
    msg[2] = TRUNCATE_TO_BYTE(engine->acButtonSwitchedState.getCounter());
    // todo: start button
}

Referenced by CanWrite::PeriodicTask().

Here is the call graph for this function:

Here is the caller graph for this function:

sendQcBenchEventCounters()

void sendQcBenchEventCounters

(

size_t

bus

)

Definition at line 120 of file can_bench_test.cpp.

                                          {
#if EFI_SHAFT_POSITION_INPUT
    CanTxMessage msg(CanCategory::BENCH_TEST, (int)bench_test_packet_ids_e::EVENT_COUNTERS, 8, bus, /*isExtended*/true);

    int primaryFall = engine->triggerCentral.getHwEventCounter((int)SHAFT_PRIMARY_FALLING);
    int primaryRise = engine->triggerCentral.getHwEventCounter((int)SHAFT_PRIMARY_RISING);
    int secondaryFall = engine->triggerCentral.getHwEventCounter((int)SHAFT_SECONDARY_FALLING);
    int secondaryRise = engine->triggerCentral.getHwEventCounter((int)SHAFT_SECONDARY_RISING);

    msg[0] = TRUNCATE_TO_BYTE(primaryRise + primaryFall);
    msg[1] = TRUNCATE_TO_BYTE(secondaryRise + secondaryFall);

    for (int camIdx = 0; camIdx < 4; camIdx++) {
        int vvtRise = 0, vvtFall = 0;
        if (camIdx < CAM_INPUTS_COUNT) {
            vvtRise = engine->triggerCentral.vvtEventRiseCounter[camIdx];
            vvtFall = engine->triggerCentral.vvtEventFallCounter[camIdx];
        }

        msg[2 + camIdx] = TRUNCATE_TO_BYTE(vvtRise + vvtFall);
    }

    extern FrequencySensor vehicleSpeedSensor;
    msg[6] = TRUNCATE_TO_BYTE(vehicleSpeedSensor.eventCounter);
#endif // EFI_SHAFT_POSITION_INPUT
}

Referenced by CanWrite::PeriodicTask().

Here is the call graph for this function:

Here is the caller graph for this function:

sendQcBenchRawAnalogValues()

void sendQcBenchRawAnalogValues

(

size_t

bus

)

Definition at line 162 of file can_bench_test.cpp.

                                            {
    const float values_1[] = {
        Sensor::getRaw(SensorType::Tps1Primary),
        Sensor::getRaw(SensorType::Tps1Secondary),
        Sensor::getRaw(SensorType::AcceleratorPedalPrimary),
        Sensor::getRaw(SensorType::AcceleratorPedalSecondary),
        Sensor::getRaw(SensorType::MapSlow),
        Sensor::getRaw(SensorType::Clt),
        Sensor::getRaw(SensorType::Iat),
        Sensor::getRaw(SensorType::BatteryVoltage),
    };

    const float values_2[] = {
        Sensor::getRaw(SensorType::Tps2Primary),
        Sensor::getRaw(SensorType::Tps2Secondary),
        Sensor::getRaw(SensorType::AuxLinear1),
        Sensor::getRaw(SensorType::AuxLinear2),
        Sensor::getRaw(SensorType::OilPressure),
        Sensor::getRaw(SensorType::FuelPressureLow),
        Sensor::getRaw(SensorType::FuelPressureHigh),
        Sensor::getRaw(SensorType::AuxTemp1),
    };
    const float lua_values_1[] = {
        Sensor::getRaw(SensorType::AuxAnalog1),
        Sensor::getRaw(SensorType::AuxAnalog2),
        Sensor::getRaw(SensorType::AuxAnalog3),
        Sensor::getRaw(SensorType::AuxAnalog4),
        Sensor::getRaw(SensorType::AuxAnalog5),
        Sensor::getRaw(SensorType::AuxAnalog6),
        Sensor::getRaw(SensorType::AuxAnalog7),
        Sensor::getRaw(SensorType::AuxAnalog8),
    };
    static_assert(efi::size(values_1) <= 8);
    static_assert(efi::size(values_2) <= 8);
    static_assert(efi::size(lua_values_1) <= 8);


    // send the first packet
    {
        CanTxMessage msg(CanCategory::BENCH_TEST, (int)bench_test_packet_ids_e::RAW_ANALOG_1, 8, bus, /*isExtended*/true);
        for (size_t valueIdx = 0; valueIdx < efi::size(values_1); valueIdx++) {
            msg[valueIdx] = RAW_TO_BYTE(values_1[valueIdx]);
        }
    }
    {
        CanTxMessage msg(CanCategory::BENCH_TEST, (int)bench_test_packet_ids_e::RAW_ANALOG_2, 8, bus, /*isExtended*/true);
        for (size_t valueIdx = 0; valueIdx < efi::size(values_2); valueIdx++) {
            msg[valueIdx] = RAW_TO_BYTE(values_2[valueIdx]);
        }
    }
    // todo: time to extract method already?
    {
        CanTxMessage msg(CanCategory::BENCH_TEST, (int)bench_test_packet_ids_e::RAW_LUA_ANALOG_1, 8, bus, /*isExtended*/true);
        for (size_t valueIdx = 0; valueIdx < efi::size(lua_values_1); valueIdx++) {
            msg[valueIdx] = RAW_TO_BYTE(lua_values_1[valueIdx]);
        }
    }
}

Referenced by CanWrite::PeriodicTask().

Here is the call graph for this function:

Here is the caller graph for this function:

sendSavedBenchStatePackets()

static void sendSavedBenchStatePackets ( )

static

Definition at line 281 of file can_bench_test.cpp.

                                         {
    uint32_t savedDurationsInStateMs[2];
    int savedPinToggleCounter = getSavedBenchTestPinStates(savedDurationsInStateMs);
    sendPinStatePackets(savedPinToggleCounter, savedDurationsInStateMs);
}

Referenced by processCanQcBenchTest().

Here is the call graph for this function:

Here is the caller graph for this function:

setHwQcMode()

void setHwQcMode

(

)

Definition at line 48 of file can_bench_test.cpp.

                   {
#if EFI_PROD_CODE
  qcDirectPinControlMode = true;
#if HW_HELLEN
        if (!getHellenBoardEnabled()) {
            hellenEnableEn("HW QC");
        }
#endif // HW_HELLEN
#endif // EFI_PROD_CODE
}

Referenced by initSettings(), processCanQcBenchTest(), and qcSetEtbState().

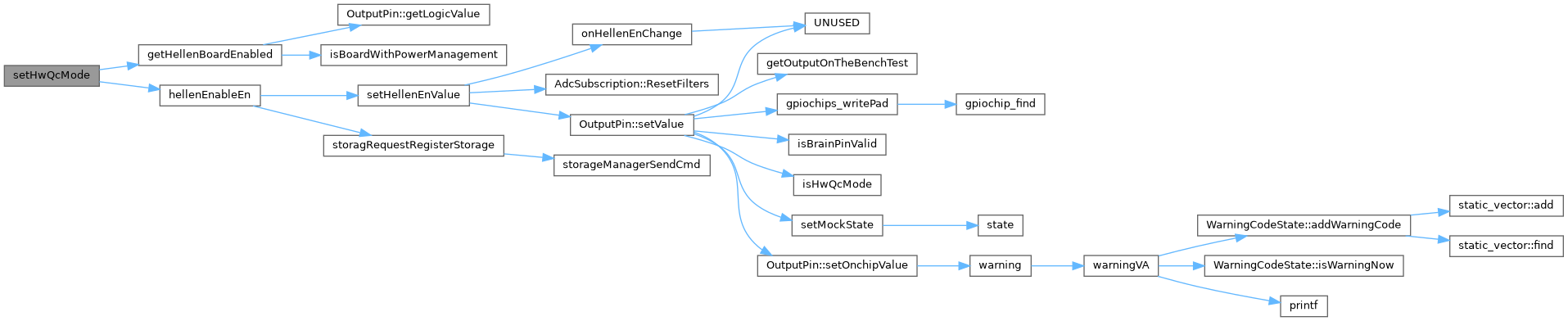

Here is the call graph for this function:

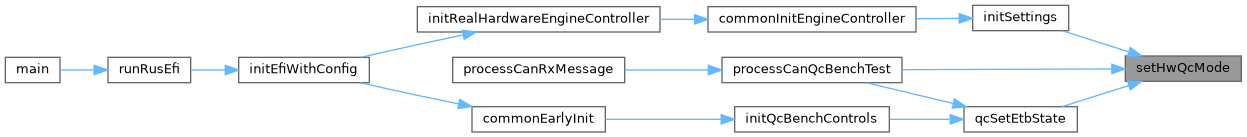

Here is the caller graph for this function:

setPin()

static void setPin ( const CANRxFrame &  frame, int  value  )

static

Definition at line 99 of file can_bench_test.cpp.

                                                       {
        size_t outputIndex = frame.data8[2];
        if (outputIndex >= getBoardMetaOutputsCount()) {
          criticalError("QC pin index %d out of range", outputIndex);
            return;
      }
#if EFI_GPIO_HARDWARE && EFI_PROD_CODE
      Gpio* boardOutputs = getBoardMetaOutputs();
      criticalAssertVoid(boardOutputs != nullptr, "outputs not defined");
        Gpio pin = boardOutputs[outputIndex];

        int hwIndex = brainPin_to_index(pin);
        if (pinRepository.getBrainUsedPin(hwIndex) == nullptr) {
            // if pin is assigned we better configure it
            efiSetPadModeWithoutOwnershipAcquisition("QC_SET", pin, PAL_MODE_OUTPUT_PUSHPULL);
        }

        directWritePad(pin, value);
#endif // EFI_GPIO_HARDWARE && EFI_PROD_CODE
}

Referenced by processCanQcBenchTest().

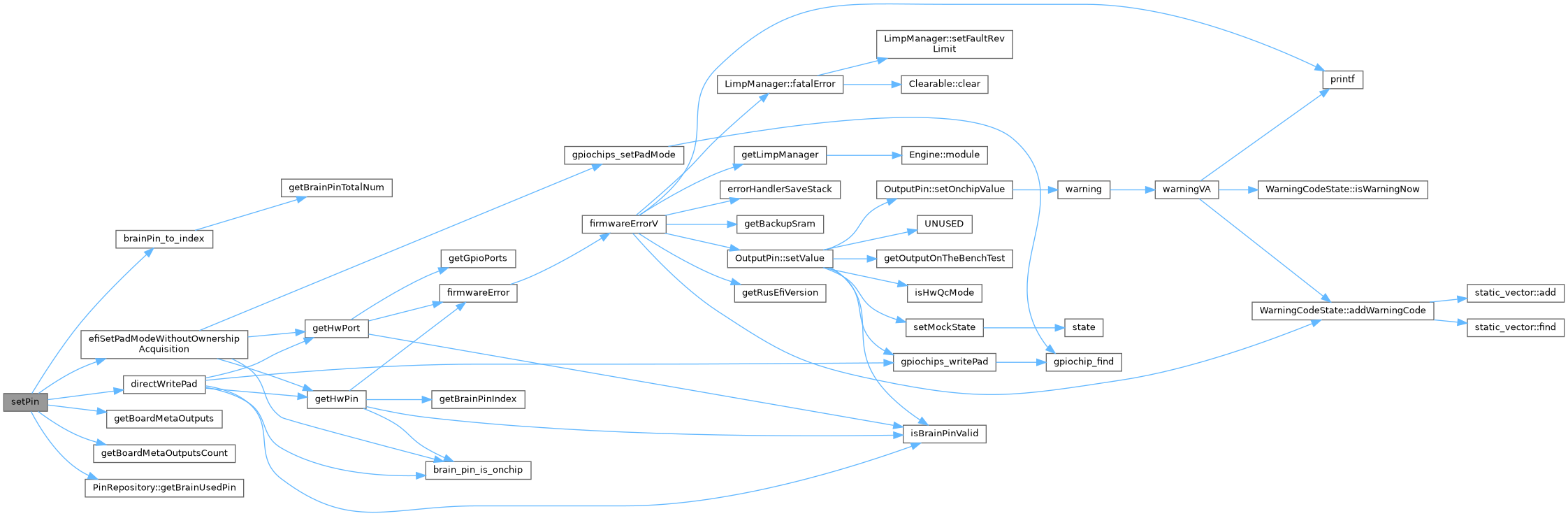

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

pinRepository

PinRepository pinRepository

extern

Referenced by brain_pin_markUsed(), getBrainUsedPin(), and setPin().

qcDirectPinControlMode

bool qcDirectPinControlMode = false

static

QC direct output control API is used by https://github.com/rusefi/stim test device quite different from bench testing user functionality: QC direct should never be engaged on a real vehicle Once QC direct control mode is activated the only way out is to reboot the unit!

Definition at line 37 of file can_bench_test.cpp.

Referenced by isHwQcMode(), and setHwQcMode().

Go to the source code of this file.
