board_configuration.cpp File Reference

Detailed Description

Configuration defaults for the 2chan board.

Author

andreika prome.nosp@m.theu.nosp@m.s.pcb.nosp@m.@gma.nosp@m.il.co.nosp@m.m

Andrey Belomutskiy, (c) 2012-2020

Definition in file board_configuration.cpp.

Functions
static void	setInjectorPins ()
static void	setIgnitionPins ()
static void	setupDefaultSensorInputs ()
static void	alphax_2chan_boardInitHardware ()
static void	customBoardOnConfigurationChange (engine_configuration_s *)
static bool	isMegaModuleRevision ()
static void	alphax_2chan_ConfigOverrides ()
static void	alphax_2chan_defaultConfiguration ()
	Board-specific configuration defaults.
void	boardPrepareForStop ()
int	getBoardMetaOutputsCount ()
Gpio *	getBoardMetaOutputs ()
void	setup_custom_board_overrides ()

Variables
static OutputPin	alphaTachPullUp
static OutputPin	alphaTempPullUp
static OutputPin	alphaCrankPPullUp
static OutputPin	alphaCrankNPullUp
static OutputPin	alpha2stepPullDown
static OutputPin	alphaCamPullDown
static Gpio	OUTPUTS []

Function Documentation

alphax_2chan_boardInitHardware()

static void alphax_2chan_boardInitHardware ( )

static

Definition at line 58 of file board_configuration.cpp.

                                             {

    alphaTachPullUp.initPin("a-tach", Gpio::H144_OUT_IO1);
    alphaTempPullUp.initPin("a-temp", Gpio::H144_OUT_IO4);
    alphaCrankPPullUp.initPin("a-crank-p", Gpio::H144_OUT_IO2);
    alphaCrankNPullUp.initPin("a-crank-n", Gpio::H144_OUT_IO5);
    alpha2stepPullDown.initPin("a-2step", Gpio::H144_OUT_IO7);
    alphaCamPullDown.initPin("a-cam", Gpio::H144_OUT_IO8);
}

Referenced by setup_custom_board_overrides().

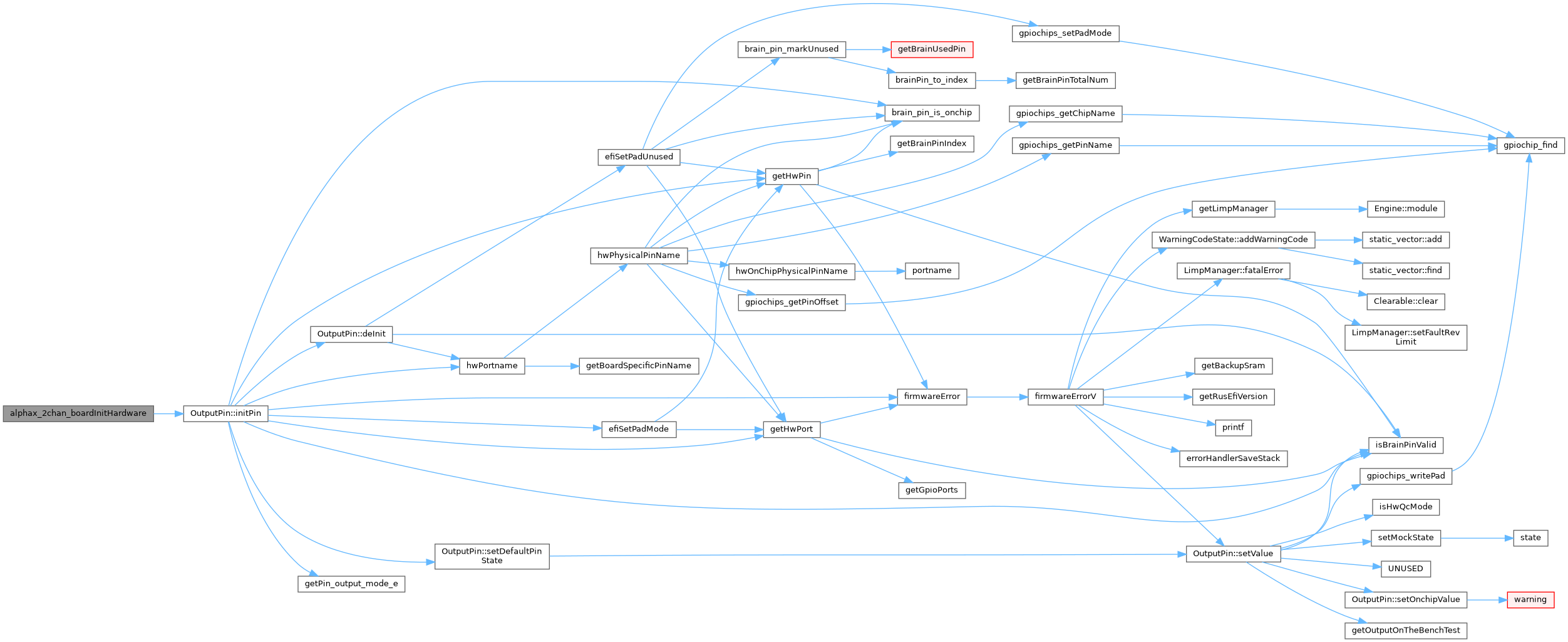

Here is the call graph for this function:

Here is the caller graph for this function:

alphax_2chan_ConfigOverrides()

static void alphax_2chan_ConfigOverrides ( )

static

Definition at line 86 of file board_configuration.cpp.

                                           {
    setHellenVbatt();
#ifndef EFI_BOOTLOADER
    int16_t hellenBoardId = engine->engineState.hellenBoardId;

    // rev.D uses SPI1 pins for CAN2, but rev.E and later uses mega-module meaning SPI1 for SD-card
    if (isMegaModuleRevision()) {
      hellenMegaSdWithAccelerometer();
        setHellenMegaEnPin();
    } else {
        setHellenEnPin(Gpio::H144_OUT_IO3);
    }

    // todo: is it time for some helper method to work with sets?!
    bool isBeforeRevG = hellenBoardId == BOARD_ID_ALPHA2CH_B ||
                        hellenBoardId == BOARD_ID_ALPHA2CH_C ||
                        hellenBoardId == BOARD_ID_ALPHA2CH_D ||
                        hellenBoardId == BOARD_ID_ALPHA2CH_E ||
                        hellenBoardId == BOARD_ID_ALPHA2CH_F;

    if (isBeforeRevG) {
        engineConfiguration->vrThreshold[0].pin = Gpio::H144_OUT_PWM6;
    } else {
        engineConfiguration->vrThreshold[0].pin = Gpio::Unassigned; // rev G started to use MAX9924
    }

    engineConfiguration->vrThreshold[1].pin = Gpio::Unassigned; // 2chan never had second VR
    setDefaultHellenAtPullUps();
#endif // EFI_BOOTLOADER

    setHellenCan();
}

Referenced by setup_custom_board_overrides().

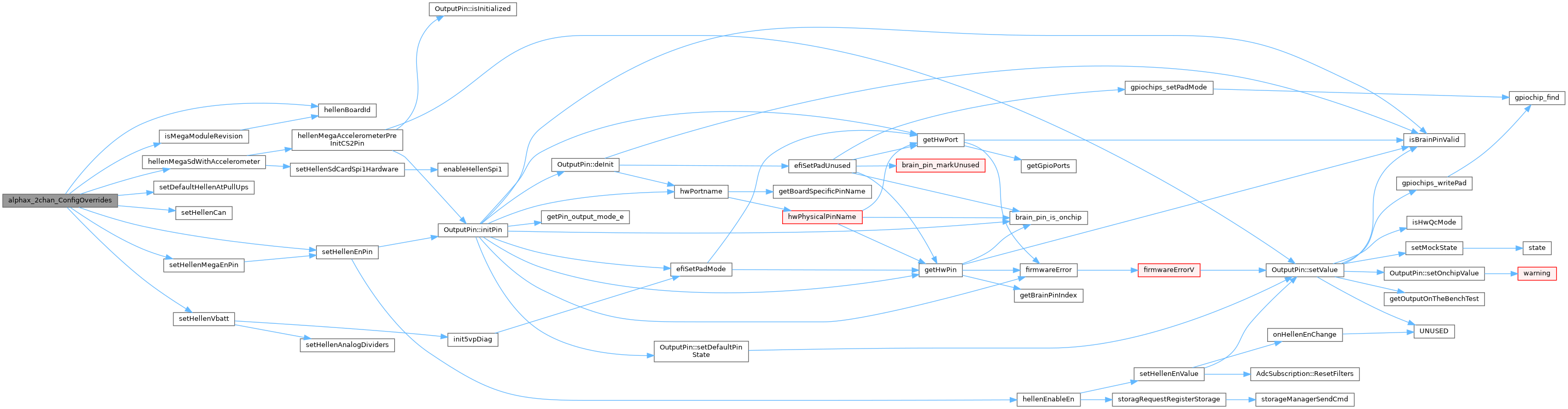

Here is the call graph for this function:

Here is the caller graph for this function:

alphax_2chan_defaultConfiguration()

static void alphax_2chan_defaultConfiguration ( )

static

Board-specific configuration defaults.

Definition at line 125 of file board_configuration.cpp.

                                                 {
    setInjectorPins();
    setIgnitionPins();

    if (isMegaModuleRevision()) {
        setHellenMMbaro();
        engineConfiguration->map.sensor.hwChannel = H144_IN_MAP3; // On-board MAP
        engineConfiguration->map.sensor.type = MT_MPXH6400;
    } else {
        engineConfiguration->map.sensor.hwChannel = H144_IN_MAP2; // B2 external signal
        engineConfiguration->baroSensor.type = MT_MPXH6400;
        engineConfiguration->baroSensor.hwChannel = H144_IN_MAP3; // On-board MAP
    }

  config->boardUseTempPullUp = true;

    engineConfiguration->fuelPumpPin = Gpio::H144_OUT_PWM2;
    engineConfiguration->fanPin = Gpio::H144_OUT_PWM4;
    engineConfiguration->tachOutputPin = Gpio::H144_OUT_PWM3;

    // "required" hardware is done - set some reasonable defaults
    setupDefaultSensorInputs();

    setInline4();

    engineConfiguration->ignitionMode = IM_INDIVIDUAL_COILS; // IM_WASTED_SPARK

    engineConfiguration->launchActivationMode = CLUTCH_INPUT_LAUNCH;
// ?    engineConfiguration->malfunctionIndicatorPin = Gpio::G4; //1E - Check Engine Light
}

Referenced by setup_custom_board_overrides().

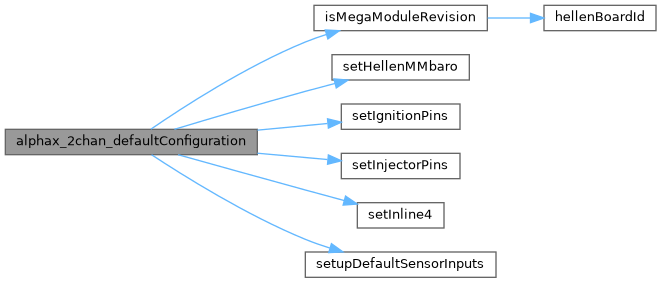

Here is the call graph for this function:

Here is the caller graph for this function:

boardPrepareForStop()

void boardPrepareForStop

(

)

Definition at line 156 of file board_configuration.cpp.

                           {
    // Wake on the CAN RX pin
    palEnableLineEvent(PAL_LINE(GPIOD, 0), PAL_EVENT_MODE_RISING_EDGE);
}

customBoardOnConfigurationChange()

static void customBoardOnConfigurationChange ( engine_configuration_s *  )

static

Definition at line 68 of file board_configuration.cpp.

                                                                         {
    alphaTachPullUp.setValue(config->boardUseTachPullUp);
    alphaTempPullUp.setValue(config->boardUseTempPullUp);
    alphaCrankPPullUp.setValue(config->boardUseCrankPullUp);
    alphaCrankNPullUp.setValue(config->boardUseCrankPullUp);
    alpha2stepPullDown.setValue(config->boardUse2stepPullDown);
    alphaCamPullDown.setValue(config->boardUseCamPullDown);
}

Referenced by setup_custom_board_overrides().

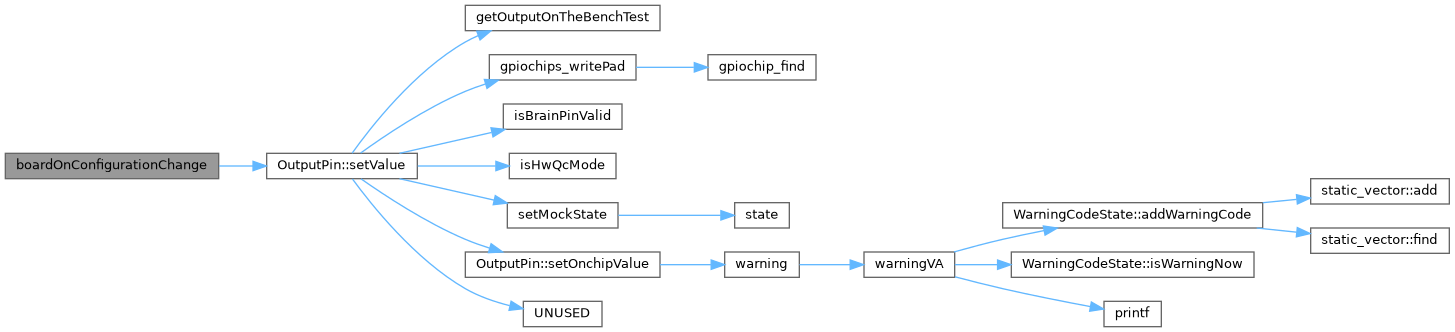

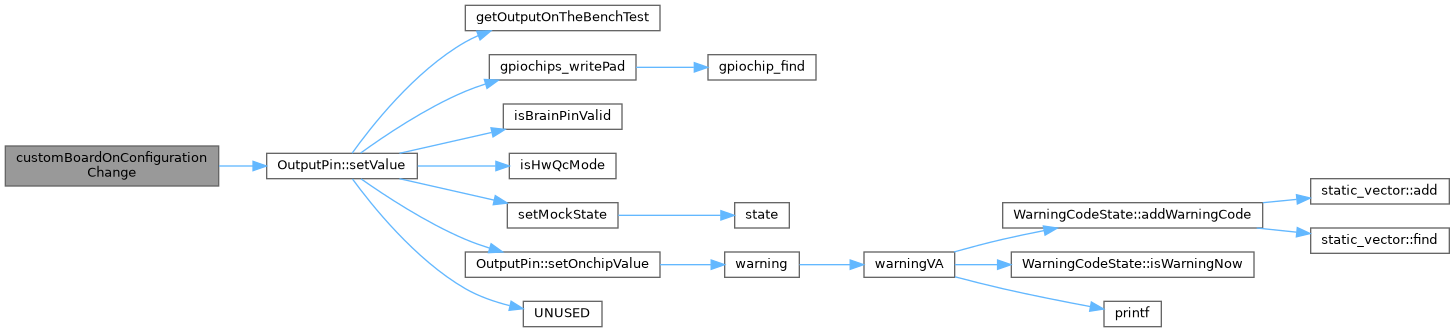

Here is the call graph for this function:

Here is the caller graph for this function:

getBoardMetaOutputs()

Gpio * getBoardMetaOutputs

(

)

Definition at line 170 of file board_configuration.cpp.

                            {
    return OUTPUTS;
}

Referenced by initQcBenchControls(), and setPin().

Here is the caller graph for this function:

getBoardMetaOutputsCount()

int getBoardMetaOutputsCount

(

)

Definition at line 166 of file board_configuration.cpp.

                               {
    return efi::size(OUTPUTS);
}

Referenced by getBoardMetaLowSideOutputsCount(), sendOutBoardMeta(), and setPin().

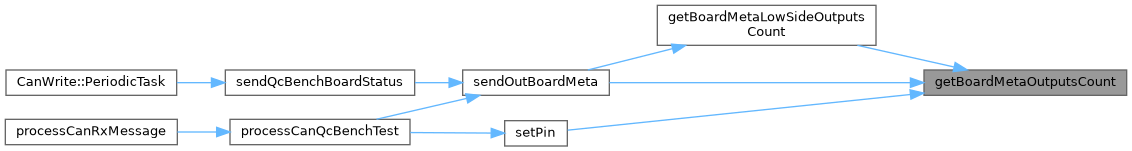

Here is the caller graph for this function:

isMegaModuleRevision()

static bool isMegaModuleRevision ( )

static

Definition at line 77 of file board_configuration.cpp.

                                   {
#ifndef EFI_BOOTLOADER
    int16_t hellenBoardId = engine->engineState.hellenBoardId;
    return hellenBoardId != BOARD_ID_ALPHA2CH_B && hellenBoardId != BOARD_ID_ALPHA2CH_C && hellenBoardId != BOARD_ID_ALPHA2CH_D;
#else
  return true;
#endif // EFI_BOOTLOADER
}

Referenced by alphax_2chan_ConfigOverrides(), and alphax_2chan_defaultConfiguration().

Here is the call graph for this function:

Here is the caller graph for this function:

setIgnitionPins()

static void setIgnitionPins ( )

static

Definition at line 35 of file board_configuration.cpp.

                              {
    engineConfiguration->ignitionPins[0] = Gpio::H144_IGN_1;
    engineConfiguration->ignitionPins[1] = Gpio::Unassigned;
    engineConfiguration->ignitionPins[2] = Gpio::H144_IGN_2;
    engineConfiguration->ignitionPins[3] = Gpio::Unassigned;
}

Referenced by alphax_2chan_defaultConfiguration(), alphax_4chan_defaultConfiguration(), alphax_8chan_defaultConfiguration(), alphax_8chan_reva_boardDefaultConfiguration(), alphax_gold_boardDefaultConfiguration(), alphax_silver_boardDefaultConfiguration(), alphax_silver_revA_boardDefaultConfiguration(), hellen112_17_boardDefaultConfiguration(), hellen121_nissan_boardDefaultConfiguration(), hellen121_vag_boardDefaultConfiguration(), hellen128_boardDefaultConfiguration(), hellen154_hyundai_boardDefaultConfiguration(), hellen154hyundai_f7_boardDefaultConfiguration(), hellen81_boardDefaultConfiguration(), hellen88_boardDefaultConfiguration(), hellen_gm_e67_boardDefaultConfiguration(), hellen_honda_k_boardDefaultConfiguration(), hellen_MiataNA6_boardDefaultConfiguration(), hellen_MiataNA96_boardDefaultConfiguration(), hellen_MiataNB1_boardDefaultConfiguration(), hellen_MiataNB2_boardDefaultConfiguration(), m74_9_boardDefaultConfiguration(), microrusefi_boardDefaultConfiguration(), proteus_boardDefaultConfiguration(), s105_boardDefaultConfiguration(), super_uaefi_boardDefaultConfiguration(), and uaefi_boardDefaultConfiguration().

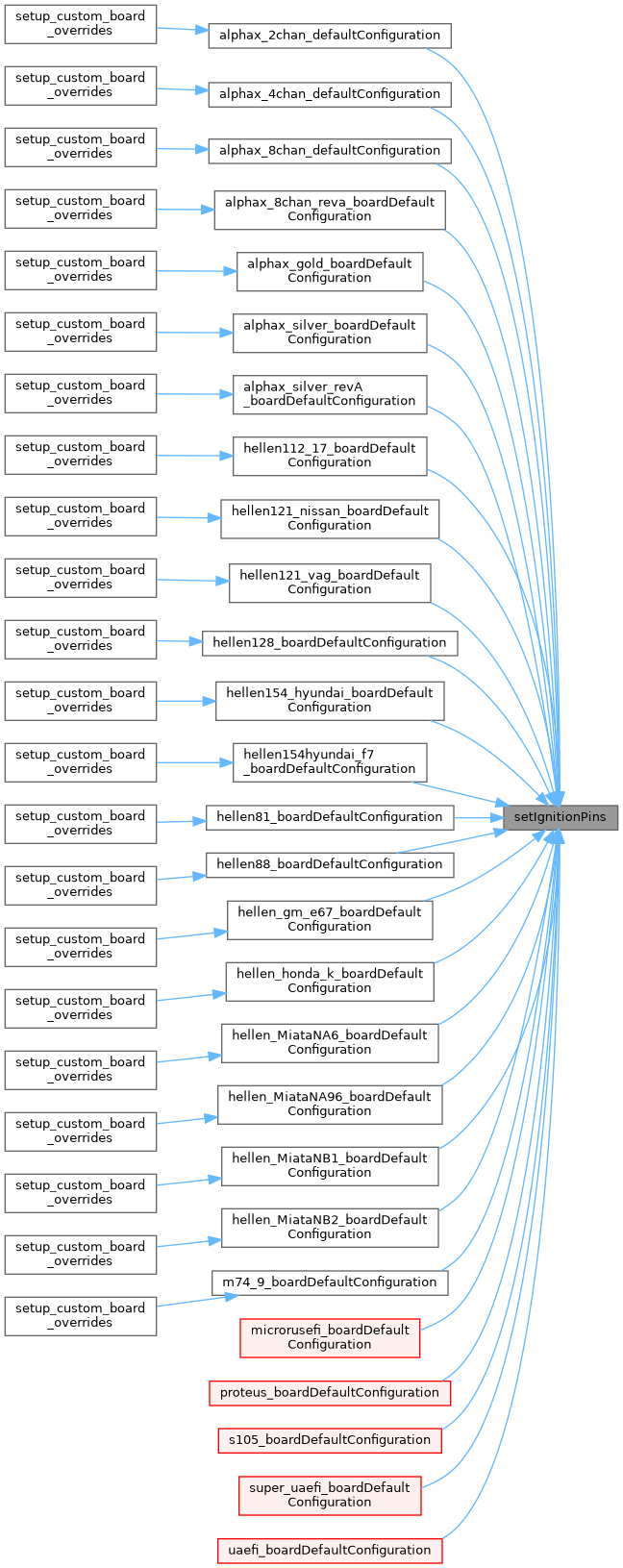

Here is the caller graph for this function:

setInjectorPins()

static void setInjectorPins ( )

static

Definition at line 23 of file board_configuration.cpp.

                              {
    engineConfiguration->injectionPins[0] = Gpio::H144_LS_1;
    engineConfiguration->injectionPins[1] = Gpio::H144_LS_2;
    engineConfiguration->injectionPins[2] = Gpio::Unassigned;
    engineConfiguration->injectionPins[3] = Gpio::Unassigned;

    engineConfiguration->clutchDownPin = Gpio::Unassigned;
    engineConfiguration->clutchDownPinMode = PI_PULLDOWN;
    engineConfiguration->launchActivationMode = CLUTCH_INPUT_LAUNCH;
    engineConfiguration->malfunctionIndicatorPin = Gpio::Unassigned;
}

Referenced by alphax_2chan_defaultConfiguration(), alphax_4chan_defaultConfiguration(), alphax_8chan_defaultConfiguration(), alphax_8chan_reva_boardDefaultConfiguration(), alphax_gold_boardDefaultConfiguration(), alphax_silver_boardDefaultConfiguration(), alphax_silver_revA_boardDefaultConfiguration(), hellen112_17_boardDefaultConfiguration(), hellen121_nissan_boardDefaultConfiguration(), hellen121_vag_boardDefaultConfiguration(), hellen128_boardDefaultConfiguration(), hellen154_hyundai_boardDefaultConfiguration(), hellen154hyundai_f7_boardDefaultConfiguration(), hellen81_boardDefaultConfiguration(), hellen88_boardDefaultConfiguration(), hellen_gm_e67_boardDefaultConfiguration(), hellen_honda_k_boardDefaultConfiguration(), hellen_MiataNA6_boardDefaultConfiguration(), hellen_MiataNA96_boardDefaultConfiguration(), hellen_MiataNB1_boardDefaultConfiguration(), hellen_MiataNB2_boardDefaultConfiguration(), m74_9_boardDefaultConfiguration(), microrusefi_boardDefaultConfiguration(), proteus_boardDefaultConfiguration(), s105_boardDefaultConfiguration(), super_uaefi_boardDefaultConfiguration(), and uaefi_boardDefaultConfiguration().

Here is the caller graph for this function:

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 174 of file board_configuration.cpp.

                                    {
    custom_board_InitHardware = alphax_2chan_boardInitHardware;
    custom_board_DefaultConfiguration = alphax_2chan_defaultConfiguration;
    custom_board_ConfigOverrides = alphax_2chan_ConfigOverrides;

    custom_board_OnConfigurationChange = customBoardOnConfigurationChange;
}

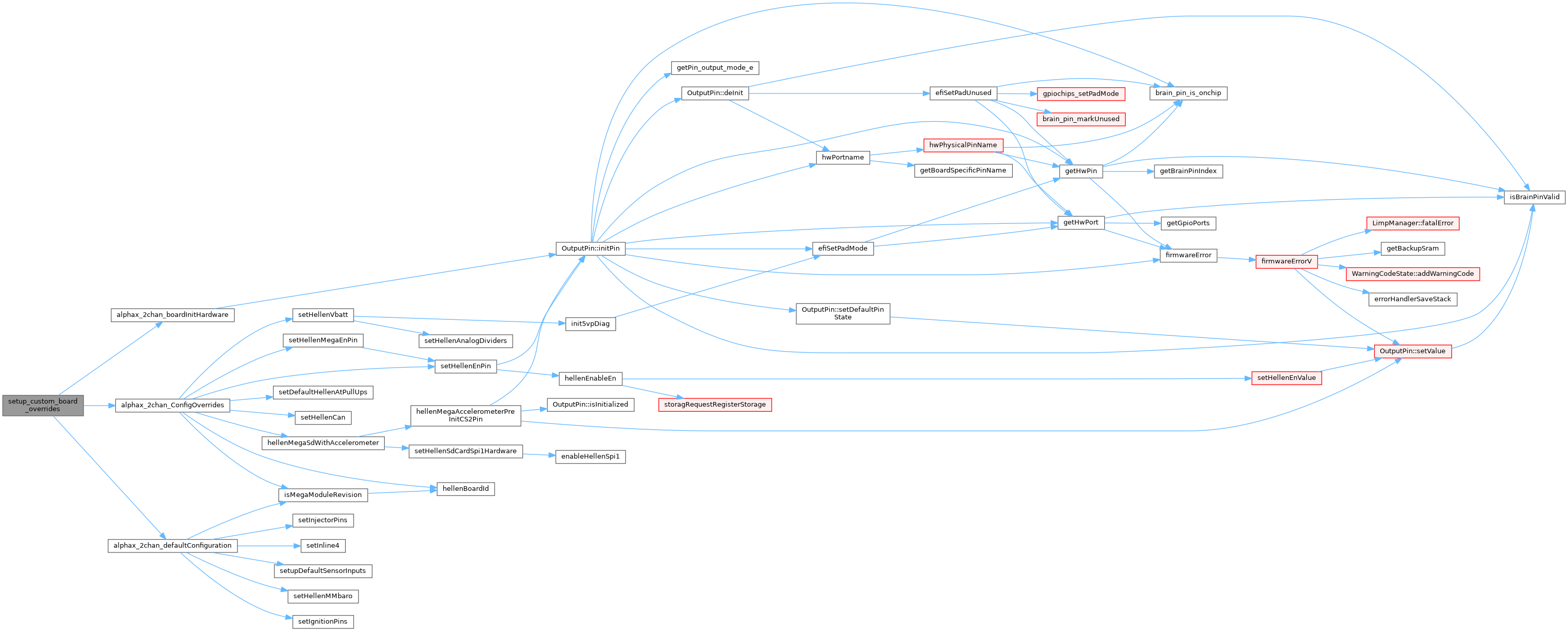

Here is the call graph for this function:

setupDefaultSensorInputs()

static void setupDefaultSensorInputs ( )

static

Definition at line 42 of file board_configuration.cpp.

                                       {
    // trigger inputs, hall
    engineConfiguration->triggerInputPins[0] = Gpio::H144_IN_CRANK;
    engineConfiguration->triggerInputPins[1] = Gpio::H144_IN_CAM;
    engineConfiguration->camInputs[0] = Gpio::Unassigned;

    engineConfiguration->tps1_1AdcChannel = H144_IN_TPS;



    engineConfiguration->afr.hwChannel = EFI_ADC_1;

    engineConfiguration->clt.adcChannel = H144_IN_CLT;
    engineConfiguration->iat.adcChannel = H144_IN_IAT;
}

Referenced by alphax_2chan_defaultConfiguration(), alphax_4chan_defaultConfiguration(), alphax_8chan_defaultConfiguration(), alphax_8chan_reva_boardDefaultConfiguration(), alphax_silver_boardDefaultConfiguration(), alphax_silver_revA_boardDefaultConfiguration(), hellen112_17_boardDefaultConfiguration(), hellen121_nissan_boardDefaultConfiguration(), hellen121_vag_boardDefaultConfiguration(), hellen128_boardDefaultConfiguration(), hellen154_hyundai_boardDefaultConfiguration(), hellen154hyundai_f7_boardDefaultConfiguration(), hellen81_boardDefaultConfiguration(), hellen88_boardDefaultConfiguration(), hellen_gm_e67_boardDefaultConfiguration(), hellen_honda_k_boardDefaultConfiguration(), hellen_MiataNA6_boardDefaultConfiguration(), hellen_MiataNA96_boardDefaultConfiguration(), hellen_MiataNB1_boardDefaultConfiguration(), hellen_MiataNB2_boardDefaultConfiguration(), microrusefi_boardDefaultConfiguration(), proteus_boardDefaultConfiguration(), super_uaefi_boardDefaultConfiguration(), and uaefi_boardDefaultConfiguration().

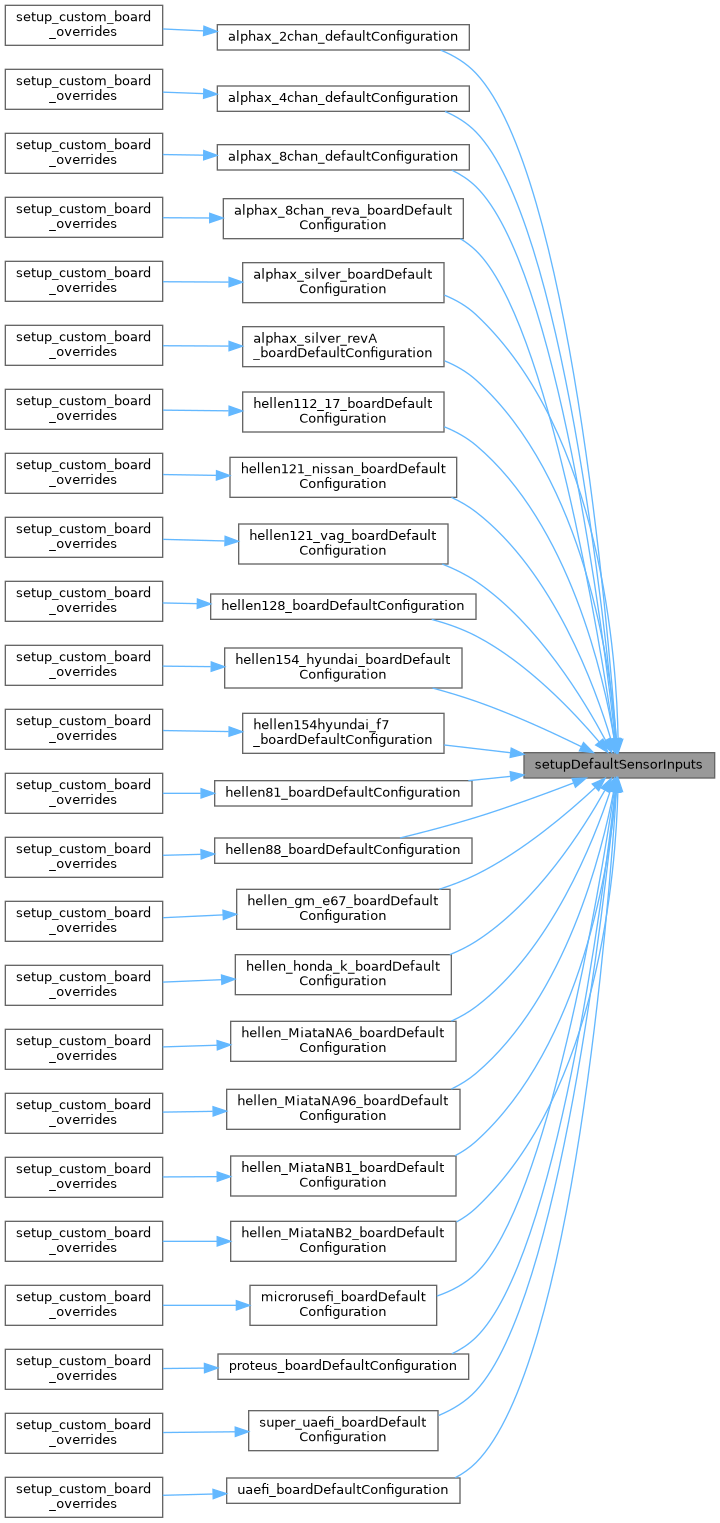

Here is the caller graph for this function:

Variable Documentation

alpha2stepPullDown

OutputPin alpha2stepPullDown

static

Definition at line 20 of file board_configuration.cpp.

Referenced by alphax_2chan_boardInitHardware(), alphax_4chan_boardInitHardware(), alphax_8chan_reva_boardInitHardware(), and customBoardOnConfigurationChange().

alphaCamPullDown

OutputPin alphaCamPullDown

static

Definition at line 21 of file board_configuration.cpp.

Referenced by alphax_2chan_boardInitHardware(), alphax_4chan_boardInitHardware(), alphax_8chan_reva_boardInitHardware(), and customBoardOnConfigurationChange().

alphaCrankNPullUp

OutputPin alphaCrankNPullUp

static

Definition at line 19 of file board_configuration.cpp.

Referenced by alphax_2chan_boardInitHardware(), alphax_4chan_boardInitHardware(), and customBoardOnConfigurationChange().

alphaCrankPPullUp

OutputPin alphaCrankPPullUp

static

Definition at line 18 of file board_configuration.cpp.

Referenced by alphax_2chan_boardInitHardware(), alphax_4chan_boardInitHardware(), alphax_8chan_boardInitHardware(), alphax_8chan_reva_boardInitHardware(), and customBoardOnConfigurationChange().

alphaTachPullUp

OutputPin alphaTachPullUp

static

Definition at line 16 of file board_configuration.cpp.

Referenced by alphax_2chan_boardInitHardware(), alphax_4chan_boardInitHardware(), alphax_8chan_reva_boardInitHardware(), and customBoardOnConfigurationChange().

alphaTempPullUp

OutputPin alphaTempPullUp

static

Definition at line 17 of file board_configuration.cpp.

Referenced by alphax_2chan_boardInitHardware(), alphax_4chan_boardInitHardware(), alphax_8chan_reva_boardInitHardware(), alphax_gold_boardInitHardware(), alphax_gold_OnConfigurationChange(), alphax_silver_boardInitHardware(), alphax_silver_revA_boardInitHardware(), and customBoardOnConfigurationChange().

OUTPUTS

Gpio OUTPUTS[]

static

Initial value:

= {
        Gpio::H144_LS_1,
        Gpio::H144_LS_2,
}

Definition at line 161 of file board_configuration.cpp.

                        {
        Gpio::H144_LS_1,
        Gpio::H144_LS_2,
};

Referenced by getBoardMetaOutputs(), and getBoardMetaOutputsCount().
