smart_gpio.cpp File Reference

Functions
void	initSmartGpio ()
void	tle8888startup ()
void	stopSmartCsPins ()
void	startSmartCsPins ()

Variables
static OutputPin	tle6240Cs
struct tle6240_config	tle6240
static OutputPin	mc33972Cs
struct mc33972_config	mc33972
static OutputPin	l9779Cs
struct l9779_config	l9779_cfg
static OutputPin	tle8888Cs
struct tle8888_config	tle8888_cfg
static OutputPin	mc33810Cs [C_MC33810_COUNT]
static OutputPin	drv8860Cs
struct drv8860_config	drv8860

Function Documentation

initSmartGpio()

void initSmartGpio

(

)

Definition at line 252 of file smart_gpio.cpp.

                     {
    startSmartCsPins();
#if EFI_PROD_CODE
#if (BOARD_TLE6240_COUNT > 0)
    if (isBrainPinValid(engineConfiguration->tle6240_cs)) {
        tle6240.spi_config.ssport = getHwPort("tle6240 CS", engineConfiguration->tle6240_cs);
        tle6240.spi_config.sspad = getHwPin("tle6240 CS", engineConfiguration->tle6240_cs);
        tle6240.spi_bus = getSpiDevice(engineConfiguration->tle6240spiDevice);
        int ret = tle6240_add(Gpio::TLE6240_PIN_1, 0, &tle6240);

        criticalAssertVoid(ret == (int)Gpio::TLE6240_PIN_1, "tle6240");
    }
#endif /* (BOARD_TLE6240_COUNT > 0) */

#if (BOARD_MC33972_COUNT > 0)
    if (isBrainPinValid(engineConfiguration->mc33972_cs)) {
        // todo: reuse initSpiCs method?
        mc33972.spi_config.ssport = getHwPort("mc33972 CS", engineConfiguration->mc33972_cs);
        mc33972.spi_config.sspad = getHwPin("mc33972 CS", engineConfiguration->mc33972_cs);
        mc33972.spi_bus = getSpiDevice(engineConfiguration->mc33972spiDevice);
        // todo: propogate 'basePinOffset' parameter
        int ret = mc33972_add(Gpio::MC33972_PIN_1, 0, &mc33972);

        criticalAssertVoid(ret == (int)Gpio::MC33972_PIN_1, "mc33972");
    }
#endif /* (BOARD_MC33972_COUNT > 0) */

#if (BOARD_L9779_COUNT > 0)
    if (isBrainPinValid(engineConfiguration->l9779_cs)) {
        // todo: reuse initSpiCs method?
        l9779_cfg.spi_config.ssport = getHwPort("l9779 CS", engineConfiguration->l9779_cs);
        l9779_cfg.spi_config.sspad = getHwPin("l9779 CS", engineConfiguration->l9779_cs);
        l9779_cfg.spi_bus = getSpiDevice(engineConfiguration->l9779spiDevice);
        // todo: propogate 'basePinOffset' parameter
        int ret = l9779_add(Gpio::L9779_IGN_1, 0, &l9779_cfg);

        criticalAssertVoid(ret == (int)Gpio::L9779_IGN_1, "l9779");
    }
#endif /* (BOARD_L9779_COUNT > 0) */

#if (BOARD_TLE8888_COUNT > 0)
    if (isBrainPinValid(engineConfiguration->tle8888_cs)) {
        // todo: reuse initSpiCs method?
        tle8888_cfg.spi_config.ssport = getHwPort("tle8888 CS", engineConfiguration->tle8888_cs);
        tle8888_cfg.spi_config.sspad = getHwPin("tle8888 CS", engineConfiguration->tle8888_cs);
        tle8888_cfg.spi_bus = getSpiDevice(engineConfiguration->tle8888spiDevice);

        tle8888_cfg.mode = engineConfiguration->tle8888mode;
        tle8888_cfg.stepper = engineConfiguration->useTLE8888_stepper;

        /* spi_bus == null checked in _add function */
        int ret = tle8888_add(Gpio::TLE8888_PIN_1, 0, &tle8888_cfg);

        criticalAssertVoid(ret == (int)Gpio::TLE8888_PIN_1, "tle8888");
    }
#endif /* (BOARD_TLE8888_COUNT > 0) */

#if EFI_PROD_CODE && (BOARD_DRV8860_COUNT > 0)
    if (isBrainPinValid(engineConfiguration->drv8860_cs)) {
        drv8860.spi_config.ssport = getHwPort("drv8860 CS", engineConfiguration->drv8860_cs);
        drv8860.spi_config.sspad = getHwPin("drv8860 CS", engineConfiguration->drv8860_cs);
        drv8860.spi_bus = getSpiDevice(engineConfiguration->drv8860spiDevice);
        int ret = drv8860_add(Gpio::DRV8860_PIN_1, 0, &drv8860);

        criticalAssertVoid(ret == (int)Gpio::DRV8860_PIN_1, "drv8860");
    }
#endif /* (BOARD_DRV8860_COUNT > 0) */

#if EFI_CAN_GPIO
    initCanGpioMsiobox();
#endif // EFI_CAN_GPIO

#if (BOARD_MC33810_COUNT > 0)
    /* none of official boards has this IC */
#endif /* (BOARD_MC33810_COUNT > 0) */

#if (BOARD_TLE9104_COUNT > 0)
    // No official boards have this IC
#endif

#endif // EFI_PROD_CODE

    /* external chip init */
    gpiochips_init();
}

Referenced by initHardware().

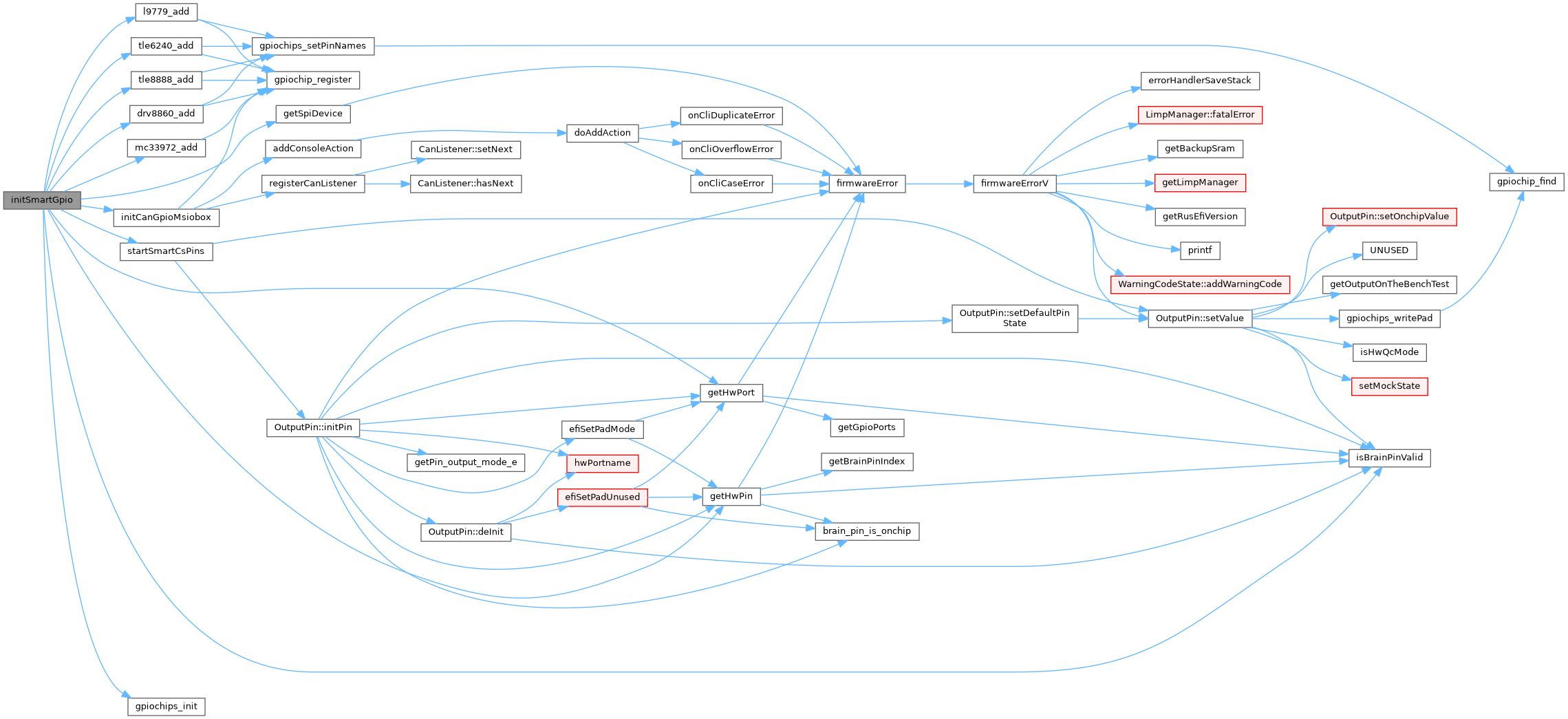

Here is the call graph for this function:

Here is the caller graph for this function:

startSmartCsPins()

void startSmartCsPins

(

)

Definition at line 380 of file smart_gpio.cpp.

                        {
#if EFI_PROD_CODE
#if (BOARD_TLE8888_COUNT > 0)
    tle8888Cs.initPin("tle8888 CS", engineConfiguration->tle8888_cs,
                engineConfiguration->tle8888_csPinMode);
    tle8888Cs.setValue(true);
#endif /* BOARD_TLE8888_COUNT */
#if (BOARD_TLE6240_COUNT > 0)
    // todo: any way to reduce copy-paste? some convention between pin property name and pin mode property name?
    tle6240Cs.initPin("tle6240 CS", engineConfiguration->tle6240_cs,
                engineConfiguration->tle6240_csPinMode);
    tle6240Cs.setValue(true);
#endif /* BOARD_TLE6240_COUNT */
#if (BOARD_MC33972_COUNT > 0)
    // todo: any way to reduce copy-paste? some convention between pin property name and pin mode property name?
    mc33972Cs.initPin("mc33972 CS", engineConfiguration->mc33972_cs,
                engineConfiguration->mc33972_csPinMode);
    mc33972Cs.setValue(true);
#endif /* BOARD_MC33972_COUNT */
#if (BOARD_DRV8860_COUNT > 0)
    // todo: any way to reduce copy-paste? some convention between pin property name and pin mode property name?
    drv8860Cs.initPin("drv8860 CS", engineConfiguration->drv8860_cs,
                engineConfiguration->drv8860_csPinMode);
    drv8860Cs.setValue(true);
#endif /* BOARD_DRV8860_COUNT */
#if (BOARD_MC33810_COUNT > 0)
    for (size_t i = 0;i<C_MC33810_COUNT;i++) {
      // huh?! most boards are NOT using mc33810_cs we are directly initializing CS pin(s)?!
        mc33810Cs[i].initPin("mc33810 CS", engineConfiguration->mc33810_cs[i],
                engineConfiguration->mc33810_csPinMode);
        mc33810Cs[i].setValue(true);
    }
#endif /* (BOARD_MC33810_COUNT > 0) */
#if (BOARD_TLE9104_COUNT > 0)
    // todo: no official boards have this IC yet
#endif
#if (BOARD_L9779_COUNT > 0)
    // todo: use existing l9779_cs and l9779_csPinMode settings
    // todo: no official boards have this IC yet
#endif
#endif // EFI_PROD_CODE
}

Referenced by applyNewHardwareSettings(), and initSmartGpio().

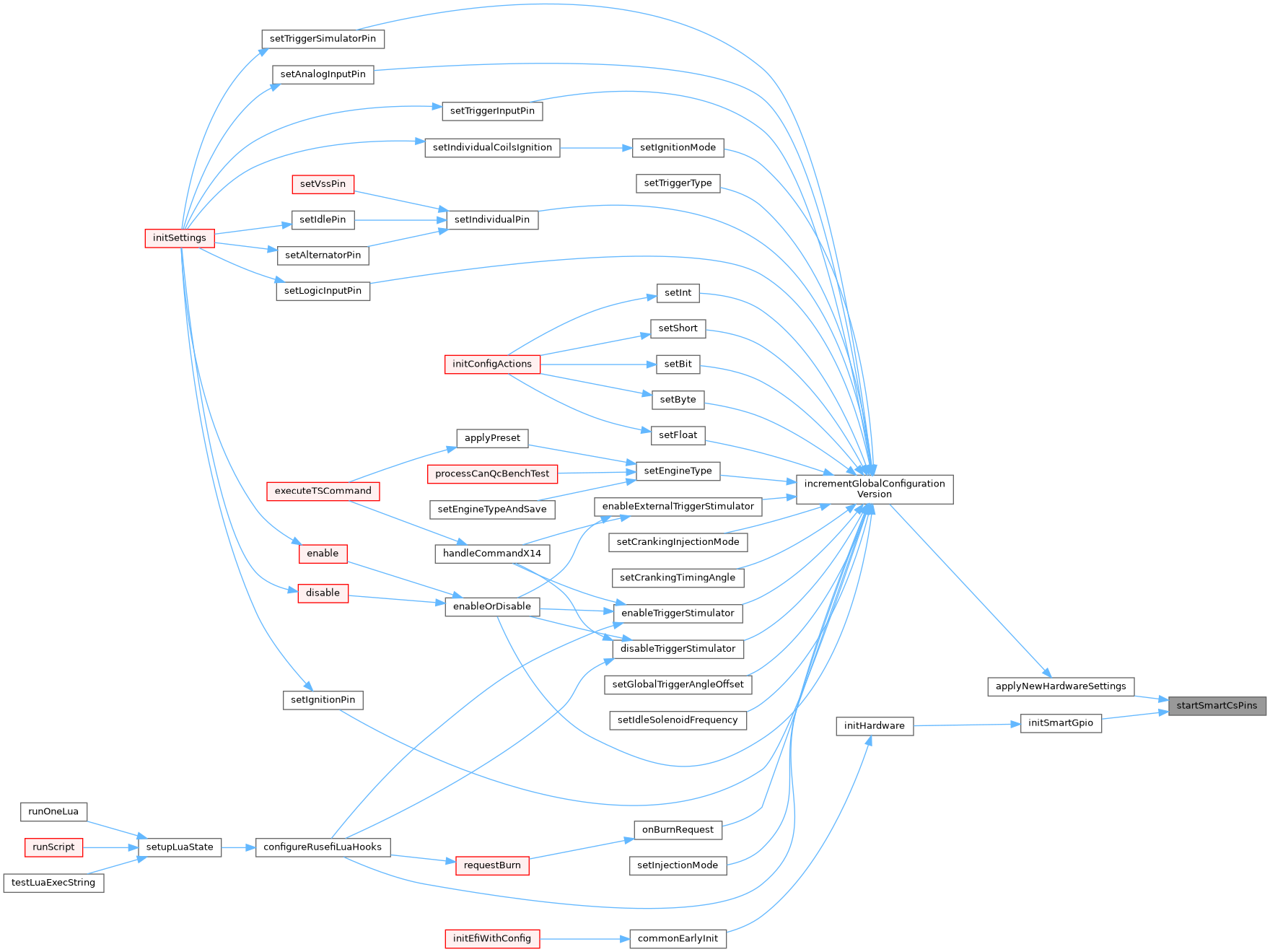

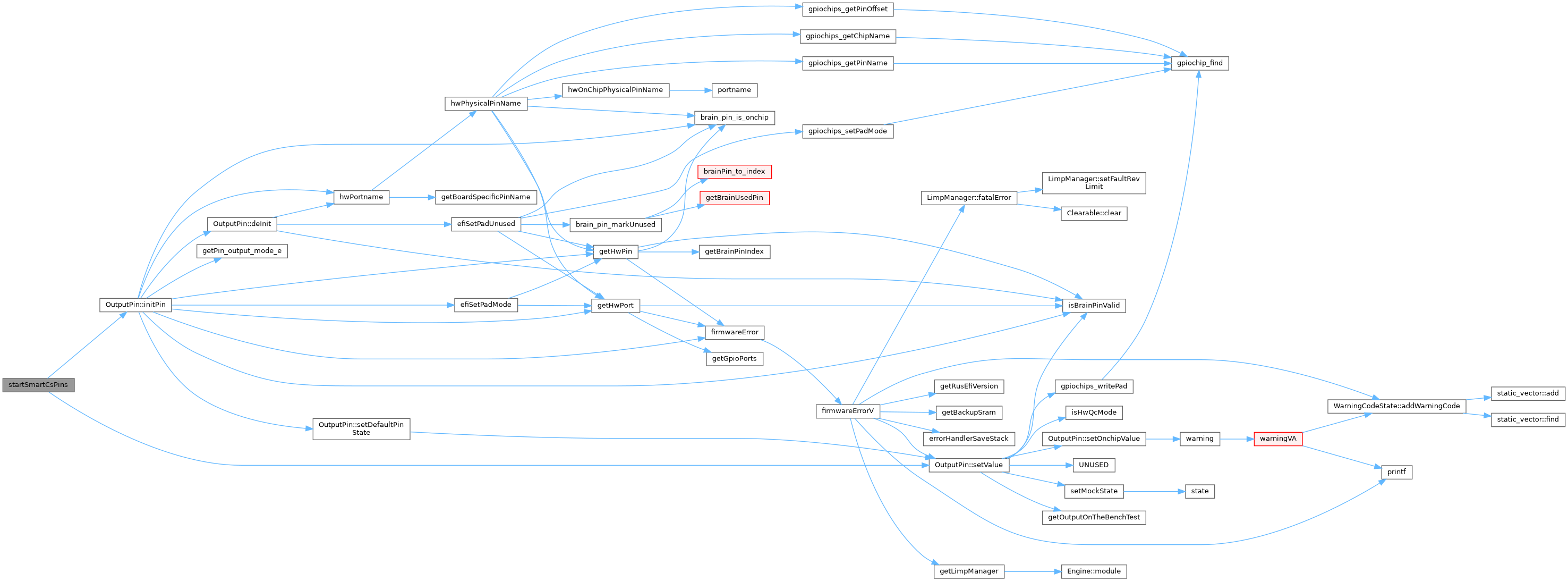

Here is the call graph for this function:

Here is the caller graph for this function:

stopSmartCsPins()

void stopSmartCsPins

(

)

Definition at line 355 of file smart_gpio.cpp.

                       {
#if EFI_PROD_CODE
#if (BOARD_TLE8888_COUNT > 0)
    efiSetPadUnused(activeConfiguration.tle8888_cs);
#endif /* BOARD_TLE8888_COUNT */
#if (BOARD_TLE6240_COUNT > 0)
    efiSetPadUnused(activeConfiguration.tle6240_cs);
#endif /* BOARD_TLE6240_COUNT */
#if (BOARD_MC33972_COUNT > 0)
    efiSetPadUnused(activeConfiguration.mc33972_cs);
#endif /* BOARD_MC33972_COUNT */
#if (BOARD_DRV8860_COUNT > 0)

#endif /* BOARD_DRV8860_COUNT */
#if (BOARD_MC33810_COUNT > 0)
    for (size_t i = 0;i<C_MC33810_COUNT;i++) {
        efiSetPadUnused(engineConfiguration->mc33810_cs[i]);
    }
#endif /* (BOARD_MC33810_COUNT > 0) */
#if (BOARD_TLE9104_COUNT > 0)
    // No official boards have this IC
#endif
#endif // EFI_PROD_CODE
}

Referenced by stopHardware().

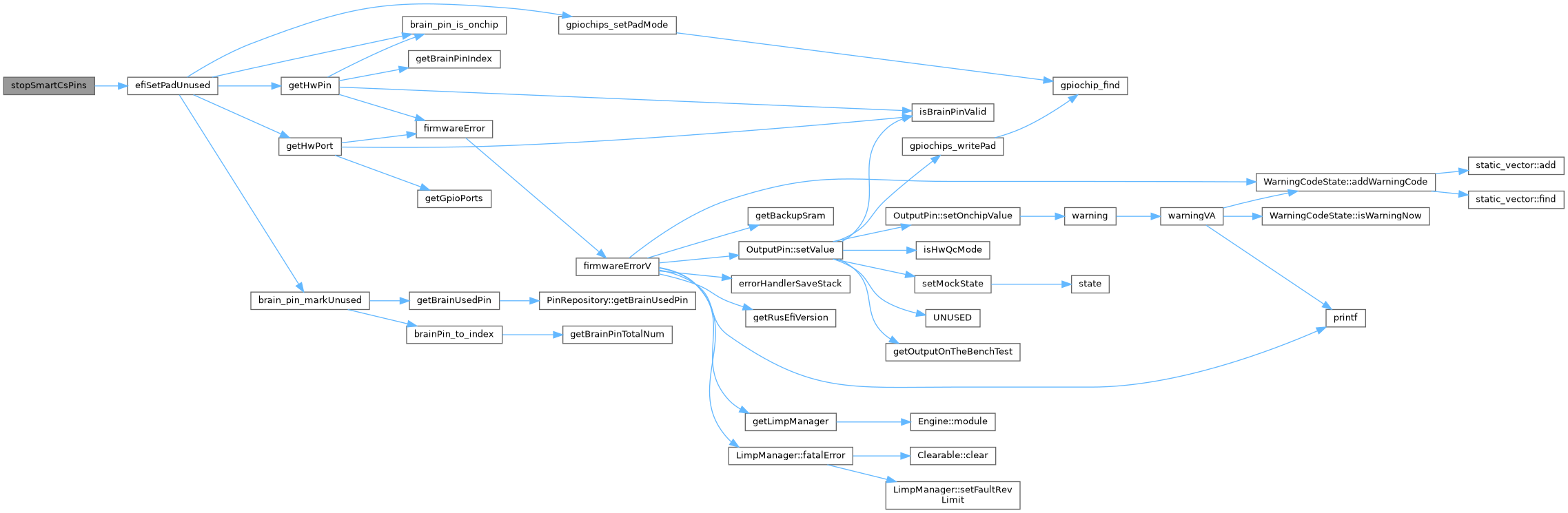

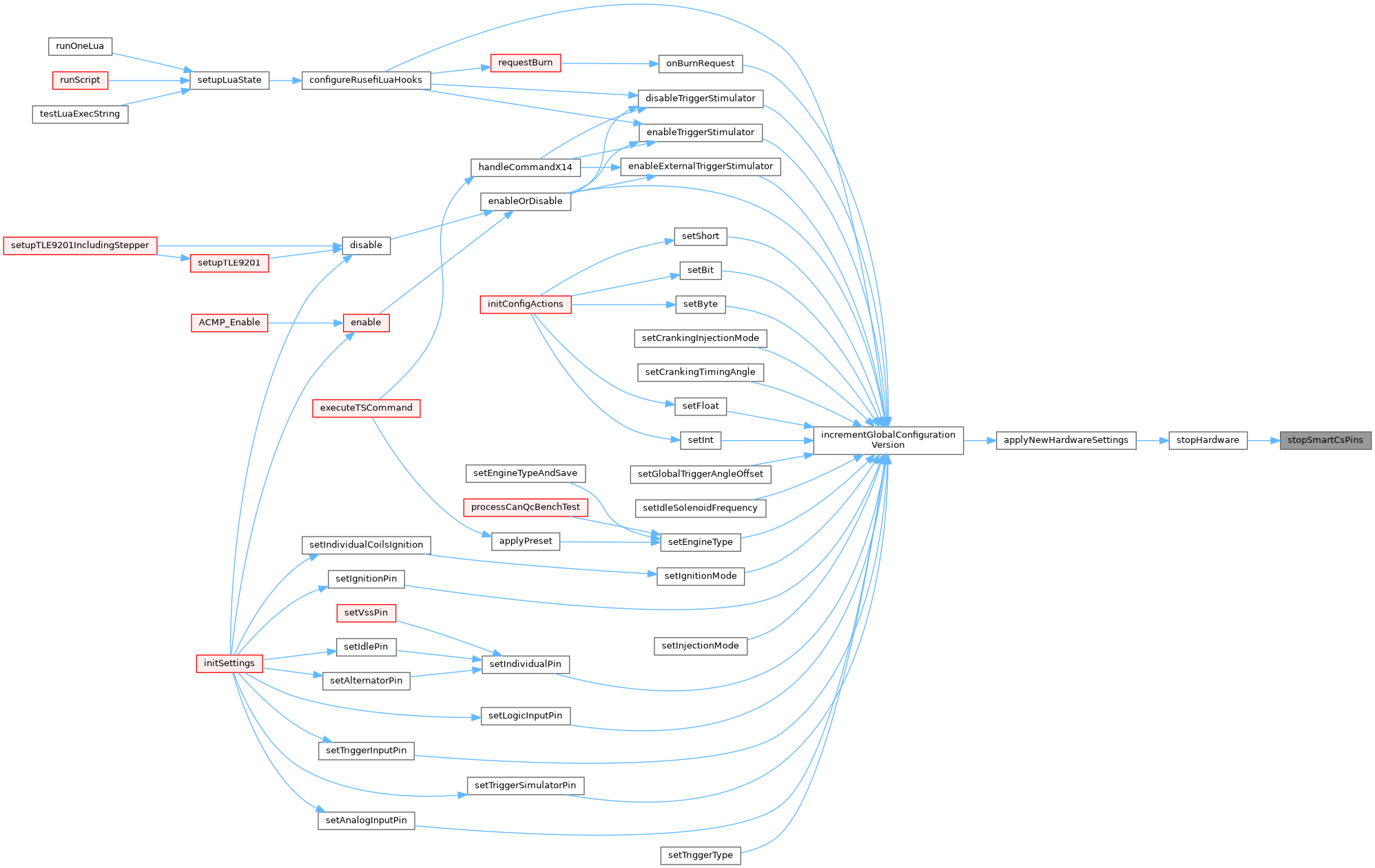

Here is the call graph for this function:

Here is the caller graph for this function:

tle8888startup()

void tle8888startup

(

)

Definition at line 338 of file smart_gpio.cpp.

                      {
#if EFI_PROD_CODE && (BOARD_TLE8888_COUNT > 0)
  // TODO: use a timer instead
    static efitick_t tle8888CrankingResetTime = 0;

    if (engineConfiguration->useTLE8888_cranking_hack && engine->rpmCalculator.isCranking()) {
        efitick_t nowNt = getTimeNowNt();
        if (nowNt - tle8888CrankingResetTime > MS2NT(300)) {
            tle8888_req_init();
            // let's reset TLE8888 every 300ms while cranking since that's the best we can do to deal with undervoltage reset
            // PS: oh yes, it's a horrible design! Please suggest something better!
            tle8888CrankingResetTime = nowNt;
        }
    }
#endif /* BOARD_TLE8888_COUNT */
}

Referenced by Engine::periodicSlowCallback().

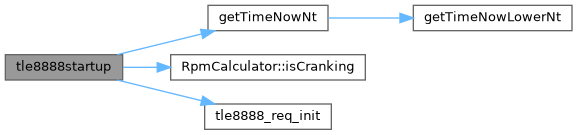

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

drv8860

struct drv8860_config drv8860

Initial value:

= {
    .spi_bus = NULL,
    .spi_config = {
        .circular = false,
#ifdef _CHIBIOS_RT_CONF_VER_6_1_
    .end_cb = NULL,
#else
        .slave = false,
        .data_cb = NULL,
        .error_cb = NULL,
#endif
        .ssport = NULL,
        .sspad = 0,
        .cr1 =
            SPI_CR1_16BIT_MODE |
            SPI_CR1_SSM |
            SPI_CR1_SSI |
            ((7 << SPI_CR1_BR_Pos) & SPI_CR1_BR) |
            SPI_CR1_MSTR |
            SPI_CR1_CPOL |
            0,
        .cr2 = SPI_CR2_16BIT_MODE
    },
    .reset = {.port = DRV8860_RESET_PORT, .pad = DRV8860_RESET_PAD}
}

Definition at line 223 of file smart_gpio.cpp.

                                {
    .spi_bus = NULL,
    .spi_config = {
        .circular = false,
#ifdef _CHIBIOS_RT_CONF_VER_6_1_
    .end_cb = NULL,
#else
        .slave = false,
        .data_cb = NULL,
        .error_cb = NULL,
#endif
        .ssport = NULL,
        .sspad = 0,
        .cr1 =
            SPI_CR1_16BIT_MODE |
            SPI_CR1_SSM |
            SPI_CR1_SSI |
            ((7 << SPI_CR1_BR_Pos) & SPI_CR1_BR) |  /* div = 32 */
            SPI_CR1_MSTR |
            SPI_CR1_CPOL |
            0,
        .cr2 = SPI_CR2_16BIT_MODE
    },
    .reset = {.port = DRV8860_RESET_PORT, .pad = DRV8860_RESET_PAD}
};

Referenced by initSmartGpio().

drv8860Cs

OutputPin drv8860Cs

static

Definition at line 222 of file smart_gpio.cpp.

Referenced by startSmartCsPins().

l9779_cfg

struct l9779_config l9779_cfg

Definition at line 115 of file smart_gpio.cpp.

                                {
    .spi_bus = NULL,
    .spi_config = {
        .circular = false,
#ifdef _CHIBIOS_RT_CONF_VER_6_1_
    .end_cb = NULL,
#else
        .slave = false,
        .data_cb = NULL,
        .error_cb = NULL,
#endif
        .ssport = NULL,
        .sspad = 0,
        .cr1 =
            SPI_CR1_16BIT_MODE |
            SPI_CR1_SSM |
            SPI_CR1_SSI |
            //SPI_CR1_LSBFIRST |    //MSB first
            ((3 << SPI_CR1_BR_Pos) & SPI_CR1_BR) |  // div = 16, up to 8 MHz
            SPI_CR1_MSTR |
            SPI_CR1_CPHA |
            0,
        .cr2 = SPI_CR2_16BIT_MODE
    },
    .direct_gpio = {
        /* IGNI1..IGNI4 */
        [0]  = {.port = NULL,   .pad = 0},
        [1]  = {.port = NULL,   .pad = 0},
        [2]  = {.port = NULL,   .pad = 0},
        [3]  = {.port = NULL,   .pad = 0},
        /* IN1..IN7 */
        [4]  = {.port = NULL,   .pad = 0},
        [5]  = {.port = NULL,   .pad = 0},
        [6]  = {.port = NULL,   .pad = 0},
        [7]  = {.port = NULL,   .pad = 0},
        [8]  = {.port = NULL,   .pad = 0},
        [9]  = {.port = NULL,   .pad = 0},
        [10] = {.port = NULL,   .pad = 0},
    },
    /* PWM (IN8) */
    .pwm_gpio = {.port = NULL,  .pad = 0},
};

Referenced by initSmartGpio().

l9779Cs

OutputPin l9779Cs

static

Definition at line 114 of file smart_gpio.cpp.

mc33810Cs

OutputPin mc33810Cs[C_MC33810_COUNT]

static

Definition at line 218 of file smart_gpio.cpp.

Referenced by startSmartCsPins().

mc33972

struct mc33972_config mc33972

Initial value:

= {
    .spi_bus = NULL,
    .spi_config = {
        .circular = false,
#ifdef _CHIBIOS_RT_CONF_VER_6_1_
    .end_cb = NULL,
#else
        .slave = false,
        .data_cb = NULL,
        .error_cb = NULL,
#endif
        .ssport = NULL,
        .sspad = 0,
        .cr1 =
            SPI_CR1_8BIT_MODE |
            SPI_CR1_SSM |
            SPI_CR1_SSI |

            ((3 << SPI_CR1_BR_Pos) & SPI_CR1_BR) |
            SPI_CR1_MSTR |

            SPI_CR1_CPHA |
            0,
        .cr2 = SPI_CR2_8BIT_MODE
    },
}

Definition at line 85 of file smart_gpio.cpp.

                                {
    .spi_bus = NULL,
    .spi_config = {
        .circular = false,
#ifdef _CHIBIOS_RT_CONF_VER_6_1_
    .end_cb = NULL,
#else
        .slave = false,
        .data_cb = NULL,
        .error_cb = NULL,
#endif
        .ssport = NULL,
        .sspad = 0,
        .cr1 =
            SPI_CR1_8BIT_MODE |
            SPI_CR1_SSM |
            SPI_CR1_SSI |
            /* SPI_CR1_LSBFIRST | */
            ((3 << SPI_CR1_BR_Pos) & SPI_CR1_BR) |  /* div = 16 */
            SPI_CR1_MSTR |
            /* SPI_CR1_CPOL | */ /* = 0 */
            SPI_CR1_CPHA | /* = 1 */
            0,
        .cr2 = SPI_CR2_8BIT_MODE
    },
};

Referenced by initSmartGpio().

mc33972Cs

OutputPin mc33972Cs

static

Definition at line 84 of file smart_gpio.cpp.

Referenced by startSmartCsPins().

tle6240

struct tle6240_config tle6240

Initial value:

= {
    .spi_bus = NULL,
    .spi_config = {
        .circular = false,
#ifdef _CHIBIOS_RT_CONF_VER_6_1_
    .end_cb = NULL,
#else
        .slave = false,
        .data_cb = NULL,
        .error_cb = NULL,
#endif
        .ssport = NULL,
        .sspad = 0,
        .cr1 =
            SPI_CR1_16BIT_MODE |
            SPI_CR1_SSM |
            SPI_CR1_SSI |

            ((3 << SPI_CR1_BR_Pos) & SPI_CR1_BR) |
            SPI_CR1_MSTR |

            SPI_CR1_CPHA |
            0,
        .cr2 = SPI_CR2_16BIT_MODE
    },
    .direct_io = {
        TLE6240_DIRECT_IO
    },
    .reset = {.port = TLE6240_RESET_PORT, .pad = TLE6240_RESET_PAD}
}

Definition at line 51 of file smart_gpio.cpp.

                                {
    .spi_bus = NULL,
    .spi_config = {
        .circular = false,
#ifdef _CHIBIOS_RT_CONF_VER_6_1_
    .end_cb = NULL,
#else
        .slave = false,
        .data_cb = NULL,
        .error_cb = NULL,
#endif
        .ssport = NULL,
        .sspad = 0,
        .cr1 =
            SPI_CR1_16BIT_MODE |
            SPI_CR1_SSM |
            SPI_CR1_SSI |
            /* SPI_CR1_LSBFIRST | */
            ((3 << SPI_CR1_BR_Pos) & SPI_CR1_BR) |  /* div = 16 */
            SPI_CR1_MSTR |
            /* SPI_CR1_CPOL | */ // = 0
            SPI_CR1_CPHA | // = 1
            0,
        .cr2 = SPI_CR2_16BIT_MODE
    },
    .direct_io = {
        TLE6240_DIRECT_IO
    },
    .reset = {.port = TLE6240_RESET_PORT, .pad = TLE6240_RESET_PAD}
};

Referenced by initSmartGpio().

tle6240Cs

OutputPin tle6240Cs

static

Definition at line 50 of file smart_gpio.cpp.

Referenced by startSmartCsPins().

tle8888_cfg

struct tle8888_config tle8888_cfg

Definition at line 161 of file smart_gpio.cpp.

                                    {
    .spi_bus = NULL,
    .spi_config = {
        .circular = false,
#ifdef _CHIBIOS_RT_CONF_VER_6_1_
    .end_cb = NULL,
#else
        .slave = false,
        .data_cb = NULL,
        .error_cb = NULL,
#endif
        .ssport = NULL,
        .sspad = 0,
        .cr1 =
            SPI_CR1_16BIT_MODE |
            SPI_CR1_SSM |
            SPI_CR1_SSI |
            SPI_CR1_LSBFIRST |  //LSB first
            ((3 << SPI_CR1_BR_Pos) & SPI_CR1_BR) |  // div = 16
            SPI_CR1_MSTR |
            SPI_CR1_CPHA |
            0,
        .cr2 = SPI_CR2_16BIT_MODE
    },
    .reset =  {.port = NULL,    .pad = 0},
    .direct_gpio = {
        /* IN1..4 -> OUT1..OUT4 (Injectors) */
        [0] = {.port = GPIOE,   .pad = 14},
        [1] = {.port = GPIOE,   .pad = 13},
        [2] = {.port = GPIOE,   .pad = 12},
        [3] = {.port = GPIOE,   .pad = 11},
        /* IN5..8 -> IGN1..IGN4 (Ignitors) */
        /* Not used */
        [4] = {.port = NULL,    .pad = 0},
        [5] = {.port = NULL,    .pad = 0},
        [6] = {.port = NULL,    .pad = 0},
        [7] = {.port = NULL,    .pad = 0},
        /* Remapable IN9..12 */
        [8] = {.port = GPIOE,   .pad = 10},
        [9] = {.port = GPIOE,   .pad = 9},
        [10] = {.port = GPIOE,  .pad = 8},
        [11] = {.port = GPIOE,  .pad = 7},
    },
    .direct_maps = {
        [0] = {.output =  5},   /* MRE: LS2 */
        [1] = {.output =  6},   /* MRE: LS1 */
        [2] = {.output = 21},   /* MRE: GP1 - not used when stepper = true */
        [3] = {.output = 22},   /* MRE: GP2 - not used when stepper = true */
    },
    .ign_en =  {.port = GPIOD,  .pad = 10},
    .inj_en =  {.port = GPIOD,  .pad = 11},
    .mode = TL_AUTO,
    .stepper = false
};

Referenced by initSmartGpio().

tle8888Cs

OutputPin tle8888Cs

static

Definition at line 160 of file smart_gpio.cpp.

Referenced by startSmartCsPins().

Go to the source code of this file.
