CanSensor< TStorage, TScale > Class Template Reference

#include <can_sensor.h>

Inheritance diagram for CanSensor< TStorage, TScale >:

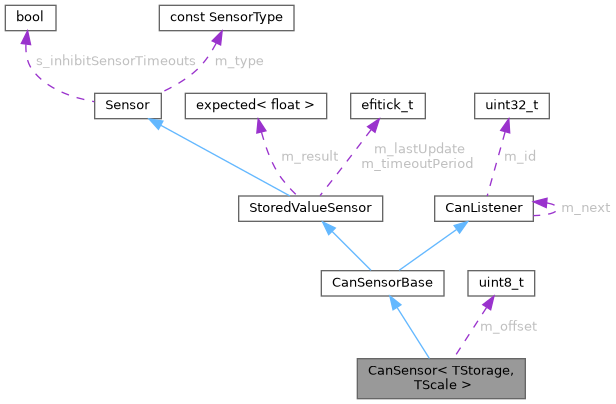

Collaboration diagram for CanSensor< TStorage, TScale >:

Public Member Functions
	CanSensor (uint32_t eid, uint8_t offset, SensorType type, efidur_t timeout)
void	decodeFrame (const CANRxFrame &frame, efitick_t nowNt) override
Public Member Functions inherited from CanSensorBase
	CanSensorBase (uint32_t eid, SensorType type, efidur_t timeout)
void	showInfo (const char *sensorName) const override
Public Member Functions inherited from StoredValueSensor
SensorResult	get () const final override
	StoredValueSensor (SensorType type, efidur_t timeoutNt)
void	invalidate ()
void	invalidate (UnexpectedCode why)
void	setValidValue (float value, efitick_t timestamp)
void	showInfo (const char *sensorName) const override
virtual void	setTimeout (int timeoutMs)
Public Member Functions inherited from Sensor
bool	Register ()
const char *	getSensorName () const
virtual bool	hasSensor () const
virtual float	getRaw () const
virtual bool	isRedundant () const
void	unregister ()
SensorType	type () const
Public Member Functions inherited from CanListener
	CanListener (uint32_t id)
CanListener *	processFrame (const size_t busIndex, const CANRxFrame &frame, efitick_t nowNt)
uint32_t	getId ()
void	setNext (CanListener *next)
virtual CanListener *	request ()
bool	hasNext () const
virtual bool	acceptFrame (const size_t busIndex, const CANRxFrame &frame) const

Private Attributes
const uint8_t	m_offset

Additional Inherited Members
Static Public Member Functions inherited from Sensor
static void	showAllSensorInfo ()
static void	showInfo (SensorType type)
static void	resetRegistry ()
static const Sensor *	getSensorOfType (SensorType type)
static SensorResult	get (SensorType type)
static float	getOrZero (SensorType type)
static float	getRaw (SensorType type)
static bool	isRedundant (SensorType type)
static bool	hasSensor (SensorType type)
static void	setMockValue (SensorType type, float value, bool mockRedundant=false)
static void	setInvalidMockValue (SensorType type)
static void	resetMockValue (SensorType type)
static void	resetAllMocks ()
static void	inhibitTimeouts (bool inhibit)
static const char *	getSensorName (SensorType type)
Protected Member Functions inherited from Sensor
	Sensor (SensorType type)
Static Protected Attributes inherited from Sensor
static bool	s_inhibitSensorTimeouts = false

Detailed Description

template<typename TStorage, int TScale>
class CanSensor< TStorage, TScale >

Definition at line 32 of file can_sensor.h.

Constructor & Destructor Documentation

CanSensor()

template<typename TStorage , int TScale>

CanSensor< TStorage, TScale >::CanSensor ( uint32_t  eid, uint8_t  offset, SensorType  type, efidur_t  timeout  )

inline

Definition at line 34 of file can_sensor.h.

        : CanSensorBase(eid, type, timeout)
        , m_offset(offset)
    {
    }

Member Function Documentation

decodeFrame()

template<typename TStorage , int TScale>

void CanSensor< TStorage, TScale >::decodeFrame ( const CANRxFrame &  frame, efitick_t  nowNt  )

inlineoverridevirtual

Implements CanListener.

Definition at line 40 of file can_sensor.h.

                                                                        {
        // Compute the location of our data within the frame
        const uint8_t* dataLocation = &frame.data8[m_offset];

        // Reinterpret as a scaled_channel - it already has the logic for decoding a scaled integer to a float
        const auto scaler = reinterpret_cast<const scaled_channel<TStorage, TScale>*>(dataLocation);

        // Actually do the conversion
        float value = *scaler;
        setValidValue(value, nowNt);
    }

Here is the call graph for this function:

Field Documentation

m_offset

template<typename TStorage , int TScale>

const uint8_t CanSensor< TStorage, TScale >::m_offset

private

Definition at line 53 of file can_sensor.h.

Referenced by CanSensor< TStorage, TScale >::decodeFrame().

---

The documentation for this class was generated from the following file:

• controllers/sensors/can_sensor.h
