#include <fuel_computer.h>

Inheritance diagram for FuelComputerBase:

[legend]

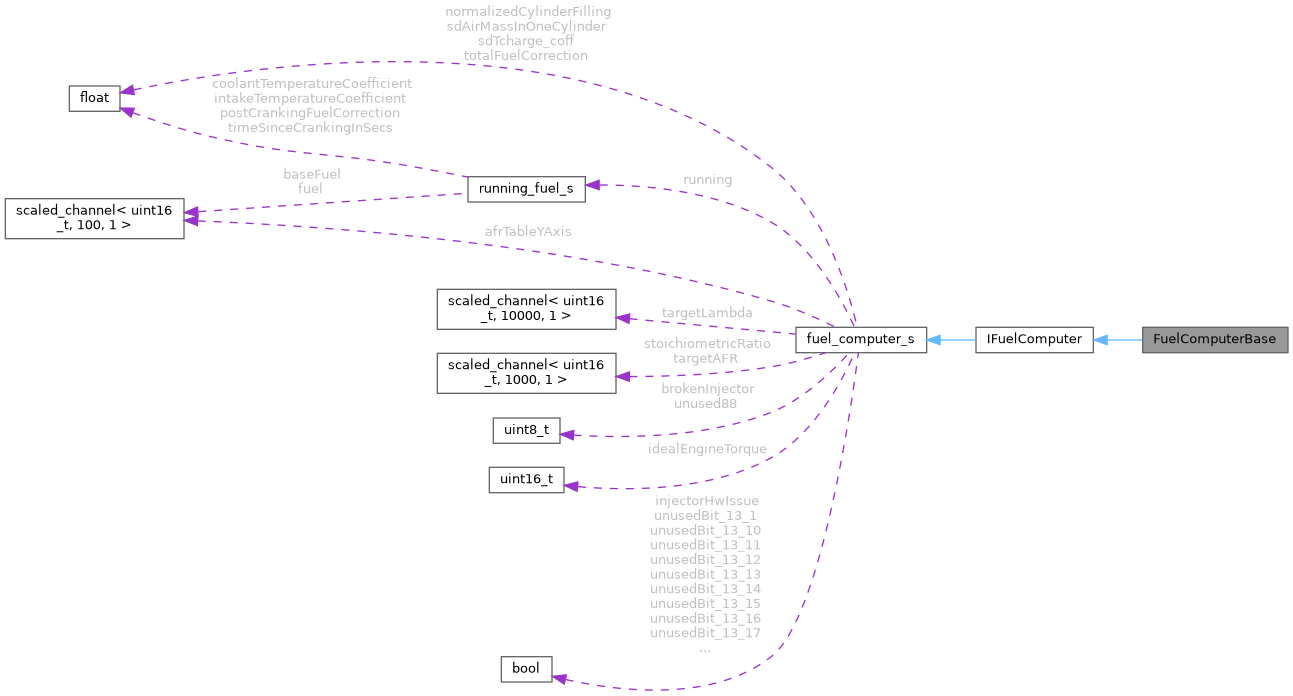

Collaboration diagram for FuelComputerBase:

[legend]

Public Member Functions
mass_t	getCycleFuel (mass_t airmass, int rpm, float load) override

virtual float	getStoichiometricRatio () const =0

virtual float	getTargetLambda (int rpm, float load) const =0

virtual float	getTargetLambdaLoadAxis (float defaultLoad) const =0

Public Member Functions inherited from IFuelComputer
temperature_t	getTCharge (int rpm, float tps)

float	getLoadOverride (float defaultLoad, load_override_e overrideMode) const

Additional Inherited Members
Data Fields inherited from fuel_computer_s
float	totalFuelCorrection = (float)0

running_fuel_s	running

scaled_channel< uint16_t, 100, 1 >	afrTableYAxis = (uint16_t)0

scaled_channel< uint16_t, 10000, 1 >	targetLambda = (uint16_t)0

scaled_channel< uint16_t, 1000, 1 >	targetAFR = (uint16_t)0

scaled_channel< uint16_t, 1000, 1 >	stoichiometricRatio = (uint16_t)0

float	sdTcharge_coff = (float)0

float	sdAirMassInOneCylinder = (float)0

float	normalizedCylinderFilling = (float)0

uint8_t	brokenInjector = (uint8_t)0

uint8_t	unused88 = (uint8_t)0

uint16_t	idealEngineTorque = (uint16_t)0

bool	injectorHwIssue: 1 {}

bool	unusedBit_13_1: 1 {}

bool	unusedBit_13_2: 1 {}

bool	unusedBit_13_3: 1 {}

bool	unusedBit_13_4: 1 {}

bool	unusedBit_13_5: 1 {}

bool	unusedBit_13_6: 1 {}

bool	unusedBit_13_7: 1 {}

bool	unusedBit_13_8: 1 {}

bool	unusedBit_13_9: 1 {}

bool	unusedBit_13_10: 1 {}

bool	unusedBit_13_11: 1 {}

bool	unusedBit_13_12: 1 {}

bool	unusedBit_13_13: 1 {}

bool	unusedBit_13_14: 1 {}

bool	unusedBit_13_15: 1 {}

bool	unusedBit_13_16: 1 {}

bool	unusedBit_13_17: 1 {}

bool	unusedBit_13_18: 1 {}

bool	unusedBit_13_19: 1 {}

bool	unusedBit_13_20: 1 {}

bool	unusedBit_13_21: 1 {}

bool	unusedBit_13_22: 1 {}

bool	unusedBit_13_23: 1 {}

bool	unusedBit_13_24: 1 {}

bool	unusedBit_13_25: 1 {}

bool	unusedBit_13_26: 1 {}

bool	unusedBit_13_27: 1 {}

bool	unusedBit_13_28: 1 {}

bool	unusedBit_13_29: 1 {}

bool	unusedBit_13_30: 1 {}

bool	unusedBit_13_31: 1 {}

Detailed Description

Definition at line 21 of file fuel_computer.h.

Member Function Documentation

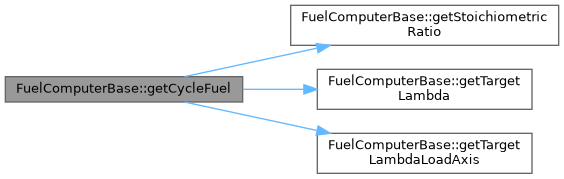

◆ getCycleFuel()

mass_t FuelComputerBase::getCycleFuel	(	mass_t	airmass,
		int	rpm,
		float	load
	)

overridevirtual

Implements IFuelComputer.

Definition at line 13 of file fuel_computer.cpp.

                                                                          {
     load = getTargetLambdaLoadAxis(load);

     float stoich = getStoichiometricRatio();
     float lambda = getTargetLambda(rpm, load);
     float afr = stoich * lambda;

     afrTableYAxis = load;
     targetLambda = lambda;
     targetAFR = afr;
     stoichiometricRatio = stoich;

     return airmass / afr;
 }
