#include <fuel_pump.h>

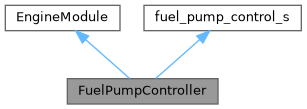

Inheritance diagram for FuelPumpController:

[legend]

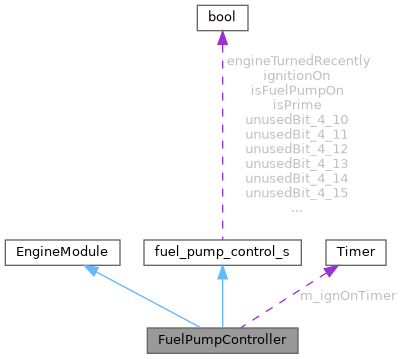

Collaboration diagram for FuelPumpController:

[legend]

Public Member Functions
void	onSlowCallback () override

void	onIgnitionStateChanged (bool ignitionOn) override

Public Member Functions inherited from EngineModule
virtual void	initNoConfiguration ()

virtual void	setDefaultConfiguration ()

virtual void	onConfigurationChange (engine_configuration_s const *)

virtual void	onFastCallback ()

virtual void	onEngineStop ()

virtual bool	needsDelayedShutoff ()

virtual void	onEnginePhase (float, efitick_t, angle_t, angle_t)

Private Attributes
Timer	m_ignOnTimer

Additional Inherited Members
Data Fields inherited from fuel_pump_control_s
bool	isPrime: 1 {}

bool	engineTurnedRecently: 1 {}

bool	isFuelPumpOn: 1 {}

bool	ignitionOn: 1 {}

bool	unusedBit_4_4: 1 {}

bool	unusedBit_4_5: 1 {}

bool	unusedBit_4_6: 1 {}

bool	unusedBit_4_7: 1 {}

bool	unusedBit_4_8: 1 {}

bool	unusedBit_4_9: 1 {}

bool	unusedBit_4_10: 1 {}

bool	unusedBit_4_11: 1 {}

bool	unusedBit_4_12: 1 {}

bool	unusedBit_4_13: 1 {}

bool	unusedBit_4_14: 1 {}

bool	unusedBit_4_15: 1 {}

bool	unusedBit_4_16: 1 {}

bool	unusedBit_4_17: 1 {}

bool	unusedBit_4_18: 1 {}

bool	unusedBit_4_19: 1 {}

bool	unusedBit_4_20: 1 {}

bool	unusedBit_4_21: 1 {}

bool	unusedBit_4_22: 1 {}

bool	unusedBit_4_23: 1 {}

bool	unusedBit_4_24: 1 {}

bool	unusedBit_4_25: 1 {}

bool	unusedBit_4_26: 1 {}

bool	unusedBit_4_27: 1 {}

bool	unusedBit_4_28: 1 {}

bool	unusedBit_4_29: 1 {}

bool	unusedBit_4_30: 1 {}

bool	unusedBit_4_31: 1 {}

Detailed Description

Definition at line 11 of file fuel_pump.h.

Member Function Documentation

◆ onIgnitionStateChanged()

void FuelPumpController::onIgnitionStateChanged ( bool ignitionOn )

overridevirtual

Reimplemented from EngineModule.

Definition at line 29 of file fuel_pump.cpp.

                                                                    {
    // live data parser convention is asking for a field
    ignitionOn = ignitionOnParam;
    if (ignitionOn) {
        m_ignOnTimer.reset();
    }
}

◆ onSlowCallback()

void FuelPumpController::onSlowCallback ( )

overridevirtual

low pressure fuel pump control for high-pressure see HpfpController@high_pressure_fuel_pump

Reimplemented from EngineModule.

Definition at line 11 of file fuel_pump.cpp.

                                        {
    auto timeSinceIgn = m_ignOnTimer.getElapsedSeconds();

    // If the ignition just turned on, turn on the fuel pump to prime
    isPrime = timeSinceIgn >= 0 && timeSinceIgn < engineConfiguration->startUpFuelPumpDuration;

#if EFI_SHAFT_POSITION_INPUT
    // If there was a trigger event recently, turn on the pump, the engine is running!
    engineTurnedRecently = engine->triggerCentral.engineMovedRecently();
#endif //EFI_SHAFT_POSITION_INPUT

    isFuelPumpOn = isPrime || engineTurnedRecently;

    if (!isRunningBenchTest()) {
        enginePins.fuelPumpRelay.setValue("FP", isFuelPumpOn);
    }
}

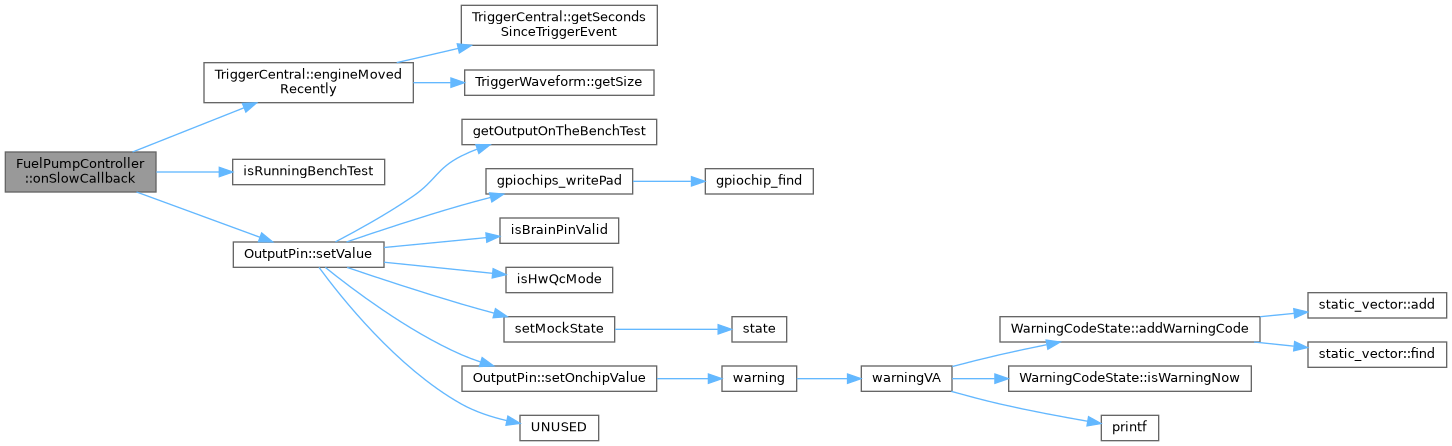

Here is the call graph for this function:

Field Documentation

◆ m_ignOnTimer

Timer FuelPumpController::m_ignOnTimer

private

Definition at line 17 of file fuel_pump.h.

Referenced by onIgnitionStateChanged(), and onSlowCallback().

The documentation for this class was generated from the following files:

controllers/modules/fuel_pump/fuel_pump.h
controllers/modules/fuel_pump/fuel_pump.cpp
