FunctionalSensorBase Class Reference

#include <functional_sensor_base.h>

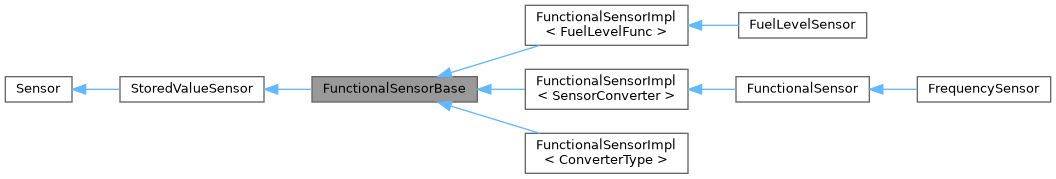

Inheritance diagram for FunctionalSensorBase:

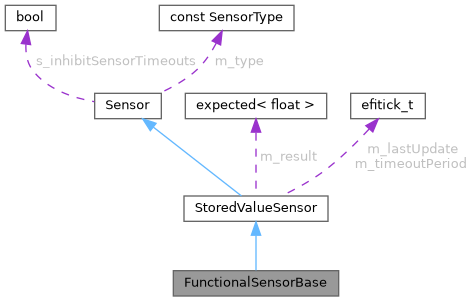

Collaboration diagram for FunctionalSensorBase:

Public Member Functions
virtual void	postRawValue (float inputValue, efitick_t timestamp)=0
Public Member Functions inherited from StoredValueSensor
SensorResult	get () const final override
	StoredValueSensor (SensorType type, efidur_t timeoutNt)
void	invalidate ()
void	invalidate (UnexpectedCode why)
void	setValidValue (float value, efitick_t timestamp)
void	showInfo (const char *sensorName) const override
virtual void	setTimeout (int timeoutMs)
Public Member Functions inherited from Sensor
bool	Register ()
const char *	getSensorName () const
virtual bool	hasSensor () const
virtual float	getRaw () const
virtual bool	isRedundant () const
void	unregister ()
SensorType	type () const

Protected Member Functions
	FunctionalSensorBase (SensorType type, efidur_t timeoutPeriod)
Protected Member Functions inherited from Sensor
	Sensor (SensorType type)

Additional Inherited Members
Static Public Member Functions inherited from Sensor
static void	showAllSensorInfo ()
static void	showInfo (SensorType type)
static void	resetRegistry ()
static const Sensor *	getSensorOfType (SensorType type)
static SensorResult	get (SensorType type)
static float	getOrZero (SensorType type)
static float	getRaw (SensorType type)
static bool	isRedundant (SensorType type)
static bool	hasSensor (SensorType type)
static void	setMockValue (SensorType type, float value, bool mockRedundant=false)
static void	setInvalidMockValue (SensorType type)
static void	resetMockValue (SensorType type)
static void	resetAllMocks ()
static void	inhibitTimeouts (bool inhibit)
static const char *	getSensorName (SensorType type)
Static Protected Attributes inherited from Sensor
static bool	s_inhibitSensorTimeouts = false

Detailed Description

Definition at line 9 of file functional_sensor_base.h.

Constructor & Destructor Documentation

FunctionalSensorBase()

FunctionalSensorBase::FunctionalSensorBase ( SensorType  type, efidur_t  timeoutPeriod  )

protected

Definition at line 9 of file functional_sensor_base.cpp.

    : StoredValueSensor(type, timeoutPeriod) {
}

Member Function Documentation

postRawValue()

virtual void FunctionalSensorBase::postRawValue ( float  inputValue, efitick_t  timestamp  )

pure virtual

Implemented in FunctionalSensorImpl< ConverterType >, FunctionalSensorImpl< FuelLevelFunc >, and FunctionalSensorImpl< SensorConverter >.

Referenced by AdcSubscription::UpdateSubscribers().

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• controllers/sensors/core/functional_sensor_base.h
• controllers/sensors/core/functional_sensor_base.cpp
