FunctionalSensorImpl< ConverterType > Class Template Reference

#include <functional_sensor_impl.h>

Inheritance diagram for FunctionalSensorImpl< ConverterType >:

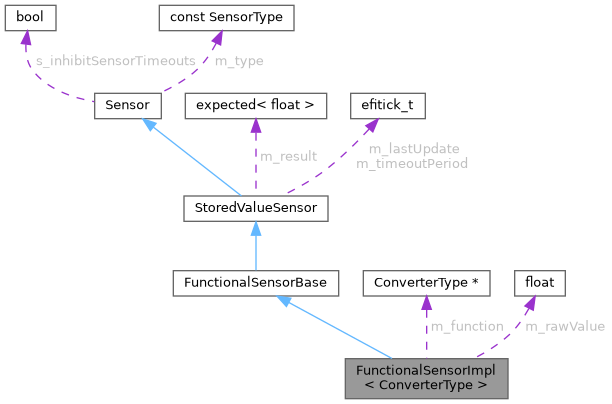

Collaboration diagram for FunctionalSensorImpl< ConverterType >:

Public Member Functions
	FunctionalSensorImpl (SensorType type, efidur_t timeoutPeriod)
void	postRawValue (float inputValue, efitick_t timestamp) override
void	setFunction (ConverterType &func)
ConverterType *	getFunction () const
float	getRaw () const override final
Public Member Functions inherited from StoredValueSensor
SensorResult	get () const final override
	StoredValueSensor (SensorType type, efidur_t timeoutNt)
void	invalidate ()
void	invalidate (UnexpectedCode why)
void	setValidValue (float value, efitick_t timestamp)
void	showInfo (const char *sensorName) const override
virtual void	setTimeout (int timeoutMs)
Public Member Functions inherited from Sensor
bool	Register ()
const char *	getSensorName () const
virtual bool	hasSensor () const
virtual bool	isRedundant () const
void	unregister ()
SensorType	type () const

Private Attributes
ConverterType *	m_function = nullptr
float	m_rawValue = 0

Additional Inherited Members
Static Public Member Functions inherited from Sensor
static void	showAllSensorInfo ()
static void	showInfo (SensorType type)
static void	resetRegistry ()
static const Sensor *	getSensorOfType (SensorType type)
static SensorResult	get (SensorType type)
static float	getOrZero (SensorType type)
static float	getRaw (SensorType type)
static bool	isRedundant (SensorType type)
static bool	hasSensor (SensorType type)
static void	setMockValue (SensorType type, float value, bool mockRedundant=false)
static void	setInvalidMockValue (SensorType type)
static void	resetMockValue (SensorType type)
static void	resetAllMocks ()
static void	inhibitTimeouts (bool inhibit)
static const char *	getSensorName (SensorType type)
Protected Member Functions inherited from FunctionalSensorBase
	FunctionalSensorBase (SensorType type, efidur_t timeoutPeriod)
Protected Member Functions inherited from Sensor
	Sensor (SensorType type)
Static Protected Attributes inherited from Sensor
static bool	s_inhibitSensorTimeouts = false

Detailed Description

template<class ConverterType>
class FunctionalSensorImpl< ConverterType >

Definition at line 10 of file functional_sensor_impl.h.

Constructor & Destructor Documentation

FunctionalSensorImpl()

template<class ConverterType >

FunctionalSensorImpl< ConverterType >::FunctionalSensorImpl	(	SensorType	type,
		efidur_t	timeoutPeriod
	)

Definition at line 2 of file functional_sensor_impl.hpp.

    : FunctionalSensorBase(type, timeoutPeriod) {
}

Member Function Documentation

getFunction()

template<class ConverterType >

ConverterType * FunctionalSensorImpl< ConverterType >::getFunction

(

)

const

Definition at line 12 of file functional_sensor_impl.hpp.

                                                                      {
    return m_function;
}

getRaw()

template<class ConverterType >

float FunctionalSensorImpl< ConverterType >::getRaw ( ) const

finaloverridevirtual

Reimplemented from Sensor.

Definition at line 17 of file functional_sensor_impl.hpp.

                                                        {
    return m_rawValue;
}

postRawValue()

template<class ConverterType >

void FunctionalSensorImpl< ConverterType >::postRawValue ( float  inputValue, efitick_t  timestamp  )

overridevirtual

Implements FunctionalSensorBase.

Definition at line 22 of file functional_sensor_impl.hpp.

                                                                                                        {
    // If no function is set, this sensor isn't valid.
    if (!m_function) {
        invalidate(UnexpectedCode::Configuration);
        return;
    }

    m_rawValue = inputValue;

    auto r = m_function->convert(inputValue);

    // This has to happen so that we set the valid bit after
    // the value is stored, to prevent the data race of reading
    // an old invalid value
    if (r.Valid) {
        setValidValue(r.Value, timestamp);
    } else {
        invalidate(r.Code);
    }
}

Referenced by FlexSensor::callback(), and sentPressureDecode().

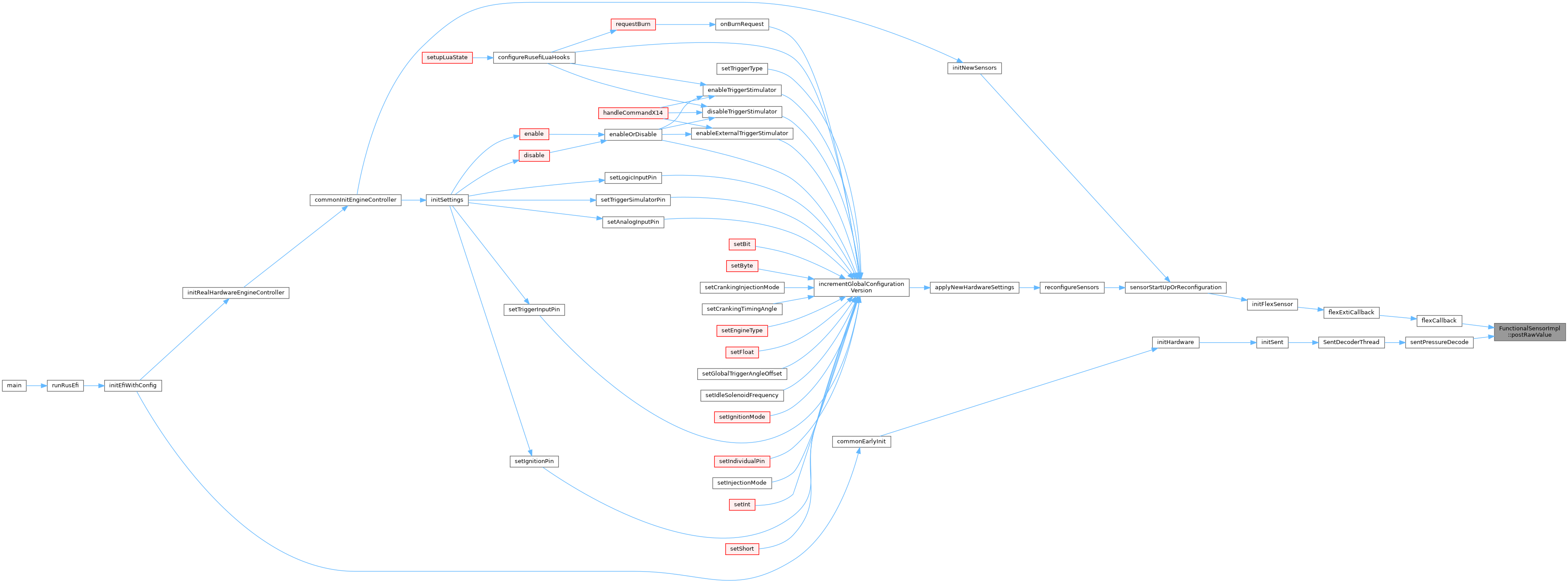

Here is the caller graph for this function:

setFunction()

template<class ConverterType >

void FunctionalSensorImpl< ConverterType >::setFunction

(

ConverterType &

func

)

Definition at line 7 of file functional_sensor_impl.hpp.

                                                                         {
    m_function = &func;
}

Referenced by FlexSensor::FlexSensor(), initMaf(), initMap(), and initVbatt().

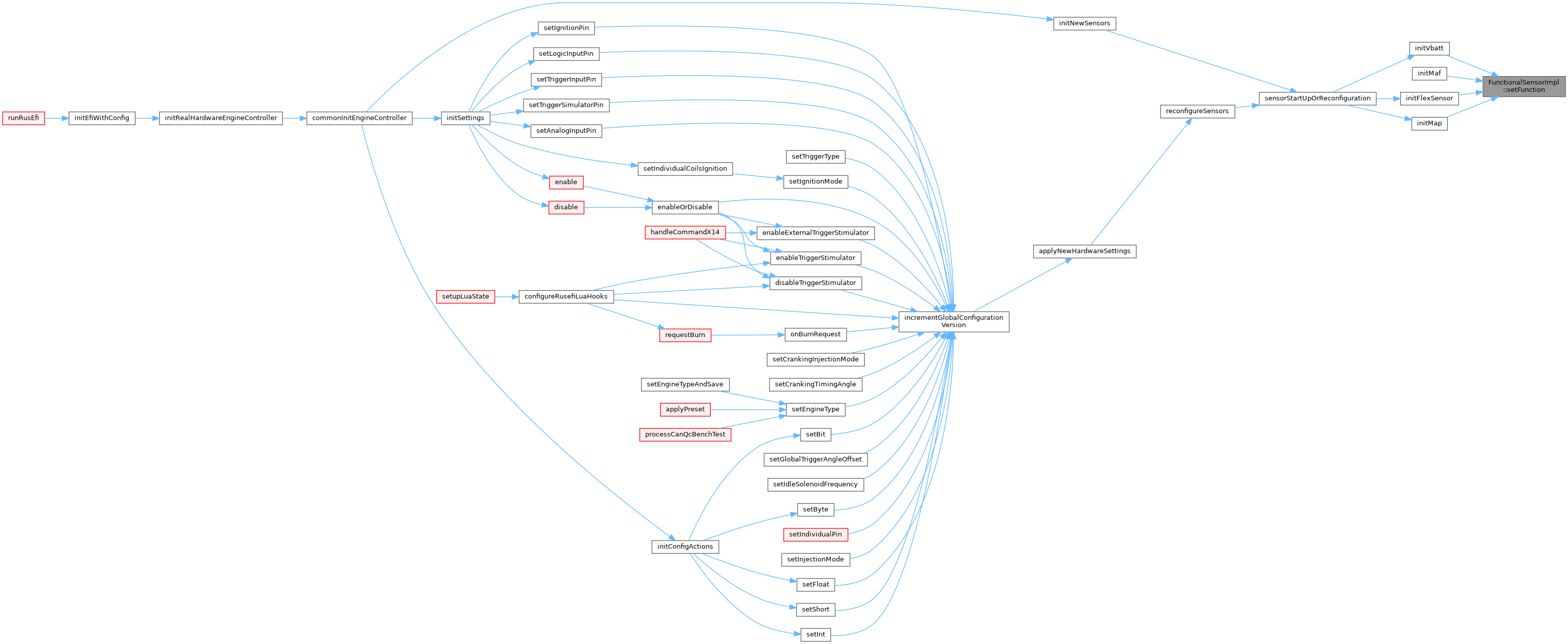

Here is the caller graph for this function:

Field Documentation

m_function

template<class ConverterType >

ConverterType* FunctionalSensorImpl< ConverterType >::m_function = nullptr

private

Definition at line 23 of file functional_sensor_impl.h.

m_rawValue

template<class ConverterType >

float FunctionalSensorImpl< ConverterType >::m_rawValue = 0

private

Definition at line 25 of file functional_sensor_impl.h.

---

The documentation for this class was generated from the following files:

• controllers/sensors/core/functional_sensor_impl.h
• controllers/sensors/core/functional_sensor_impl.hpp
