HarleyAcr Class Reference

#include <harley_acr.h>

Inheritance diagram for HarleyAcr:

Collaboration diagram for HarleyAcr:

Public Member Functions
void	updateAcr ()
void	onSlowCallback () override
bool	isActive () const
Public Member Functions inherited from EngineModule
virtual void	initNoConfiguration ()
virtual void	setDefaultConfiguration ()
virtual void	onConfigurationChange (engine_configuration_s const *)
virtual void	onFastCallback ()
virtual void	onEngineStop ()
virtual void	onIgnitionStateChanged (bool)
virtual bool	needsDelayedShutoff ()
virtual void	onEnginePhase (float, efitick_t, angle_t, angle_t)

Private Attributes
bool	m_active = false

Detailed Description

Definition at line 3 of file harley_acr.h.

Member Function Documentation

isActive()

bool HarleyAcr::isActive

(

)

const

Definition at line 66 of file harley_acr.cpp.

                               {
    return m_active;
}

onSlowCallback()

void HarleyAcr::onSlowCallback ( )

overridevirtual

Reimplemented from EngineModule.

Definition at line 48 of file harley_acr.cpp.

                               {
    // skip if no pin
    if (!isBrainPinValid(engineConfiguration->acrPin)) {
        m_active = false;
        return;
    }

    bool acrState = getAcrState();
    engine->engineState.acrActive = acrState;
    enginePins.harleyAcr.setValue(acrState);
    enginePins.harleyAcr2.setValue(acrState);
    m_active = acrState;
}

Referenced by updateAcr().

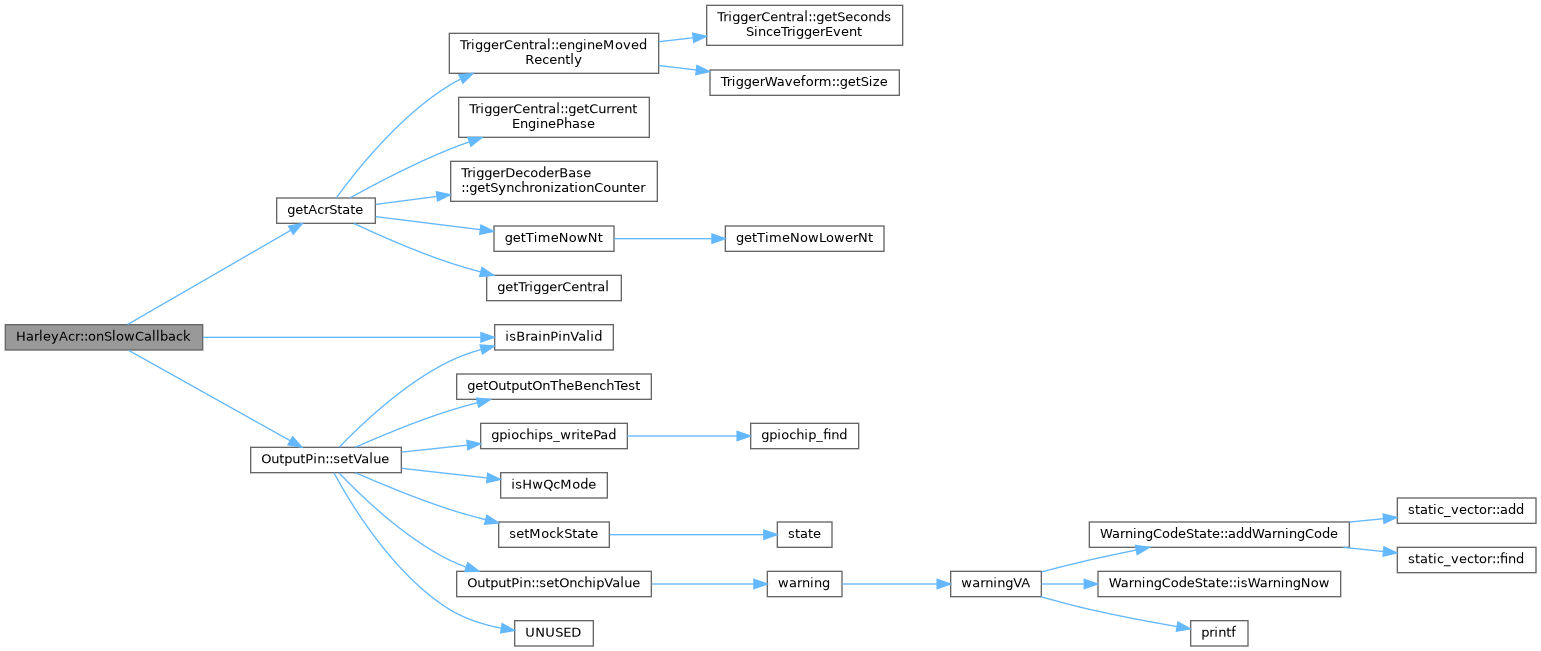

Here is the call graph for this function:

Here is the caller graph for this function:

updateAcr()

void HarleyAcr::updateAcr

(

)

Definition at line 62 of file harley_acr.cpp.

                          {
    onSlowCallback();
}

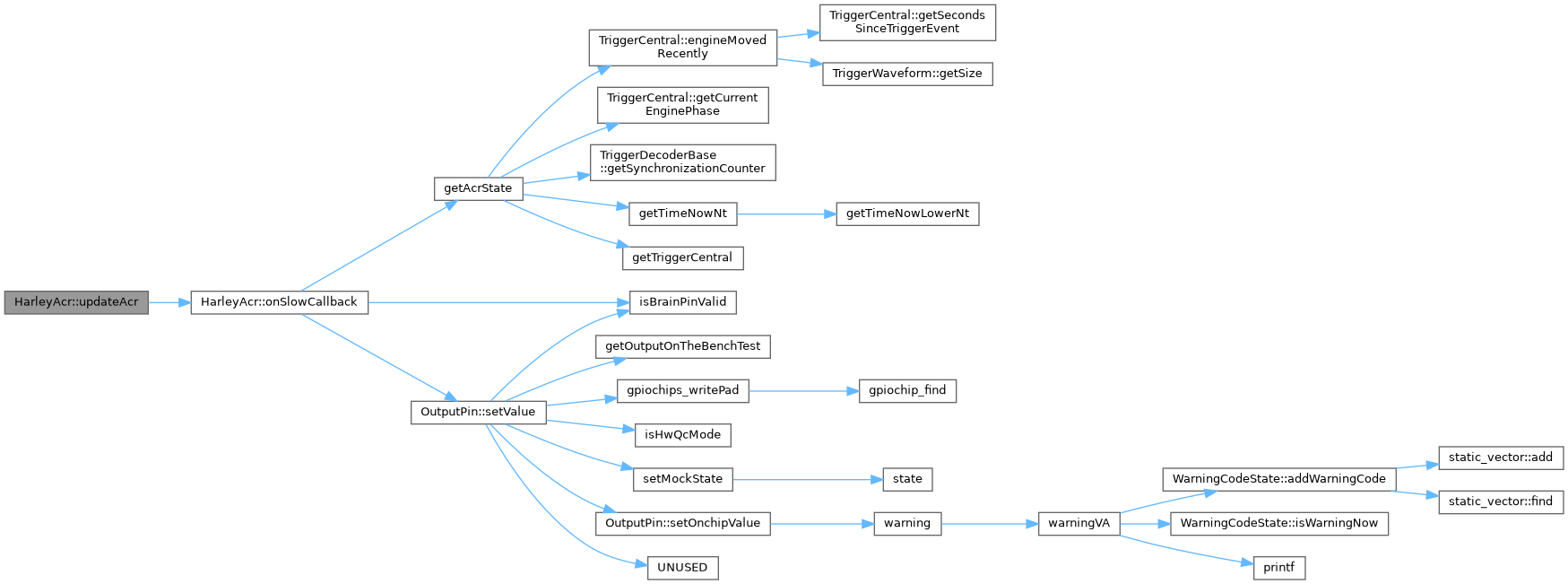

Here is the call graph for this function:

Field Documentation

m_active

bool HarleyAcr::m_active = false

private

Definition at line 11 of file harley_acr.h.

Referenced by isActive(), and onSlowCallback().

---

The documentation for this class was generated from the following files:

• controllers/actuators/harley_acr.h
• controllers/actuators/harley_acr.cpp
