#include <trigger_decoder.h>

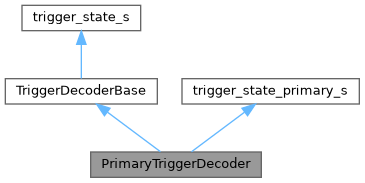

Inheritance diagram for PrimaryTriggerDecoder:

[legend]

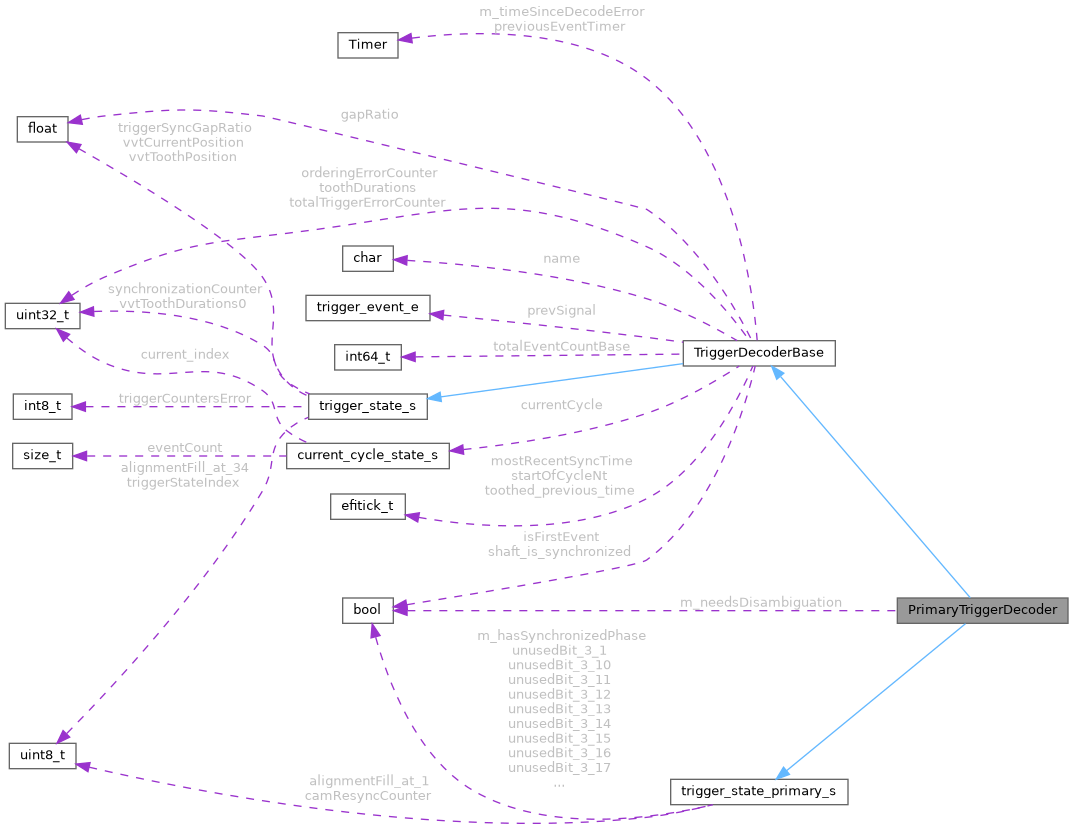

Collaboration diagram for PrimaryTriggerDecoder:

[legend]

Public Member Functions
	PrimaryTriggerDecoder (const char *name)

void	resetState () override

void	resetHasFullSync ()

angle_t	syncEnginePhase (int divider, int remainder, angle_t engineCycle)

bool	hasSynchronizedPhase () const

void	setNeedsDisambiguation (bool needsDisambiguation)

void	onTriggerError () override

void	onNotEnoughTeeth (int actual, int expected) override

void	onTooManyTeeth (int actual, int expected) override

Public Member Functions inherited from TriggerDecoderBase
	TriggerDecoderBase (const char *name)

void	printGaps (const char *prefix, const TriggerConfiguration &triggerConfiguration, const TriggerWaveform &triggerShape)

int	getCurrentIndex () const

int	getSynchronizationCounter () const

void	incrementShaftSynchronizationCounter ()

int64_t	getTotalEventCounter () const

expected< TriggerDecodeResult >	decodeTriggerEvent (const char msg, const TriggerWaveform &triggerShape, TriggerStateListener triggerStateListener, const TriggerConfiguration &triggerConfiguration, const trigger_event_e signal, const efitick_t nowNt)
	Trigger decoding happens here VR falls are filtered out and some VR noise detection happens prior to invoking this method, for Hall this method is invoked every time we have a fall or rise on one of the trigger sensors. This method changes the state of trigger_state_s data structure according to the trigger event.

void	onShaftSynchronization (bool wasSynchronized, const efitick_t nowNt, const TriggerWaveform &triggerShape)

bool	isValidIndex (const TriggerWaveform &triggerShape) const

void	setShaftSynchronized (bool value)

bool	getShaftSynchronized () const

uint32_t	findTriggerZeroEventIndex (TriggerWaveform &shape, const TriggerConfiguration &triggerConfiguration)

bool	someSortOfTriggerError () const

Private Attributes
bool	m_needsDisambiguation = false

Additional Inherited Members
Data Fields inherited from TriggerDecoderBase
float	gapRatio [PWM_PHASE_MAX_COUNT *6]

bool	shaft_is_synchronized = false

efitick_t	mostRecentSyncTime

Timer	previousEventTimer

uint32_t	toothDurations [GAP_TRACKING_LENGTH+1]

efitick_t	toothed_previous_time

current_cycle_state_s	currentCycle

const char *const	name

uint32_t	totalTriggerErrorCounter

uint32_t	orderingErrorCounter

efitick_t	startOfCycleNt

Data Fields inherited from trigger_state_s
uint32_t	synchronizationCounter = (uint32_t)0

uint32_t	vvtToothDurations0 = (uint32_t)0

float	vvtCurrentPosition = (float)0

float	vvtToothPosition [4] = {}

float	triggerSyncGapRatio = (float)0

uint8_t	triggerStateIndex = (uint8_t)0

int8_t	triggerCountersError = (int8_t)0

uint8_t	alignmentFill_at_34 [2] = {}

Data Fields inherited from trigger_state_primary_s
uint8_t	camResyncCounter = (uint8_t)0

uint8_t	alignmentFill_at_1 [3] = {}

bool	m_hasSynchronizedPhase: 1 {}

bool	unusedBit_3_1: 1 {}

bool	unusedBit_3_2: 1 {}

bool	unusedBit_3_3: 1 {}

bool	unusedBit_3_4: 1 {}

bool	unusedBit_3_5: 1 {}

bool	unusedBit_3_6: 1 {}

bool	unusedBit_3_7: 1 {}

bool	unusedBit_3_8: 1 {}

bool	unusedBit_3_9: 1 {}

bool	unusedBit_3_10: 1 {}

bool	unusedBit_3_11: 1 {}

bool	unusedBit_3_12: 1 {}

bool	unusedBit_3_13: 1 {}

bool	unusedBit_3_14: 1 {}

bool	unusedBit_3_15: 1 {}

bool	unusedBit_3_16: 1 {}

bool	unusedBit_3_17: 1 {}

bool	unusedBit_3_18: 1 {}

bool	unusedBit_3_19: 1 {}

bool	unusedBit_3_20: 1 {}

bool	unusedBit_3_21: 1 {}

bool	unusedBit_3_22: 1 {}

bool	unusedBit_3_23: 1 {}

bool	unusedBit_3_24: 1 {}

bool	unusedBit_3_25: 1 {}

bool	unusedBit_3_26: 1 {}

bool	unusedBit_3_27: 1 {}

bool	unusedBit_3_28: 1 {}

bool	unusedBit_3_29: 1 {}

bool	unusedBit_3_30: 1 {}

bool	unusedBit_3_31: 1 {}

Detailed Description

the reason for sub-class is simply to save RAM but not having statistics in the trigger initialization instance

Definition at line 198 of file trigger_decoder.h.

Constructor & Destructor Documentation

◆ PrimaryTriggerDecoder()

PrimaryTriggerDecoder::PrimaryTriggerDecoder ( const char * name )

Definition at line 102 of file trigger_decoder.cpp.

    : TriggerDecoderBase(p_name)
{
}

Member Function Documentation

◆ hasSynchronizedPhase()

bool PrimaryTriggerDecoder::hasSynchronizedPhase ( ) const

inline

Definition at line 216 of file trigger_decoder.h.

                                      {
        return m_hasSynchronizedPhase;
    }

Referenced by getCurrentIgnitionMode(), handleVvtCamSignal(), and LimpManager::updateState().

Here is the caller graph for this function:

◆ onNotEnoughTeeth()

void PrimaryTriggerDecoder::onNotEnoughTeeth	(	int	actual,
		int	expected
	)

overridevirtual

Reimplemented from TriggerDecoderBase.

Definition at line 260 of file trigger_decoder.cpp.

                                                         {
    warning(ObdCode::CUSTOM_PRIMARY_NOT_ENOUGH_TEETH, "primary trigger error: not enough teeth between sync points: expected %d/%d got %d/%d",
            getTriggerCentral()->triggerShape.getExpectedEventCount(TriggerWheel::T_PRIMARY),
            getTriggerCentral()->triggerShape.getExpectedEventCount(TriggerWheel::T_SECONDARY),
        currentCycle.eventCount[0],
        currentCycle.eventCount[1]);
}

Here is the call graph for this function:

◆ onTooManyTeeth()

void PrimaryTriggerDecoder::onTooManyTeeth	(	int	actual,
		int	expected
	)

overridevirtual

Reimplemented from TriggerDecoderBase.

Definition at line 268 of file trigger_decoder.cpp.

                                                       {
    warning(ObdCode::CUSTOM_PRIMARY_TOO_MANY_TEETH, "primary trigger error: too many teeth between sync points: expected %d/%d got %d/%d",
            getTriggerCentral()->triggerShape.getExpectedEventCount(TriggerWheel::T_PRIMARY),
            getTriggerCentral()->triggerShape.getExpectedEventCount(TriggerWheel::T_SECONDARY),
        currentCycle.eventCount[0],
        currentCycle.eventCount[1]);
}

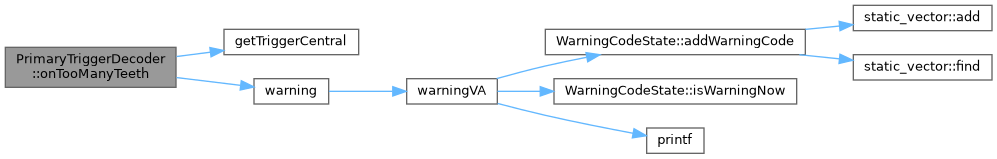

Here is the call graph for this function:

◆ onTriggerError()

void PrimaryTriggerDecoder::onTriggerError ( )

overridevirtual

Reimplemented from TriggerDecoderBase.

Definition at line 245 of file trigger_decoder.cpp.

                                           {
    // On trigger error, we've lost full sync
    resetHasFullSync();

    // Ignore the warning that engine is never null - it might be in unit tests
    #pragma GCC diagnostic push
    #pragma GCC diagnostic ignored "-Waddress"
        if (engine) {
            // Instant RPM data is now also probably trash, discard it
            engine->triggerCentral.instantRpm.resetInstantRpm();
            engine->rpmCalculator.lastTdcTimer.init();
        }
    #pragma GCC diagnostic pop
}

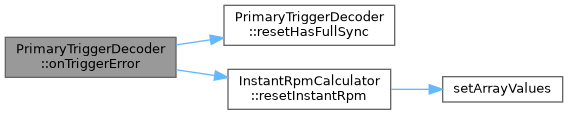

Here is the call graph for this function:

◆ resetHasFullSync()

void PrimaryTriggerDecoder::resetHasFullSync ( )

inline

Definition at line 203 of file trigger_decoder.h.

                            {
        // If this trigger doesn't need disambiguation, we already have phase sync
        m_hasSynchronizedPhase = !m_needsDisambiguation;
    }

Referenced by onTriggerError(), resetState(), and setNeedsDisambiguation().

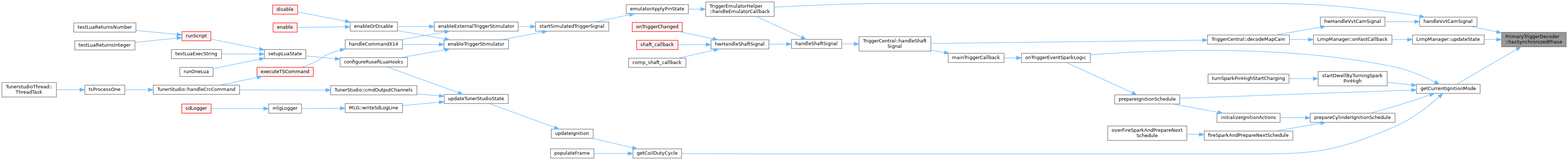

Here is the caller graph for this function:

◆ resetState()

void PrimaryTriggerDecoder::resetState ( )

overridevirtual

Reimplemented from TriggerDecoderBase.

Definition at line 183 of file trigger_decoder.cpp.

                                       {
    TriggerDecoderBase::resetState();

    resetHasFullSync();
}

Referenced by Engine::OnTriggerSynchronizationLost(), and TriggerCentral::TriggerCentral().

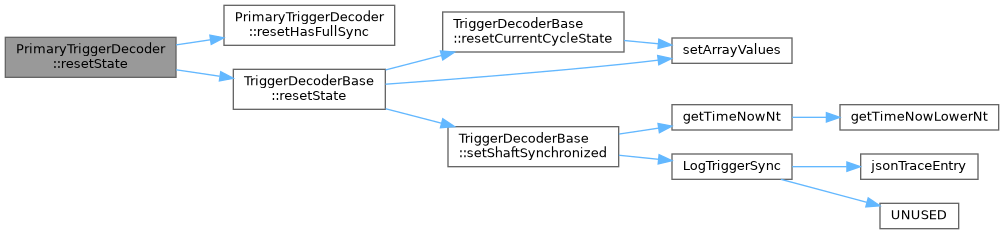

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setNeedsDisambiguation()

void PrimaryTriggerDecoder::setNeedsDisambiguation ( bool needsDisambiguation )

inline

Definition at line 220 of file trigger_decoder.h.

                                                          {
        m_needsDisambiguation = needsDisambiguation;

        resetHasFullSync();
    }

Referenced by TriggerCentral::applyShapesConfiguration().

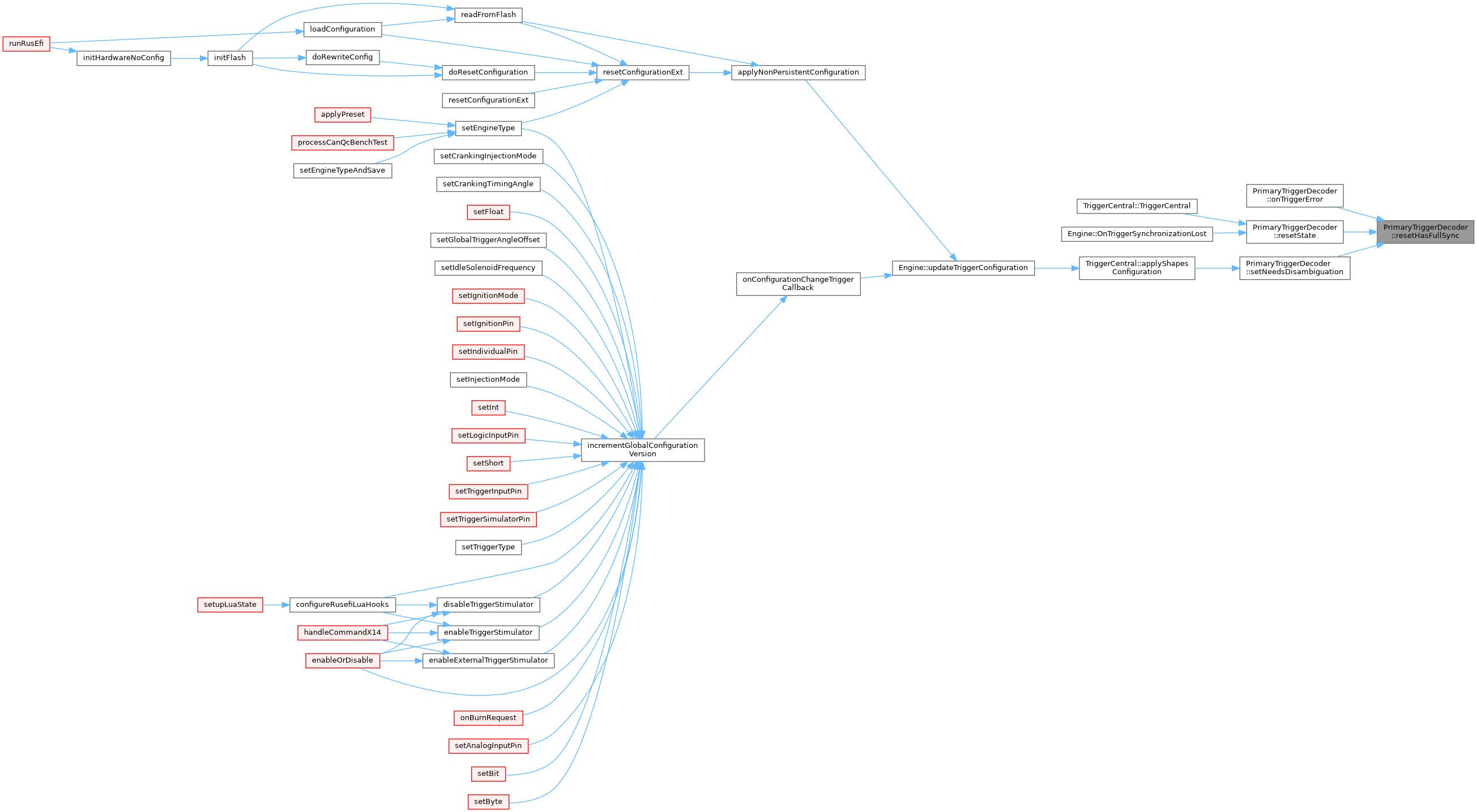

Here is the call graph for this function:

Here is the caller graph for this function:

◆ syncEnginePhase()

angle_t PrimaryTriggerDecoder::syncEnginePhase	(	int	divider,
		int	remainder,
		angle_t	engineCycle
	)

returns zero if we were lucky to have correct engine phase, otherwise angle of engine phase correction which was applied.

we are here if we've detected the cam sensor within the wrong crank phase let's increase the trigger event counter, that would adjust the state of virtual crank-based trigger

Definition at line 216 of file trigger_decoder.cpp.

                                                                                              {
    efiAssert(ObdCode::OBD_PCM_Processor_Fault, divider > 1, "syncEnginePhase divider", false);
    efiAssert(ObdCode::OBD_PCM_Processor_Fault, remainder < divider, "syncEnginePhase remainder", false);
    angle_t totalShift = 0;
    while (getSynchronizationCounter() % divider != remainder) {
        /**
         * we are here if we've detected the cam sensor within the wrong crank phase
         * let's increase the trigger event counter, that would adjust the state of
         * virtual crank-based trigger
         */
        incrementShaftSynchronizationCounter();
        totalShift += engineCycle / divider;
    }

    // Allow injection/ignition to happen, we've now fully sync'd the crank based on new cam information
    m_hasSynchronizedPhase = true;

    if (totalShift > 0) {
        camResyncCounter++;
        onTransitionEvent(TransitionEvent::EngineResync);
    }

    return totalShift;
}

Referenced by TriggerCentral::syncEnginePhaseAndReport().

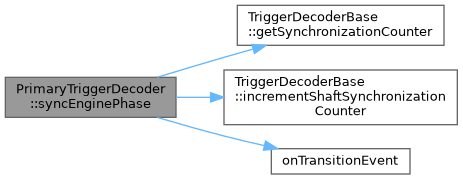

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

◆ m_needsDisambiguation

bool PrimaryTriggerDecoder::m_needsDisambiguation = false

private

Definition at line 233 of file trigger_decoder.h.

Referenced by resetHasFullSync(), and setNeedsDisambiguation().

The documentation for this class was generated from the following files:

controllers/trigger/trigger_decoder.h
controllers/trigger/trigger_decoder.cpp
