#include <rotational_idle.h>

Inheritance diagram for RotationalIdle:

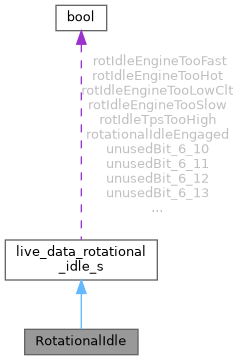

Collaboration diagram for RotationalIdle:

[legend]

Public Member Functions
	RotationalIdle ()

bool	shouldEngageRotationalIdle ()

bool	shouldSkipSparkRotationalIdle ()

Additional Inherited Members
Data Fields inherited from live_data_rotational_idle_s
bool	rotationalIdleEngaged: 1 {}

bool	rotIdleEngineTooSlow: 1 {}

bool	rotIdleEngineTooFast: 1 {}

bool	rotIdleEngineTooLowClt: 1 {}

bool	rotIdleEngineTooHot: 1 {}

bool	rotIdleTpsTooHigh: 1 {}

bool	unusedBit_6_6: 1 {}

bool	unusedBit_6_7: 1 {}

bool	unusedBit_6_8: 1 {}

bool	unusedBit_6_9: 1 {}

bool	unusedBit_6_10: 1 {}

bool	unusedBit_6_11: 1 {}

bool	unusedBit_6_12: 1 {}

bool	unusedBit_6_13: 1 {}

bool	unusedBit_6_14: 1 {}

bool	unusedBit_6_15: 1 {}

bool	unusedBit_6_16: 1 {}

bool	unusedBit_6_17: 1 {}

bool	unusedBit_6_18: 1 {}

bool	unusedBit_6_19: 1 {}

bool	unusedBit_6_20: 1 {}

bool	unusedBit_6_21: 1 {}

bool	unusedBit_6_22: 1 {}

bool	unusedBit_6_23: 1 {}

bool	unusedBit_6_24: 1 {}

bool	unusedBit_6_25: 1 {}

bool	unusedBit_6_26: 1 {}

bool	unusedBit_6_27: 1 {}

bool	unusedBit_6_28: 1 {}

bool	unusedBit_6_29: 1 {}

bool	unusedBit_6_30: 1 {}

bool	unusedBit_6_31: 1 {}

Detailed Description

Definition at line 12 of file rotational_idle.h.

Constructor & Destructor Documentation

◆ RotationalIdle()

RotationalIdle::RotationalIdle ( )

Definition at line 4 of file rotational_idle.cpp.

                              {

}

Member Function Documentation

◆ shouldEngageRotationalIdle()

bool RotationalIdle::shouldEngageRotationalIdle ( )

Definition at line 8 of file rotational_idle.cpp.

                                                {
    rotationalIdleEngaged = false;

    if (!engineConfiguration->rotationalIdleController.enabled) {
        return false;
    }

    //TODO: we need to use deadbands ond this!! (and on the tps/pps)
    if (engineConfiguration->rotationalIdleController.auto_engage_clt_enable && Sensor::getOrZero(SensorType::Clt) > engineConfiguration->rotationalIdleController.auto_engage_clt) {
        rotationalIdleEngaged = true;
        return true;
    }

    // TODO: auto_engage sounds too generic, maybe better auto_engage_pps_enable?
    if (engineConfiguration->rotationalIdleController.auto_engage && Sensor::getOrZero(SensorType::DriverThrottleIntent) <= engineConfiguration->rotationalIdleController.max_tps) {
        rotationalIdleEngaged = true;
        return true; // tps is below the maximum
    }

    return false;
}

Referenced by shouldSkipSparkRotationalIdle().

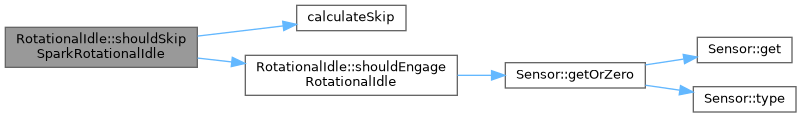

Here is the call graph for this function:

Here is the caller graph for this function:

◆ shouldSkipSparkRotationalIdle()

bool RotationalIdle::shouldSkipSparkRotationalIdle ( )

Determines whether to skip spark based on rotational idle skip pattern configuration.

The skip pattern works using modulo arithmetic with configurable accumulators:

Each accumulator has: acc_max (pattern period), acc_adder (phase shift), acc_offset (cylinder offset)
For each accumulator: counter = globalSparkCounter + offset + acc_offset
Skip condition: ((counter % acc_max) + acc_adder) >= acc_max

Example with acc_max=2, acc_adder=1, acc_offset=0: counter=0: (0 % 2) + 1 = 1 < 2 -> fire spark counter=1: (1 % 2) + 1 = 2 >= 2 -> skip spark counter=2: (2 % 2) + 1 = 1 < 2 -> fire spark counter=3: (3 % 2) + 1 = 2 >= 2 -> skip spark

If acc_max=0, that accumulator is disabled and won't skip.

Returns: True if should skip a spark event.

Definition at line 55 of file rotational_idle.cpp.

                                                   {
    bool result = false;
    auto cutMode = engineConfiguration->rotationalIdleController.cut_mode;

    if (cutMode == RotationalCutMode::Fuel) {
        return false;
    }

    if (!shouldEngageRotationalIdle()) {
        rotationalIdleEngaged = false;
        return false;
    }

    rotationalIdleEngaged = true;


    for (size_t i = 0; i < efi::size(engineConfiguration->rotationalIdleController.accumulators); i++){
        const auto& accConfig = engineConfiguration->rotationalIdleController.accumulators[i];

        uint32_t counter = engine->engineState.globalSparkCounter + accConfig.acc_offset;
        result |= calculateSkip(counter, accConfig.acc_max, accConfig.acc_adder);
    }

    return result;
}
