ThrottleModel Class Reference

#include <throttle_model.h>

Inheritance diagram for ThrottleModel:

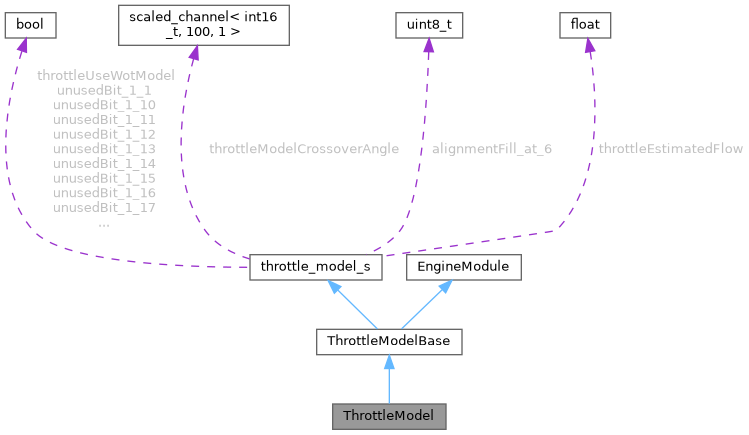

Collaboration diagram for ThrottleModel:

Private Member Functions
float	effectiveArea (float tps) const override
float	maxEngineFlow (float map) const override

Additional Inherited Members
Public Types inherited from ThrottleModelBase
using	interface_t = ThrottleModelBase
Public Member Functions inherited from ThrottleModelBase
void	onSlowCallback () override
float	estimateThrottleFlow (float tip, float tps, float map, float iat)
expected< float >	estimateThrottleFlow (float map, float tps)
float	partThrottleFlow (float tps, float flowCorrection) const
float	partThrottleFlow (float tps, float pressureRatio, float p_up, float iat) const
float	throttlePositionForFlow (float flow, float pressureRatio, float p_up, float iat) const
Public Member Functions inherited from EngineModule
virtual void	initNoConfiguration ()
virtual void	setDefaultConfiguration ()
virtual void	onConfigurationChange (engine_configuration_s const *)
virtual void	onFastCallback ()
virtual void	onEngineStop ()
virtual void	onIgnitionStateChanged (bool)
virtual bool	needsDelayedShutoff ()
virtual void	onEnginePhase (float, efitick_t, angle_t, angle_t)
Data Fields inherited from throttle_model_s
bool	throttleUseWotModel: 1 {}
bool	unusedBit_1_1: 1 {}
bool	unusedBit_1_2: 1 {}
bool	unusedBit_1_3: 1 {}
bool	unusedBit_1_4: 1 {}
bool	unusedBit_1_5: 1 {}
bool	unusedBit_1_6: 1 {}
bool	unusedBit_1_7: 1 {}
bool	unusedBit_1_8: 1 {}
bool	unusedBit_1_9: 1 {}
bool	unusedBit_1_10: 1 {}
bool	unusedBit_1_11: 1 {}
bool	unusedBit_1_12: 1 {}
bool	unusedBit_1_13: 1 {}
bool	unusedBit_1_14: 1 {}
bool	unusedBit_1_15: 1 {}
bool	unusedBit_1_16: 1 {}
bool	unusedBit_1_17: 1 {}
bool	unusedBit_1_18: 1 {}
bool	unusedBit_1_19: 1 {}
bool	unusedBit_1_20: 1 {}
bool	unusedBit_1_21: 1 {}
bool	unusedBit_1_22: 1 {}
bool	unusedBit_1_23: 1 {}
bool	unusedBit_1_24: 1 {}
bool	unusedBit_1_25: 1 {}
bool	unusedBit_1_26: 1 {}
bool	unusedBit_1_27: 1 {}
bool	unusedBit_1_28: 1 {}
bool	unusedBit_1_29: 1 {}
bool	unusedBit_1_30: 1 {}
bool	unusedBit_1_31: 1 {}
scaled_channel< int16_t, 100, 1 >	throttleModelCrossoverAngle = (int16_t)0
uint8_t	alignmentFill_at_6 [2] = {}
float	throttleEstimatedFlow = (float)0

Detailed Description

Definition at line 30 of file throttle_model.h.

Member Function Documentation

effectiveArea()

float ThrottleModel::effectiveArea ( float  tps ) const

overrideprivatevirtual

Implements ThrottleModelBase.

Definition at line 151 of file throttle_model.cpp.

                                                  {
    return interpolate2d(tps, config->throttleEstimateEffectiveAreaBins, config->throttleEstimateEffectiveAreaValues);
}

maxEngineFlow()

float ThrottleModel::maxEngineFlow ( float  map ) const

overrideprivatevirtual

Implements ThrottleModelBase.

Definition at line 155 of file throttle_model.cpp.

                                                  {
    return getMaxAirflowAtMap(map);
}

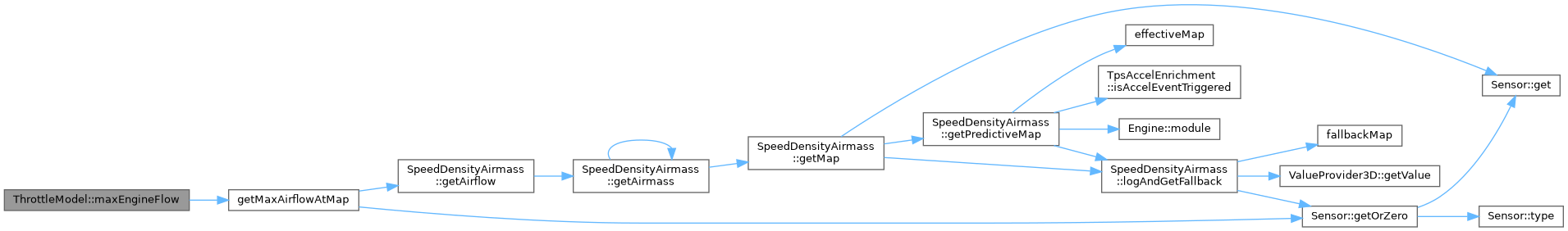

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• controllers/math/throttle_model.h
• controllers/math/throttle_model.cpp
