init_aux.cpp File Reference

Functions
void	initAuxSensors ()
void	deinitAuxSensors ()

Variables
static FunctionalSensor	auxSensors []
StoredValueSensor	luaGauges []

Function Documentation

deinitAuxSensors()

void deinitAuxSensors

(

)

Definition at line 58 of file init_aux.cpp.

                        {
    for (size_t i = 0; i < efi::size(engineConfiguration->auxAnalogInputs); i++) {
        AdcSubscription::UnsubscribeSensor(auxSensors[i]);
        auxSensors[i].unregister();
    }
}

Referenced by stopSensors().

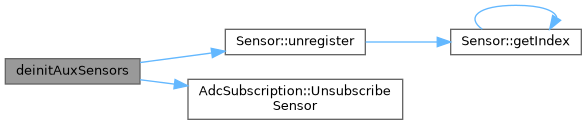

Here is the call graph for this function:

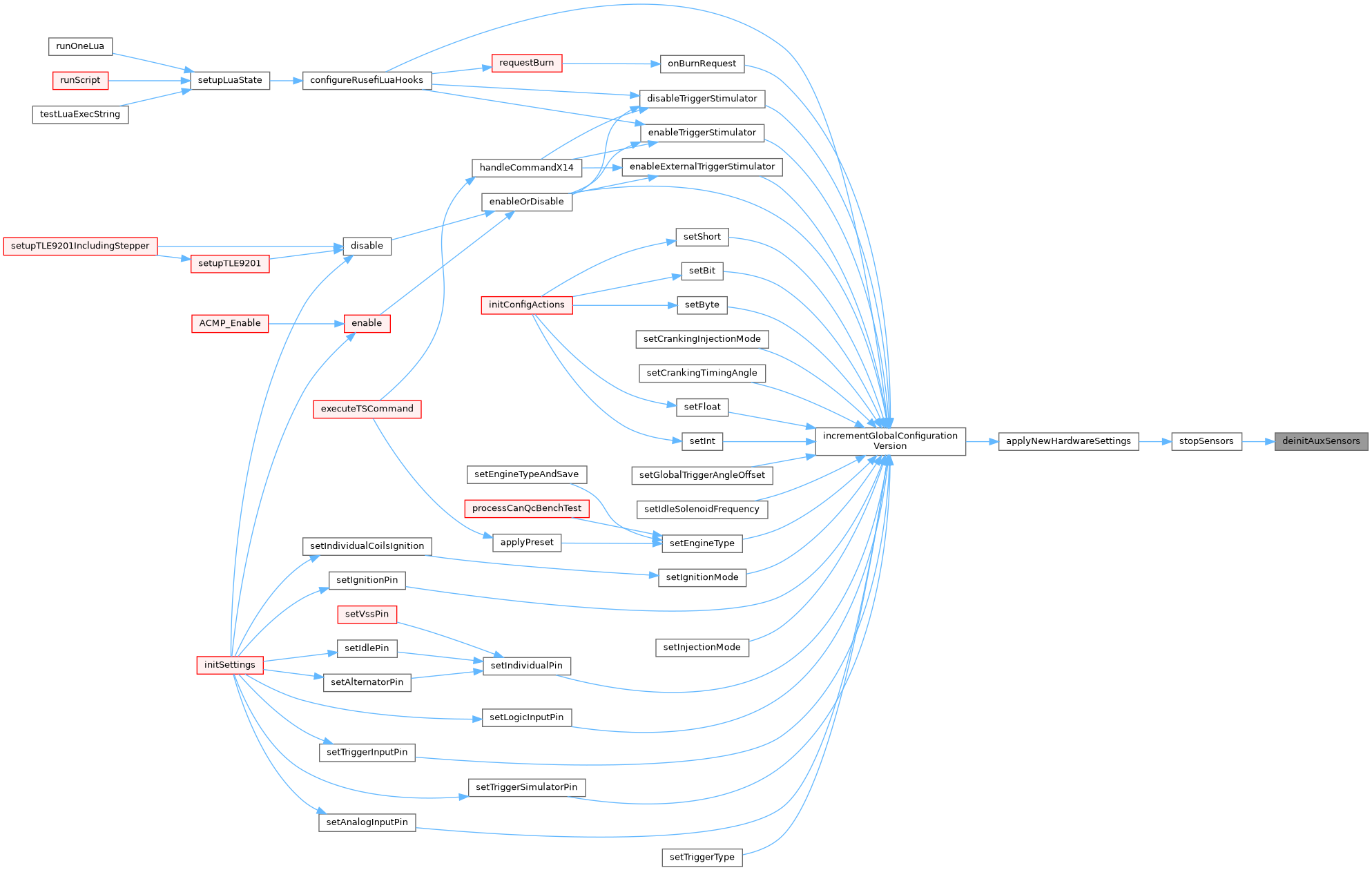

Here is the caller graph for this function:

initAuxSensors()

void initAuxSensors

(

)

Definition at line 36 of file init_aux.cpp.

                      {
    for (size_t i = 0; i < efi::size(engineConfiguration->auxAnalogInputs); i++) {
        auto channel = engineConfiguration->auxAnalogInputs[i];

        // Skip unconfigured channels
        if (!isAdcChannelValid(channel)) {
            continue;
        }

        auto& sensor = auxSensors[i];
        sensor.setFunction(identityFunction);
        sensor.Register();

        AdcSubscription::SubscribeSensor(sensor, channel, 10);
    }

    for (size_t i = 0; i < efi::size(luaGauges); i++) {
        auto& sensor = luaGauges[i];
        sensor.Register();
    }
}

Referenced by sensorStartUpOrReconfiguration().

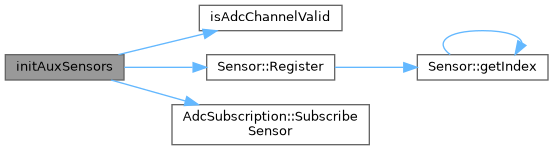

Here is the call graph for this function:

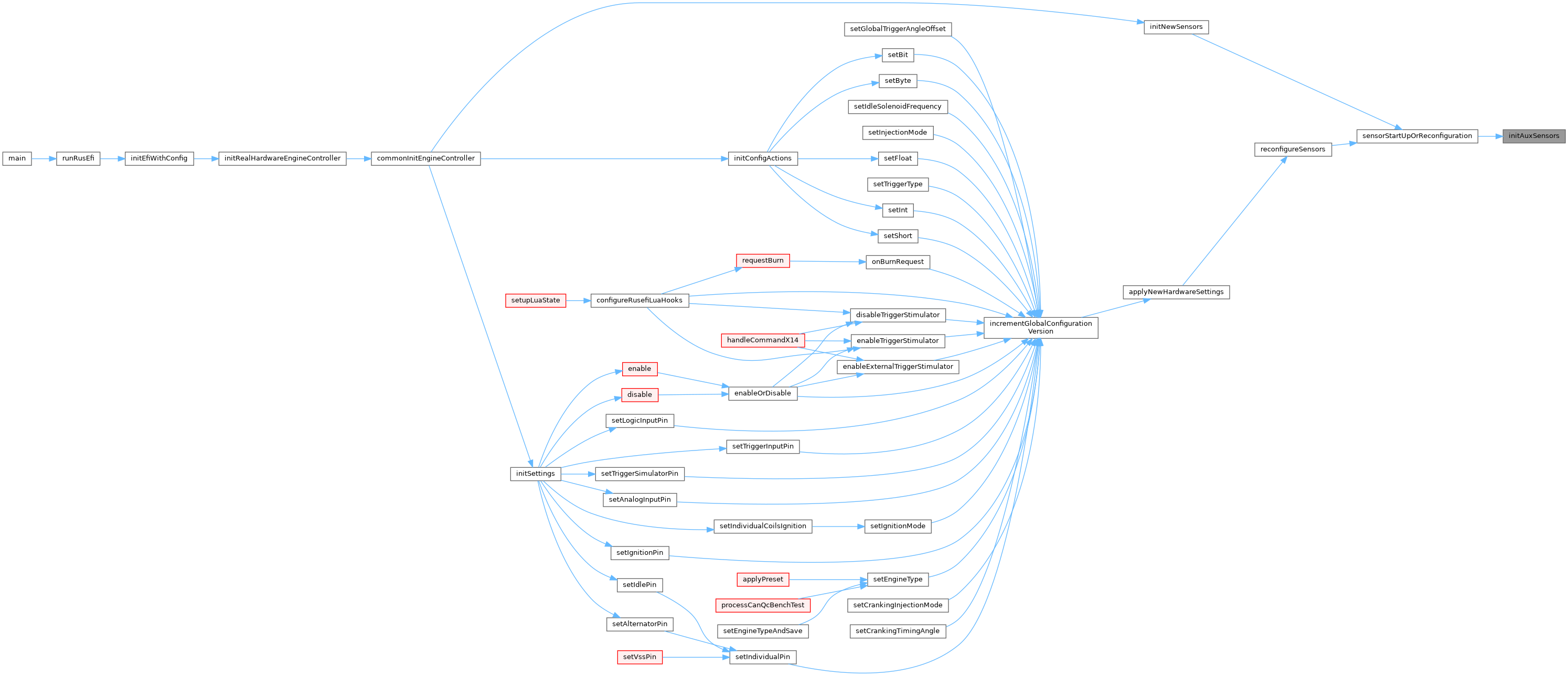

Here is the caller graph for this function:

Variable Documentation

auxSensors

FunctionalSensor auxSensors[]

static

Initial value:

= {
    { SensorType::AuxAnalog1, MS2NT(50) },
    { SensorType::AuxAnalog2, MS2NT(50) },
    { SensorType::AuxAnalog3, MS2NT(50) },
    { SensorType::AuxAnalog4, MS2NT(50) },
    { SensorType::AuxAnalog5, MS2NT(50) },
    { SensorType::AuxAnalog6, MS2NT(50) },
    { SensorType::AuxAnalog7, MS2NT(50) },
    { SensorType::AuxAnalog8, MS2NT(50) },
}

Definition at line 10 of file init_aux.cpp.

                                       {
    { SensorType::AuxAnalog1, MS2NT(50) },
    { SensorType::AuxAnalog2, MS2NT(50) },
    { SensorType::AuxAnalog3, MS2NT(50) },
    { SensorType::AuxAnalog4, MS2NT(50) },
    { SensorType::AuxAnalog5, MS2NT(50) },
    { SensorType::AuxAnalog6, MS2NT(50) },
    { SensorType::AuxAnalog7, MS2NT(50) },
    { SensorType::AuxAnalog8, MS2NT(50) },
};

Referenced by deinitAuxSensors(), and initAuxSensors().

luaGauges

StoredValueSensor luaGauges[]

Initial value:

= {
        { SensorType::LuaGauge1, MS2NT(5000) },
        { SensorType::LuaGauge2, MS2NT(5000) },
        { SensorType::LuaGauge3, MS2NT(5000) },
        { SensorType::LuaGauge4, MS2NT(5000) },
        { SensorType::LuaGauge5, MS2NT(5000) },
        { SensorType::LuaGauge6, MS2NT(5000) },
        { SensorType::LuaGauge7, MS2NT(5000) },
        { SensorType::LuaGauge8, MS2NT(5000) },
}

Definition at line 21 of file init_aux.cpp.

                                {
        { SensorType::LuaGauge1, MS2NT(5000) },
        { SensorType::LuaGauge2, MS2NT(5000) },
        { SensorType::LuaGauge3, MS2NT(5000) },
        { SensorType::LuaGauge4, MS2NT(5000) },
        { SensorType::LuaGauge5, MS2NT(5000) },
        { SensorType::LuaGauge6, MS2NT(5000) },
        { SensorType::LuaGauge7, MS2NT(5000) },
        { SensorType::LuaGauge8, MS2NT(5000) },
};

Referenced by configureRusefiLuaHooks(), and initAuxSensors().

Go to the source code of this file.
