FunctionalSensor Class Reference

Class for sensors that convert from some raw floating point value (ex: voltage, frequency, pulse width) to a sensor reading. More...

#include <functional_sensor.h>

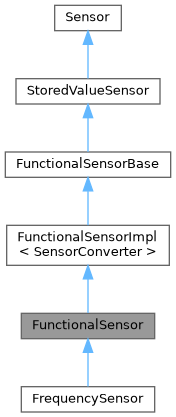

Inheritance diagram for FunctionalSensor:

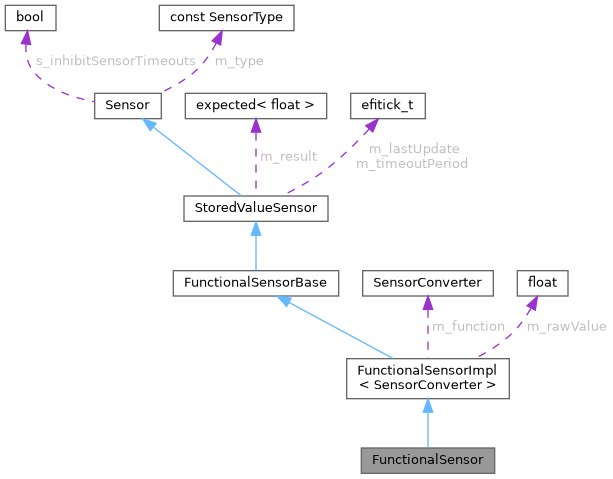

Collaboration diagram for FunctionalSensor:

Public Member Functions
	FunctionalSensor (SensorType type, efidur_t timeoutPeriod)
void	showInfo (const char *sensorName) const override
Public Member Functions inherited from FunctionalSensorImpl< SensorConverter >
	FunctionalSensorImpl (SensorType type, efidur_t timeoutPeriod)
void	postRawValue (float inputValue, efitick_t timestamp) override
void	setFunction (SensorConverter &func)
SensorConverter *	getFunction () const
float	getRaw () const override final
Public Member Functions inherited from StoredValueSensor
SensorResult	get () const final override
	StoredValueSensor (SensorType type, efidur_t timeoutNt)
void	invalidate ()
void	invalidate (UnexpectedCode why)
void	setValidValue (float value, efitick_t timestamp)
void	showInfo (const char *sensorName) const override
virtual void	setTimeout (int timeoutMs)
Public Member Functions inherited from Sensor
bool	Register ()
const char *	getSensorName () const
virtual bool	hasSensor () const
virtual bool	isRedundant () const
void	unregister ()
SensorType	type () const

Additional Inherited Members
Static Public Member Functions inherited from Sensor
static void	showAllSensorInfo ()
static void	showInfo (SensorType type)
static void	resetRegistry ()
static const Sensor *	getSensorOfType (SensorType type)
static SensorResult	get (SensorType type)
static float	getOrZero (SensorType type)
static float	getRaw (SensorType type)
static bool	isRedundant (SensorType type)
static bool	hasSensor (SensorType type)
static void	setMockValue (SensorType type, float value, bool mockRedundant=false)
static void	setInvalidMockValue (SensorType type)
static void	resetMockValue (SensorType type)
static void	resetAllMocks ()
static void	inhibitTimeouts (bool inhibit)
static const char *	getSensorName (SensorType type)
Protected Member Functions inherited from FunctionalSensorBase
	FunctionalSensorBase (SensorType type, efidur_t timeoutPeriod)
Protected Member Functions inherited from Sensor
	Sensor (SensorType type)
Static Protected Attributes inherited from Sensor
static bool	s_inhibitSensorTimeouts = false

Detailed Description

Class for sensors that convert from some raw floating point value (ex: voltage, frequency, pulse width) to a sensor reading.

To use this class, implement the conversion operation for your sensor as a class that inherits from SensorConverter, and implement convert to convert a raw reading from the sensor to a usable value (and valid bit).

Register an instance of the new class with an interface that provides and posts raw values so the sensor can update.

Definition at line 24 of file functional_sensor.h.

Constructor & Destructor Documentation

FunctionalSensor()

FunctionalSensor::FunctionalSensor	(	SensorType	type,
		efidur_t	timeoutPeriod
	)

Definition at line 9 of file functional_sensor.cpp.

    : FunctionalSensorImpl(type, timeoutPeriod) {
}

Member Function Documentation

showInfo()

void FunctionalSensor::showInfo ( const char *  sensorName ) const

overridevirtual

Implements Sensor.

Definition at line 26 of file sensor_info_printing.cpp.

                                                            {
    const auto value = get();
    efiPrintf("Sensor \"%s\": Raw value: %.2f Valid: %s Converted value %.2f", sensorName, getRaw(), boolToString(value.Valid), value.Value);

    // now print out the underlying function's info
    if (auto func = getFunction()) {
        func->showInfo(getRaw());
    }
}

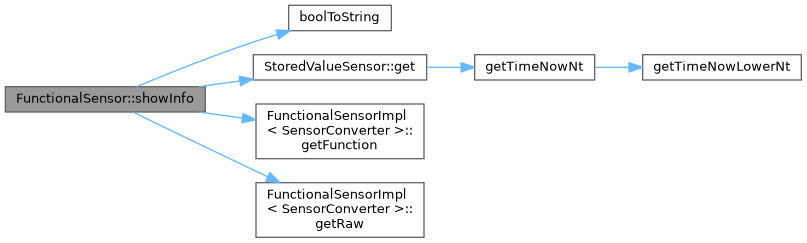

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• controllers/sensors/core/functional_sensor.h
• controllers/sensors/core/functional_sensor.cpp
• controllers/sensors/sensor_info_printing.cpp
