init_range.cpp File Reference

Functions
void	initRangeSensors ()

Variables
static FunctionalSensor	rangeSensors []
static ResistanceFunc	rangeFuncs [RANGE_INPUT_COUNT]

Function Documentation

initRangeSensors()

void initRangeSensors

(

)

Definition at line 25 of file init_range.cpp.

                        {
    for (size_t i = 0; i < efi::size(engineConfiguration->tcu_rangeAnalogInput); i++) {
        auto channel = engineConfiguration->tcu_rangeAnalogInput[i];

        // Skip unconfigured channels
        if (!isAdcChannelValid(channel)) {
            continue;
        }

        rangeFuncs[i].configure(5.0f, engineConfiguration->tcu_rangeSensorBiasResistor, engineConfiguration->tcu_rangeSensorPulldown);

        auto& sensor = rangeSensors[i];
        sensor.setFunction(rangeFuncs[i]);
        sensor.Register();

        AdcSubscription::SubscribeSensor(sensor, channel, 10);
    }
}

Referenced by sensorStartUpOrReconfiguration().

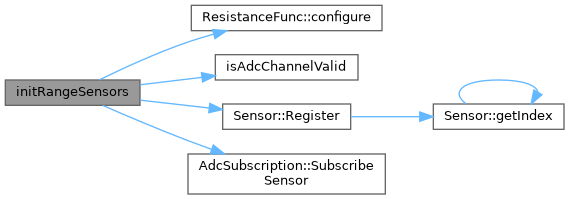

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

rangeFuncs

ResistanceFunc rangeFuncs[RANGE_INPUT_COUNT]

static

Definition at line 21 of file init_range.cpp.

Referenced by initRangeSensors().

rangeSensors

FunctionalSensor rangeSensors[]

static

Initial value:

= {
    { SensorType::RangeInput1, MS2NT(50) },
    { SensorType::RangeInput2, MS2NT(50) },
    { SensorType::RangeInput3, MS2NT(50) },
    { SensorType::RangeInput4, MS2NT(50) },
    { SensorType::RangeInput5, MS2NT(50) },
    { SensorType::RangeInput6, MS2NT(50) },
}

Definition at line 12 of file init_range.cpp.

                                         {
    { SensorType::RangeInput1, MS2NT(50) },
    { SensorType::RangeInput2, MS2NT(50) },
    { SensorType::RangeInput3, MS2NT(50) },
    { SensorType::RangeInput4, MS2NT(50) },
    { SensorType::RangeInput5, MS2NT(50) },
    { SensorType::RangeInput6, MS2NT(50) },
};

Referenced by initRangeSensors().

Go to the source code of this file.
