maf.h File Reference

Detailed Description

by the way 2.081989116 kg/h = 1 ft^3/min

Date

Nov 15, 2013

Author

Andrey Belomutskiy, (c) 2012-2020

Definition in file maf.h.

Functions
void	setBosch0280218037 ()
void	setNissanMAF0031 ()

Function Documentation

setBosch0280218037()

void setBosch0280218037

(

)

Hot-film air-mass meter, Type HFM 5

Definition at line 25 of file maf.cpp.

                          {
    int i = 0;
    i = addMafPoint(i, -34.5, 0);
    i = addMafPoint(i, -6, 0.78125);

    config->mafDecoding[i] = 10.5;
    config->mafDecodingBins[i++] = 1.38671875;

    config->mafDecoding[i] = 105.3;
    config->mafDecodingBins[i++] = 2.91015625;

    config->mafDecoding[i] = 387.5;
    config->mafDecodingBins[i++] = 4.2578125;

    config->mafDecoding[i] = 738;
    config->mafDecodingBins[i++] = 4.98046875;

    fillTheRest(i);
}

Referenced by setDefaultEngineConfiguration().

Here is the call graph for this function:

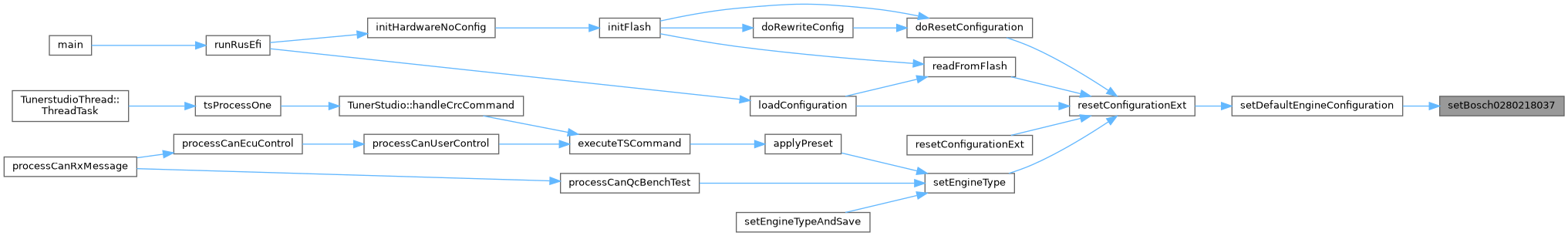

Here is the caller graph for this function:

setNissanMAF0031()

void setNissanMAF0031

(

)

22680-7S000

Definition at line 51 of file maf.cpp.

                        {
    int i = 0;
      // I am copy-pasting from a spreadsheet, it works better if voltage goes first
    i = addMafPointByVoltage(i, 0.29, 3.1768838175);
    i = addMafPointByVoltage(i, 0.49, 3.6987752861);
    i = addMafPointByVoltage(i, 0.72, 5.8013108424);
    i = addMafPointByVoltage(i, 1, 11.1849);
    i = addMafPointByVoltage(i, 1.37, 24.5646673361);
    i = addMafPointByVoltage(i, 1.66, 41.453048941);
    i = addMafPointByVoltage(i, 1.91, 61.5847903829);
    i = addMafPointByVoltage(i, 2.09, 79.7924502089);
    i = addMafPointByVoltage(i, 2.34, 110.961012317);
    i = addMafPointByVoltage(i, 2.89, 208.198652496);
    i = addMafPointByVoltage(i, 3.11, 260.1030585044);
    i = addMafPointByVoltage(i, 3.54, 387.150427974);
    i = addMafPointByVoltage(i, 3.81, 486.5363959026);
    i = addMafPointByVoltage(i, 4, 566.628);
    i = addMafPointByVoltage(i, 4.32, 722.3485684449);
    i = addMafPointByVoltage(i, 4.65, 913.0847954331);
    i = addMafPointByVoltage(i, 4.98, 1137.8746972553);
    fillTheRest(i);
}

Referenced by setNissanVqEngineConfig().

Here is the call graph for this function:

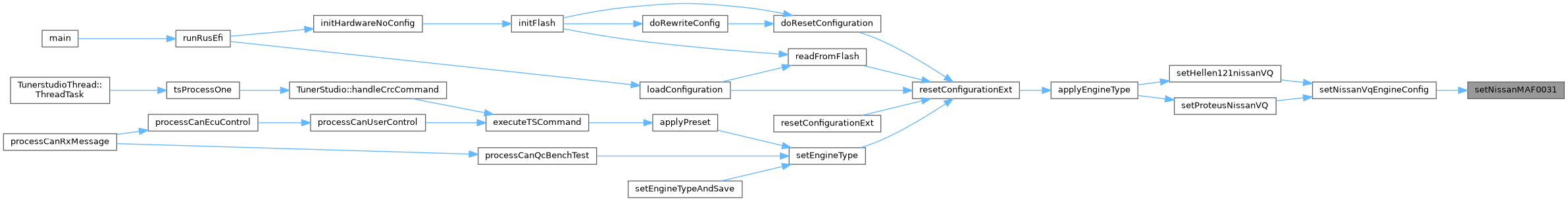

Here is the caller graph for this function:

Go to the source code of this file.
