mass_storage_init.h File Reference

Functions
void	initUsbMsd ()
void	attachMsdSdCard (BaseBlockDevice *blkdev, uint8_t *blkbuf, size_t blkbufsize)
void	deattachMsdSdCard (void)

Function Documentation

attachMsdSdCard()

void attachMsdSdCard	(	BaseBlockDevice *	blkdev,
		uint8_t *	blkbuf,
		size_t	blkbufsize
	)

Definition at line 77 of file mass_storage_init.cpp.

                                                                                  {
    if ((blkbuf == NULL) || (blkbufsize == 0)) {
        // if no specific buffer was provided use default
        blkbuf = blkbuf0;
        blkbufsize = sizeof(blkbuf0);
    }
    msd.attachLun(1, blkdev, blkbuf, blkbufsize, &sdCardInquiry, nullptr);

#if EFI_TUNER_STUDIO
    // SD MSD attached, enable indicator in TS
    engine->outputChannels.sd_msd = true;
#endif
}

Referenced by sdModeSwitcher().

Here is the call graph for this function:

Here is the caller graph for this function:

deattachMsdSdCard()

void deattachMsdSdCard

(

void

)

Definition at line 91 of file mass_storage_init.cpp.

                             {
    // this is safe to use same read/write buffer couse all luns are handled from one thread
    msd.attachLun(1, (BaseBlockDevice*)&ND1, blkbuf0, sizeof(blkbuf0), &sdCardInquiry, nullptr);

#if EFI_TUNER_STUDIO
    // SD MSD attached, enable indicator in TS
    engine->outputChannels.sd_msd = false;
#endif
}

Referenced by sdModeSwitchToIdle().

Here is the call graph for this function:

Here is the caller graph for this function:

initUsbMsd()

void initUsbMsd

(

)

Definition at line 129 of file mass_storage_init.cpp.

                  {
    // Attach the ini ramdisk
    msd.attachLun(0, getRamdiskDevice(), blkbuf0, sizeof(blkbuf0), &iniDriveInquiry, nullptr);

    // attach a null device in place of the SD card for now - the SD thread may replace it later
    // this is safe to use same read/write buffer couse all luns are handled from one thread
    msd.attachLun(1, (BaseBlockDevice*)&ND1, blkbuf0, sizeof(blkbuf0), &sdCardInquiry, nullptr);

    // start the mass storage thread
    msd.start();
}

Referenced by runRusEfi().

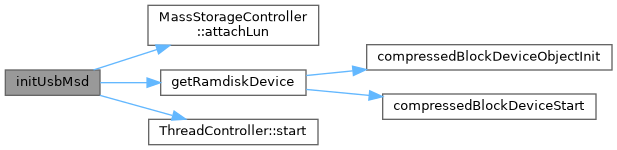

Here is the call graph for this function:

Here is the caller graph for this function:

Go to the source code of this file.
