mpu_util.cpp File Reference

Detailed Description

Date

Jul 27, 2014

Author

Andrey Belomutskiy, (c) 2012-2020

Definition in file mpu_util.cpp.

Enumerations
enum class	DeviceType {   DualBank1MB , DualBank2MB , SingleBank1MB , SingleBank2MB ,   Unknown }

Functions
static bool	isDualBank ()
static uint16_t	flashSize ()
static DeviceType	determineDevice ()
bool	mcuCanFlashWhileRunning ()
size_t	flashSectorSize (flashsector_t sector)
	Get the size of sector.
uintptr_t	getFlashAddrFirstCopy ()
uintptr_t	getFlashAddrSecondCopy ()
void	stm32_standby ()

Enumeration Type Documentation

DeviceType

enum class DeviceType

strong

Enumerator
DualBank1MB
DualBank2MB
SingleBank1MB
SingleBank2MB
Unknown

Definition at line 25 of file mpu_util.cpp.

                      {
    DualBank1MB,
    DualBank2MB,
    SingleBank1MB,
    SingleBank2MB,
    Unknown
};

Function Documentation

determineDevice()

static DeviceType determineDevice ( )

static

Definition at line 33 of file mpu_util.cpp.

                                    {
    bool db = isDualBank();
    uint16_t fs = flashSize();

    if (db) {
        if (fs == 1024) {
            return DeviceType::DualBank1MB;
        } else if (fs == 2048) {
            return DeviceType::DualBank2MB;
        }
    } else {
        if (fs == 1024) {
            // Unsupported scenario! Not enough space for program plus two config copies
            criticalError("1MB single bank MCU detected: please clear nDBANK option bit and reinstall FW.");
            return DeviceType::SingleBank1MB;
        } else if (fs == 2048) {
            return DeviceType::SingleBank2MB;
        }
    }

    criticalError("Unrecognized flash memory layout db=%d, size=%d", db, fs);
    return DeviceType::Unknown;
}

Referenced by getFlashAddrFirstCopy(), getFlashAddrSecondCopy(), and mcuCanFlashWhileRunning().

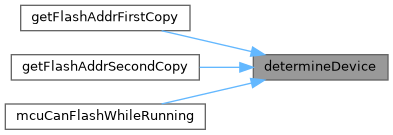

Here is the call graph for this function:

Here is the caller graph for this function:

flashSectorSize()

size_t flashSectorSize

(

flashsector_t

sector

)

Get the size of sector.

Returns

sector size in bytes.

Definition at line 63 of file mpu_util.cpp.

                                             {
    // 1MB devices have 8 sectors per bank
    // 2MB devices have 12 sectors per bank
    // However, the second bank always starts at index 12 (1MB devices have a 4 sector discontinuity between banks)

    if (sector >= 12) {
        // The second bank has the same structure as the first
        return flashSectorSize(sector - 12);
    }

    // On 1MB devices, sectors 8-11 don't exist, therefore have zero size.
    if (flashSize() == 1024) {
        if (sector > 7 && sector < 12) {
            return 0;
        }
    }

    // Pages are twice the size when in single bank mode
    size_t dbMul = isDualBank() ? 1 : 2;

    if (sector <= 3)
        return 16 * 1024 * dbMul;
    else if (sector == 4)
        return 64 * 1024 * dbMul;
    else if (sector >= 5)
        return 128 * 1024 * dbMul;
    return 0;
}

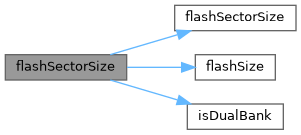

Here is the call graph for this function:

flashSize()

static uint16_t flashSize ( )

static

Definition at line 21 of file mpu_util.cpp.

                            {
    return *reinterpret_cast<const volatile uint16_t*>(FLASHSIZE_BASE);
}

Referenced by at32GetMcuType(), determineDevice(), flashSectorSize(), and sayHello().

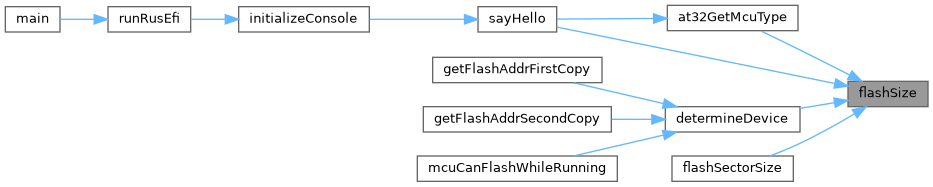

Here is the caller graph for this function:

getFlashAddrFirstCopy()

uintptr_t getFlashAddrFirstCopy

(

void

)

Flex Non Volatile Memory is faster than flash It also has smaller pages so it takes less time to erase

There is no remote access to FlexNVM meaning that we cannot erase settings externally

Definition at line 92 of file mpu_util.cpp.

                                  {
    switch (determineDevice()) {
        case DeviceType::DualBank1MB:
            // Sector 18, second to last 128K sector
            return 0x080C0000;
        case DeviceType::SingleBank1MB:
            // Sector 7, last 256K sector
            return 0x080C0000;
        case DeviceType::DualBank2MB: /* falls thru */
        case DeviceType::SingleBank2MB:
#ifdef EFI_FLASH_USE_1500_OF_2MB
            // Right after the first 1.5 megabytes
            // Sector 20 for dual bank
            // Sector 10 for single bank
            return 0x08180000;
#else
            // Start of the second megabyte
            // Sector 12 for dual bank
            // Sector 8 for single bank
            return 0x08100000;
#endif // EFI_FLASH_USE_1500_OF_2MB
        default:
            return 0;
    }
}

Here is the call graph for this function:

getFlashAddrSecondCopy()

uintptr_t getFlashAddrSecondCopy

(

void

)

Definition at line 118 of file mpu_util.cpp.

                                   {
    switch (determineDevice()) {
        case DeviceType::DualBank1MB:
            // Sector 19, last 128K sector, 128K after the first copy
            return 0x080E0000;
        case DeviceType::DualBank2MB:
#ifdef EFI_FLASH_USE_1500_OF_2MB
            // Sector 21, 128K after the first copy
            return 0x081A0000;
#else
            // Sector 14, 32K after the first copy
            return 0x08108000;
#endif // EFI_FLASH_USE_1500_OF_2MB
        case DeviceType::SingleBank2MB:
#ifdef EFI_FLASH_USE_1500_OF_2MB
            // Sector 11, 256K after the first copy
            return 0x081C0000;
#else
            // Sector 9, 256K after the first copy
            return 0x08140000;
#endif // EFI_FLASH_USE_1500_OF_2MB
        case DeviceType::SingleBank1MB:
            // We can't fit a second copy in this config, fall thru to failure case
        default:
            return 0;
    }
}

Here is the call graph for this function:

isDualBank()

static bool isDualBank ( void  )

static

Definition at line 12 of file mpu_util.cpp.

                         {
#ifdef FLASH_OPTCR_nDBANK
    // cleared bit indicates dual bank
    return (FLASH->OPTCR & FLASH_OPTCR_nDBANK) == 0;
#else
    return 0;
#endif
}

Referenced by determineDevice(), and flashSectorSize().

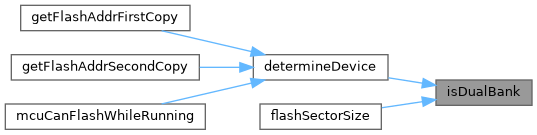

Here is the caller graph for this function:

mcuCanFlashWhileRunning()

bool mcuCanFlashWhileRunning

(

)

Definition at line 57 of file mpu_util.cpp.

                               {
    // Allow flash-while-running if dual bank mode is enabled, and we're a 2MB device (ie, no code located in second bank)
    return determineDevice() == DeviceType::DualBank2MB;
}

Here is the call graph for this function:

stm32_standby()

void stm32_standby

(

)

Definition at line 177 of file mpu_util.cpp.

                     {
    SysTick->CTRL = 0;
    SCB->SCR |= SCB_SCR_SLEEPDEEP_Msk;
    PWR->CR1 |= PWR_CR1_PDDS;   // PDDS = use standby mode (not stop mode)
    PWR->CR1 |= PWR_CR1_CSBF;   // Clear standby flag

    // Do anything the board wants to prepare for standby mode - enabling wakeup sources!
    boardPrepareForStandby();

    __disable_irq();
    __WFI();
}

Here is the call graph for this function:

Go to the source code of this file.
