trigger_honda.h File Reference

Functions
void	configureHondaCbr600 (TriggerWaveform *s)
void	configureHondaK_12_1 (TriggerWaveform *s)
void	configureHondaK_4_1 (TriggerWaveform *s)
void	configureHondaJ30A2_24_1_1 (TriggerWaveform *s)

Function Documentation

configureHondaCbr600()

void configureHondaCbr600

(

TriggerWaveform *

s

)

Definition at line 13 of file trigger_honda.cpp.

                                              {
    s->initialize(FOUR_STROKE_CAM_SENSOR, SyncEdge::RiseOnly);

  s->tdcPosition = 0; // todo: hard-code TDC position once we know it
  s->setTriggerSynchronizationGap2(/*from*/3.9, /*to*/8);

    s->addEvent720(350.0f, TriggerValue::FALL);
    s->addEvent720(360.0f, TriggerValue::RISE);

    s->addEvent720(650.0f, TriggerValue::FALL);
    s->addEvent720(660.0f, TriggerValue::RISE);

    s->addEvent720(710.0f, TriggerValue::FALL);
    s->addEvent720(720.0f, TriggerValue::RISE);
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

Here is the call graph for this function:

Here is the caller graph for this function:

configureHondaJ30A2_24_1_1()

void configureHondaJ30A2_24_1_1

(

TriggerWaveform *

s

)

Definition at line 96 of file trigger_honda.cpp.

                                                    {
    initialize_one_of_24_2_2(s, 6, 14);

    size_t count = 6;

    s->tdcPosition = 0;

 s->setTriggerSynchronizationGap3(/*gapIndex*/0, 1.6, 4);
  for (size_t i = 1 ; i < count ; i++) {
    s->setTriggerSynchronizationGap3(/*gapIndex*/i, 0.65, 1.4);
  }
  s->setTriggerSynchronizationGap3(/*gapIndex*/count, 0.2, 0.55);
  }

Referenced by TriggerWaveform::initializeTriggerWaveform().

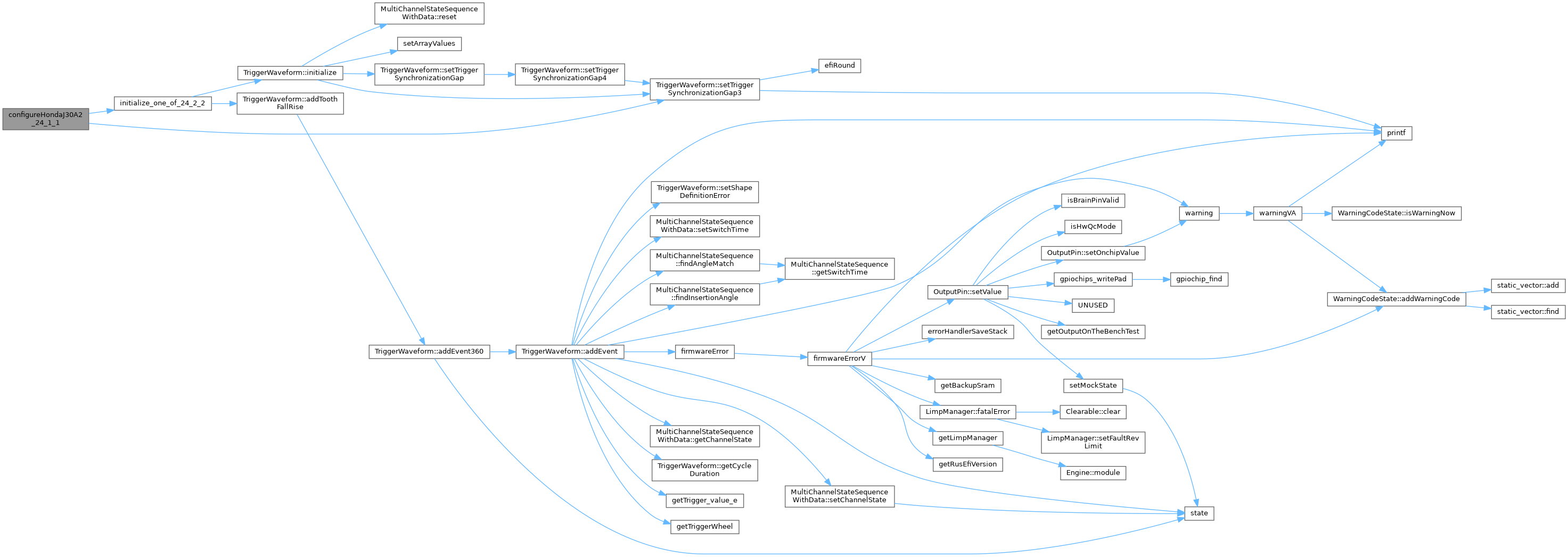

Here is the call graph for this function:

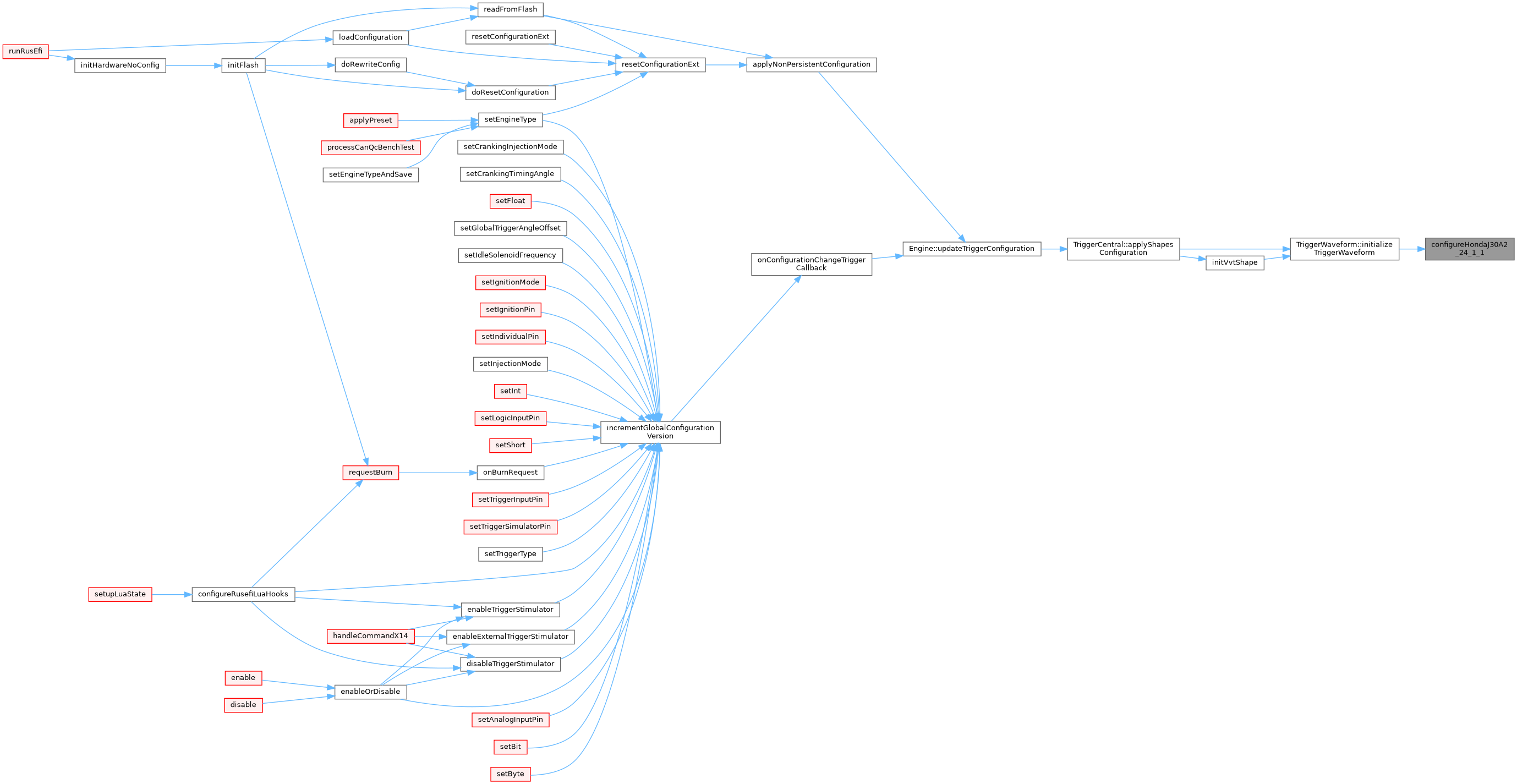

Here is the caller graph for this function:

configureHondaK_12_1()

void configureHondaK_12_1

(

TriggerWaveform *

s

)

Definition at line 30 of file trigger_honda.cpp.

                                              {
    s->initialize(FOUR_STROKE_CRANK_SENSOR, SyncEdge::RiseOnly);

    // nominal gap 0.33
    s->setSecondTriggerSynchronizationGap2(0.2f, 0.7f);
    // nominal gap 2.0
    s->setTriggerSynchronizationGap2(1.1f, 2.4f);

    int count = 12;
    float tooth = 360 / count; // hint: tooth = 30

    // for VR we only handle rises so width does not matter much
    int width = 4;

    // Extra "+1" tooth happens 1/3 of the way between first two teeth
    s->addToothRiseFall(tooth / 3, width);

    for (int i = 1; i <= count; i++) {
        s->addToothRiseFall(tooth * i, width);
    }
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

Here is the call graph for this function:

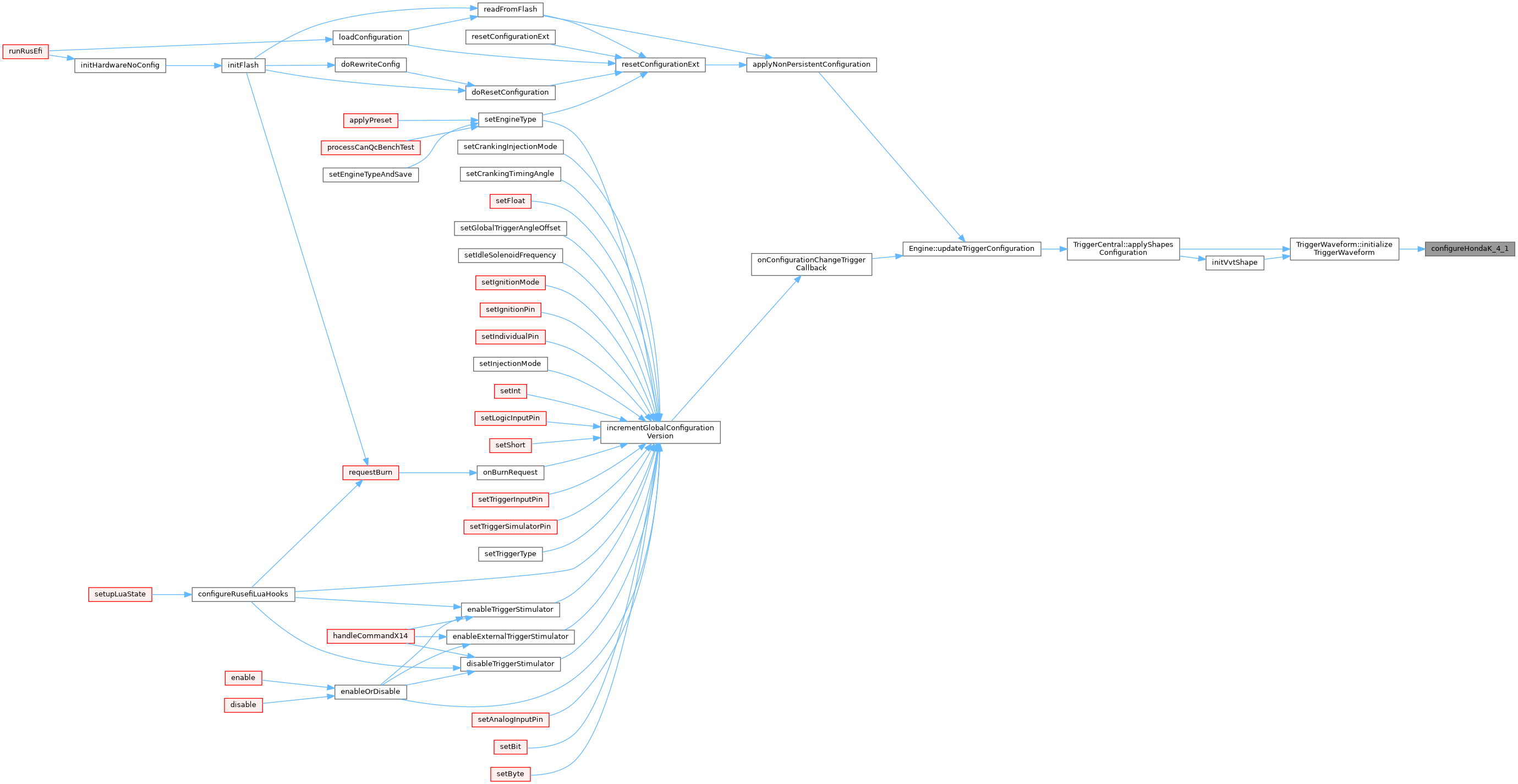

Here is the caller graph for this function:

configureHondaK_4_1()

void configureHondaK_4_1

(

TriggerWaveform *

s

)

Exhaust cam shaft, not variable on Honda K 2003 Honda Element

Definition at line 56 of file trigger_honda.cpp.

                                             {
    s->initialize(FOUR_STROKE_CAM_SENSOR, SyncEdge::RiseOnly);

    s->setTriggerSynchronizationGap3(/*gapIndex*/0, 1.5, 4.5);  // nominal 2.27
    s->setTriggerSynchronizationGap3(/*gapIndex*/1, 0.1, 0.5);  // nominal 0.28

    angle_t end = 70.5;
    int w = 15;
    s->addToothRiseFall(end + 90 * 0, w);
    s->addToothRiseFall(end + 90 * 1, w);
    s->addToothRiseFall(end + 90 * 2, w);
    s->addToothRiseFall(end + 90 * 3, w);

    s->addToothRiseFall(360, 7);
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

Here is the call graph for this function:

Here is the caller graph for this function:

Go to the source code of this file.
