trigger_renault.cpp File Reference

Functions
void	initialize60_2_2_Renault_F (TriggerWaveform *s)

Function Documentation

initialize60_2_2_Renault_F()

void initialize60_2_2_Renault_F

(

TriggerWaveform *

s

)

Definition at line 6 of file trigger_renault.cpp.

                                                    {
    s->initialize(FOUR_STROKE_CRANK_SENSOR, SyncEdge::RiseOnly);
    int totalTeethCount = 60;

    float engineCycle = FOUR_STROKE_ENGINE_CYCLE;
    float toothWidth = 0.5;

    float oneTooth = engineCycle / totalTeethCount;

    int skipped = 3; // yes, from this perspective only three are skipped

    // remaining 56 teeth while filtering four out
    addSkippedToothTriggerEvents(TriggerWheel::T_PRIMARY, s, totalTeethCount, skipped, toothWidth, /*offset*/0, engineCycle,
            NO_LEFT_FILTER, 719);

#if EFI_UNIT_TEST
    criticalAssertVoid(s->wave.phaseCount == (totalTeethCount - skipped) * 2 - 1, "Tooth count 60-3");
#endif // EFI_UNIT_TEST

    float specialPosition = 58 * oneTooth;

    // single twice-the-width tooth
    // we have that weird API where last FALL is added as 720, all while we do not really care about FALL fronts :(
    addSkippedToothTriggerEvents(TriggerWheel::T_PRIMARY, s, totalTeethCount, 0, toothWidth, /*offset*/0, engineCycle,
            specialPosition - 1, specialPosition - 1 + oneTooth);

#if EFI_UNIT_TEST
    criticalAssertVoid(s->wave.phaseCount == (totalTeethCount - skipped) * 2 + 1, "Tooth count 60-2-2");
#endif // EFI_UNIT_TEST

    s->addEvent(1, TriggerValue::FALL, TriggerWheel::T_PRIMARY);

    s->setTriggerSynchronizationGap(0.5);
    s->setSecondTriggerSynchronizationGap(1);
    s->setThirdTriggerSynchronizationGap(2);
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

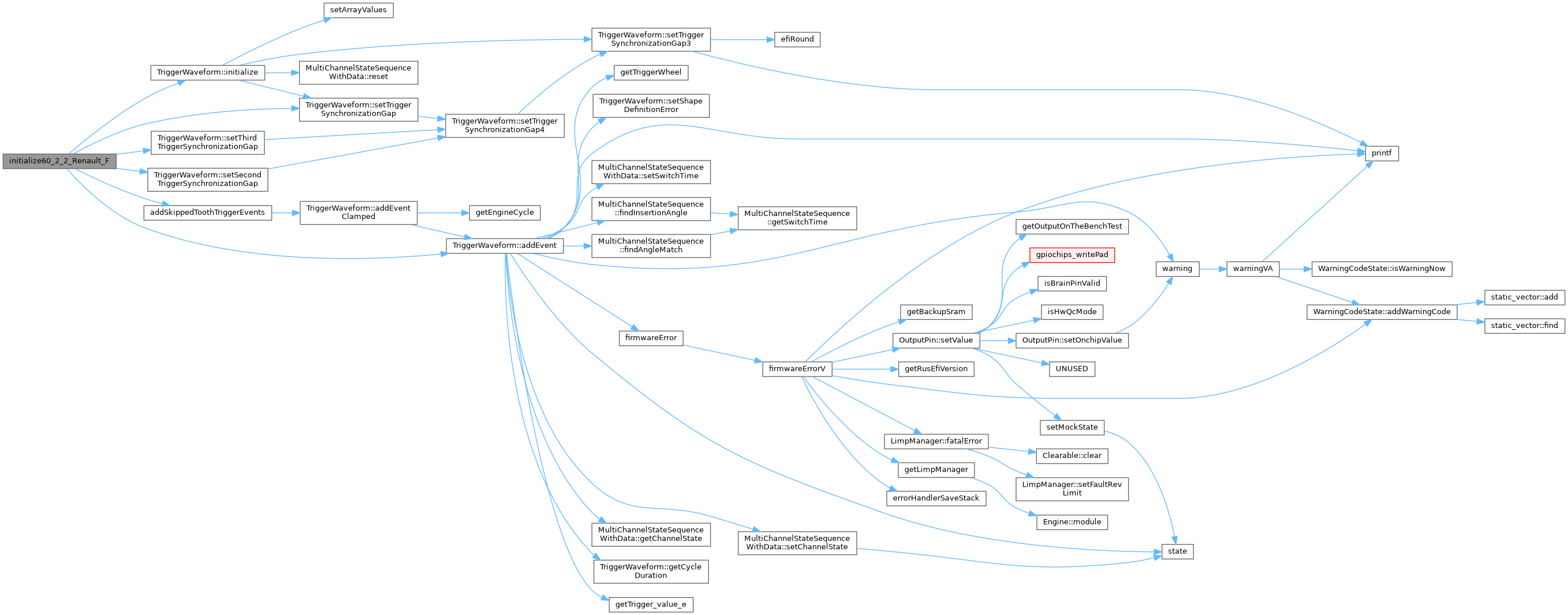

Here is the call graph for this function:

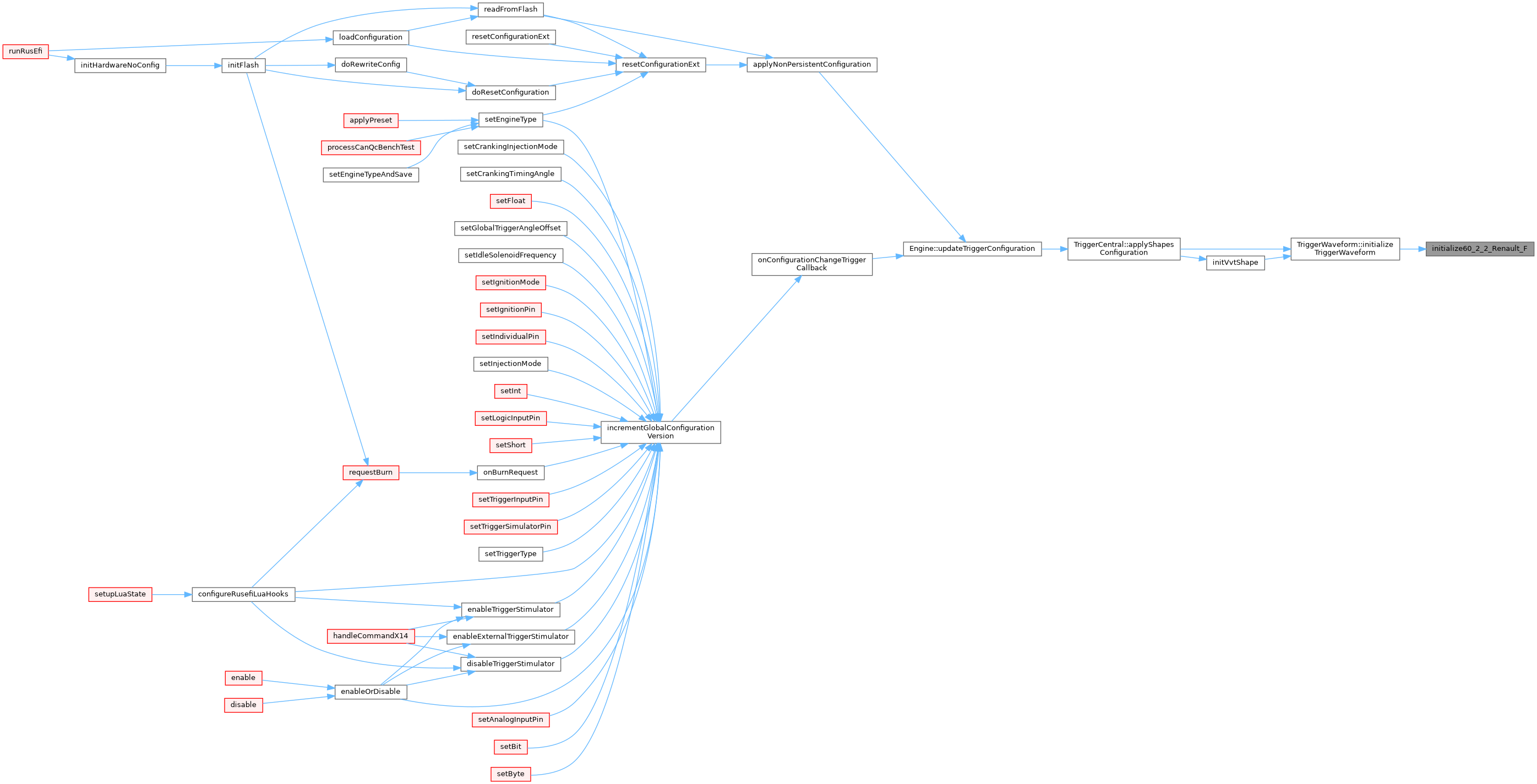

Here is the caller graph for this function:

Go to the source code of this file.
