LambdaMonitor Class Reference

#include <lambda_monitor.h>

Inheritance diagram for LambdaMonitor:

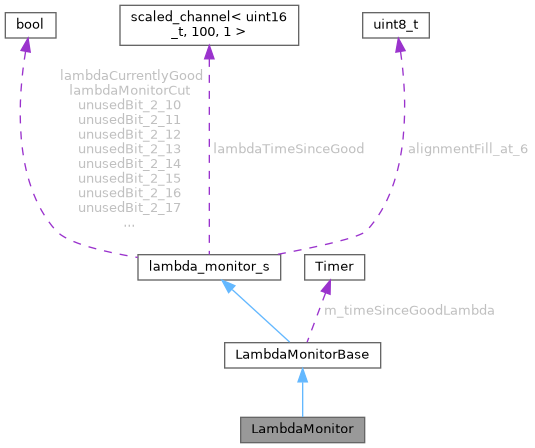

Collaboration diagram for LambdaMonitor:

Private Member Functions
float	getMaxAllowedLambda (float rpm, float load) const override
float	getTimeout () const override

Additional Inherited Members
Public Member Functions inherited from LambdaMonitorBase
void	update (float rpm, float load)
bool	isCut () const
Data Fields inherited from lambda_monitor_s
bool	lambdaCurrentlyGood: 1 {}
bool	lambdaMonitorCut: 1 {}
bool	unusedBit_2_2: 1 {}
bool	unusedBit_2_3: 1 {}
bool	unusedBit_2_4: 1 {}
bool	unusedBit_2_5: 1 {}
bool	unusedBit_2_6: 1 {}
bool	unusedBit_2_7: 1 {}
bool	unusedBit_2_8: 1 {}
bool	unusedBit_2_9: 1 {}
bool	unusedBit_2_10: 1 {}
bool	unusedBit_2_11: 1 {}
bool	unusedBit_2_12: 1 {}
bool	unusedBit_2_13: 1 {}
bool	unusedBit_2_14: 1 {}
bool	unusedBit_2_15: 1 {}
bool	unusedBit_2_16: 1 {}
bool	unusedBit_2_17: 1 {}
bool	unusedBit_2_18: 1 {}
bool	unusedBit_2_19: 1 {}
bool	unusedBit_2_20: 1 {}
bool	unusedBit_2_21: 1 {}
bool	unusedBit_2_22: 1 {}
bool	unusedBit_2_23: 1 {}
bool	unusedBit_2_24: 1 {}
bool	unusedBit_2_25: 1 {}
bool	unusedBit_2_26: 1 {}
bool	unusedBit_2_27: 1 {}
bool	unusedBit_2_28: 1 {}
bool	unusedBit_2_29: 1 {}
bool	unusedBit_2_30: 1 {}
bool	unusedBit_2_31: 1 {}
scaled_channel< uint16_t, 100, 1 >	lambdaTimeSinceGood = (uint16_t)0
uint8_t	alignmentFill_at_6 [2] = {}
Protected Member Functions inherited from LambdaMonitorBase
bool	shouldCheckLambda (float rpm, float load) const
virtual bool	isCurrentlyGood (float rpm, float load) const
virtual bool	restoreConditionsMet (float rpm, float load) const

Detailed Description

Definition at line 28 of file lambda_monitor.h.

Member Function Documentation

getMaxAllowedLambda()

float LambdaMonitor::getMaxAllowedLambda ( float  rpm, float  load  ) const

overrideprivatevirtual

Implements LambdaMonitorBase.

Definition at line 7 of file lambda_monitor.cpp.

                                                                    {
    return
        engine->fuelComputer.targetLambda
        + interpolate3d(
            config->lambdaMaxDeviationTable,
            config->lambdaMaxDeviationLoadBins, load,
            config->lambdaMaxDeviationRpmBins, rpm
        );
}

getTimeout()

float LambdaMonitor::getTimeout ( ) const

overrideprivatevirtual

Implements LambdaMonitorBase.

Definition at line 17 of file lambda_monitor.cpp.

                                      {
    return engineConfiguration->lambdaProtectionTimeout;
}

---

The documentation for this class was generated from the following files:

• controllers/math/lambda_monitor.h
• controllers/math/lambda_monitor.cpp
