SimpleTransmissionController Class Reference

#include <simple_tcu.h>

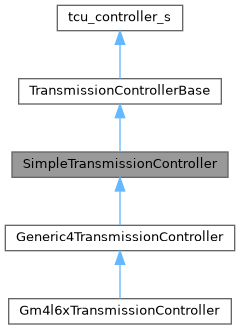

Inheritance diagram for SimpleTransmissionController:

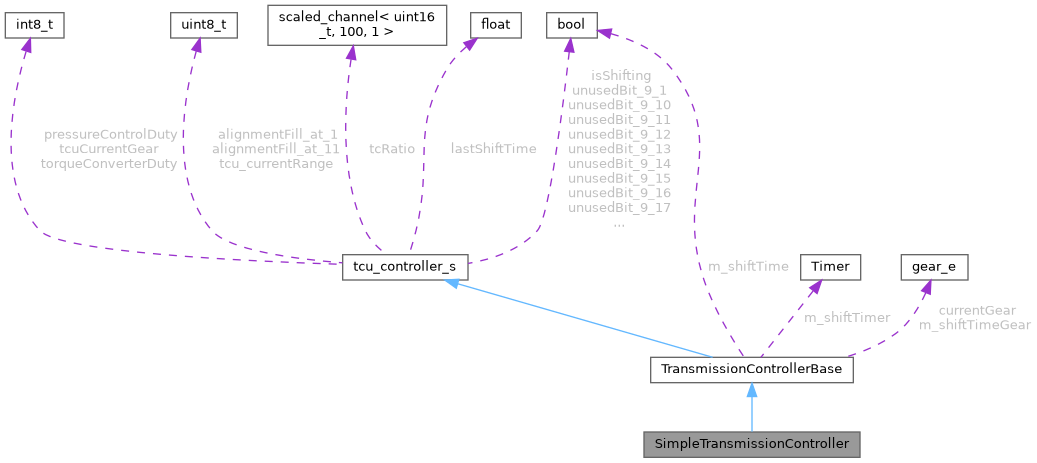

Collaboration diagram for SimpleTransmissionController:

Public Member Functions
void	update (gear_e)
void	init ()
TransmissionControllerMode	getMode () const
Public Member Functions inherited from TransmissionControllerBase
virtual gear_e	getCurrentGear () const

Additional Inherited Members
Data Fields inherited from tcu_controller_s
int8_t	tcuCurrentGear = (int8_t)0
uint8_t	alignmentFill_at_1 [1] = {}
scaled_channel< uint16_t, 100, 1 >	tcRatio = (uint16_t)0
float	lastShiftTime = (float)0
uint8_t	tcu_currentRange = (uint8_t)0
int8_t	pressureControlDuty = (int8_t)0
int8_t	torqueConverterDuty = (int8_t)0
uint8_t	alignmentFill_at_11 [1] = {}
bool	isShifting: 1 {}
bool	unusedBit_9_1: 1 {}
bool	unusedBit_9_2: 1 {}
bool	unusedBit_9_3: 1 {}
bool	unusedBit_9_4: 1 {}
bool	unusedBit_9_5: 1 {}
bool	unusedBit_9_6: 1 {}
bool	unusedBit_9_7: 1 {}
bool	unusedBit_9_8: 1 {}
bool	unusedBit_9_9: 1 {}
bool	unusedBit_9_10: 1 {}
bool	unusedBit_9_11: 1 {}
bool	unusedBit_9_12: 1 {}
bool	unusedBit_9_13: 1 {}
bool	unusedBit_9_14: 1 {}
bool	unusedBit_9_15: 1 {}
bool	unusedBit_9_16: 1 {}
bool	unusedBit_9_17: 1 {}
bool	unusedBit_9_18: 1 {}
bool	unusedBit_9_19: 1 {}
bool	unusedBit_9_20: 1 {}
bool	unusedBit_9_21: 1 {}
bool	unusedBit_9_22: 1 {}
bool	unusedBit_9_23: 1 {}
bool	unusedBit_9_24: 1 {}
bool	unusedBit_9_25: 1 {}
bool	unusedBit_9_26: 1 {}
bool	unusedBit_9_27: 1 {}
bool	unusedBit_9_28: 1 {}
bool	unusedBit_9_29: 1 {}
bool	unusedBit_9_30: 1 {}
bool	unusedBit_9_31: 1 {}
Protected Member Functions inherited from TransmissionControllerBase
virtual gear_e	setCurrentGear (gear_e)
void	postState ()
void	measureShiftTime (gear_e)
float	isShiftCompleted ()
Protected Attributes inherited from TransmissionControllerBase
gear_e	currentGear = NEUTRAL

Detailed Description

Definition at line 8 of file simple_tcu.h.

Member Function Documentation

getMode()

TransmissionControllerMode SimpleTransmissionController::getMode ( ) const

inlinevirtual

Reimplemented from TransmissionControllerBase.

Definition at line 12 of file simple_tcu.h.

                                               {
        return TransmissionControllerMode::SimpleTransmissionController;
    }

init()

void SimpleTransmissionController::init ( )

virtual

Reimplemented from TransmissionControllerBase.

Definition at line 8 of file simple_tcu.cpp.

                                        {
    for (size_t i = 0; i < efi::size(engineConfiguration->tcu_solenoid); i++) {
        enginePins.tcuSolenoids[i].initPin("Transmission Solenoid", engineConfiguration->tcu_solenoid[i], engineConfiguration->tcu_solenoid_mode[i]);
    }
}

Referenced by Generic4TransmissionController::init().

Here is the call graph for this function:

Here is the caller graph for this function:

update()

void SimpleTransmissionController::update ( gear_e  gear )

virtual

Reimplemented from TransmissionControllerBase.

Definition at line 14 of file simple_tcu.cpp.

                                                     {
    for (size_t i = 0; i < efi::size(engineConfiguration->tcu_solenoid); i++) {
#if ! EFI_UNIT_TEST
            enginePins.tcuSolenoids[i].setValue(config->tcuSolenoidTable[i][static_cast<int>(gear) + 1]);
#endif
    }
    setCurrentGear(gear);

#if EFI_TUNER_STUDIO
    if (engineConfiguration->debugMode == DBG_TCU) {
        engine->outputChannels.debugIntField1 = config->tcuSolenoidTable[static_cast<int>(gear) + 1][0];
        engine->outputChannels.debugIntField2 = config->tcuSolenoidTable[static_cast<int>(gear) + 1][1];
        engine->outputChannels.debugIntField3 = config->tcuSolenoidTable[static_cast<int>(gear) + 1][2];
        engine->outputChannels.debugIntField4 = config->tcuSolenoidTable[static_cast<int>(gear) + 1][3];
        engine->outputChannels.debugIntField5 = config->tcuSolenoidTable[static_cast<int>(gear) + 1][4];
    }
#endif

        TransmissionControllerBase::update(gear);
}

Referenced by Generic4TransmissionController::update().

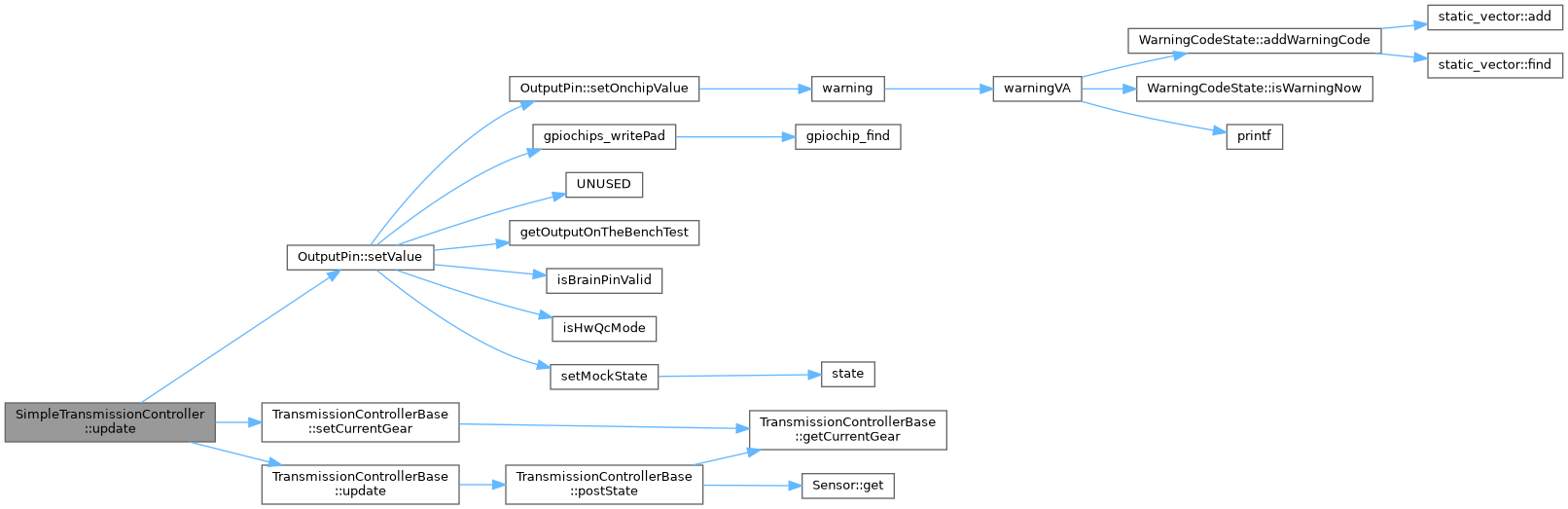

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• controllers/tcu/simple_tcu.h
• controllers/tcu/simple_tcu.cpp
