ford_1995_inline_6.cpp File Reference

Detailed Description

Default engine configuration for a 1995 Ford inline 6 engine.

todo: adjust/remove/modernize "unit" tests which still depend on this config?

FORD_INLINE_6_1995 = 7 set engine_type 7

Date

Feb 12, 2014

Author

Andrey Belomutskiy, (c) 2012-2020

Definition in file ford_1995_inline_6.cpp.

Functions
void	setFordInline6 ()
	Default values for persistent properties.

Function Documentation

setFordInline6()

void setFordInline6

(

)

Default values for persistent properties.

0.5ms dwell time just to be sure it would fit within camshaft revolution, dwell is not controlled by us anyway

We treat the trigger as 6/0 toothed wheel

Definition at line 21 of file ford_1995_inline_6.cpp.

                      {
    engineConfiguration->cylindersCount = 6;

    setCamOperationMode();

    engineConfiguration->ignitionMode = IM_ONE_COIL;
    engineConfiguration->firingOrder = FO_1_5_3_6_2_4;
    engineConfiguration->crankingInjectionMode = IM_SIMULTANEOUS;
    engineConfiguration->injectionMode = IM_BATCH;

    /**
     * 0.5ms dwell time just to be sure it would fit within camshaft revolution, dwell is not controlled by us anyway
     */
    setConstantDwell(FORD_INLINE_DWELL);

    /**
     * We treat the trigger as 6/0 toothed wheel
     */
    engineConfiguration->skippedWheelOnCam = true;
    engineConfiguration->trigger.type = trigger_type_e::TT_TOOTHED_WHEEL;
    engineConfiguration->trigger.customTotalToothCount = 6;
    engineConfiguration->trigger.customSkippedToothCount = 0;

    engineConfiguration->globalTriggerAngleOffset = 0;

    engineConfiguration->clt.config = {-10, 60, 120, 160310, 7700, 1180, 2700};
    engineConfiguration->iat.config = {-10, 60, 120, 160310, 7700, 1180, 2700};

    engineConfiguration->tps1_1AdcChannel = EFI_ADC_4;

    engineConfiguration->map.sensor.hwChannel = EFI_ADC_15;

    engineConfiguration->injectionPins[0] = Gpio::B9;
    engineConfiguration->injectionPins[1] = Gpio::E3;
    engineConfiguration->ignitionPins[0] = Gpio::C15;

    engineConfiguration->injectionPins[2] = Gpio::Unassigned;
    engineConfiguration->fanPin = Gpio::Unassigned;

    //  engineConfiguration->vbattAdcChannel = 0; //
    engineConfiguration->mafAdcChannel = EFI_ADC_1;

    engineConfiguration->triggerInputPins[0] = Gpio::A8;
    engineConfiguration->triggerInputPins[1] = Gpio::Unassigned;
}

Referenced by applyEngineType().

Here is the call graph for this function:

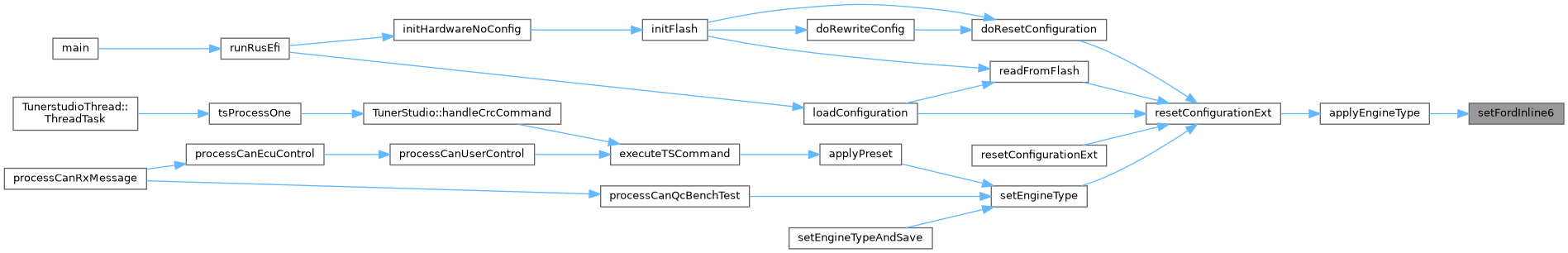

Here is the caller graph for this function:
