harley.h File Reference

Functions
void	setHarley ()

Function Documentation

setHarley()

void setHarley

(

)

HARLEY set engine_type 6

Definition at line 16 of file harley.cpp.

                 {
    harleyEngine();
    engineConfiguration->displacement = 1.9;
    engineConfiguration->ignitionMode = IM_INDIVIDUAL_COILS;
    engineConfiguration->injectionMode = IM_SEQUENTIAL;
    for (size_t i = engineConfiguration->cylindersCount;i < MAX_CYLINDER_COUNT;i++) {
        engineConfiguration->injectionPins[i] = Gpio::Unassigned;
        engineConfiguration->ignitionPins[i] = Gpio::Unassigned;
    }

    strcpy(engineConfiguration->scriptSettingName[0], "compReleaseRpm");
    engineConfiguration->scriptSetting[0] = 300;
    strcpy(engineConfiguration->scriptSettingName[1], "compReleaseDur");
    engineConfiguration->scriptSetting[1] = 5000;
    engineConfiguration->afr.hwChannel = EFI_ADC_NONE;
    engineConfiguration->enableAemXSeries = true;

  // total 45 degree odd fire, split across two cylinders mostly for fun
    engineConfiguration->timing_offset_cylinder[0] = -HARLEY_V_TWIN / 2;
    engineConfiguration->timing_offset_cylinder[1] = +HARLEY_V_TWIN / 2;

  // work-around for https://github.com/rusefi/rusefi/issues/5894 todo: fix it!
    engineConfiguration->maximumIgnitionTiming = 90;
  engineConfiguration->minimumIgnitionTiming = -90;

  engineConfiguration->trigger.type = trigger_type_e::TT_TOOTHED_WHEEL_32_2;
  engineConfiguration->overrideTriggerGaps = true;
  engineConfiguration->gapTrackingLengthOverride = 3;
  engineConfiguration->triggerGapOverrideFrom[0] = 0.75;
  engineConfiguration->triggerGapOverrideTo[0] = 1.25;
  engineConfiguration->triggerGapOverrideFrom[1] = 0.05; // this one is custom
  engineConfiguration->triggerGapOverrideTo[1] = 0.5;
  engineConfiguration->triggerGapOverrideFrom[2] = 1.850; // this one is custom
  engineConfiguration->triggerGapOverrideTo[2] = 6;

    engineConfiguration->vvtMode[0] = VVT_MAP_V_TWIN;

    engineConfiguration->mainRelayPin = Gpio::Unassigned;
    engineConfiguration->mapCamDetectionAnglePosition = 50;

    setCustomMap(/*lowValue*/ 20, /*mapLowValueVoltage*/ 0.79, /*highValue*/ 101.3, /*mapHighValueVoltage*/ 4);

#if HW_PROTEUS && EFI_PROD_CODE
    engineConfiguration->acrPin = Gpio::PROTEUS_IGN_8;
    engineConfiguration->acrPin2 = Gpio::PROTEUS_IGN_9;

    engineConfiguration->triggerInputPins[0] = PROTEUS_VR_1;
    // for now we need non wired camInput to keep TS field enable/disable logic happy
#if EFI_PROD_CODE
      engineConfiguration->camInputs[0] = PROTEUS_DIGITAL_6;
#else
    engineConfiguration->camInputs[0] = Gpio::Unassigned;
#endif

    engineConfiguration->luaOutputPins[0] = Gpio::PROTEUS_LS_12;

    setTPS1Inputs(PROTEUS_IN_TPS, PROTEUS_IN_TPS1_2);

    setPPSInputs(PROTEUS_IN_ANALOG_VOLT_4, PROTEUS_IN_ANALOG_VOLT_5);


    strncpy(config->luaScript, R"(
--outputIndex = 0
--startPwm(outputIndex, 100, 0)

rpmLimitSetting = findSetting("compReleaseRpm", 300)
compReleaseDulationLimit = findSetting("compReleaseDur", 6000)

every200msTimer = Timer.new();
everySecondTimer = Timer.new();
every50msTimer = Timer.new();
offCounter = 0
-- cranking!
packet542 = {0x20, 0x82, 0x81, 0xd9, 0x00, 0x00, 0x00, 0x00}
packet543 = {0x13, 0x57, 0x13, 0x45, 0x00, 0xe8, 0x00, 0x00}
packet541 = {0x00, 0x00, 0x00, 0x00, 0x00, 0x45, 0x00, 0xFF}

-- every 200ms
packet540 = {0x00, 0x00, 0x5a, 0x4c, 0xff, 0x00, 0x00, 0x00}

-- every 1000ms
packet502 = {0x01}
packet546 = {0x35, 0x48, 0x44, 0x31, 0x46, 0x48}
packet547 = {0x50, 0x41, 0x31, 0x4b, 0x42, 0x36}
packet548 = {0x33, 0x34, 0x38, 0x32, 0x32, 0x00}

counter543 = 0;
setTickRate(66);

canRxAdd(0x570)
canRxAdd(0x500)

function onCanRx(bus, id, dlc, data)
  --print('got CAN id=' .. id .. ' dlc='  .. dlc)

  if id == 0x500 then --Check can state of BCM
    canState = data[1]
    if canState == 01 then
      packet502[1] = 0x01
    else
      packet502[1] = 0x00
    end
    if id == 0x570 then
      curState = data[1]
      if curState == 06 then -- Cranking TODO: MUST ONLY DO THIS ON RPM TILL STARt
        packet542[2] =  0x82
      end
      if curState == 04 then -- Kill off
        packet542[2] =  0x82
      end
      if curState == 01 then -- Kill
        packet542[2] =  0xA2
      end
    end
  end
end


function onTick()

  if packet502[1] == 01 then
    offCounter = 0
    counter543 = (counter543 + 1) % 64
    packet543[7] = 64 + counter543
    packet543[8] = crc8_j1850(packet543, 7)
    APP = getSensor("AcceleratorPedal")
    if APP == nil then
      packet543[5] = 0
    else
      packet543[5] = APP *2
    end

    txCan(1, 0x543, 0, packet543)
    txCan(1, 0x541, 0, packet541)

    if every200msTimer:getElapsedSeconds() > 0.2 then
       every200msTimer:reset();
       txCan(1, 0x540, 0, packet540)
    end

    if every50msTimer:getElapsedSeconds() > 0.05 then
       every50msTimer:reset();
       txCan(1, 0x542, 0, packet542)
    end

    if everySecondTimer:getElapsedSeconds() > 1 then
       everySecondTimer:reset();
       txCan(1, 0x502, 0, packet502)
       txCan(1, 0x546, 0, packet546)
       txCan(1, 0x547, 0, packet547)
       txCan(1, 0x548, 0, packet548)
    end


    rpm = getSensor("RPM")
-- handle nil RPM, todo: change firmware to avoid nil RPM
    rpm = (rpm == nil and 0 or rpm)
    --print('Rpm ' .. rpm)
    --print('getTimeSinceTriggerEventMs ' .. getTimeSinceTriggerEventMs())
    enableCompressionReleaseSolenoid = getTimeSinceTriggerEventMs() < compReleaseDulationLimit and rpm < rpmLimitSetting
    duty = enableCompressionReleaseSolenoid and 1 or 0
--    print("Compression release solenoid " .. duty)
--  setPwmDuty(outputIndex, duty)
  else
    if offCounter == 0 then --goodbye sweet love
      txCan(1, 0x502, 0, packet502) --goodbye
      offCounter = 1 --One shot
    end
  end
end
)", efi::size(config->luaScript));
#endif
}

Referenced by applyEngineType().

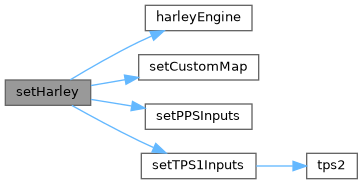

Here is the call graph for this function:

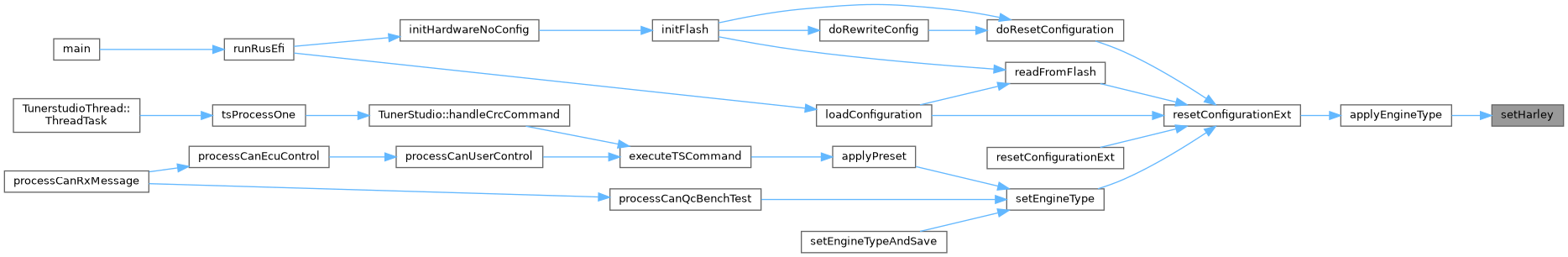

Here is the caller graph for this function:

Go to the source code of this file.
