board_configuration.cpp File Reference

Detailed Description

Configuration defaults for the Hellen81 board.

See https://rusefi.com/s/hellen81

Author

andreika prome.nosp@m.theu.nosp@m.s.pcb.nosp@m.@gma.nosp@m.il.co.nosp@m.m

Andrey Belomutskiy, (c) 2012-2021

Definition in file board_configuration.cpp.

Functions
static void	setInjectorPins ()
static void	setIgnitionPins ()
Gpio	getRunningLedPin ()
Gpio	getCommsLedPin ()
Gpio	getWarningLedPin ()
static void	setupDefaultSensorInputs ()
static void	hellen81_boardConfigOverrides ()
static void	hellen81_boardDefaultConfiguration ()
	Board-specific configuration defaults.
void	setup_custom_board_overrides ()

Function Documentation

getCommsLedPin()

Gpio getCommsLedPin

(

)

Definition at line 35 of file board_configuration.cpp.

                      {
    return Gpio::H10;
}

getRunningLedPin()

Gpio getRunningLedPin

(

)

Definition at line 31 of file board_configuration.cpp.

                        {
    return Gpio::Unassigned;
}

getWarningLedPin()

Gpio getWarningLedPin

(

)

Definition at line 39 of file board_configuration.cpp.

                        {
    return Gpio::H11;
}

hellen81_boardConfigOverrides()

static void hellen81_boardConfigOverrides ( )

static

Definition at line 62 of file board_configuration.cpp.

                                            {
    setHellenVbatt();

// Hellen81a uses SPI2 for SD-card
#if 1
    setHellenSdCardSpi2();
#else
    setHellenSdCardSpi3();
#endif

    setDefaultHellenAtPullUps();

    setHellenCan();
}

Referenced by setup_custom_board_overrides().

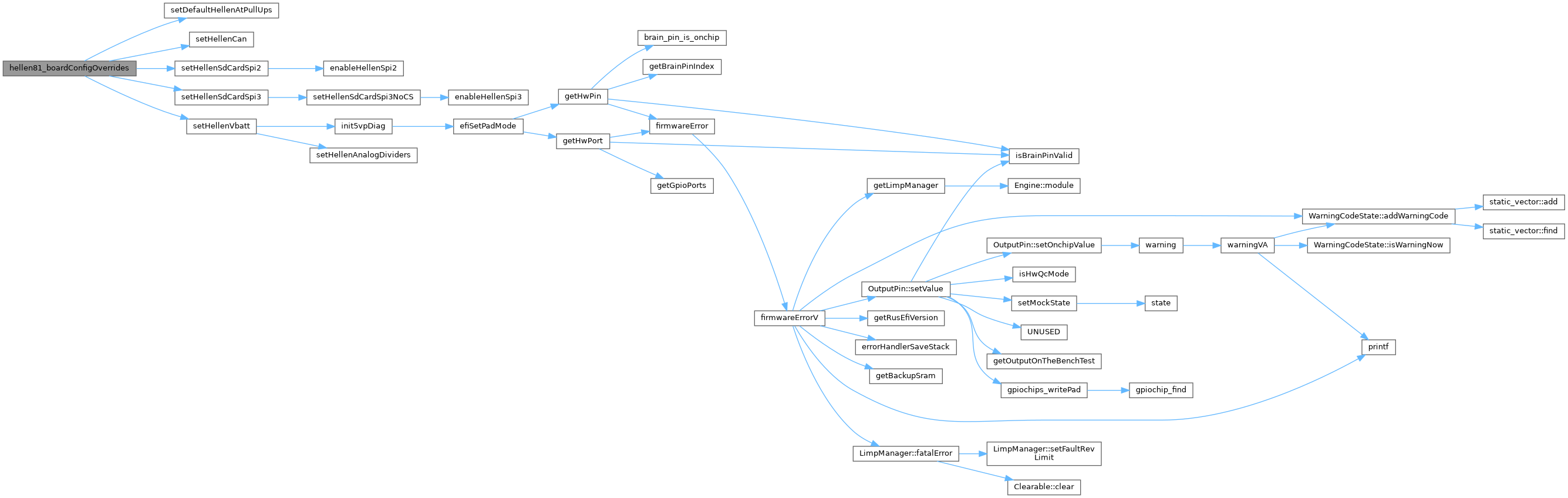

Here is the call graph for this function:

Here is the caller graph for this function:

hellen81_boardDefaultConfiguration()

static void hellen81_boardDefaultConfiguration ( )

static

Board-specific configuration defaults.

See also setDefaultEngineConfiguration

Definition at line 84 of file board_configuration.cpp.

                                                 {
    setInjectorPins();
    setIgnitionPins();

    engineConfiguration->fuelPumpPin = Gpio::G2;    // OUT_IO9
    engineConfiguration->fanPin = Gpio::D12;    // OUT_PWM8
    engineConfiguration->mainRelayPin = Gpio::I2;   // OUT_LOW3
    engineConfiguration->tachOutputPin = Gpio::D14; // OUT_PWM6

    engineConfiguration->useStepperIdle = true;
    engineConfiguration->useHbridgesToDriveIdleStepper = true;
    engineConfiguration->stepperDcIo[0].directionPin1 = Gpio::C6;   // COIL_A1 = OUT_PWM2
    engineConfiguration->stepperDcIo[0].directionPin2 = Gpio::C7;   // COIL_A2 = OUT_PWM3
    engineConfiguration->stepperDcIo[1].directionPin1 = Gpio::C8;   // COIL_B1 = OUT_PWM4
    engineConfiguration->stepperDcIo[1].directionPin2 = Gpio::C9;   // COIL_B2 = OUT_PWM5

    // "required" hardware is done - set some reasonable defaults
    setupDefaultSensorInputs();

    engineConfiguration->cylindersCount = 4;
    engineConfiguration->firingOrder = FO_1_3_4_2;

    engineConfiguration->ignitionMode = IM_INDIVIDUAL_COILS; // IM_WASTED_SPARK

    engineConfiguration->injectionMode = IM_SEQUENTIAL; // IM_SIMULTANEOUS; //IM_BATCH;
}

Referenced by setup_custom_board_overrides().

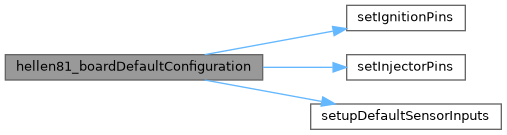

Here is the call graph for this function:

Here is the caller graph for this function:

setIgnitionPins()

static void setIgnitionPins ( )

static

Definition at line 24 of file board_configuration.cpp.

                              {
    engineConfiguration->ignitionPins[0] = Gpio::I8;
    engineConfiguration->ignitionPins[1] = Gpio::E5;
    engineConfiguration->ignitionPins[2] = Gpio::E4;
    engineConfiguration->ignitionPins[3] = Gpio::E3;
}

setInjectorPins()

static void setInjectorPins ( )

static

Definition at line 17 of file board_configuration.cpp.

                              {
    engineConfiguration->injectionPins[0] = Gpio::G7;
    engineConfiguration->injectionPins[1] = Gpio::G8;
    engineConfiguration->injectionPins[2] = Gpio::D11;
    engineConfiguration->injectionPins[3] = Gpio::D10;
}

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 111 of file board_configuration.cpp.

                                    {
    custom_board_DefaultConfiguration = hellen81_boardDefaultConfiguration;
    custom_board_ConfigOverrides =  hellen81_boardConfigOverrides;
}

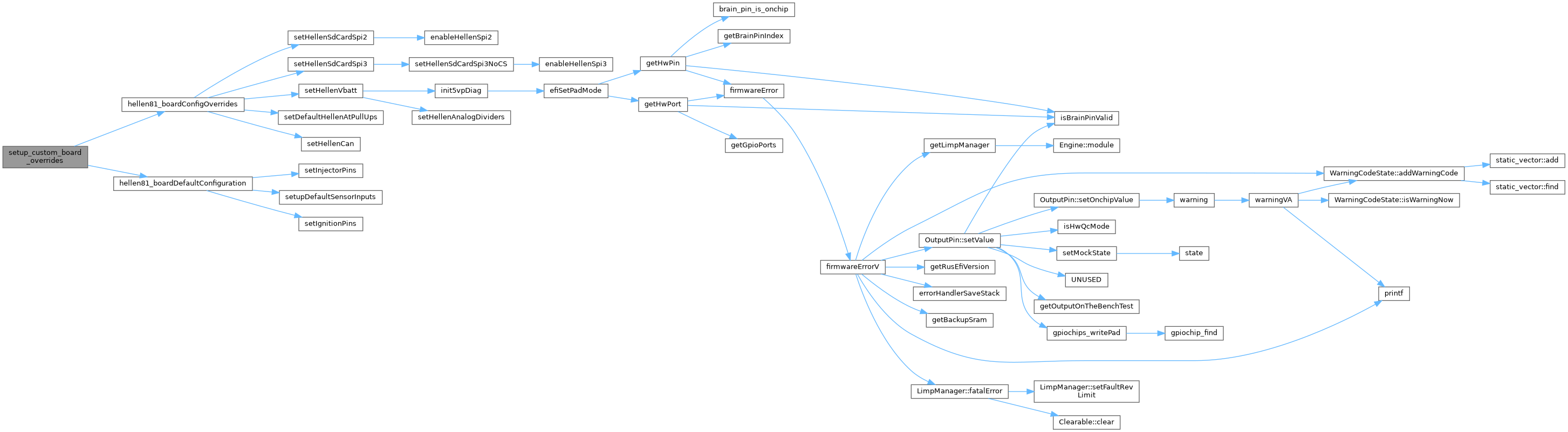

Here is the call graph for this function:

setupDefaultSensorInputs()

static void setupDefaultSensorInputs ( )

static

Definition at line 43 of file board_configuration.cpp.

                                       {
    // trigger inputs
    engineConfiguration->triggerInputPins[0] = Gpio::B1;
    engineConfiguration->triggerInputPins[1] = Gpio::Unassigned;
    // Direct hall-only cam input
    engineConfiguration->camInputs[0] = Gpio::A6;

    engineConfiguration->tps1_1AdcChannel = EFI_ADC_4;


    engineConfiguration->map.sensor.hwChannel = EFI_ADC_10;

    engineConfiguration->afr.hwChannel = EFI_ADC_0; // ADC1_16

    engineConfiguration->clt.adcChannel = H144_IN_CLT;  // ADC3_0

    engineConfiguration->iat.adcChannel = H144_IN_IAT;  // ADC3_1
}

Go to the source code of this file.
