board_configuration.cpp File Reference

Functions
static void	setInjectorPins ()
static void	setIgnitionPins ()
static void	setupDefaultSensorInputs ()
static void	hellen_MiataNA6_boardConfigOverrides ()
static void	hellen_MiataNA6_boardDefaultConfiguration ()
	Board-specific configuration defaults.
void	setup_custom_board_overrides ()

Function Documentation

hellen_MiataNA6_boardConfigOverrides()

static void hellen_MiataNA6_boardConfigOverrides ( )

static

Definition at line 56 of file board_configuration.cpp.

                                                   {
    setHellenVbatt();

    setHellenSdCardSpi2();

    setDefaultHellenAtPullUps();

    setHellenCan();
}

Referenced by setup_custom_board_overrides().

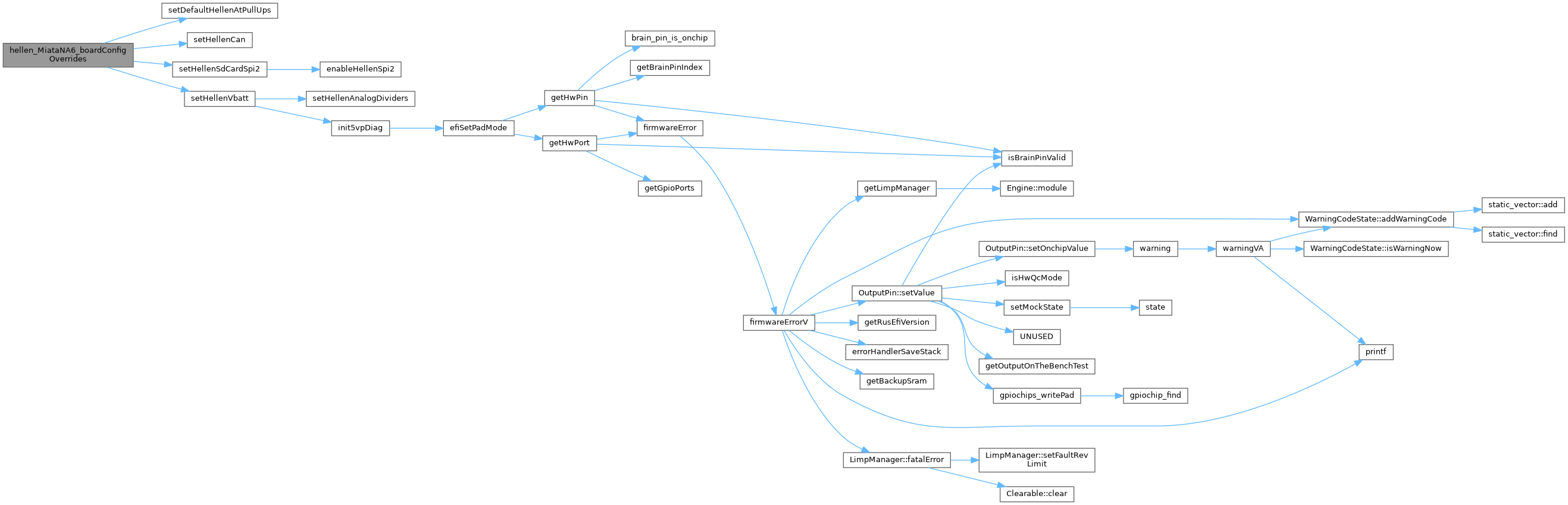

Here is the call graph for this function:

Here is the caller graph for this function:

hellen_MiataNA6_boardDefaultConfiguration()

static void hellen_MiataNA6_boardDefaultConfiguration ( )

static

Board-specific configuration defaults.

See also setDefaultEngineConfiguration

Definition at line 73 of file board_configuration.cpp.

                                                        {
    setInjectorPins();
    setIgnitionPins();

    engineConfiguration->enableSoftwareKnock = true;

    // these stm32 pins do not match hellen_meta, is that because hellenNA6 is not using latest MCU version?
    engineConfiguration->acRelayPin = Gpio::H15; // 1J - AC Relay
    engineConfiguration->fuelPumpPin = Gpio::G2;    // OUT_IO9
    engineConfiguration->idle.solenoidPin = Gpio::D14;  // OUT_PWM5
    engineConfiguration->fanPin = Gpio::D12;    // OUT_PWM8
    engineConfiguration->mainRelayPin = Gpio::I2;   // OUT_LOW3
    engineConfiguration->tachOutputPin = Gpio::I0;
    engineConfiguration->malfunctionIndicatorPin = Gpio::G9;

    engineConfiguration->vehicleSpeedSensorInputPin = Gpio::H144_IN_VSS;

    // "required" hardware is done - set some reasonable defaults
    setupDefaultSensorInputs();

    engineConfiguration->cylindersCount = 4;
    engineConfiguration->firingOrder = FO_1_3_4_2;

    engineConfiguration->ignitionMode = IM_INDIVIDUAL_COILS; // IM_WASTED_SPARK


}

Referenced by setup_custom_board_overrides().

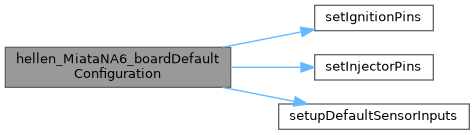

Here is the call graph for this function:

Here is the caller graph for this function:

setIgnitionPins()

static void setIgnitionPins ( )

static

Definition at line 29 of file board_configuration.cpp.

                              {
    engineConfiguration->ignitionPins[0] = Gpio::I8; // 3F - IGN_1 (1&4)
    engineConfiguration->ignitionPins[1] = Gpio::Unassigned ; // Gpio::E4
    engineConfiguration->ignitionPins[2] = Gpio::E5; // 3I - IGN_2 (2&3)
    engineConfiguration->ignitionPins[3] = Gpio::Unassigned; // Gpio::E3
}

setInjectorPins()

static void setInjectorPins ( )

static

Definition at line 17 of file board_configuration.cpp.

                              {
    engineConfiguration->injectionPins[0] = H176_LS_1;
    engineConfiguration->injectionPins[1] = Gpio::G8;
    engineConfiguration->injectionPins[2] = Gpio::D11;
    engineConfiguration->injectionPins[3] = Gpio::D10;

    engineConfiguration->clutchDownPin = Gpio::C4; // Clutch switch input
    engineConfiguration->clutchDownPinMode = PI_PULLDOWN;
    engineConfiguration->launchActivationMode = CLUTCH_INPUT_LAUNCH;
    engineConfiguration->malfunctionIndicatorPin = Gpio::G4; //1E - Check Engine Light
}

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 101 of file board_configuration.cpp.

                                    {
    custom_board_DefaultConfiguration = hellen_MiataNA6_boardDefaultConfiguration;
    custom_board_ConfigOverrides =  hellen_MiataNA6_boardConfigOverrides;
}

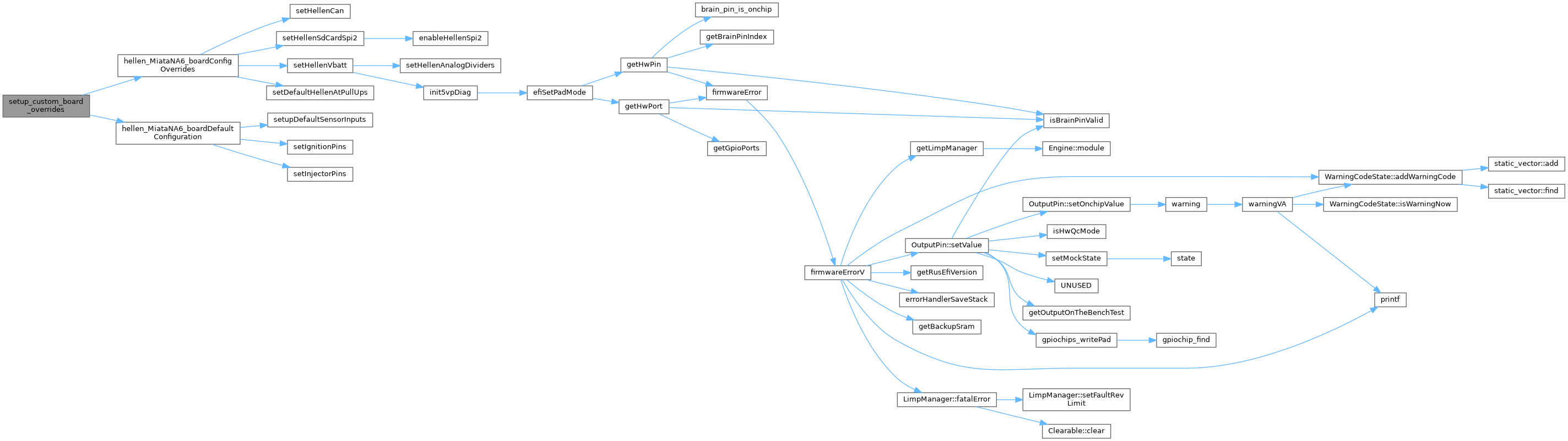

Here is the call graph for this function:

setupDefaultSensorInputs()

static void setupDefaultSensorInputs ( )

static

Definition at line 36 of file board_configuration.cpp.

                                       {
    // trigger inputs, hall
    engineConfiguration->triggerInputPins[0] = Gpio::A6;
    engineConfiguration->triggerInputPins[1] = Gpio::B1;
    engineConfiguration->camInputs[0] = Gpio::Unassigned;

    engineConfiguration->tps1_1AdcChannel = EFI_ADC_4;

    engineConfiguration->mafAdcChannel = EFI_ADC_10;
    engineConfiguration->map.sensor.hwChannel = EFI_ADC_11;

    engineConfiguration->afr.hwChannel = EFI_ADC_1;

    engineConfiguration->clt.adcChannel = H144_IN_CLT;

    engineConfiguration->iat.adcChannel = H144_IN_IAT;
}

Go to the source code of this file.
