Functions
static void	flexCallback (efitick_t nowNt, bool value)

static void	flexExtiCallback (void *, efitick_t nowNt)

void	initFlexSensor (bool isFirstTime)

void	deInitFlexSensor ()

Variables
static FunctionalSensor	flexSensor (SensorType::FuelEthanolPercent, MS2NT(30000))

static StoredValueSensor	flexFuelTemp (SensorType::FuelTemperature, MS2NT(30000))

static FlexConverter	converter

static Biquad	flexTempFilter

static Timer	flexFreq

static Timer	flexPulse

int	flexCallbackCounter = 0

static int	lowFlexCallbackCounter = 0

static float	frequency

static float	pulseWidthUs

static efitick_t	latestCallbackTime

static Gpio	flexPin = Gpio::Unassigned

Function Documentation

◆ deInitFlexSensor()

void deInitFlexSensor ( )

Definition at line 98 of file init_flex.cpp.

                        {
    flexSensor.unregister();
    flexFuelTemp.unregister();

#if EFI_PROD_CODE
    if (!isBrainPinValid(flexPin)) {
        return;
    }

    efiExtiDisablePin(flexPin);

    flexPin = Gpio::Unassigned;
#endif
}

Referenced by stopSensors().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ flexCallback()

static void flexCallback	(	efitick_t	nowNt,
		bool	value
	)

static

Definition at line 25 of file init_flex.cpp.

                                                      {
    latestCallbackTime = nowNt;
    flexCallbackCounter++;
    if (value) {
        frequency = 1 / flexFreq.getElapsedSecondsAndReset(nowNt);
        flexSensor.postRawValue(frequency, nowNt);

        // Start timing pulse width on rising edge
        flexPulse.reset(nowNt);
    } else {
        lowFlexCallbackCounter++;
        // End pulse timing on falling edge
        pulseWidthUs = flexPulse.getElapsedUs(nowNt);

        if (pulseWidthUs < 900) {
            flexFuelTemp.invalidate(UnexpectedCode::Low);
            warning(ObdCode::CUSTOM_FLEX_LOW, "flex low %f", pulseWidthUs);
        } else if (pulseWidthUs > 5100) {
            flexFuelTemp.invalidate(UnexpectedCode::High);
            warning(ObdCode::CUSTOM_FLEX_HIGH, "flex high %f", pulseWidthUs);
        } else {
            // -40C = 1000us
            // 125C = 5000us
            float tempC = interpolateClamped(1000, -40, 5000, 125, pulseWidthUs);
            tempC = flexTempFilter.filter(tempC);
            flexFuelTemp.setValidValue(tempC, nowNt);
        }
    }
}

Referenced by flexExtiCallback().

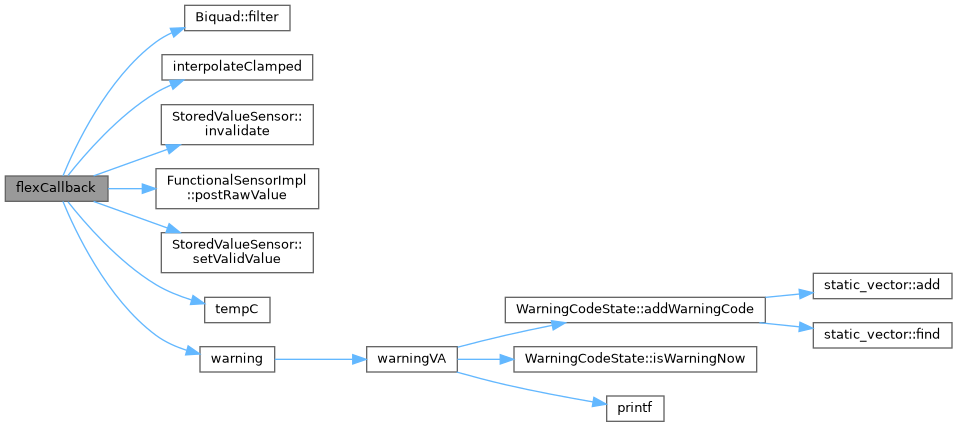

Here is the call graph for this function:

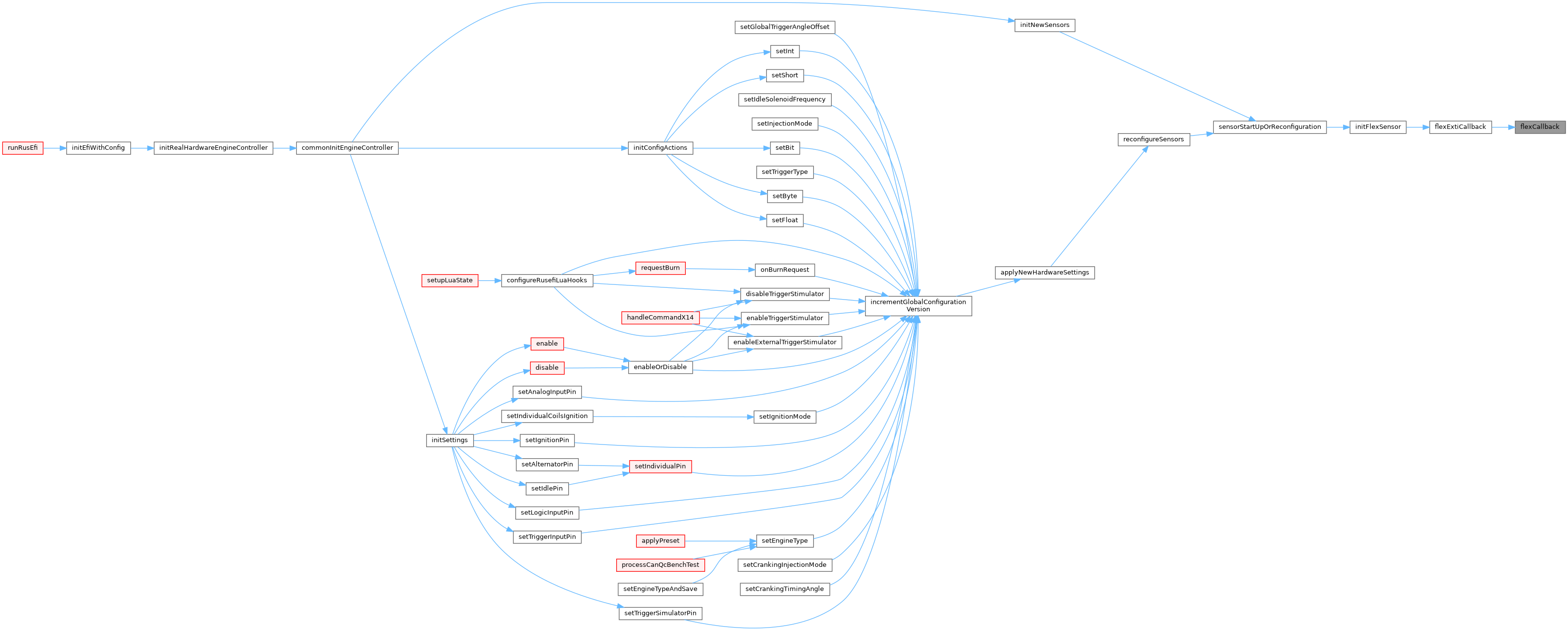

Here is the caller graph for this function:

◆ flexExtiCallback()

static void flexExtiCallback	(	void *	,
		efitick_t	nowNt
	)

static

Definition at line 57 of file init_flex.cpp.

                                                     {
    flexCallback(nowNt, efiReadPin(flexPin) ^ engineConfiguration->flexSensorInverted);
}

Referenced by initFlexSensor().

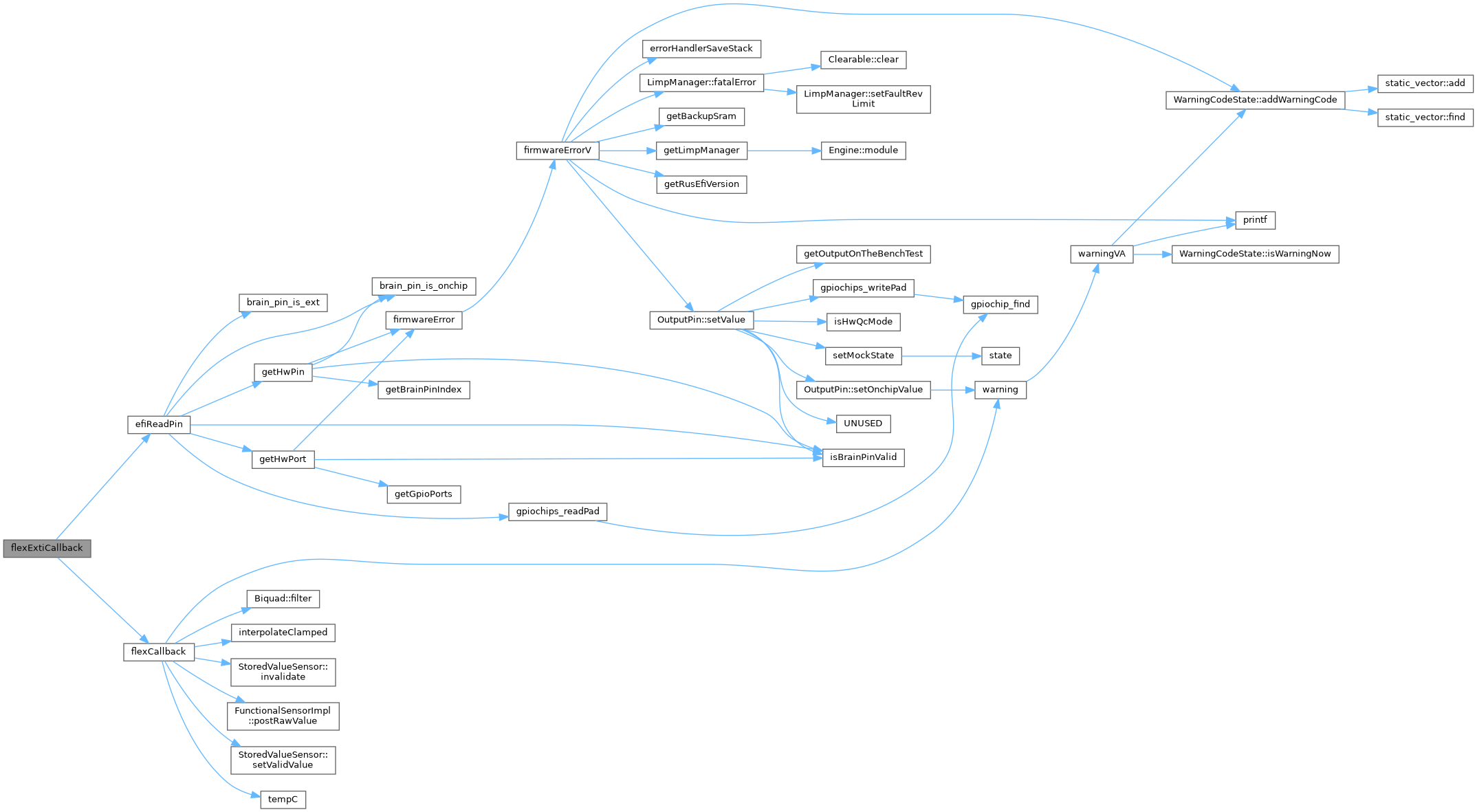

Here is the call graph for this function:

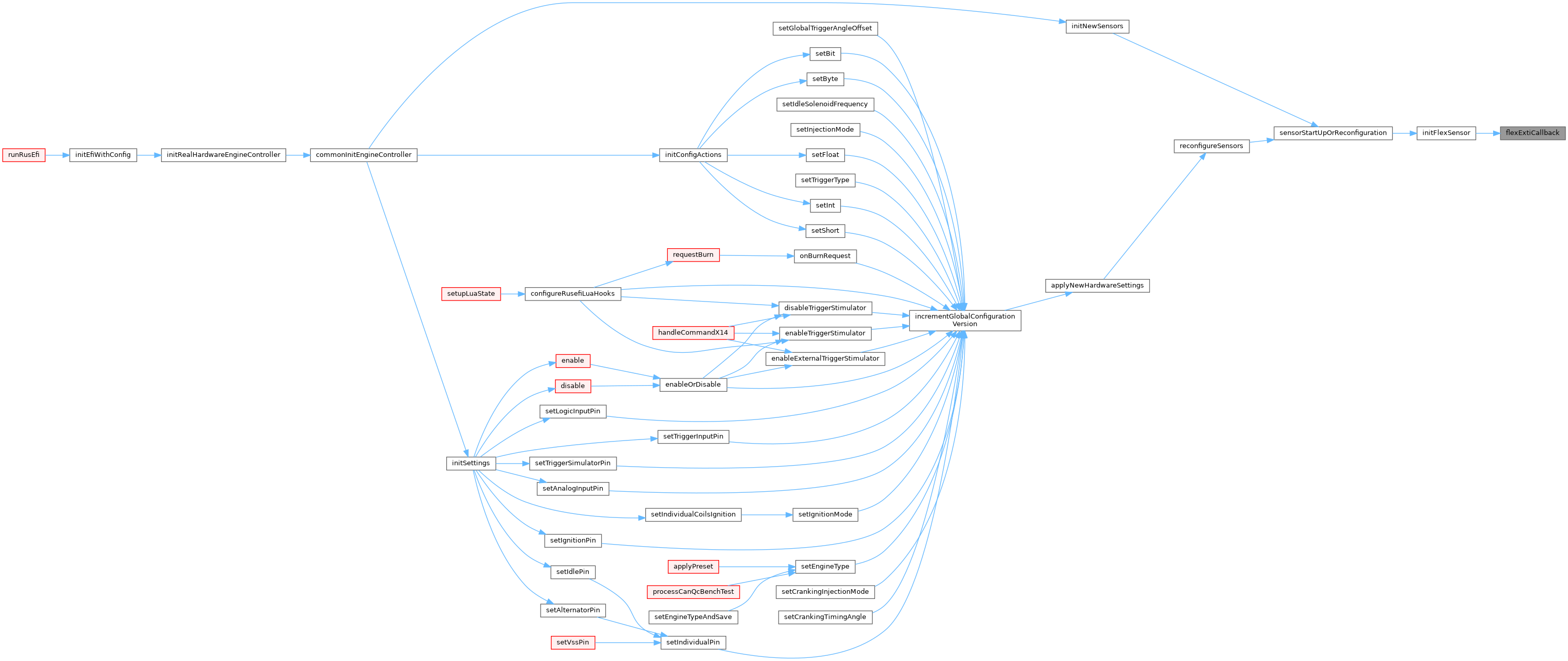

Here is the caller graph for this function:

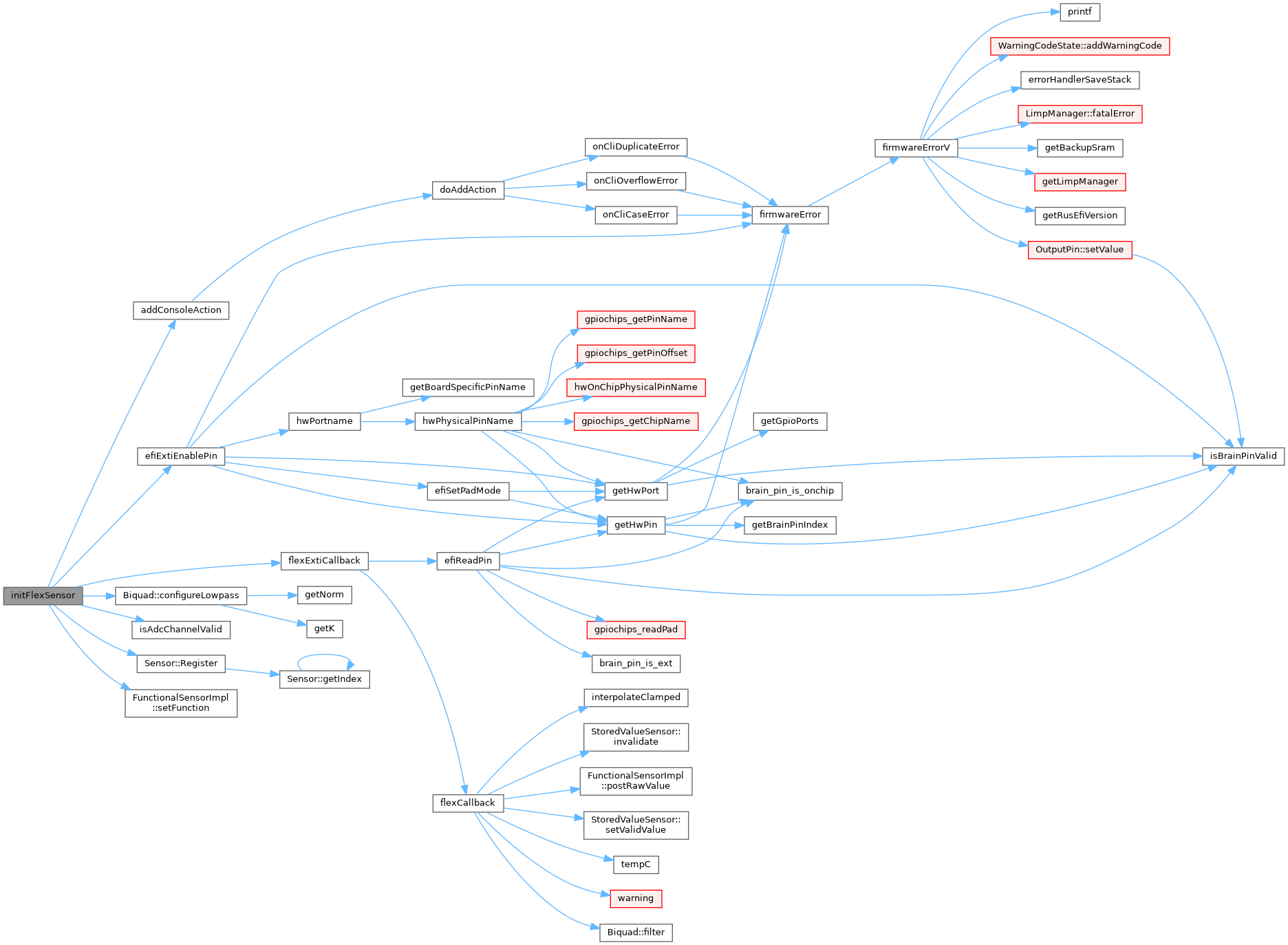

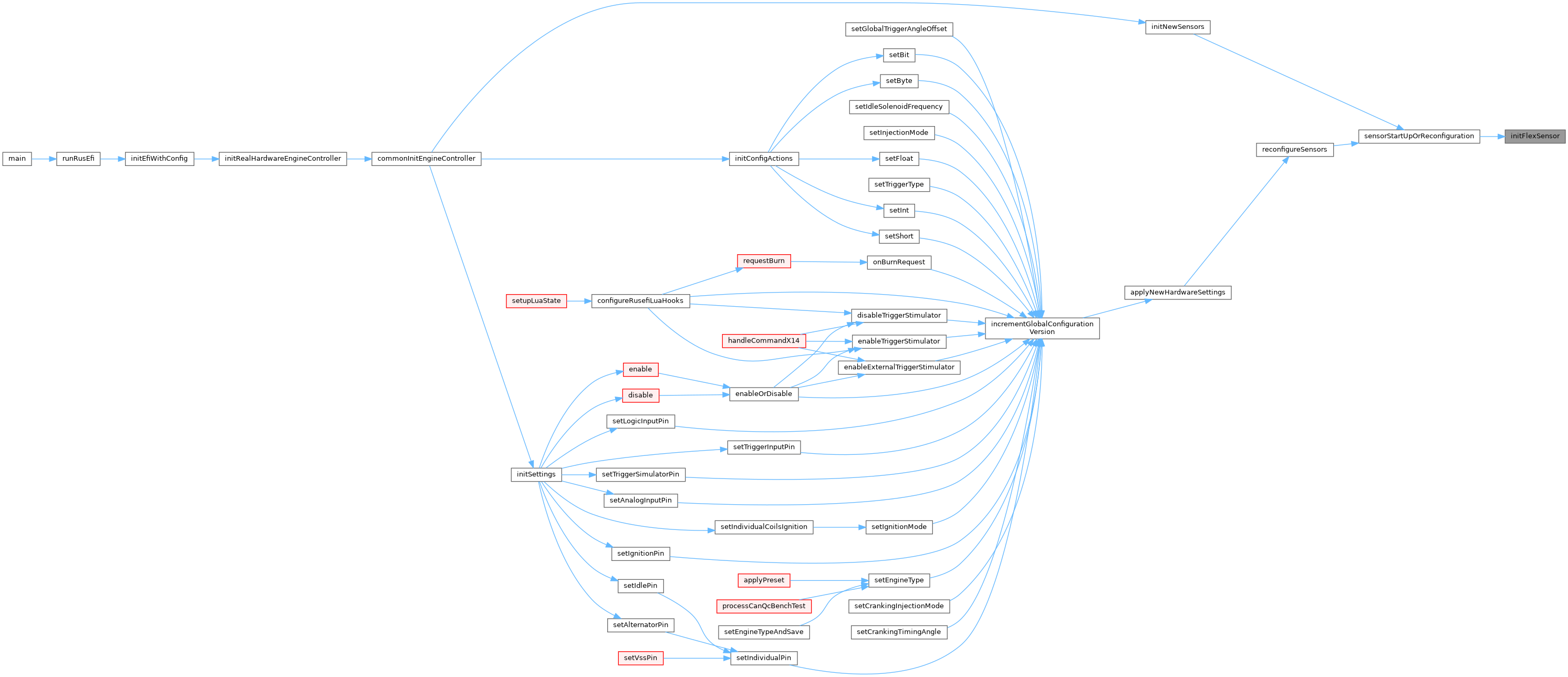

◆ initFlexSensor()

void initFlexSensor ( bool isFirstTime )

Definition at line 64 of file init_flex.cpp.

                                      {
#if EFI_PROD_CODE
    if (efiExtiEnablePin("flex", engineConfiguration->flexSensorPin,
        PAL_EVENT_MODE_BOTH_EDGES, flexExtiCallback, nullptr) < 0) {
        return;
    }
    flexPin = engineConfiguration->flexSensorPin;
#endif

    // 0.01 means filter bandwidth of ~1hz with ~100hz sensor
    flexTempFilter.configureLowpass(1, 0.01f);
    flexSensor.setFunction(converter);

#if EFI_PROD_CODE
    if (isFirstTime) {
        addConsoleAction("flexinfo", []() {
            efiPrintf("flex counter %d", flexCallbackCounter);
            efiPrintf("lowFlexCallbackCounter counter %d", lowFlexCallbackCounter);
            efiPrintf("flex freq %f", frequency);
            efiPrintf("pulseWidthUs %f", pulseWidthUs);
            efiPrintf("latestCallbackTime %lld", latestCallbackTime);
        });
    }

#endif // EFI_PROD_CODE

    flexSensor.Register();

    // If an analog fuel temp sensor is configured, don't use the flex sensor for fuel temp
    if (!isAdcChannelValid(engineConfiguration->fuelTempSensor.adcChannel)) {
        flexFuelTemp.Register();
    }
}
