init_map.cpp File Reference

Functions
MapAverager &	getMapAvg (size_t cylinderBankIndex)
static MapCfg	getMapCfg (air_pressure_sensor_type_e sensorType)
void	configureMapFunction (LinearFunc &converter, air_pressure_sensor_type_e sensorType)
void	initMap ()
void	deinitMap ()

Variables
static LinearFunc	baroConverter
static FunctionalSensor	baroSensor (SensorType::BarometricPressure, MS2NT(50))
static LinearFunc	mapConverter
static FunctionalSensor	slowMapSensor (SensorType::MapSlow, MS2NT(50))
static FunctionalSensor	compressorDischargePress (SensorType::CompressorDischargePressure, MS2NT(50))
static FunctionalSensor	throttleInletPress (SensorType::ThrottleInletPressure, MS2NT(50))
static MapAverager	fastMapSensor (SensorType::MapFast, MS2NT(200))
static MapAverager	fastMapSensor2 (SensorType::MapFast2, MS2NT(200))
static FallbackSensor	mapCombiner (SensorType::Map, SensorType::MapFast, SensorType::MapSlow)
static FallbackSensor	mapCombiner2 (SensorType::Map2, SensorType::MapFast2, SensorType::MapSlow2)

Function Documentation

configureMapFunction()

void configureMapFunction	(	LinearFunc &	converter,
		air_pressure_sensor_type_e	sensorType
	)

Definition at line 92 of file init_map.cpp.

                                                                                        {
    auto cfg = getMapCfg(sensorType);

    converter.configure(
        cfg.v1,
        cfg.map1,
        cfg.v2,
        cfg.map2,
        engineConfiguration->mapErrorDetectionTooLow,
        engineConfiguration->mapErrorDetectionTooHigh
    );
}

Referenced by initMap().

Here is the call graph for this function:

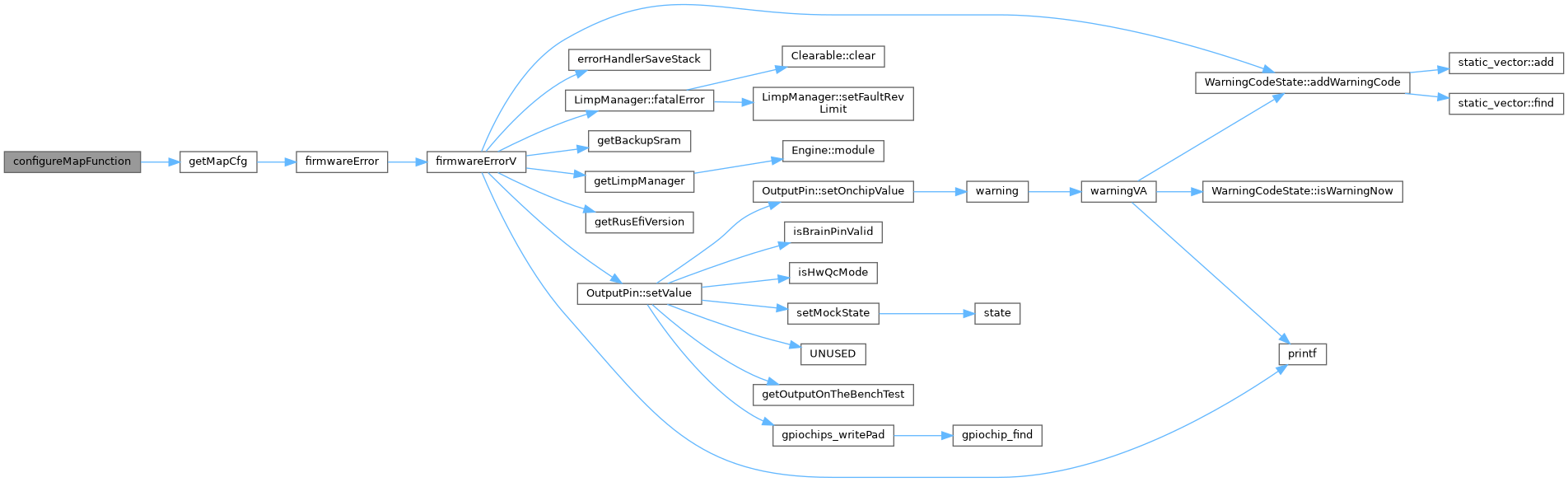

Here is the caller graph for this function:

deinitMap()

void deinitMap

(

)

Definition at line 144 of file init_map.cpp.

                 {
    AdcSubscription::UnsubscribeSensor(slowMapSensor, engineConfiguration->map.sensor.hwChannel);
    AdcSubscription::UnsubscribeSensor(baroSensor, engineConfiguration->baroSensor.hwChannel);
    AdcSubscription::UnsubscribeSensor(throttleInletPress, engineConfiguration->throttleInletPressureChannel);
    AdcSubscription::UnsubscribeSensor(compressorDischargePress, engineConfiguration->compressorDischargePressureChannel);
}

Referenced by stopSensors().

Here is the call graph for this function:

Here is the caller graph for this function:

getMapAvg()

MapAverager & getMapAvg

(

size_t

cylinderBankIndex

)

Definition at line 28 of file init_map.cpp.

                                                 {
  // May 2025: cylinderBankIndex is always zero, second MAP sensor feature is not finished
    return cylinderBankIndex == 0 ? fastMapSensor : fastMapSensor2;
}

Referenced by mapAveragingAdcCallback(), and startAveraging().

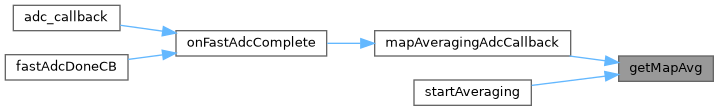

Here is the caller graph for this function:

getMapCfg()

static MapCfg getMapCfg ( air_pressure_sensor_type_e  sensorType )

static

Definition at line 45 of file init_map.cpp.

                                                               {
    switch (sensorType) {
    case MT_DENSO183:
        return {0, -6.64, 5, 182.78};
    case MT_MPX4100:
        return {0.306, 20, 4.897, 105};
    case MT_MPX4250:
    case MT_MPX4250A:
        return {0.204, 20, 4.896, 250};
    case MT_HONDA3BAR:
        return {0.5, 91.422, 3.0, 0};
    case MT_DODGE_NEON_2003:
        return {0.4, 15.34, 4.5, 100};
    case MT_SUBY_DENSO:
        return {0, 0, 5, 200};
    case MT_GM_3_BAR:
        return {0.631, 40, 4.914, 304};
    case MT_GM_2_BAR:
        return {0, 8.8, 5, 208};
    case MT_GM_1_BAR:
        return {0, 10, 5, 105};
    case MT_TOYOTA_89420_02010:
        return {3.7 - 2, 33.32, 3.7, 100};
    case MT_MAZDA_1_BAR:
        return {0, 2.5, 5, 117};
    case MT_BOSCH_2_5:
    // kpa=54.11764705882353v−1.6470588235294201
        return {0.4 , 20 , 4.65, 250};
    case MT_MPXH6400:
        return {0.2, 20, 4.8, 400};
    case MT_MPXH6300:
        return {1.0, 60, 4.5, 270};
    default:
        firmwareError(ObdCode::CUSTOM_ERR_MAP_TYPE, "Unknown MAP type: decoder %d", sensorType);
        // falls through to custom
        return {};
    case MT_CUSTOM: {
        auto& mapConfig = engineConfiguration->map.sensor;
        return {
            engineConfiguration->mapLowValueVoltage,
            mapConfig.lowValue,
            engineConfiguration->mapHighValueVoltage,
            mapConfig.highValue
        };
    }}
}

Referenced by configureMapFunction().

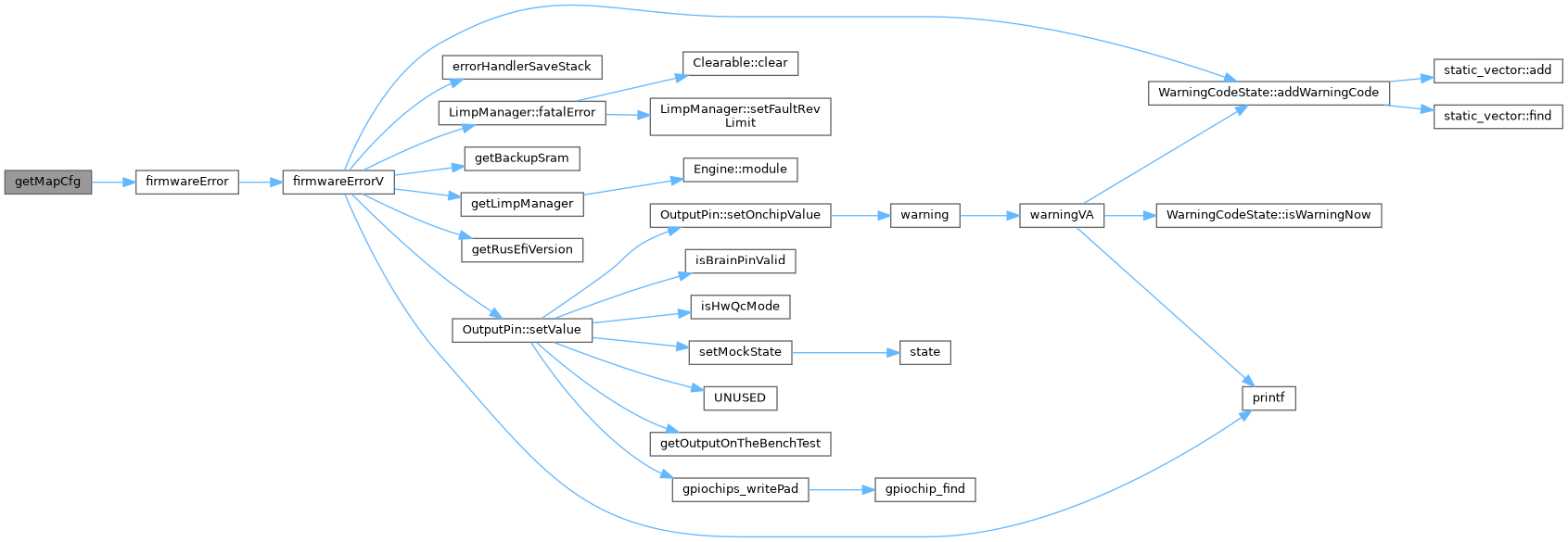

Here is the call graph for this function:

Here is the caller graph for this function:

initMap()

void initMap

(

)

Definition at line 105 of file init_map.cpp.

               {
    // Set up the conversion function
    configureMapFunction(mapConverter, engineConfiguration->map.sensor.type);

    slowMapSensor.setFunction(mapConverter);
// unfinished/dead? slowMapSensor2.setFunction(mapConverter);
    fastMapSensor.setFunction(mapConverter);
    fastMapSensor2.setFunction(mapConverter);
    compressorDischargePress.setFunction(mapConverter);
    throttleInletPress.setFunction(mapConverter);

    auto mapChannel = engineConfiguration->map.sensor.hwChannel;
    if (isAdcChannelValid(mapChannel)) {
        slowMapSensor.Register();
// unfinished/dead?     slowMapSensor2.Register();
        fastMapSensor.Register();
        fastMapSensor2.Register();
        mapCombiner.Register();
        mapCombiner2.Register();

        // Configure slow MAP as a normal analog sensor
        // it's possible/probably that slow and fast both read from same physical pin, apparently that's fine?!
        AdcSubscription::SubscribeSensor(slowMapSensor, mapChannel, 100);
    }

    AdcSubscription::SubscribeSensor(throttleInletPress, engineConfiguration->throttleInletPressureChannel, 100);
    AdcSubscription::SubscribeSensor(compressorDischargePress, engineConfiguration->compressorDischargePressureChannel, 100);

    auto baroChannel = engineConfiguration->baroSensor.hwChannel;
    if (isAdcChannelValid(baroChannel)) {
        configureMapFunction(baroConverter, engineConfiguration->baroSensor.type);

        baroSensor.setFunction(baroConverter);
        baroSensor.Register();

        AdcSubscription::SubscribeSensor(baroSensor, baroChannel, 10);
    }
}

Referenced by sensorStartUpOrReconfiguration().

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

baroConverter

LinearFunc baroConverter

static

Definition at line 9 of file init_map.cpp.

Referenced by initMap().

baroSensor

FunctionalSensor baroSensor(SensorType::BarometricPressure, MS2NT(50)) ( SensorType::BarometricPressure  , MS2NT(50)    )

static

Referenced by deinitMap(), and initMap().

compressorDischargePress

FunctionalSensor compressorDischargePress(SensorType::CompressorDischargePressure, MS2NT(50)) ( SensorType::CompressorDischargePressure  , MS2NT(50)    )

static

Referenced by deinitMap(), and initMap().

fastMapSensor

MapAverager fastMapSensor(SensorType::MapFast, MS2NT(200)) ( SensorType::MapFast  , MS2NT(200)    )

static

Referenced by getMapAvg(), and initMap().

fastMapSensor2

MapAverager fastMapSensor2(SensorType::MapFast2, MS2NT(200)) ( SensorType::MapFast2  , MS2NT(200)    )

static

Referenced by getMapAvg(), and initMap().

mapCombiner

FallbackSensor mapCombiner(SensorType::Map, SensorType::MapFast, SensorType::MapSlow) ( SensorType::Map  , SensorType::MapFast  , SensorType::MapSlow    )

static

Referenced by initMap().

mapCombiner2

FallbackSensor mapCombiner2(SensorType::Map2, SensorType::MapFast2, SensorType::MapSlow2) ( SensorType::Map2  , SensorType::MapFast2  , SensorType::MapSlow2    )

static

Referenced by initMap().

mapConverter

LinearFunc mapConverter

static

Definition at line 14 of file init_map.cpp.

Referenced by initMap().

slowMapSensor

FunctionalSensor slowMapSensor(SensorType::MapSlow, MS2NT(50)) ( SensorType::MapSlow  , MS2NT(50)    )

static

Referenced by deinitMap(), and initMap().

throttleInletPress

FunctionalSensor throttleInletPress(SensorType::ThrottleInletPressure, MS2NT(50)) ( SensorType::ThrottleInletPressure  , MS2NT(50)    )

static

Referenced by deinitMap(), and initMap().

Go to the source code of this file.
