Functions
void	initVbatt ()

void	deinitVbatt ()

Variables
static FunctionalSensor	vbattSensor (SensorType::BatteryVoltage, MS2NT(100))

static FunctionalSensor	ignBattSensor (SensorType::IgnKeyVoltage, MS2NT(100))

Function Documentation

◆ deinitVbatt()

void deinitVbatt ( )

Definition at line 36 of file init_vbatt.cpp.

                   {
    AdcSubscription::UnsubscribeSensor(vbattSensor, engineConfiguration->vbattAdcChannel);
    AdcSubscription::UnsubscribeSensor(ignBattSensor, engineConfiguration->ignKeyAdcChannel);
}

Referenced by stopSensors().

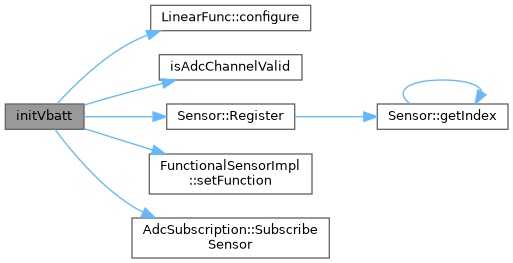

Here is the call graph for this function:

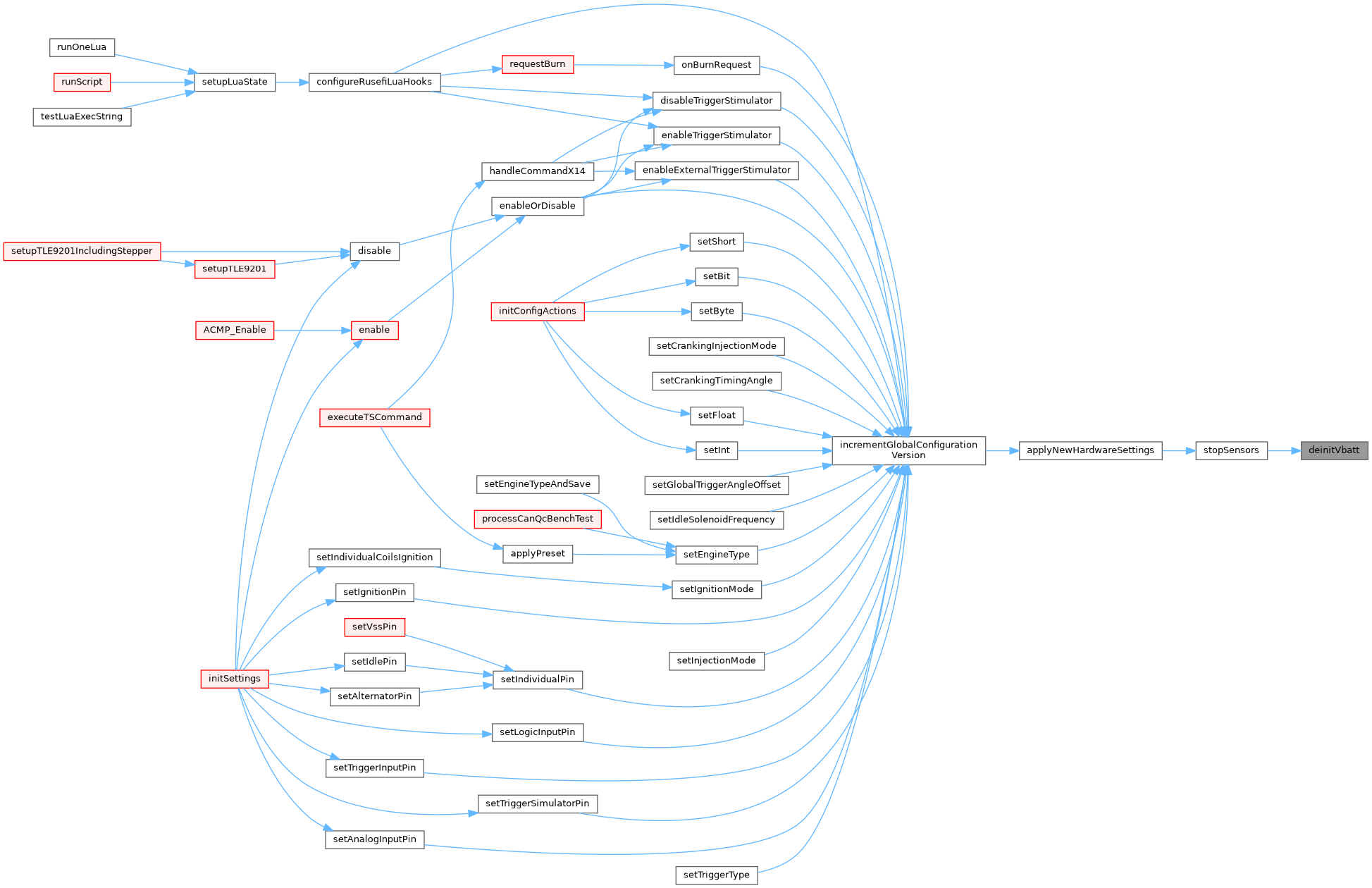

Here is the caller graph for this function:

◆ initVbatt()

void initVbatt ( )

Definition at line 11 of file init_vbatt.cpp.

                 {
  {
    static LinearFunc vbattFunc; // static with scoped visibility just to reduce change of code defect
      vbattFunc.configure(0, 0, 1, engineConfiguration->vbattDividerCoeff, 0, 50);
      vbattSensor.setFunction(vbattFunc);
    }

  if (engineConfiguration->ignKeyAdcDivider > 0) {
    static LinearFunc ignBattFunc; // static with scoped visibility just to reduce change of code defect
      ignBattFunc.configure(0, 0, 1, engineConfiguration->ignKeyAdcDivider, 0, 50);
      ignBattSensor.setFunction(ignBattFunc);
    }

    if (isAdcChannelValid(engineConfiguration->vbattAdcChannel)) {
      // adcVoltsPerVolt is set to 1.0 because vbatt doesn't go thru the analog input divider
      AdcSubscription::SubscribeSensor(vbattSensor, engineConfiguration->vbattAdcChannel, /* filter HZ = */ 20, /* adcVoltsPerVolt = */ 1.0f);
      vbattSensor.Register();
    }

    if (isAdcChannelValid(engineConfiguration->ignKeyAdcChannel)) {
      AdcSubscription::SubscribeSensor(ignBattSensor, engineConfiguration->ignKeyAdcChannel, /* filter HZ = */ 20, /* adcVoltsPerVolt = */ 1.0f);
      ignBattSensor.Register();
    }
}
