lua_heap.h File Reference

Functions
void	luaHeapInit ()
void *	luaHeapAlloc (void *, void *optr, size_t osize, size_t nsize)
size_t	luaHeapUsed ()
void	luaHeapReset ()
void	luaHeapPrintInfo ()

Function Documentation

luaHeapAlloc()

void * luaHeapAlloc	(	void *	,
		void *	optr,
		size_t	osize,
		size_t	nsize
	)

Definition at line 138 of file lua_heap.cpp.

                                                                    {
    void *nptr = nullptr;

    if (nsize) {
        // [tag:multi-step-lua-alloc]
        // First try dedicated Lua heap(s)
        #if (LUA_EXTRA_HEAP > 0)
            if (nptr == nullptr) {
                nptr = luaExtraHeap.alloc(nsize);
            }
        #endif
        #if defined(STM32F4)
            if (nptr == nullptr) {
                nptr = luaOptionalHeap.alloc(nsize);
            }
        #endif
        #if MCU_HAS_CCM_RAM
            if (nptr == nullptr) {
                nptr = luaCcmHeap.alloc(nsize);
            }
        #endif

        // [tag:multi-step-lua-alloc]
        // then try ChibiOS default heap
        if (nptr == nullptr) {
            nptr = chHeapAlloc(NULL, nsize);
        }
    }

    if (nptr) {
        luaMemoryUsed += nsize;
    }

    if (optr) {
        chDbgAssert(osize <= chHeapGetSize(optr), "Lua lost track of allocated mem");
        // An old pointer was passed in, copy the old data in, then free
        if (nptr != nullptr) {
            memcpy(nptr, optr, osize > nsize ? nsize : osize);
        }
        // chHeapFree will find correct heap to return memory to
        chHeapFree(optr);
        luaMemoryUsed -= osize;
    }

    if (engineConfiguration->debugMode == DBG_LUA) {
        engine->outputChannels.debugIntField1 = luaHeapUsed();
    }

    return nptr;
}

Referenced by runScript(), and testLuaExecString().

Here is the call graph for this function:

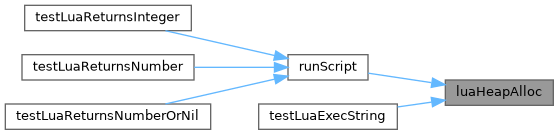

Here is the caller graph for this function:

luaHeapInit()

void luaHeapInit

(

)

Definition at line 109 of file lua_heap.cpp.

{
    // stm32f4xx can have optional ram3 region
#if defined(STM32F4)
    // Some boads can be equiped with STM32F42x only, in this case we allow linker to take care of ram3
#if !defined(EFI_IS_F42x)
    // cute hack: let's check at runtime if you are a lucky owner of board with extra RAM and use that extra RAM for extra Lua
    // we need this on microRusEFI for sure
    // definitely should NOT have this on Proteus
    // on Hellen a bit of open question what's the best track
    if (isStm32F42x()) {
        // This is safe to use section base and end as we define ram3 for all F4 chips
        extern uint8_t __ram3_base__[];
        extern uint8_t __ram3_end__[];
        luaOptionalHeap.init(__ram3_base__, __ram3_end__ - __ram3_base__);
    }
#endif // !EFI_IS_F42x
#endif // STM32F4

    // stm32f4xx have CCM memory that may have some leftovers
#if MCU_HAS_CCM_RAM
    extern uint8_t __heap_ccm_base__[];
    extern uint8_t __heap_ccm_end__[];
    luaCcmHeap.init(__heap_ccm_base__, __heap_ccm_end__ - __heap_ccm_base__);
#endif
}

Referenced by startLua().

Here is the call graph for this function:

Here is the caller graph for this function:

luaHeapPrintInfo()

void luaHeapPrintInfo

(

)

Definition at line 214 of file lua_heap.cpp.

                        {
    size_t chMemTotal =
        /* Chibios heap size */
        #if CH_CFG_MEMCORE_SIZE == 0
            (__heap_end__ - __heap_base__);
        #else
            CH_CFG_MEMCORE_SIZE;
        #endif
    auto totalHeapSize =
        chMemTotal +
    #if (LUA_EXTRA_HEAP > 0)
        luaExtraHeap.size() +
    #endif
    #if defined(STM32F4)
        luaOptionalHeap.size() +
    #endif
    #if MCU_HAS_CCM_RAM
        luaCcmHeap.size() +
    #endif
        0;

    if (totalHeapSize) {
        auto memoryUsed = luaHeapUsed();
        float pct = 100.0f * memoryUsed / totalHeapSize;
        efiPrintf("Lua total heap(s) usage: %d / %d bytes = %.1f%%", memoryUsed, totalHeapSize, pct);
    } else {
        efiPrintf("No heap available for Lua");
    }

    #if (LUA_EXTRA_HEAP > 0)
        efiPrintf("Lua extra heap usage: %d / %d", luaExtraHeap.used(), luaExtraHeap.size());
    #endif
    #if defined(STM32F4)
        efiPrintf("Lua optional heap usage: %d / %d", luaOptionalHeap.used(), luaOptionalHeap.size());
    #endif
    #if MCU_HAS_CCM_RAM
        efiPrintf("Lua CCM heap usage: %d / %d", luaCcmHeap.used(), luaCcmHeap.size());
    #endif

    size_t chHeapFree = 0;
    chHeapStatus(NULL, &chHeapFree, NULL);
    /* total available for ChibiOS minus left free, plus free in Chibios Heap */
    size_t chMemCoreUsed = chMemTotal - chCoreGetStatusX() - chHeapFree;
    efiPrintf("Common ChibiOS heap: %d bytes free", chHeapFree);
    efiPrintf("ChibiOS memcore usage: %d / %d", chMemCoreUsed, chMemTotal);
}

Referenced by loadScript(), and startLua().

Here is the call graph for this function:

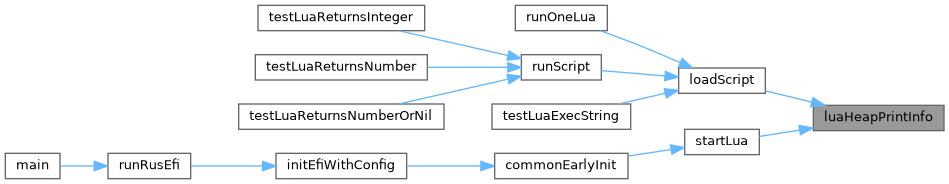

Here is the caller graph for this function:

luaHeapReset()

void luaHeapReset

(

)

Definition at line 194 of file lua_heap.cpp.

{
#if (LUA_EXTRA_HEAP > 0)
    luaExtraHeap.reset();
#endif
#if defined(STM32F4)
    luaOptionalHeap.reset();
#endif
#if MCU_HAS_CCM_RAM
    luaCcmHeap.reset();
#endif

    luaMemoryUsed = 0;
}

Here is the call graph for this function:

luaHeapUsed()

size_t luaHeapUsed

(

)

Definition at line 189 of file lua_heap.cpp.

{
    return luaMemoryUsed;
}

Referenced by luaHeapAlloc(), and luaHeapPrintInfo().

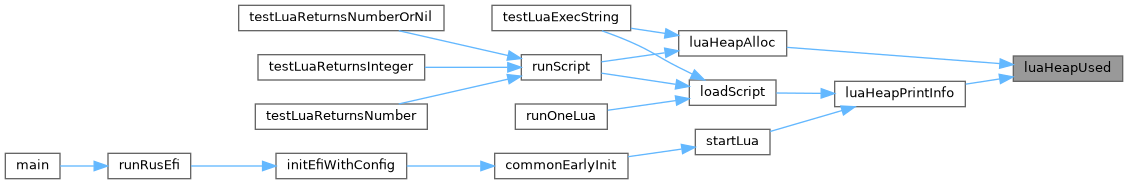

Here is the caller graph for this function:
