mc33810.h File Reference

Data Structures
struct	mc33810_config

Functions
int	mc33810_add (brain_pin_e base, unsigned int index, const mc33810_config *cfg)
	MC33810 driver add.
const mc33810_state_s *	mc33810getLiveData (size_t idx)
void	mc33810_req_init ()
int	getMc33810maxDwellTimer (mc33810maxDwellTimer_e value)

Function Documentation

getMc33810maxDwellTimer()

int getMc33810maxDwellTimer

(

mc33810maxDwellTimer_e

value

)

Definition at line 1009 of file mc33810.cpp.

                                                          {
switch(value) {
case DWELL_16MS:
  return 16;
case DWELL_2MS:
  return 2;
case DWELL_32MS:
  return 32;
case DWELL_4MS:
  return 4;
case DWELL_64MS:
  return 64;
case DWELL_8MS:
  return 8;
  }
 return 0;
}

Referenced by validateConfigOnStartUpOrBurn().

Here is the caller graph for this function:

mc33810_add()

int mc33810_add	(	brain_pin_e	base,
		unsigned int	index,
		const mc33810_config *	cfg
	)

MC33810 driver add.

Checks for valid config

Definition at line 949 of file mc33810.cpp.

                                                                                 {

    /* no config or no such chip */
    if ((!cfg) || (!cfg->spi_bus) || (index >= BOARD_MC33810_COUNT))
        return -16;

    /* check for valid cs.
     * TODO: remove this check? CS can be driven by SPI */
    //if (cfg->spi_config.ssport == NULL)
    //  return -1;

    Mc33810& chip = chips[index];

    /* already initted? */
    if (chip.cfg != NULL)
        return -13;

    chip.cfg = cfg;
    chip.o_state = 0;
    chip.o_state_cached = 0;
    chip.o_direct_mask = 0;
    for (int i = 0; i < MC33810_DIRECT_OUTPUTS; i++) {
        if (cfg->direct_io[i].port != 0)
            chip.o_direct_mask |= BIT(i);
    }

#if 0
    // Some Ignition channels may be unused, so skip this check for now
    /* GPGD mode is not supported yet, ignition mode does not support spi on/off commands
     * so ignition signals should be directly driven */
    if ((chip.o_direct_mask & 0xf0) != 0xf0)
        return -4;
#endif

    /* register, return gpio chip base */
    int ret = gpiochip_register(base, DRIVER_NAME, chip, MC33810_OUTPUTS);
    if (ret < 0)
        return ret;

    /* set default pin names, board init code can rewrite */
    gpiochips_setPinNames(static_cast<brain_pin_e>(ret), mc33810_pin_names);

    chip.drv_state = MC33810_WAIT_INIT;

    return ret;
}

Referenced by board_init_ext_gpios(), f407_discovery_boardInitHardware(), and hellen154hyundai_f7_boardInitHardware().

Here is the call graph for this function:

Here is the caller graph for this function:

mc33810_req_init()

void mc33810_req_init

(

)

Definition at line 999 of file mc33810.cpp.

                        {
    size_t i;

    for (i = 0; i < BOARD_MC33810_COUNT; i++) {
        auto& chip = chips[i];

        chip.need_init = true;
    }
}

Referenced by handleCommandX14().

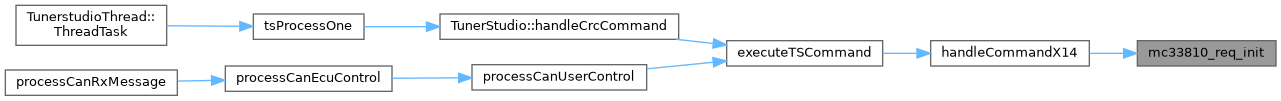

Here is the caller graph for this function:

mc33810getLiveData()

const mc33810_state_s * mc33810getLiveData

(

size_t

idx

)

Definition at line 1027 of file mc33810.cpp.

                                                      {
    if (idx >= BOARD_MC33810_COUNT)
        return nullptr;
    return &chips[idx];
}

Referenced by getLiveData().

Here is the caller graph for this function:

Go to the source code of this file.
