board_configuration.cpp File Reference

Functions
Gpio	getCommsLedPin ()
Gpio	getWarningLedPin ()
static void	setPrometheusDefaults ()
void	setPinConfigurationOverrides ()
static void	prometheus_boardDefaultConfiguration ()
	Board-specific configuration defaults.
Gpio	getRunningLedPin ()
void	setup_custom_board_overrides ()

Variables
static bool	is469 = true

Function Documentation

getCommsLedPin()

Gpio getCommsLedPin

(

)

Definition at line 19 of file board_configuration.cpp.

                      {
    // this board has no comms led
    return Gpio::Unassigned;
}

getRunningLedPin()

Gpio getRunningLedPin

(

)

Definition at line 195 of file board_configuration.cpp.

                        {
    return Gpio::A13; //Gpio::A13; // yellow LED
}

getWarningLedPin()

Gpio getWarningLedPin

(

)

Definition at line 24 of file board_configuration.cpp.

                        {
    // this board has no warning led
    return Gpio::Unassigned;
}

prometheus_boardDefaultConfiguration()

static void prometheus_boardDefaultConfiguration ( )

static

Board-specific configuration defaults.

Definition at line 111 of file board_configuration.cpp.

                                                   {
    // give a chance to trigger SWD programmer... Wait for 2 secs (=2000 ms).
//  chThdSleepMilliseconds(2000);

    engineConfiguration->binarySerialTxPin = Gpio::A0;
    engineConfiguration->binarySerialRxPin = Gpio::A1;
    engineConfiguration->tunerStudioSerialSpeed = SERIAL_SPEED;
    engineConfiguration->uartConsoleSerialSpeed = SERIAL_SPEED;

    engineConfiguration->vbattAdcChannel = EFI_ADC_13;
    engineConfiguration->tps1_1AdcChannel = is469 ? EFI_ADC_7 : EFI_ADC_14;
    engineConfiguration->map.sensor.hwChannel = is469 ? EFI_ADC_8 : EFI_ADC_15;
    engineConfiguration->clt.adcChannel = EFI_ADC_3;
    engineConfiguration->iat.adcChannel = EFI_ADC_4;
    engineConfiguration->afr.hwChannel = is469 ? EFI_ADC_9 : EFI_ADC_8;

    engineConfiguration->adcVcc = ADC_VCC;

    engineConfiguration->baroSensor.hwChannel = EFI_ADC_NONE;
    engineConfiguration->throttlePedalPositionAdcChannel = EFI_ADC_NONE;

    engineConfiguration->injectionPins[0] = is469 ? Gpio::D9  : Gpio::B14; // #1
    engineConfiguration->injectionPins[1] = is469 ? Gpio::D15 : Gpio::C7;  // #2
    engineConfiguration->injectionPins[2] = is469 ? Gpio::D10 : Gpio::B15; // #3
    engineConfiguration->injectionPins[3] = is469 ? Gpio::D14 : Gpio::C6;  // #4

    engineConfiguration->ignitionPins[0] = Gpio::A10;
    engineConfiguration->ignitionPins[1] = Gpio::A9;
    engineConfiguration->ignitionPins[2] = Gpio::A8;
    engineConfiguration->ignitionPins[3] = Gpio::A11;
    engineConfiguration->ignitionPinMode = OM_INVERTED;

    engineConfiguration->vbattDividerCoeff = ((float) (2 + 10)) / 2;
    engineConfiguration->clt.config.bias_resistor = 2700;
    engineConfiguration->iat.config.bias_resistor = 2700;

    engineConfiguration->useStepperIdle = true;
    engineConfiguration->idle.stepperDirectionPin = is469 ? Gpio::B14 : Gpio::B12;
    engineConfiguration->idle.stepperStepPin = is469 ? Gpio::B15 : Gpio::B13;
    engineConfiguration->stepperEnablePin = Gpio::Unassigned;

    engineConfiguration->triggerInputPins[0] = Gpio::A5;
    engineConfiguration->triggerInputPins[1] = Gpio::Unassigned;
    engineConfiguration->camInputs[0] = is469 ? Gpio::E9 : Gpio::A6;

    engineConfiguration->tachOutputPin = Gpio::C8;
    engineConfiguration->fuelPumpPin = is469 ? Gpio::D6 : Gpio::B7;
    engineConfiguration->mainRelayPin = is469 ? Gpio::B11 : Gpio::B2;
    engineConfiguration->fanPin = Gpio::C9;
    engineConfiguration->malfunctionIndicatorPin = Gpio::C1;


    // debug pad
    engineConfiguration->triggerSimulatorPins[0] = Gpio::D8;

    // not used
    engineConfiguration->triggerSimulatorPins[1] = Gpio::Unassigned;
    engineConfiguration->vehicleSpeedSensorInputPin = Gpio::Unassigned;

    engineConfiguration->is_enabled_spi_2 = false;
    engineConfiguration->is_enabled_spi_3 = true;

    engineConfiguration->spi1mosiPin = Gpio::B5;
    engineConfiguration->spi1misoPin = Gpio::B4;
    engineConfiguration->spi1sckPin = Gpio::B3;

    engineConfiguration->spi3mosiPin = Gpio::C12;
    engineConfiguration->spi3MosiMode = PO_OPENDRAIN; // 4
    engineConfiguration->spi3misoPin = Gpio::C11;
    engineConfiguration->spi3MisoMode = PO_PULLUP; // 32
    engineConfiguration->spi3sckPin = Gpio::C10;
    engineConfiguration->spi3SckMode = PO_OPENDRAIN; // 4

    engineConfiguration->canTxPin = Gpio::B9;
    engineConfiguration->canRxPin = Gpio::B8;

    setPrometheusDefaults();

    engineConfiguration->is_enabled_spi_1 = true;
    engineConfiguration->sdCardSpiDevice = SPI_DEVICE_1;
    engineConfiguration->sdCardCsPin = Gpio::A2;
    engineConfiguration->isSdCardEnabled = true;
}

Referenced by setup_custom_board_overrides().

Here is the call graph for this function:

Here is the caller graph for this function:

setPinConfigurationOverrides()

void setPinConfigurationOverrides

(

void

)

Definition at line 66 of file board_configuration.cpp.

                                    {
#if 0
    engineConfiguration->injectionPins[0] = is469 ? Gpio::D9  : Gpio::B14; // #1
    engineConfiguration->injectionPins[1] = is469 ? Gpio::D15 : Gpio::C7;  // #2
    engineConfiguration->injectionPins[2] = is469 ? Gpio::D10 : Gpio::B15; // #3
    engineConfiguration->injectionPins[3] = is469 ? Gpio::D14 : Gpio::C6;  // #4

    engineConfiguration->ignitionPins[0] = Gpio::A10;
    engineConfiguration->ignitionPins[1] = Gpio::A9;
    engineConfiguration->ignitionPins[2] = Gpio::A8;
    engineConfiguration->ignitionPins[3] = Gpio::A11;
    engineConfiguration->ignitionPinMode = OM_INVERTED;

    enginePins.startInjectionPins();
    enginePins.startIgnitionPins();

    for (int i = 0; i < 4; i++) {
        enginePins.injectors[i].setLow();
        enginePins.coils[i].setLow();
    }
#else
    palSetPadMode(GPIOA, 10, PAL_MODE_OUTPUT_PUSHPULL);
    palWritePad(GPIOA, 10, 1);
    palSetPadMode(GPIOA, 9, PAL_MODE_OUTPUT_PUSHPULL);
    palWritePad(GPIOA, 9, 1);
    palSetPadMode(GPIOA, 8, PAL_MODE_OUTPUT_PUSHPULL);
    palWritePad(GPIOA, 8, 1);
    palSetPadMode(GPIOA, 11, PAL_MODE_OUTPUT_PUSHPULL);
    palWritePad(GPIOA, 11, 1);

    palSetPadMode(GPIOD, 9, PAL_MODE_OUTPUT_PUSHPULL);
    palWritePad(GPIOD, 9, 0);
    palSetPadMode(GPIOD, 15, PAL_MODE_OUTPUT_PUSHPULL);
    palWritePad(GPIOD, 15, 0);
    palSetPadMode(GPIOD, 10, PAL_MODE_OUTPUT_PUSHPULL);
    palWritePad(GPIOD, 10, 0);
    palSetPadMode(GPIOD, 14, PAL_MODE_OUTPUT_PUSHPULL);
    palWritePad(GPIOD, 14, 0);
#endif
}

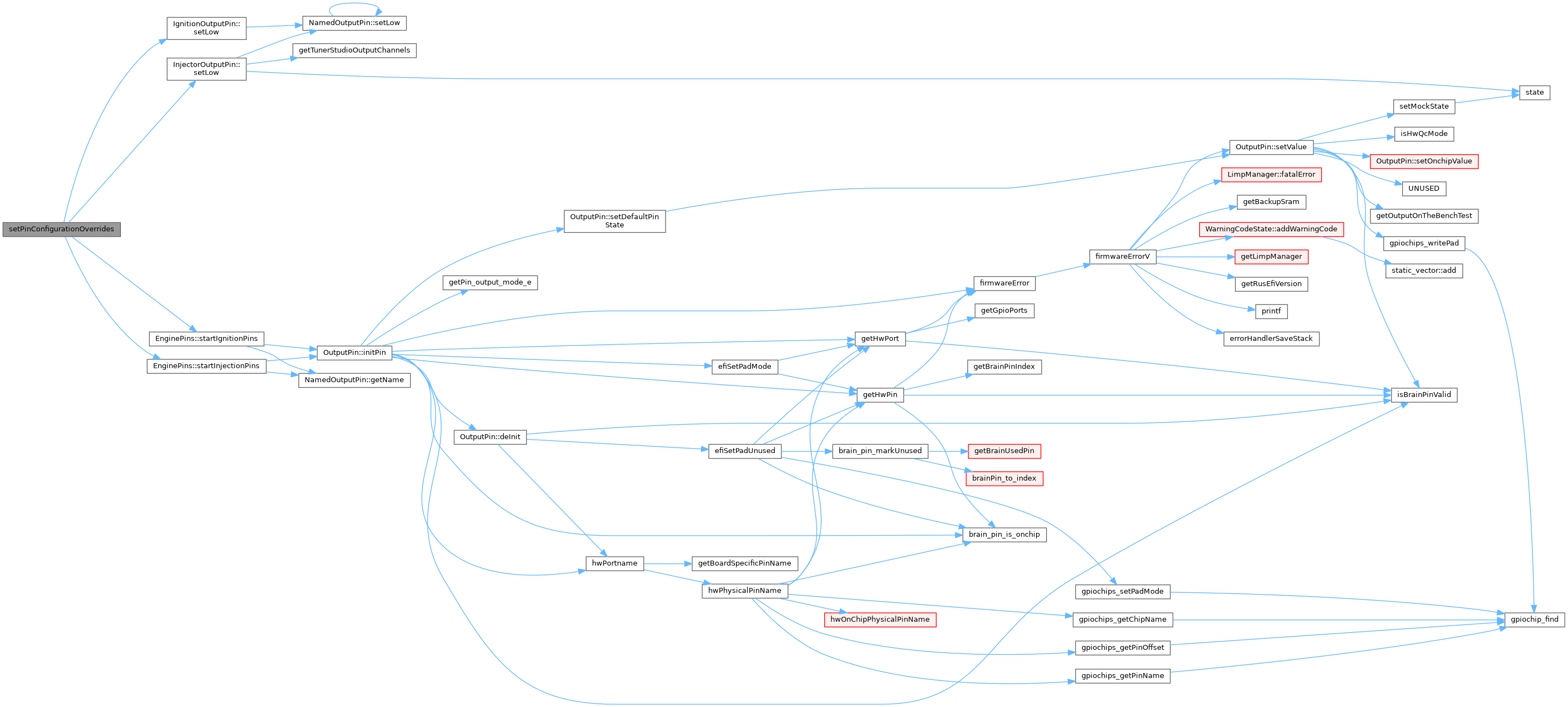

Here is the call graph for this function:

setPrometheusDefaults()

static void setPrometheusDefaults ( )

static

Definition at line 29 of file board_configuration.cpp.

                                    {
    engineConfiguration->useCicPidForIdle = true;

    engineConfiguration->cylindersCount = 4;
    engineConfiguration->firingOrder = FO_1_3_4_2;

    engineConfiguration->ignitionMode = IM_INDIVIDUAL_COILS; // IM_WASTED_SPARK
    engineConfiguration->crankingInjectionMode = IM_SIMULTANEOUS;
    engineConfiguration->injectionMode = IM_SIMULTANEOUS;//IM_BATCH;// IM_SEQUENTIAL;

    engineConfiguration->globalTriggerAngleOffset = 114;    // the end of 19th tooth?

    engineConfiguration->displacement = 1.645;
    engineConfiguration->injector.flow = 200;

    setTable(config->crankingCycleBaseFuel, 25);
    engineConfiguration->cranking.rpm = 600;

    engineConfiguration->map.sensor.type = MT_MPX4250;

    engineConfiguration->idleStepperReactionTime = 10;
    engineConfiguration->stepperDirectionPinMode = OM_INVERTED;
    engineConfiguration->useLinearCltSensor = true;

    engineConfiguration->canNbcType = CAN_BUS_MAZDA_RX8;
    engineConfiguration->canReadEnabled = true;
    engineConfiguration->canWriteEnabled = false;

    engineConfiguration->tpsMin = convertVoltageTo10bitADC(0.250);
    engineConfiguration->tpsMax = convertVoltageTo10bitADC(4.538);
    engineConfiguration->tpsErrorDetectionTooLow = -10; // -10% open
    engineConfiguration->tpsErrorDetectionTooHigh = 110; // 110% open

    engineConfiguration->mapMinBufferLength = 4;

}

Referenced by prometheus_boardDefaultConfiguration().

Here is the call graph for this function:

Here is the caller graph for this function:

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 199 of file board_configuration.cpp.

                                    {
    custom_board_DefaultConfiguration = prometheus_boardDefaultConfiguration;
}

Here is the call graph for this function:

Variable Documentation

is469

static bool is469 = true

static

Definition at line 14 of file board_configuration.cpp.

Referenced by prometheus_boardDefaultConfiguration(), and setPinConfigurationOverrides().

Go to the source code of this file.
