Functions
void	speedoUpdate ()

void	initSpeedometer ()

Variables
static SimplePwm	speedoPwm ("speedo")

static bool	hasSpeedoInit = false

Function Documentation

◆ initSpeedometer()

void initSpeedometer ( )

Definition at line 31 of file speedometer.cpp.

                       {
    hasSpeedoInit = false;

    if (!isBrainPinValid(engineConfiguration->speedometerOutputPin)) {
        return;
    }

    startSimplePwm(&speedoPwm,
                    "Speedometer",
                    &engine->scheduler,
                    &enginePins.speedoOut,
                    NAN, 0.5f);

    hasSpeedoInit = true;
}

Referenced by commonInitEngineController().

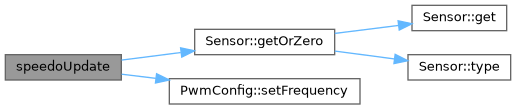

Here is the call graph for this function:

Here is the caller graph for this function:

◆ speedoUpdate()

void speedoUpdate ( )

Definition at line 15 of file speedometer.cpp.

                    {
    if (!hasSpeedoInit) {
        return;
    }

    float kph = Sensor::getOrZero(SensorType::VehicleSpeed);
    float kps = kph * (1. / 3600);
    float freq = kps * engineConfiguration->speedometerPulsePerKm;

    if (freq < 1) {
        freq = NAN;
    }

    speedoPwm.setFrequency(freq);
}
