start_stop.cpp File Reference

Functions
void	initStartStopButton ()
void	doStartCranking ()
void	startStopButtonToggle ()
static void	disengageStarterIfNeeded ()
PUBLIC_API_WEAK bool	isCrankingSuppressed ()
void	slowStartStopButtonCallback ()

Function Documentation

disengageStarterIfNeeded()

static void disengageStarterIfNeeded ( )

static

Definition at line 39 of file start_stop.cpp.

                                       {
    if (engine->rpmCalculator.isRunning()) {
        // turn starter off once engine is now running!
        bool wasStarterEngaged = enginePins.starterControl.getAndSet(0);
        if (wasStarterEngaged) {
            efiPrintf("Engine runs we can disengage the starter");
        }
    } else {
        if (engine->startStopState.startStopStateLastPush.hasElapsedSec(engineConfiguration->startCrankingDuration)) {
            bool wasStarterEngaged = enginePins.starterControl.getAndSet(0);
            if (wasStarterEngaged) {
                efiPrintf("Cranking timeout %d seconds", engineConfiguration->startCrankingDuration);
            }
        }
    }
}

Referenced by slowStartStopButtonCallback().

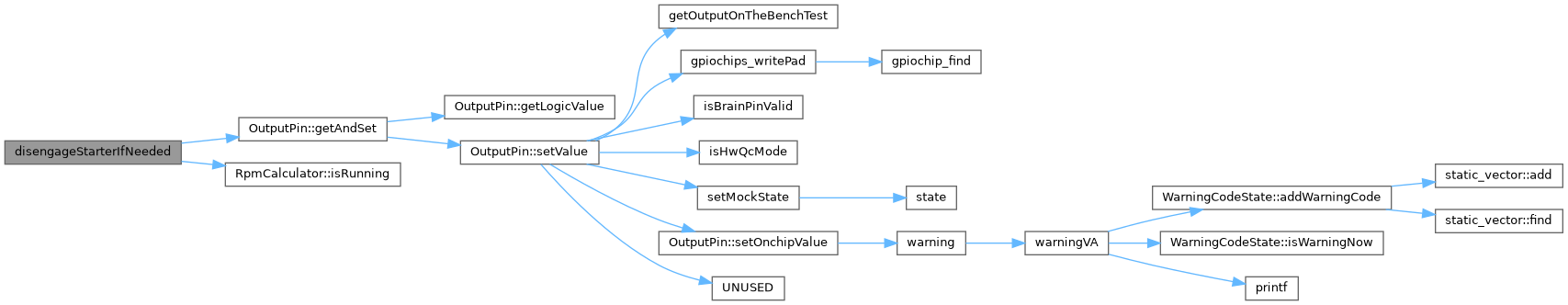

Here is the call graph for this function:

Here is the caller graph for this function:

doStartCranking()

void doStartCranking

(

)

Definition at line 19 of file start_stop.cpp.

                       {
        bool wasStarterEngaged = enginePins.starterControl.getAndSet(1);
        if (!wasStarterEngaged) {
            engine->startStopState.startStopStateLastPush.reset();
            efiPrintf("Let's crank this engine for up to %d seconds via %s!",
                    engineConfiguration->startCrankingDuration,
                    hwPortname(engineConfiguration->starterControlPin));
        }
}

Referenced by configureRusefiLuaHooks(), and startStopButtonToggle().

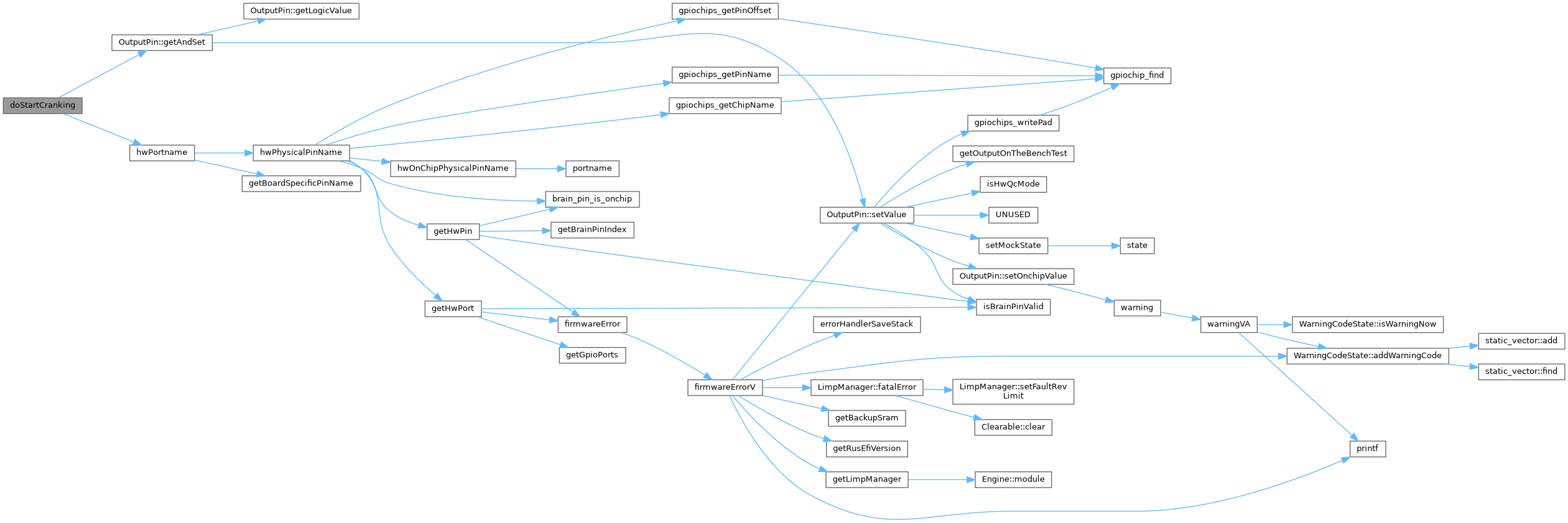

Here is the call graph for this function:

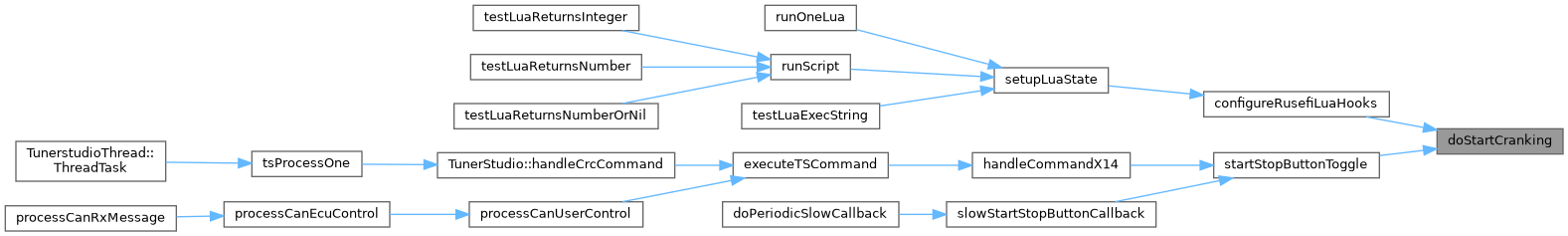

Here is the caller graph for this function:

initStartStopButton()

void initStartStopButton

(

)

See test_start_stop.cpp

Definition at line 11 of file start_stop.cpp.

                           {
    /* startCrankingDuration is efitimesec_t, so we need to multiply it by 1000 to get milliseconds*/
    engine->startStopState.startStopButtonDebounce.init((engineConfiguration->startCrankingDuration*1000),
      engineConfiguration->startStopButtonPin,
      engineConfiguration->startStopButtonMode,
      engineConfiguration->startRequestPinInverted);
}

Referenced by startHardware().

Here is the call graph for this function:

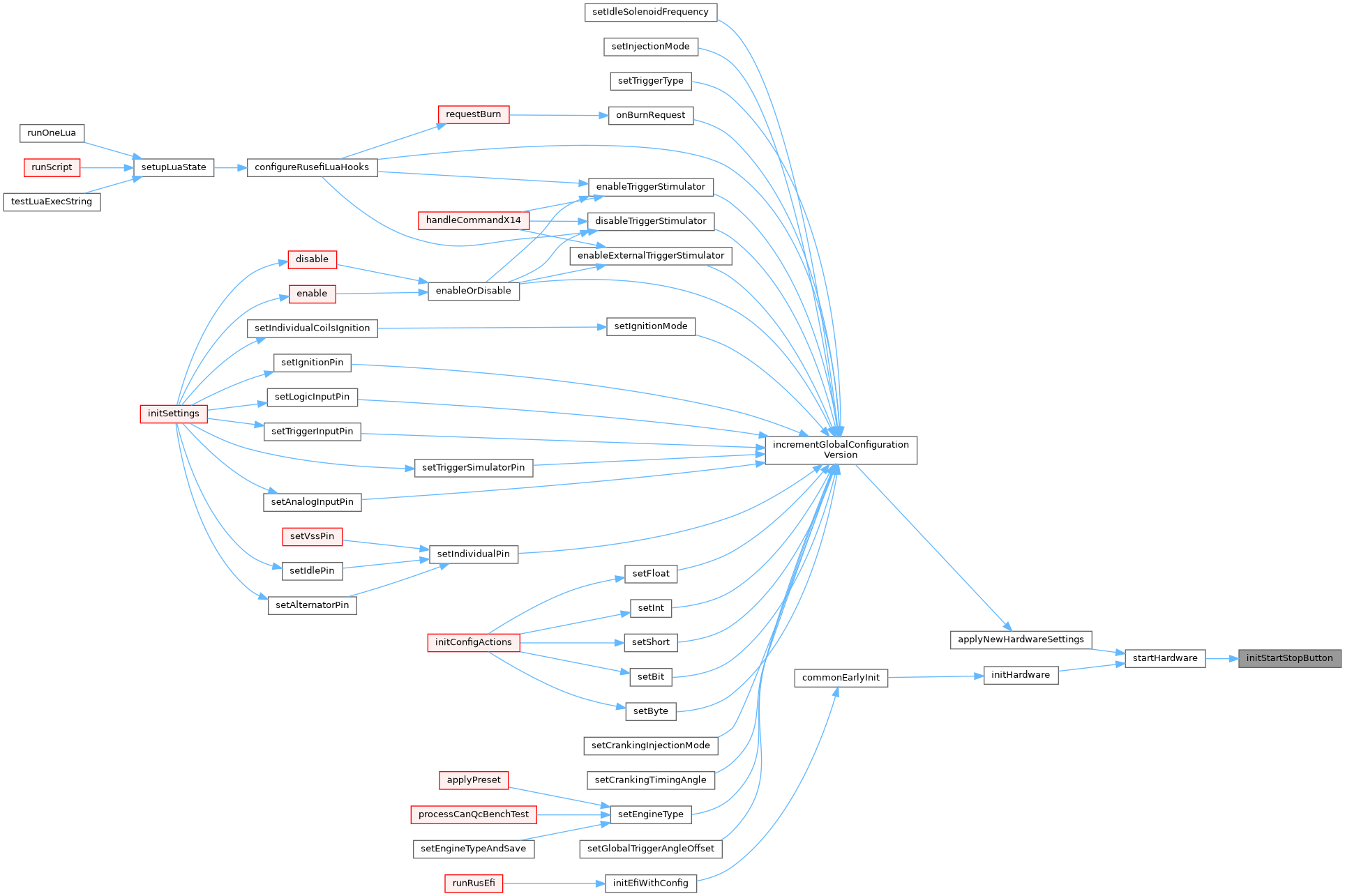

Here is the caller graph for this function:

isCrankingSuppressed()

PUBLIC_API_WEAK bool isCrankingSuppressed

(

)

Definition at line 56 of file start_stop.cpp.

                                            {
  return false;
}

Referenced by slowStartStopButtonCallback().

Here is the caller graph for this function:

slowStartStopButtonCallback()

void slowStartStopButtonCallback

(

)

Definition at line 60 of file start_stop.cpp.

                                   {
  if (!isIgnVoltage()) {
    // nothing to crank if we are powered only via USB
    engine->startStopState.timeSinceIgnitionPower.reset();
    return;
  } else if (engine->startStopState.isFirstTime) {
    // initialize when first time with proper power
    engine->startStopState.timeSinceIgnitionPower.reset();
    engine->startStopState.isFirstTime = false;
  }

    if (engine->startStopState.timeSinceIgnitionPower.getElapsedUs() < MS2US(engineConfiguration->startButtonSuppressOnStartUpMs)) {
        // where are odd cases of start button combined with ECU power source button we do not want to crank right on start
        return;
    }

  if (engine->rpmCalculator.isStopped()) {
    if (engineConfiguration->crankingCondition == CC_BRAKE && !engine->brakePedalSwitchedState) {
      return;
    }
    if (engineConfiguration->crankingCondition == CC_CLUTCH && !engine->clutchUpSwitchedState) {
      return;
    }

    if (isCrankingSuppressed()) {
      return;
    }
  }

    bool startStopState = engine->startStopState.startStopButtonDebounce.readPinEvent();

    if (startStopState && !engine->engineState.startStopState) {
        // we are here on transition from 0 to 1
        startStopButtonToggle();
    }
    // todo: we shall extract start_stop.txt from engine_state.txt
    engine->engineState.startStopState = startStopState;
    engine->engineState.startStopPhysicalState = engine->startStopState.startStopButtonDebounce.getPhysicalState();

    bool isStarterEngaged = enginePins.starterControl.getLogicValue();

    if (isStarterEngaged) {
        disengageStarterIfNeeded();
    }
}

Referenced by doPeriodicSlowCallback().

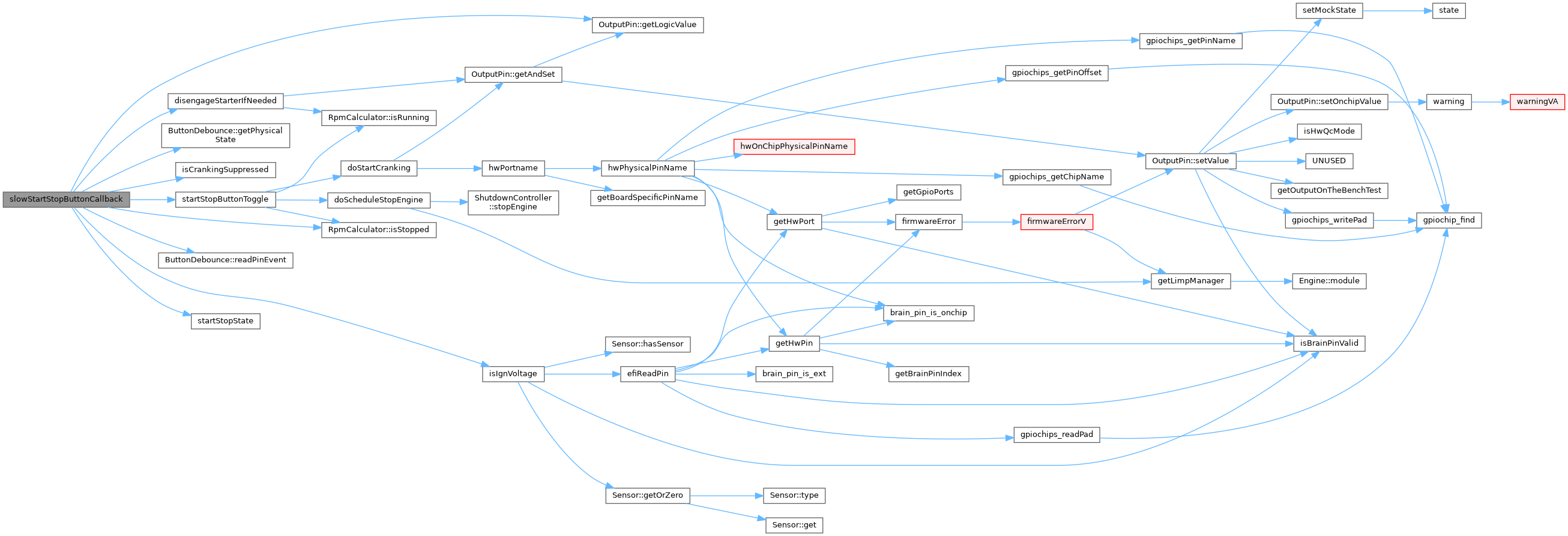

Here is the call graph for this function:

Here is the caller graph for this function:

startStopButtonToggle()

void startStopButtonToggle

(

)

Definition at line 29 of file start_stop.cpp.

                             {
    engine->engineState.startStopStateToggleCounter++;

    if (engine->rpmCalculator.isStopped()) {
      doStartCranking();
    } else if (engine->rpmCalculator.isRunning()) {
        doScheduleStopEngine(StopRequestedReason::StartButton);
    }
}

Referenced by handleCommandX14(), and slowStartStopButtonCallback().

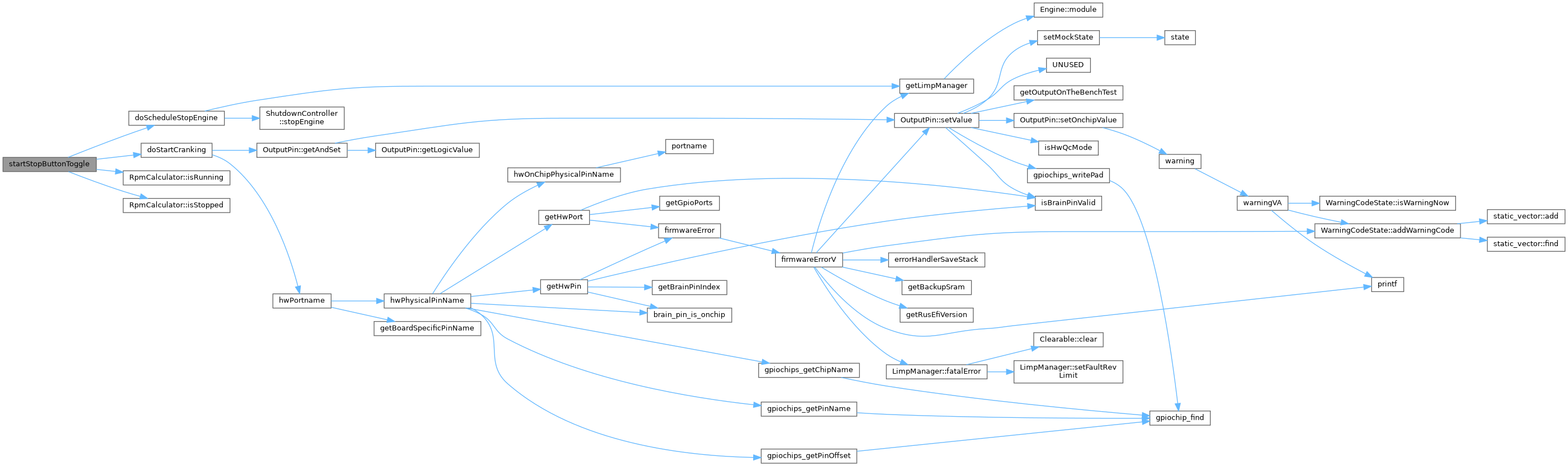

Here is the call graph for this function:

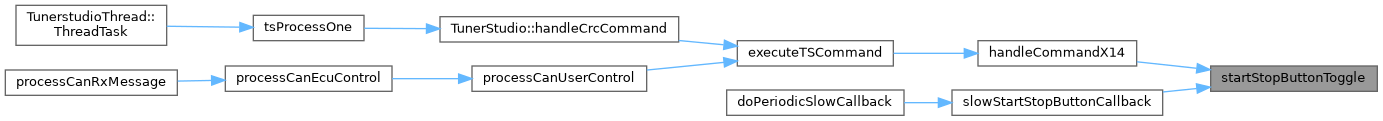

Here is the caller graph for this function:

Go to the source code of this file.
