start_stop.h File Reference

Data Structures
struct	StartStopState

Functions
void	doStartCranking ()
void	startStopButtonToggle ()
void	initStartStopButton ()

Function Documentation

doStartCranking()

void doStartCranking

(

)

Definition at line 19 of file start_stop.cpp.

                       {
        bool wasStarterEngaged = enginePins.starterControl.getAndSet(1);
        if (!wasStarterEngaged) {
            engine->startStopState.startStopStateLastPush.reset();
            efiPrintf("Let's crank this engine for up to %d seconds via %s!",
                    engineConfiguration->startCrankingDuration,
                    hwPortname(engineConfiguration->starterControlPin));
        }
}

Referenced by configureRusefiLuaHooks(), and startStopButtonToggle().

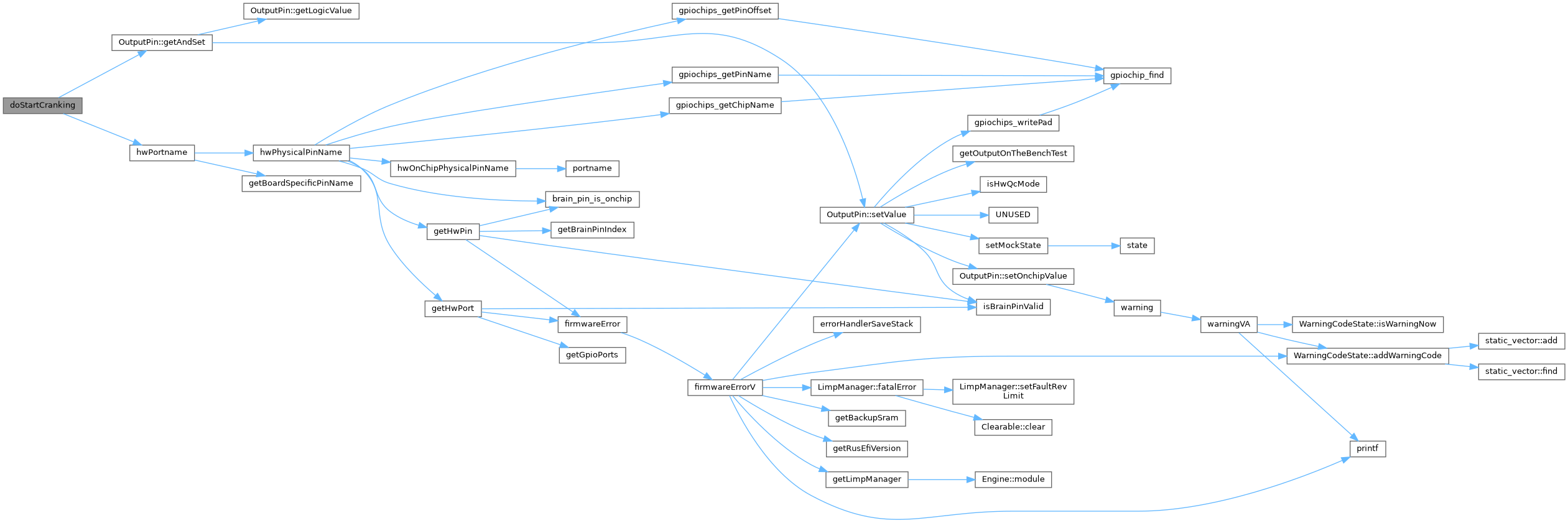

Here is the call graph for this function:

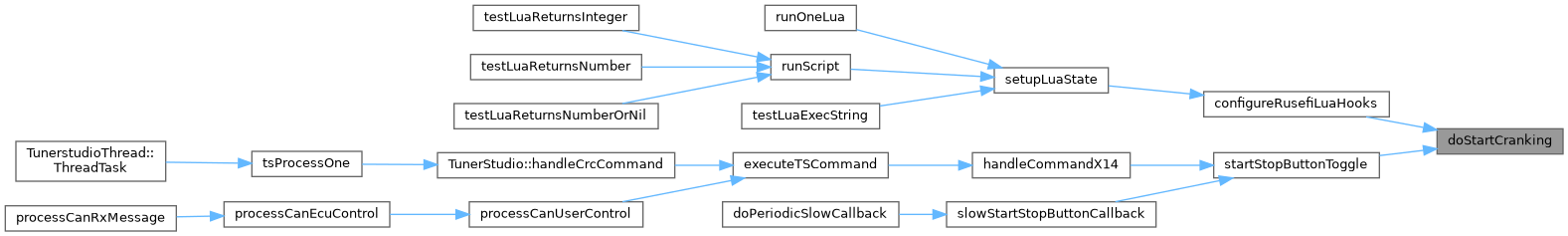

Here is the caller graph for this function:

initStartStopButton()

void initStartStopButton

(

)

See test_start_stop.cpp

Definition at line 11 of file start_stop.cpp.

                           {
    /* startCrankingDuration is efitimesec_t, so we need to multiply it by 1000 to get milliseconds*/
    engine->startStopState.startStopButtonDebounce.init((engineConfiguration->startCrankingDuration*1000),
      engineConfiguration->startStopButtonPin,
      engineConfiguration->startStopButtonMode,
      engineConfiguration->startRequestPinInverted);
}

startStopButtonToggle()

void startStopButtonToggle

(

)

Definition at line 29 of file start_stop.cpp.

                             {
    engine->engineState.startStopStateToggleCounter++;

    if (engine->rpmCalculator.isStopped()) {
      doStartCranking();
    } else if (engine->rpmCalculator.isRunning()) {
        doScheduleStopEngine(StopRequestedReason::StartButton);
    }
}

Referenced by handleCommandX14(), and slowStartStopButtonCallback().

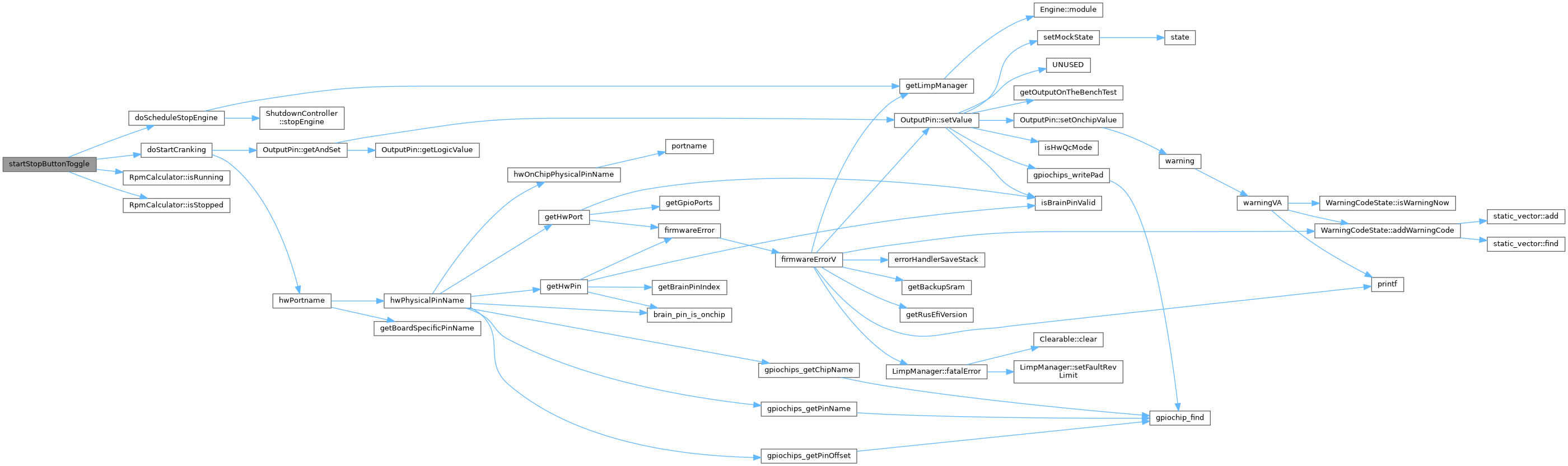

Here is the call graph for this function:

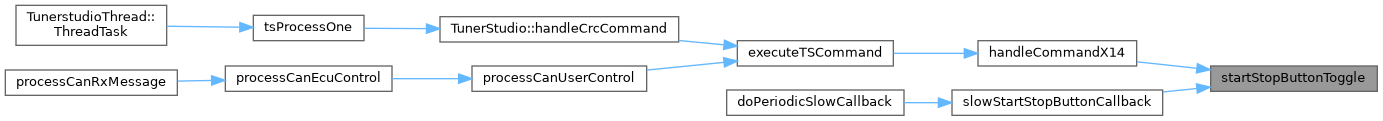

Here is the caller graph for this function:

Go to the source code of this file.
