#include <engine_configuration_generated_structures_alphax-2chan.h>

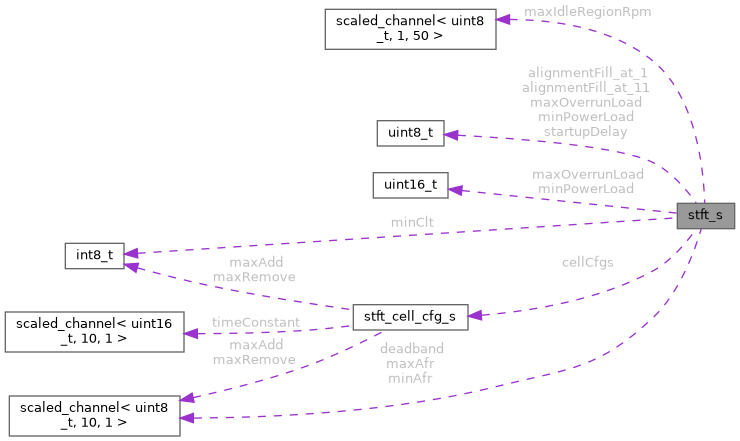

Collaboration diagram for stft_s:

[legend]

Data Fields
scaled_channel< uint8_t, 1, 50 >	maxIdleRegionRpm

uint8_t	alignmentFill_at_1 [1] = {}

uint16_t	maxOverrunLoad

uint16_t	minPowerLoad

scaled_channel< uint8_t, 10, 1 >	deadband

int8_t	minClt

scaled_channel< uint8_t, 10, 1 >	minAfr

scaled_channel< uint8_t, 10, 1 >	maxAfr

uint8_t	startupDelay

uint8_t	alignmentFill_at_11 [1] = {}

stft_cell_cfg_s	cellCfgs [STFT_CELL_COUNT] = {}

uint8_t	maxOverrunLoad

uint8_t	minPowerLoad

Detailed Description

Definition at line 32 of file engine_configuration_generated_structures_alphax-2chan.h.

Field Documentation

◆ alignmentFill_at_1

uint8_t stft_s::alignmentFill_at_1 = {}

need 4 byte alignment units: units offset 1

Definition at line 44 of file engine_configuration_generated_structures_alphax-2chan.h.

44{};

◆ alignmentFill_at_11

uint8_t stft_s::alignmentFill_at_11 = {}

need 4 byte alignment units: units offset 11

Definition at line 94 of file engine_configuration_generated_structures_alphax-2chan.h.

94{};

◆ cellCfgs

stft_cell_cfg_s stft_s::cellCfgs = {}

offset 12

offset 8

Definition at line 98 of file engine_configuration_generated_structures_alphax-2chan.h.

98{};

Referenced by ShortTermFuelTrim::init().

◆ deadband

scaled_channel< uint8_t, 10, 1 > stft_s::deadband

When close to correct AFR, pause correction. This can improve stability by not changing the adjustment if the error is extremely small, but is not required. units: % offset 6

When close to correct AFR, pause correction. This can improve stability by not changing the adjustment if the error is extremely small, but is not required. units: % offset 3

Definition at line 64 of file engine_configuration_generated_structures_alphax-2chan.h.

Referenced by getConfigValueByHash(), ShortTermFuelTrim::getCorrection(), and setConfigValueByName().

◆ maxAfr

scaled_channel< uint8_t, 10, 1 > stft_s::maxAfr

Above this AFR, correction is paused units: afr offset 9

Above this AFR, correction is paused units: afr offset 6

Definition at line 82 of file engine_configuration_generated_structures_alphax-2chan.h.

Referenced by getConfigValueByHash(), and setConfigValueByName().

◆ maxIdleRegionRpm

scaled_channel< uint8_t, 1, 50 > stft_s::maxIdleRegionRpm

Below this RPM, the idle region is active, idle+300 would be a good value units: RPM offset 0

Definition at line 38 of file engine_configuration_generated_structures_alphax-2chan.h.

Referenced by ShortTermFuelTrim::computeStftBin(), getConfigValueByHash(), and setConfigValueByName().

◆ maxOverrunLoad [1/2]

uint16_t stft_s::maxOverrunLoad

Below this engine load, the overrun region is active When tuning by MAP the units are kPa/psi, e.g. 30 would mean 30kPa. When tuning TPS, 30 would be 30% units: load offset 2

Below this engine load, the overrun region is active When tuning by MAP the units are kPa, e.g. 30 would mean 30kPa. When tuning TPS, 30 would be 30% units: load offset 2

Below this engine load, the overrun region is active units: load offset 2

Below this engine load, the overrun region is active units: load offset 1

Definition at line 51 of file engine_configuration_generated_structures_alphax-2chan.h.

Referenced by ShortTermFuelTrim::computeStftBin(), getConfigValueByHash(), and setConfigValueByName().
