toyota_jz.cpp File Reference

Functions
static void	common2jz ()
void	setToyota_2jz_vics ()

Function Documentation

common2jz()

static void common2jz ( )

static

http://thesafetyaversionsociety.com/wordpress/wp-content/uploads/2010/08/Troubleshooting-2JZ-GTE.pdf pages 44&46

Definition at line 26 of file toyota_jz.cpp.

                        {
    strcpy(engineConfiguration->engineMake, ENGINE_MAKE_TOYOTA);
    strcpy(engineConfiguration->engineCode, "2JZ");
    strcpy(engineConfiguration->vehicleName, "VVT example");

    engineConfiguration->displacement = 3.0;
    engineConfiguration->cylindersCount = 6;
    engineConfiguration->firingOrder = FO_1_5_3_6_2_4;
    // set ignition_mode 1
    engineConfiguration->ignitionMode = IM_INDIVIDUAL_COILS;

    engineConfiguration->fuelPumpPin = Gpio::Unassigned;

    // chartsize 450
    engineConfiguration->engineChartSize = 450;

    engineConfiguration->map.sensor.type = MT_CUSTOM;

    engineConfiguration->injector.flow = 430;

    /**
     * http://thesafetyaversionsociety.com/wordpress/wp-content/uploads/2010/08/Troubleshooting-2JZ-GTE.pdf
     * pages 44&46
     */
    engineConfiguration->clt.config = {-20, 40, 120.0, 15000, 1200, 200.0, 2700};
    engineConfiguration->iat.config = {-20, 40, 120.0, 15000, 1200, 200.0, 2700};

}

Referenced by setToyota_2jz_vics().

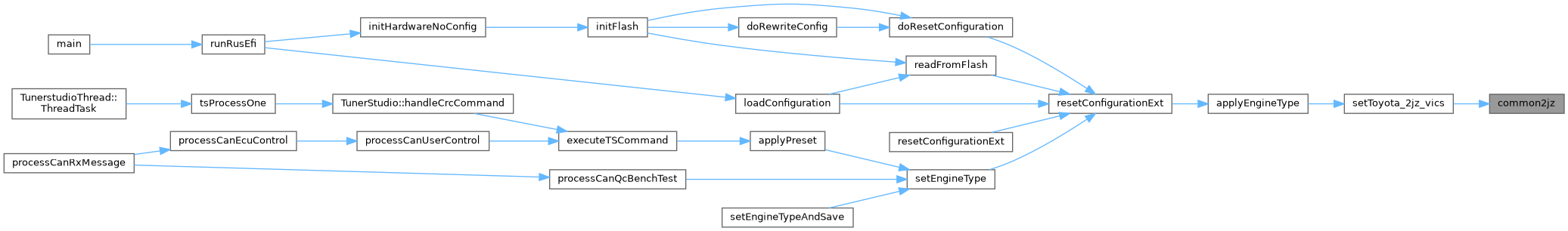

Here is the caller graph for this function:

setToyota_2jz_vics()

void setToyota_2jz_vics

(

)

TOYOTA_2JZ_GTE_VVTi set engine_type 44

Definition at line 59 of file toyota_jz.cpp.

                          {
    common2jz();

    setCrankOperationMode();
    engineConfiguration->trigger.type = trigger_type_e::TT_TOOTHED_WHEEL_36_2;

    engineConfiguration->vvtMode[0] = VVT_TOYOTA_3_TOOTH;

    // set global_trigger_offset_angle 155
    engineConfiguration->globalTriggerAngleOffset = 155; // todo

    engineConfiguration->ignitionMode = IM_WASTED_SPARK; // just for now
    engineConfiguration->injectionMode = IM_BATCH; // just for now
    engineConfiguration->twoWireBatchIgnition = true;

    // todo: these magic values would be hardcoded once we find out proper magic values!
    //  engineConfiguration->scriptSetting[4] = 175 - 45;
    //  engineConfiguration->scriptSetting[5] = 175 + 45;

}

Referenced by applyEngineType().

Here is the call graph for this function:

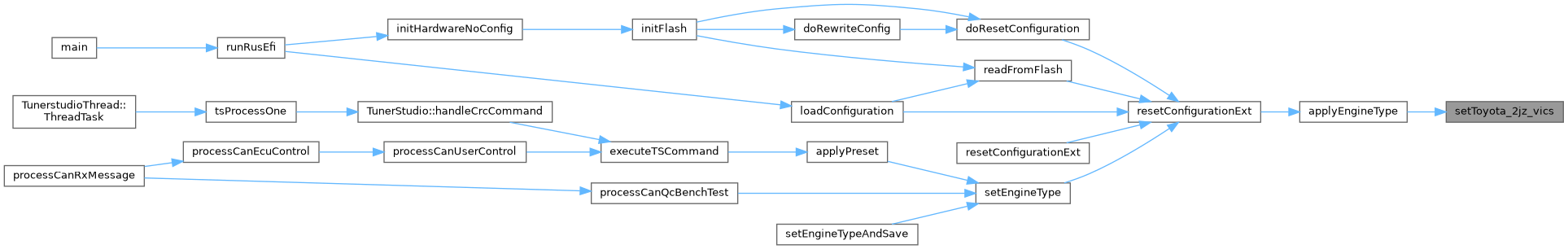

Here is the caller graph for this function:

Go to the source code of this file.
