trigger_decoder.h File Reference

Detailed Description

Date

Dec 24, 2013

Author

Andrey Belomutskiy, (c) 2012-2020

Definition in file trigger_decoder.h.

Data Structures
struct	TriggerStateListener
class	TriggerConfiguration
class	PrimaryTriggerConfiguration
class	VvtTriggerConfiguration
struct	current_cycle_state_s
struct	TriggerDecodeResult
class	TriggerDecoderBase
class	PrimaryTriggerDecoder
class	VvtTriggerDecoder

Functions
const char *	getTrigger_event_e (trigger_event_e value)
const char *	getTrigger_value_e (TriggerValue value)
angle_t	getEngineCycle (operation_mode_e operationMode)

Function Documentation

getEngineCycle()

angle_t getEngineCycle

(

operation_mode_e

operationMode

)

See also

getCycleDuration

Definition at line 15 of file trigger_universal.cpp.

                                                       {
    return operationMode == TWO_STROKE ? 360 : FOUR_STROKE_ENGINE_CYCLE;
}

Referenced by TriggerWaveform::addEventClamped(), HpfpLobe::findNextLobe(), TriggerWaveform::getLength(), initializeSkippedToothTrigger(), prepareIgnitionSchedule(), prepareOutputSignals(), Engine::reset(), rpmShaftPositionCallback(), and TriggerCentral::syncEnginePhaseAndReport().

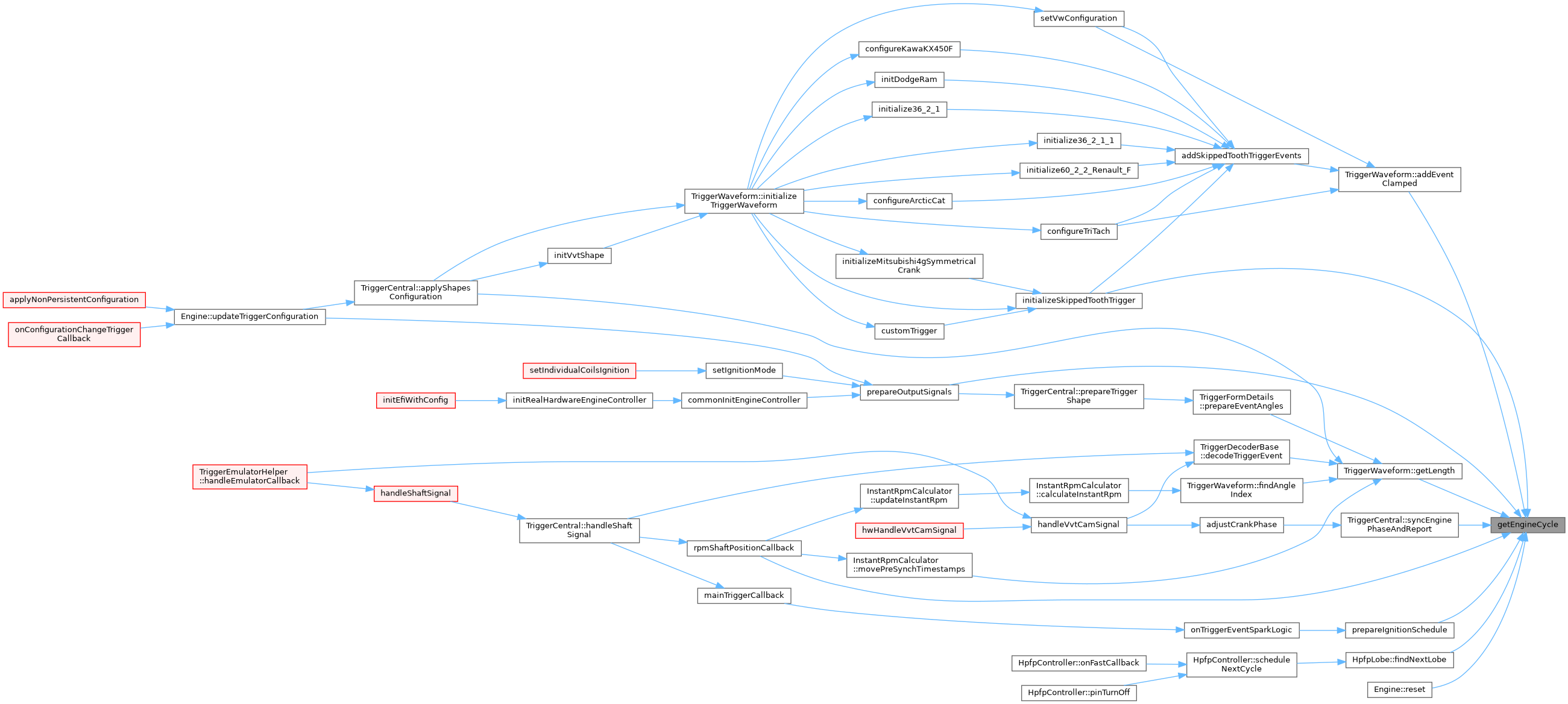

Here is the caller graph for this function:

getTrigger_event_e()

const char * getTrigger_event_e

(

trigger_event_e

value

)

Definition at line 276 of file trigger_decoder.cpp.

                                                     {
switch(value) {
case SHAFT_PRIMARY_FALLING:
  return "SHAFT_PRIMARY_FALLING";
case SHAFT_PRIMARY_RISING:
  return "SHAFT_PRIMARY_RISING";
case SHAFT_SECONDARY_FALLING:
  return "SHAFT_SECONDARY_FALLING";
case SHAFT_SECONDARY_RISING:
  return "SHAFT_SECONDARY_RISING";
  }
 return NULL;
}

Referenced by TriggerDecoderBase::decodeTriggerEvent().

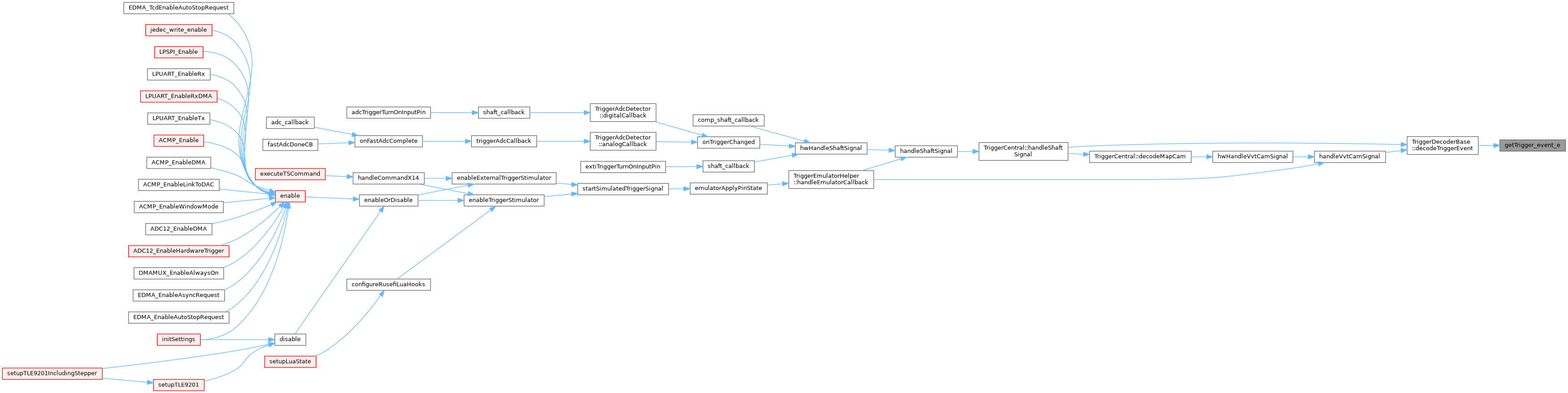

Here is the caller graph for this function:

getTrigger_value_e()

const char * getTrigger_value_e

(

TriggerValue

value

)

Definition at line 289 of file trigger_decoder.cpp.

                                                  {
switch(value) {
case TriggerValue::FALL:
  return "TriggerValue::FALL";
case TriggerValue::RISE:
  return "TriggerValue::RISE";
  }
 return NULL;
}

Referenced by TriggerWaveform::addEvent().

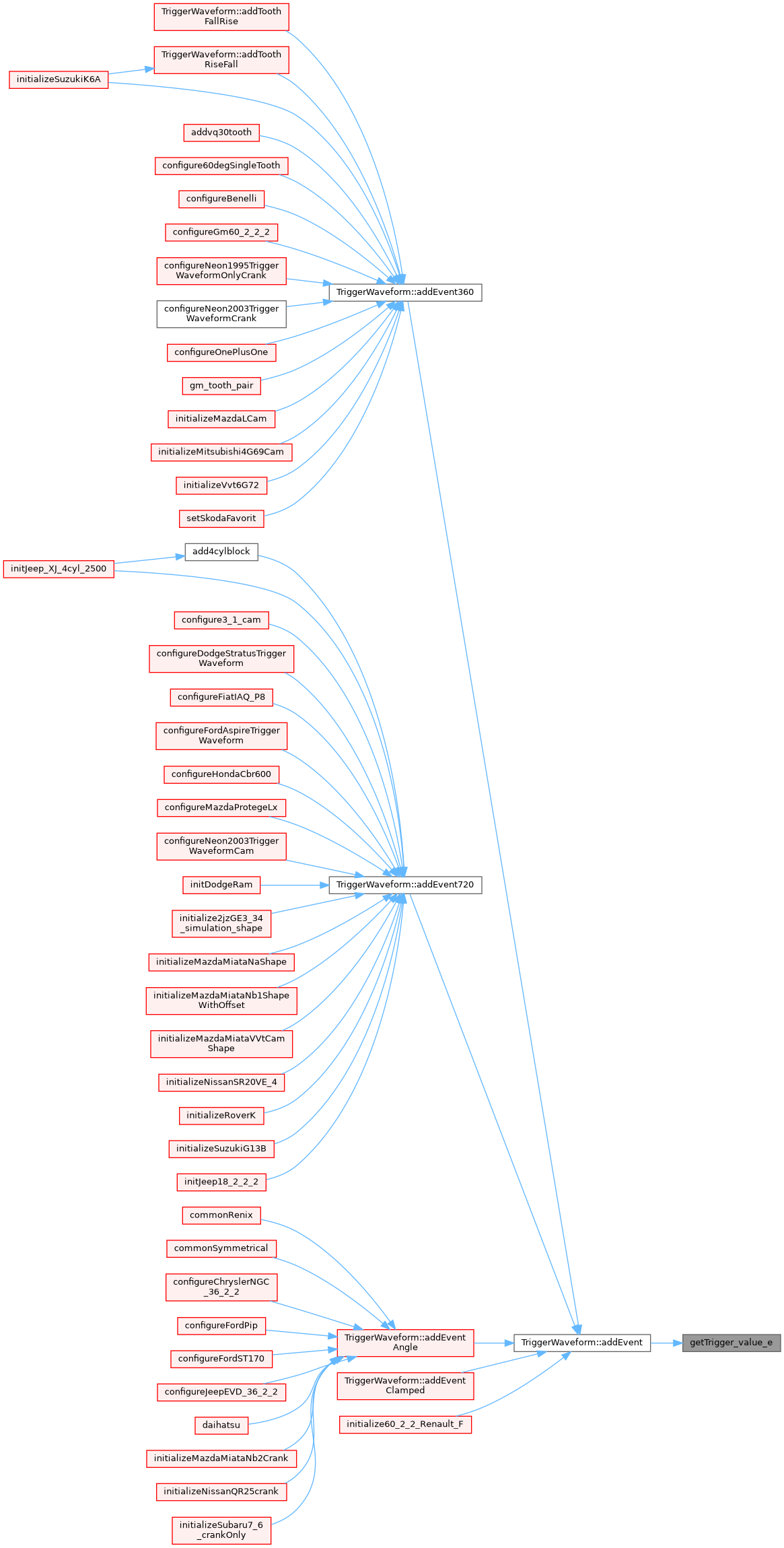

Here is the caller graph for this function:

Go to the source code of this file.
