board_configuration.cpp File Reference

Detailed Description

Configuration defaults for the hellen121vag board.

See https://rusefi.com/s/hellen121vag

Author

andreika prome.nosp@m.theu.nosp@m.s.pcb.nosp@m.@gma.nosp@m.il.co.nosp@m.m

Andrey Belomutskiy, (c) 2012-2020

Definition in file board_configuration.cpp.

Functions
static void	setInjectorPins ()
static void	setIgnitionPins ()
static void	setupDefaultSensorInputs ()
static void	hellen121_vag_boardConfigOverrides ()
static void	hellen121_vag_boardDefaultConfiguration ()
	Board-specific configuration defaults.
int	getBoardMetaDcOutputsCount ()
void	setup_custom_board_overrides ()

Function Documentation

getBoardMetaDcOutputsCount()

int getBoardMetaDcOutputsCount

(

)

Definition at line 130 of file board_configuration.cpp.

                                 {
    return 1;
}

hellen121_vag_boardConfigOverrides()

static void hellen121_vag_boardConfigOverrides ( )

static

Definition at line 64 of file board_configuration.cpp.

                                                 {
    setHellenVbatt();

    setHellenSdCardSpi3();

    setDefaultHellenAtPullUps();

    setHellenCan();
}

Referenced by setup_custom_board_overrides().

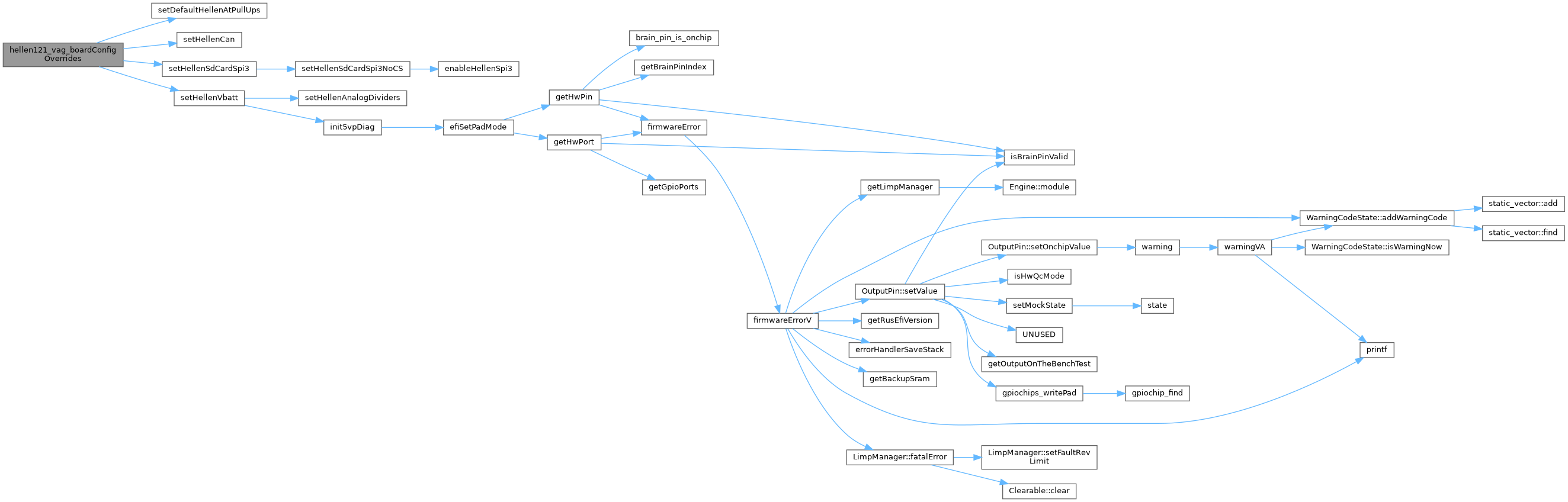

Here is the call graph for this function:

Here is the caller graph for this function:

hellen121_vag_boardDefaultConfiguration()

static void hellen121_vag_boardDefaultConfiguration ( )

static

Board-specific configuration defaults.

Definition at line 81 of file board_configuration.cpp.

                                                      {
    setInjectorPins();
    setIgnitionPins();

    engineConfiguration->etbIo[0].directionPin1 = Gpio::C6; // out_pwm2
    engineConfiguration->etbIo[0].directionPin2 = Gpio::C7; // out_pwm3
    engineConfiguration->etbIo[0].controlPin = Gpio::A8; // ETB_EN out_io12
    engineConfiguration->etb_use_two_wires = true;

#ifndef EFI_BOOTLOADER
    setBoschVAGETB();
#endif

    engineConfiguration->globalTriggerAngleOffset = 93;

    engineConfiguration->boostCutPressure = 200;

    engineConfiguration->vvtMode[0] = VVT_BOSCH_QUICK_START;
    engineConfiguration->map.sensor.type = MT_BOSCH_2_5;

    engineConfiguration->enableSoftwareKnock = true;

    engineConfiguration->fuelPumpPin = Gpio::MM176_GP13;
    engineConfiguration->malfunctionIndicatorPin = Gpio::G4; // 47 - CEL
    engineConfiguration->tachOutputPin = Gpio::H144_OUT_PWM7;

// earlier revisions?   engineConfiguration->idle.solenoidPin = Gpio::D14;  // OUT_PWM5
    engineConfiguration->idle.solenoidPin = Gpio::H144_OUT_IO4;

    engineConfiguration->fanPin = Gpio::H144_OUT_PWM8;
    engineConfiguration->mainRelayPin = Gpio::MM176_OUT_PWM17;

//  engineConfiguration->injectorCompensationMode
    engineConfiguration->fuelReferencePressure = 300;

    // "required" hardware is done - set some reasonable defaults
    setupDefaultSensorInputs();

    strcpy(engineConfiguration->engineMake, ENGINE_MAKE_VAG);
    strcpy(engineConfiguration->engineCode, "base");

    engineConfiguration->cylindersCount = 4;
    engineConfiguration->firingOrder = FO_1_3_4_2;

    engineConfiguration->ignitionMode = IM_INDIVIDUAL_COILS; // IM_WASTED_SPARK

    engineConfiguration->vrThreshold[0].pin = Gpio::H144_OUT_PWM6;
}

Referenced by setup_custom_board_overrides().

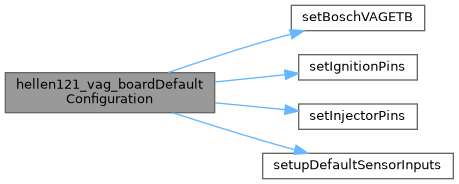

Here is the call graph for this function:

Here is the caller graph for this function:

setIgnitionPins()

static void setIgnitionPins ( )

static

Definition at line 29 of file board_configuration.cpp.

                              {
    engineConfiguration->ignitionPins[0] = H176_IGN_1; // 102 - IGN_1
    engineConfiguration->ignitionPins[1] = Gpio::E5 ; // 7 - IGN_2
    engineConfiguration->ignitionPins[2] = Gpio::E4; // 111 - IGN_3
    engineConfiguration->ignitionPins[3] = Gpio::E3; // 94 - IGN_4
}

setInjectorPins()

static void setInjectorPins ( )

static

Definition at line 22 of file board_configuration.cpp.

                              {
    engineConfiguration->injectionPins[0] = H176_LS_1; // 96 - INJ_1
    engineConfiguration->injectionPins[1] = H176_LS_2;
    engineConfiguration->injectionPins[2] = H176_LS_3; // 97 - INJ_3
    engineConfiguration->injectionPins[3] = H176_LS_4;
}

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 134 of file board_configuration.cpp.

                                    {
    custom_board_DefaultConfiguration = hellen121_vag_boardDefaultConfiguration;
    custom_board_ConfigOverrides = hellen121_vag_boardConfigOverrides;
}

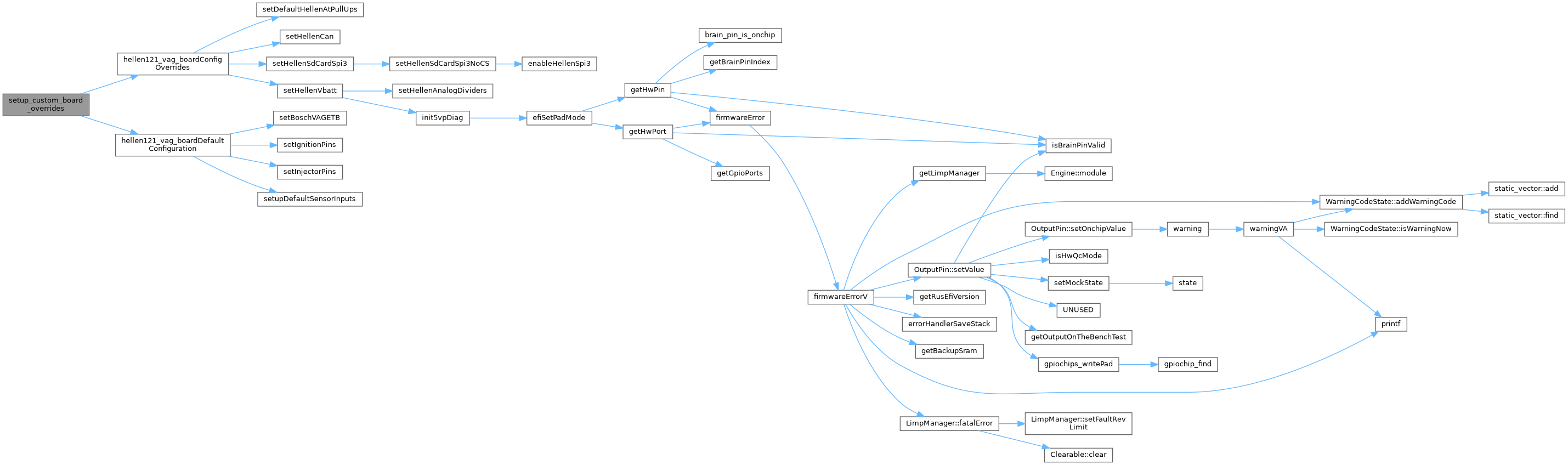

Here is the call graph for this function:

setupDefaultSensorInputs()

static void setupDefaultSensorInputs ( )

static

Definition at line 36 of file board_configuration.cpp.

                                       {
    // trigger inputs
    engineConfiguration->triggerInputPins[0] = Gpio::B1; // 82 - VR
    engineConfiguration->triggerInputPins[1] = Gpio::Unassigned;
    // Direct hall-only cam input
    engineConfiguration->camInputs[0] = Gpio::A6; // 86 - CAM1

    // 92 - TPS 1
    setTPS1Inputs(H144_IN_TPS, H144_IN_AUX1_ANALOG);

    // 34 In PPS1
    // 35 In PPS2
    setPPSInputs(H144_IN_PPS, H144_IN_AUX2_ANALOG);

    setPPSCalibration(0.4, 2, 0.7, 4.1);

    engineConfiguration->mafAdcChannel = EFI_ADC_10;
    engineConfiguration->map.sensor.hwChannel = EFI_ADC_11;

    engineConfiguration->afr.hwChannel = EFI_ADC_1;

    engineConfiguration->clt.adcChannel = H144_IN_CLT;

    engineConfiguration->iat.adcChannel = H144_IN_IAT;
}

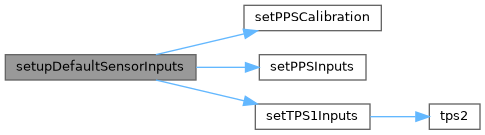

Here is the call graph for this function:
