board_configuration.cpp File Reference

Detailed Description

Configuration defaults for the hellen-na8-96 board.

See http://rusefi.com/s/hellenNB1

Author

andreika prome.nosp@m.theu.nosp@m.s.pcb.nosp@m.@gma.nosp@m.il.co.nosp@m.m

Andrey Belomutskiy, (c) 2012-2020

Definition in file board_configuration.cpp.

Functions
static void	setInjectorPins ()
static void	setIgnitionPins ()
static void	setupDefaultSensorInputs ()
static void	hellen_MiataNA96_boardConfigOverrides ()
static void	hellen_MiataNA96_boardDefaultConfiguration ()
	Board-specific configuration defaults.
void	setup_custom_board_overrides ()

Function Documentation

hellen_MiataNA96_boardConfigOverrides()

static void hellen_MiataNA96_boardConfigOverrides ( )

static

Definition at line 56 of file board_configuration.cpp.

                                                    {
    setHellenVbatt();

    setHellenSdCardSpi2();

    setDefaultHellenAtPullUps();

    setHellenCan();

    engineConfiguration->etb_use_two_wires = true;
    engineConfiguration->etbIo[0].directionPin1 = Gpio::C7; // PWM 3
    engineConfiguration->etbIo[0].directionPin2 = Gpio::C8; // PWM 4
    engineConfiguration->etbIo[0].controlPin = Gpio::C6;        // PWM 2
}

Referenced by setup_custom_board_overrides().

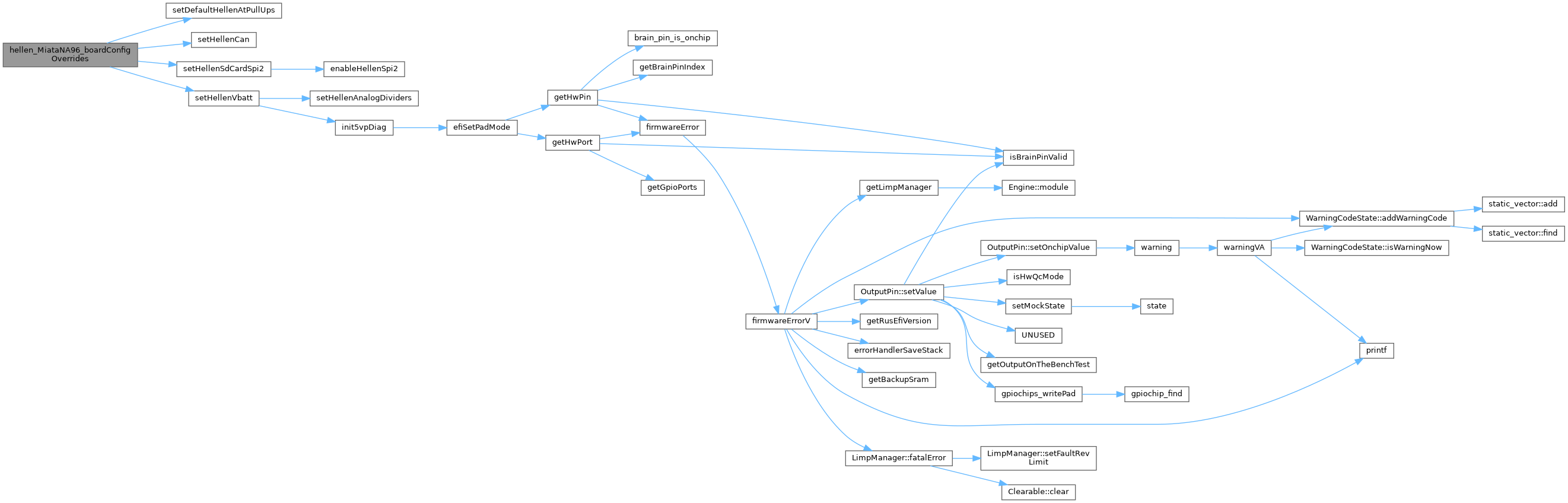

Here is the call graph for this function:

Here is the caller graph for this function:

hellen_MiataNA96_boardDefaultConfiguration()

static void hellen_MiataNA96_boardDefaultConfiguration ( )

static

Board-specific configuration defaults.

See also setDefaultEngineConfiguration

Definition at line 78 of file board_configuration.cpp.

                                                         {
    setInjectorPins();
    setIgnitionPins();

    engineConfiguration->enableSoftwareKnock = true;

    engineConfiguration->boostControlPin = Gpio::H144_LS_6;
    engineConfiguration->acSwitch = Gpio::H144_ORIGINAL_MCU_IN_D_AUX3;
    engineConfiguration->acRelayPin = Gpio::H144_OUT_IO6;
    engineConfiguration->fuelPumpPin = Gpio::G2;    // OUT_IO9
    engineConfiguration->idle.solenoidPin = Gpio::D14;  // OUT_PWM5
    engineConfiguration->fanPin = Gpio::D12;    // OUT_PWM8
    engineConfiguration->tachOutputPin = Gpio::H144_OUT_PWM1;
    engineConfiguration->fan2Pin = Gpio::H144_OUT_IO2;

    // "required" hardware is done - set some reasonable defaults
    setupDefaultSensorInputs();

    engineConfiguration->cylindersCount = 4;
    engineConfiguration->firingOrder = FO_1_3_4_2;

    engineConfiguration->ignitionMode = IM_INDIVIDUAL_COILS; // IM_WASTED_SPARK



    engineConfiguration->clutchDownPin = Gpio::H144_IN_D_2;
    engineConfiguration->clutchDownPinMode = PI_PULLDOWN;
    engineConfiguration->launchActivationMode = CLUTCH_INPUT_LAUNCH;
// ?    engineConfiguration->malfunctionIndicatorPin = Gpio::G4; //1E - Check Engine Light
}

Referenced by setup_custom_board_overrides().

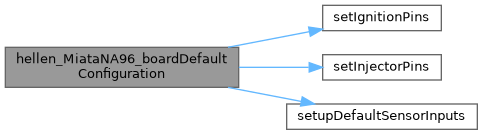

Here is the call graph for this function:

Here is the caller graph for this function:

setIgnitionPins()

static void setIgnitionPins ( )

static

Definition at line 29 of file board_configuration.cpp.

                              {
    engineConfiguration->ignitionPins[0] = Gpio::H144_IGN_1;
    engineConfiguration->ignitionPins[1] = Gpio::Unassigned;
    engineConfiguration->ignitionPins[2] = Gpio::H144_IGN_2;
    engineConfiguration->ignitionPins[3] = Gpio::Unassigned;
}

setInjectorPins()

static void setInjectorPins ( )

static

Definition at line 17 of file board_configuration.cpp.

                              {
    engineConfiguration->injectionPins[0] = Gpio::H144_LS_1;
    engineConfiguration->injectionPins[1] = Gpio::H144_LS_2;
    engineConfiguration->injectionPins[2] = Gpio::H144_LS_3;
    engineConfiguration->injectionPins[3] = Gpio::H144_LS_4;

    engineConfiguration->clutchDownPin = Gpio::C4; // Clutch switch input
    engineConfiguration->clutchDownPinMode = PI_PULLDOWN;
    engineConfiguration->launchActivationMode = CLUTCH_INPUT_LAUNCH;
    engineConfiguration->malfunctionIndicatorPin = Gpio::H144_OUT_IO8;
}

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 109 of file board_configuration.cpp.

                                    {
    custom_board_DefaultConfiguration = hellen_MiataNA96_boardDefaultConfiguration;
    custom_board_ConfigOverrides =  hellen_MiataNA96_boardConfigOverrides;
}

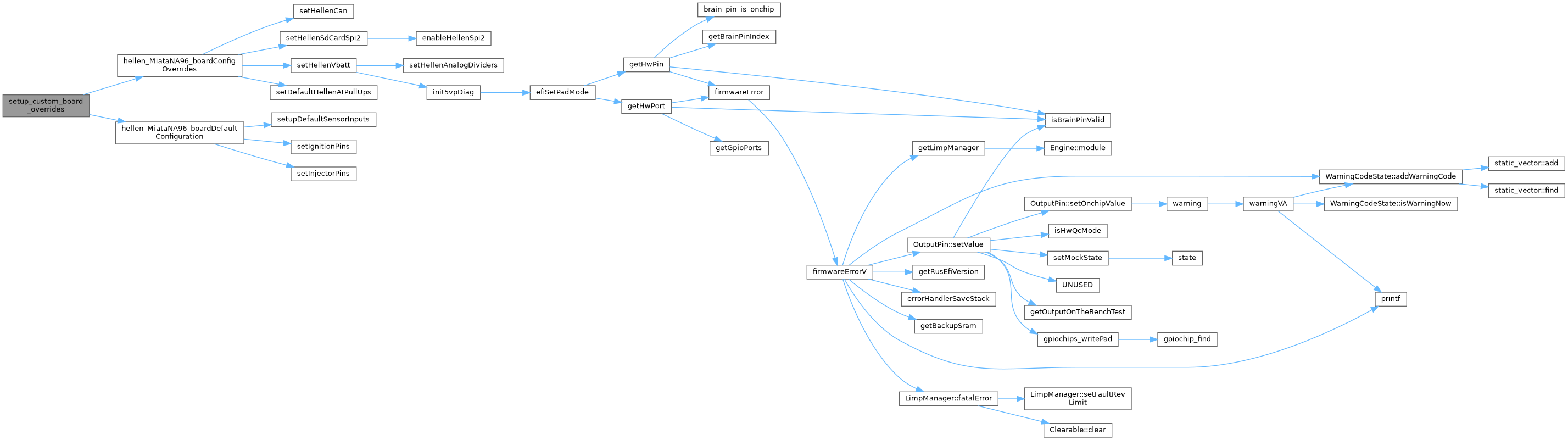

Here is the call graph for this function:

setupDefaultSensorInputs()

static void setupDefaultSensorInputs ( )

static

Definition at line 36 of file board_configuration.cpp.

                                       {
    // trigger inputs, hall
    engineConfiguration->triggerInputPins[0] = Gpio::H144_IN_CAM;
    engineConfiguration->triggerInputPins[1] = Gpio::H144_IN_CRANK;
    engineConfiguration->camInputs[0] = Gpio::Unassigned;

    engineConfiguration->tps1_1AdcChannel = H144_IN_TPS;

    engineConfiguration->mafAdcChannel = EFI_ADC_10;
    engineConfiguration->map.sensor.hwChannel = H144_IN_MAP3;

    engineConfiguration->afr.hwChannel = EFI_ADC_1;

    engineConfiguration->clt.adcChannel = H144_IN_CLT;

    engineConfiguration->iat.adcChannel = H144_IN_IAT;
}

Go to the source code of this file.
