init_maf.cpp File Reference

Typedefs
using	BinType = std::remove_extent_t< decltype(config->mafDecodingBins)>
using	ValueType = std::remove_extent_t< decltype(config->mafDecoding)>

Functions
static TableFunc	mafCurve (config->mafDecodingBins, config->mafDecoding)
static void	initMaf (adc_channel_e channel, FunctionalSensor &m)
void	initMaf ()

Variables
static FunctionalSensor	maf (SensorType::Maf, MS2NT(50))
static FunctionalSensor	maf2 (SensorType::Maf2, MS2NT(50))
static FuncChain< MafVoltageCheck, MafTable, MafFilter >	mafFunction

Typedef Documentation

BinType

using BinType = std::remove_extent_t<decltype(config->mafDecodingBins)>

Definition at line 29 of file init_maf.cpp.

ValueType

using ValueType = std::remove_extent_t<decltype(config->mafDecoding)>

Definition at line 30 of file init_maf.cpp.

Function Documentation

initMaf() [1/2]

void initMaf

(

)

Definition at line 92 of file init_maf.cpp.

               {
    initMaf(engineConfiguration->mafAdcChannel, maf);
    initMaf(engineConfiguration->maf2AdcChannel, maf2);
}

Referenced by initMaf(), and initNewSensors().

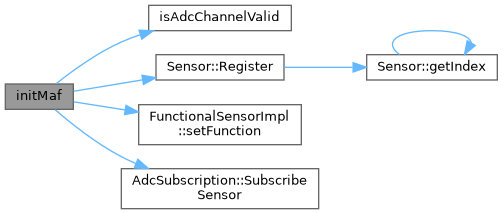

Here is the call graph for this function:

Here is the caller graph for this function:

initMaf() [2/2]

static void initMaf ( adc_channel_e  channel, FunctionalSensor &  m  )

static

Definition at line 81 of file init_maf.cpp.

                                                                {
    if (!isAdcChannelValid(channel)) {
        return;
    }

    m.setFunction(mafFunction);

    AdcSubscription::SubscribeSensor(m, channel, /*lowpassCutoff =*/ 50);
    m.Register();
}

Here is the call graph for this function:

mafCurve()

static TableFunc mafCurve ( config->  mafDecodingBins, config->  mafDecoding  )

static

Variable Documentation

maf

FunctionalSensor maf(SensorType::Maf, MS2NT(50)) ( SensorType::Maf  , MS2NT(50)    )

static

Referenced by MafAirmass::getAirmass(), MafAirmass::getMaf(), and initMaf().

maf2

FunctionalSensor maf2(SensorType::Maf2, MS2NT(50)) ( SensorType::Maf2  , MS2NT(50)    )

static

Referenced by MafAirmass::getMaf(), and initMaf().

mafFunction

FuncChain<MafVoltageCheck, MafTable, MafFilter> mafFunction

static

Definition at line 79 of file init_maf.cpp.

Referenced by initMaf().

Go to the source code of this file.
