board_configuration.cpp File Reference

Functions
Gpio	getWarningLedPin ()
Gpio	getRunningLedPin ()
Gpio	getCommsLedPin ()
static void	setSerialConfigurationOverrides ()
static void	kinetis_boardConfigOverrides ()
void	setAdcChannelOverrides ()
void	longjmp (jmp_buf, int)
int	setjmp (jmp_buf)
void	setup_custom_board_overrides ()

Variables
char	__debugBuffer [80]
int	__debugEnabled = 0

Function Documentation

getCommsLedPin()

Gpio getCommsLedPin

(

)

Definition at line 27 of file board_configuration.cpp.

                      {
    // this board has no comms led
    return Gpio::Unassigned;
}

getRunningLedPin()

Gpio getRunningLedPin

(

)

Definition at line 23 of file board_configuration.cpp.

                        {
    return Gpio::Unassigned;
}

getWarningLedPin()

Gpio getWarningLedPin

(

)

Definition at line 18 of file board_configuration.cpp.

                        {
    // this board has no warning led
    return Gpio::Unassigned;
}

kinetis_boardConfigOverrides()

static void kinetis_boardConfigOverrides ( )

static

Definition at line 41 of file board_configuration.cpp.

                                           {
    engineConfiguration->useNoiselessTriggerDecoder = true;

    setAlgorithm(engine_load_mode_e::LM_SPEED_DENSITY);

    engineConfiguration->cylindersCount = 4;
    engineConfiguration->firingOrder = FO_1_3_4_2;

    engineConfiguration->ignitionMode = IM_WASTED_SPARK;
    engineConfiguration->crankingInjectionMode = IM_SIMULTANEOUS;
    engineConfiguration->injectionMode = IM_SIMULTANEOUS;

    engineConfiguration->globalTriggerAngleOffset = 114;    // the end of 19th tooth?

    engineConfiguration->displacement = 1.645;
    engineConfiguration->injector.flow = 200;

    setTable(config->crankingCycleBaseFuel, 25);        // ???
    engineConfiguration->cranking.rpm = 600;

    engineConfiguration->map.sensor.type = MT_MPX4250A;

    engineConfiguration->idleStepperReactionTime = 10;
    engineConfiguration->stepperDirectionPinMode = OM_INVERTED;

    engineConfiguration->useLinearCltSensor = true;
    // todo:
    engineConfiguration->clt.config.resistance_1 = 0;
    engineConfiguration->clt.config.tempC_1 = -40.0f;
    engineConfiguration->clt.config.resistance_2 = 5.0f;
    engineConfiguration->clt.config.tempC_2 = 120.0f,
    engineConfiguration->clt.config.bias_resistor = 3300;

    engineConfiguration->tpsMin = convertVoltageTo10bitADC(0.250);
    engineConfiguration->tpsMax = convertVoltageTo10bitADC(4.538);
    engineConfiguration->tpsErrorDetectionTooLow = -10; // -10% open
    engineConfiguration->tpsErrorDetectionTooHigh = 110; // 110% open

    engineConfiguration->mapMinBufferLength = 4;

    engineConfiguration->clt.adcChannel = EFI_ADC_14;

    engineConfiguration->triggerInputPins[0] = Gpio::E7;
    engineConfiguration->triggerInputPins[1] = Gpio::Unassigned;

    engineConfiguration->tle6240spiDevice = SPI_DEVICE_1;
    engineConfiguration->tle6240_cs = Gpio::B0;

    // todo:
    int i;
    for (i = 0; i < MAX_CYLINDER_COUNT; i++)
        engineConfiguration->injectionPins[i] = Gpio::Unassigned;
    for (i = 0; i < MAX_CYLINDER_COUNT; i++)
        engineConfiguration->ignitionPins[i] = Gpio::Unassigned;

    engineConfiguration->adcVcc = 5.0f;
    engineConfiguration->analogInputDividerCoefficient = 1;

    //engineConfiguration->isFastAdcEnabled = false;

    // we call it here because setDefaultBoardConfiguration() is not called for DEFAULT_ENGINE_TYPE=MINIMAL_PINS
    setSerialConfigurationOverrides();
}

Referenced by setup_custom_board_overrides().

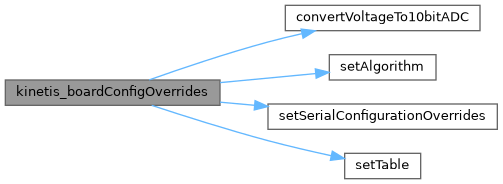

Here is the call graph for this function:

Here is the caller graph for this function:

longjmp()

void longjmp	(	jmp_buf	,
		int
	)

Definition at line 117 of file board_configuration.cpp.

                               {
    // noop, but noreturn
    while (1) { }
}

Referenced by onAssertionFailure().

Here is the caller graph for this function:

setAdcChannelOverrides()

void setAdcChannelOverrides

(

void

)

Definition at line 105 of file board_configuration.cpp.

                              {
    // on Kinetis, ADC_FAST & SLOW are not really "fast" or "slow",
    // they are just different ADC numbers with different sets of channels
    removeChannel("VBatt", engineConfiguration->vbattAdcChannel);
    addFastAdcChannel("VBatt", engineConfiguration->vbattAdcChannel);

    removeChannel("TPS", engineConfiguration->tps1_1AdcChannel);
    addFastAdcChannel("TPS", engineConfiguration->tps1_1AdcChannel);
}

Here is the call graph for this function:

setjmp()

int setjmp

(

jmp_buf

)

Definition at line 122 of file board_configuration.cpp.

                      {
    // Fake return 0, not implemented
    return 0;
}

Referenced by initEfiWithConfig().

Here is the caller graph for this function:

setSerialConfigurationOverrides()

static void setSerialConfigurationOverrides ( )

static

Definition at line 32 of file board_configuration.cpp.

                                              {
    engineConfiguration->binarySerialTxPin = Gpio::C7;
    engineConfiguration->binarySerialRxPin = Gpio::C6;
//  engineConfiguration->consoleSerialTxPin = Gpio::A10;
//  engineConfiguration->consoleSerialRxPin = Gpio::A11;
    engineConfiguration->tunerStudioSerialSpeed = SERIAL_SPEED;
    engineConfiguration->uartConsoleSerialSpeed = SERIAL_SPEED;
}

Referenced by kinetis_boardConfigOverrides(), and subaru_eg33_boardDefaultConfiguration().

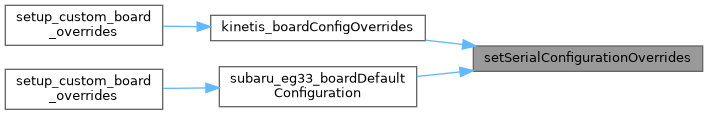

Here is the caller graph for this function:

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 127 of file board_configuration.cpp.

                                    {
    custom_board_ConfigOverrides =  kinetis_boardConfigOverrides;
}

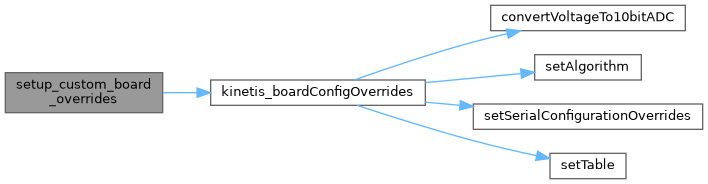

Here is the call graph for this function:

Variable Documentation

__debugBuffer

char __debugBuffer[80]

Definition at line 14 of file board_configuration.cpp.

__debugEnabled

int __debugEnabled = 0

Definition at line 15 of file board_configuration.cpp.
