mazda_miata_vvt.cpp File Reference

Functions
static void	setMAFTransferFunction ()
static void	setMazdaMiataNbInjectorLag ()
static void	setCommonMazdaNB ()
static void	setMazdaMiataEngineNB2Defaults ()
void	setMiataNB2_Proteus_TCU ()
void	setMazdaMiataNB1 ()
void	setMazdaMiataNB2 ()
void	setMazdaMiataNB2_36 ()

Variables
static const float	vvt18RpmBins [VVT_TABLE_SIZE]
static const float	vvt18LoadBins [VVT_TABLE_SIZE]
static const uint8_t	SCRIPT_TABLE_vvt_target [VVT_TABLE_SIZE][VVT_TABLE_SIZE]
static const int8_t	mapBased18vvtVeTable_NB_fuel_rail [16][16]
const float	mazda_miata_nb2_RpmBins [VE_RPM_COUNT]
const float	mazda_miata_nb2_LoadBins [VE_LOAD_COUNT]
static const float	ignition18vvtRpmBins [IGN_RPM_COUNT]
static const float	ignition18vvtLoadBins [IGN_LOAD_COUNT]
static const uint8_t	mapBased18vvtTimingTable [16][16]
static const float	mafTransferVolts [MAF_TRANSFER_SIZE]
static const float	mafTransferKgH [MAF_TRANSFER_SIZE]

Function Documentation

setCommonMazdaNB()

static void setCommonMazdaNB ( )

static

stuff common between NB1 and NB2

Definition at line 249 of file mazda_miata_vvt.cpp.

                               {
    // Base engine
    engineConfiguration->displacement = 1.839;
    engineConfiguration->cylindersCount = 4;
    engineConfiguration->firingOrder = FO_1_3_4_2;

    engineConfiguration->rpmHardLimit = 7200;

    engineConfiguration->cylinderBore = 83;
    strcpy(engineConfiguration->engineMake, ENGINE_MAKE_MAZDA);
    config->dynoCarCarMassKg = 1070;

    engineConfiguration->injectionMode = IM_SEQUENTIAL;
    engineConfiguration->ignitionMode = IM_WASTED_SPARK;

    // Trigger
    engineConfiguration->trigger.type = trigger_type_e::TT_MIATA_VVT;
    engineConfiguration->vvtMode[0] = VVT_MIATA_NB;
    engineConfiguration->vvtOffsets[0] = 98;

    // Cranking
    engineConfiguration->ignitionDwellForCrankingMs = 4;
    setTable(config->crankingCycleBaseFuel, 27.5); // this value for return-less NB miata fuel system, higher pressure
    engineConfiguration->cranking.rpm = 400;
    setArrayValues(config->cltCrankingCorr, 60);
    setArrayValues(config->afterCrankingIACtaperDuration, 250);

    // Idle
    engineConfiguration->idleMode = idle_mode_e::IM_AUTO;
    engineConfiguration->iacByTpsTaper = 6;
    engineConfiguration->acIdleExtraOffset = 15;

    engineConfiguration->useIdleTimingPidControl = true;
    engineConfiguration->idlePidRpmUpperLimit = 350;
    engineConfiguration->idlePidRpmDeadZone = 100;

    engineConfiguration->idleRpmPid.pFactor = 0.0065;
    engineConfiguration->idleRpmPid.iFactor = 0.3;
    engineConfiguration->idleRpmPid.dFactor = 0.002;
    engineConfiguration->idleRpmPid.minValue = -8;
    engineConfiguration->idleRpmPid.maxValue = 10;
    engineConfiguration->idlerpmpid_iTermMin = -15;
    engineConfiguration->idlerpmpid_iTermMax =  30;

    // Fan
    engineConfiguration->enableFan1WithAc = true;

    // Alternator
    engineConfiguration->isAlternatorControlEnabled = true;
    setTable(config->alternatorVoltageTargetTable, 14.0f);
    engineConfiguration->alternatorControl.offset = 20;
    engineConfiguration->alternatorControl.pFactor = 16;
    engineConfiguration->alternatorControl.iFactor = 8;
    engineConfiguration->alternatorControl.dFactor = 0.1;
    engineConfiguration->alternatorControl.periodMs = 10;

    // Tach
    engineConfiguration->tachPulsePerRev = 2;

#if (VE_RPM_COUNT == 16) && (VE_LOAD_COUNT == 16)
    // Tables
    copyArray(config->veRpmBins, mazda_miata_nb2_RpmBins);
    copyArray(config->veLoadBins, mazda_miata_nb2_LoadBins);
    copyTable(config->veTable, mapBased18vvtVeTable_NB_fuel_rail);
#endif

#if (IGN_RPM_COUNT == 16) && (IGN_LOAD_COUNT == 16)
    copyArray(config->ignitionRpmBins, ignition18vvtRpmBins);
    copyArray(config->ignitionLoadBins, ignition18vvtLoadBins);
    copyTable(config->ignitionTable, mapBased18vvtTimingTable);
#endif

    setMazdaMiataNbInjectorLag();

    // Sensors

    // TPS
    // set tps_min 90
    engineConfiguration->tpsMin = 100; // convert 12to10 bit (ADC/4)
    // set tps_max 540
    engineConfiguration->tpsMax = 650; // convert 12to10 bit (ADC/4)

    // CLT/IAT
    setCommonNTCSensorParameters(&engineConfiguration->clt);
    setCommonNTCSensorParameters(&engineConfiguration->iat);

    // MAF (todo: do we use this?)
    setMAFTransferFunction();

    engineConfiguration->wwaeTau = 0.1;

    miataNA_setCltIdleCorrBins();
    miataNA_setCltIdleRpmBins();
    miataNA_setIacCoastingBins();

    // All factory miata setups end up with 1.12 speed sensor turns
    // per wheel turn, by matching the speedo sensor gear to the
    // diff ratio

    // - 6 teeth on transmission output shaft
    // - 23 teeth on speedometer sensor
    // - 3.909 rear axle ratio
    // 3.909 * 6 / 21 ~= 1.12
    engineConfiguration->vssGearRatio = 3.909 * 6 / 21;
    engineConfiguration->vssToothCount = 4;
}

Referenced by setMazdaMiataEngineNB2Defaults(), and setMazdaMiataNB1().

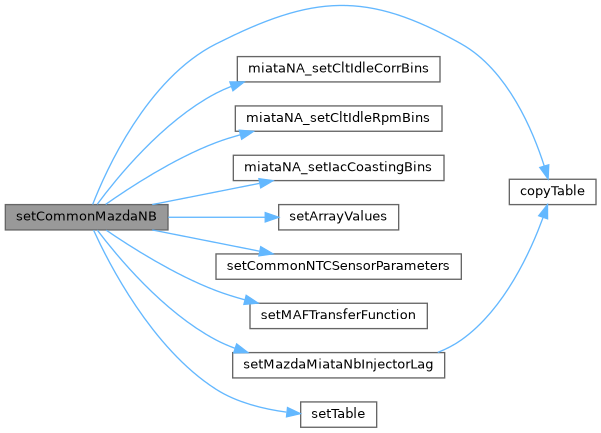

Here is the call graph for this function:

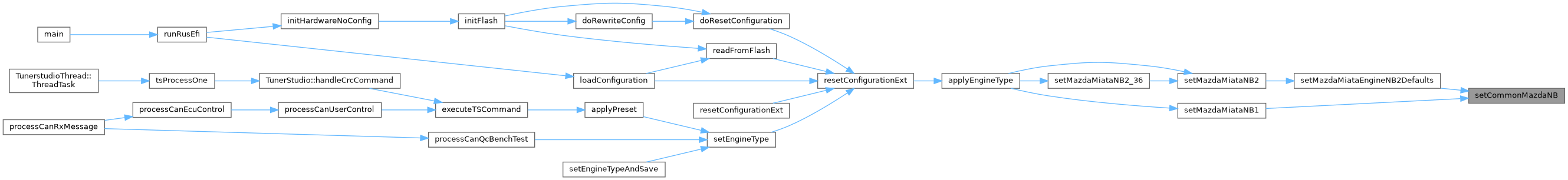

Here is the caller graph for this function:

setMAFTransferFunction()

static void setMAFTransferFunction ( )

static

Definition at line 217 of file mazda_miata_vvt.cpp.

                                     {
    memcpy(config->mafDecoding, mafTransferKgH, sizeof(mafTransferKgH));
    memcpy(config->mafDecodingBins, mafTransferVolts, sizeof(mafTransferVolts));
    for (int i = MAF_TRANSFER_SIZE;i<MAF_DECODING_COUNT;i++) {
        config->mafDecodingBins[i] = config->mafDecodingBins[MAF_TRANSFER_SIZE - 1] + i * 0.01;
        config->mafDecoding[i] = config->mafDecoding[MAF_TRANSFER_SIZE - 1];
    }
}

Referenced by setCommonMazdaNB().

Here is the caller graph for this function:

setMazdaMiataEngineNB2Defaults()

static void setMazdaMiataEngineNB2Defaults ( )

static

http://miataturbo.wikidot.com/fuel-injectors 01-05 (purple) - #195500-4060

Definition at line 356 of file mazda_miata_vvt.cpp.

                                             {
    strcpy(engineConfiguration->engineCode, "NB2");

    /**
     * http://miataturbo.wikidot.com/fuel-injectors
     * 01-05 (purple) - #195500-4060
     */
    engineConfiguration->injector.flow = 265;
    engineConfiguration->fuelReferencePressure = 400; // 400 kPa, 58 psi
    engineConfiguration->injectorCompensationMode = ICM_FixedRailPressure;

    setCommonMazdaNB();

#if VVT_TABLE_SIZE == 8
    copyArray(config->vvtTable1RpmBins, vvt18RpmBins);
    copyArray(config->vvtTable1LoadBins, vvt18LoadBins);
    copyTable(config->vvtTable1, SCRIPT_TABLE_vvt_target);
#endif // VVT_TABLE_SIZE

    // VVT closed loop
    engineConfiguration->auxPid[0].pFactor = 2;
    engineConfiguration->auxPid[0].iFactor = 0.005;
    engineConfiguration->auxPid[0].dFactor = 0.002;
    engineConfiguration->auxPid[0].offset = 33;
    engineConfiguration->auxPid[0].minValue = 20;
    engineConfiguration->auxPid[0].maxValue = 90;

    // Vehicle speed/gears
    engineConfiguration->totalGearsCount = 6;
    engineConfiguration->gearRatio[0] = 3.760;
    engineConfiguration->gearRatio[1] = 2.269;
    engineConfiguration->gearRatio[2] = 1.646;
    engineConfiguration->gearRatio[3] = 1.257;
    engineConfiguration->gearRatio[4] = 1.000;
    engineConfiguration->gearRatio[5] = 0.843;

    // These may need to change based on your real car
    engineConfiguration->driveWheelRevPerKm = 538;
    engineConfiguration->finalGearRatio = 3.909;
}

Referenced by setMazdaMiataNB2().

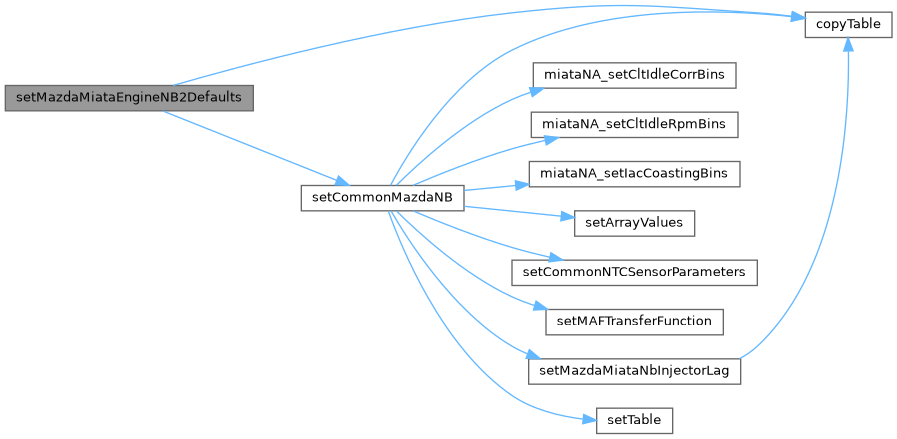

Here is the call graph for this function:

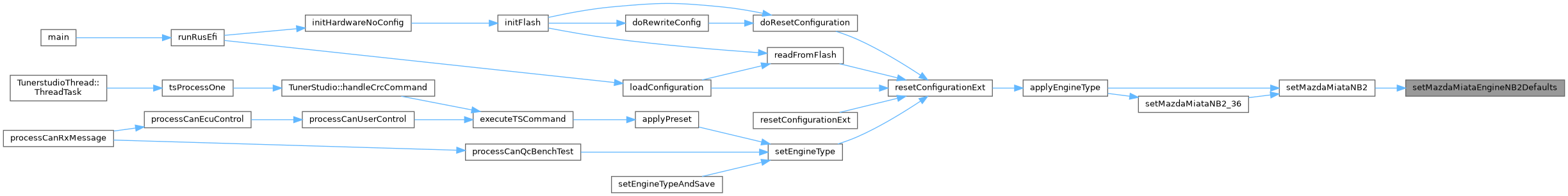

Here is the caller graph for this function:

setMazdaMiataNB1()

void setMazdaMiataNB1

(

)

Definition at line 458 of file mazda_miata_vvt.cpp.

                        {
    setCommonMazdaNB();
    strcpy(engineConfiguration->engineCode, "NB1");

    engineConfiguration->injector.flow = 256;

    // Vehicle speed/gears
    engineConfiguration->totalGearsCount = 5;
    engineConfiguration->gearRatio[0] = 3.136;
    engineConfiguration->gearRatio[1] = 1.888;
    engineConfiguration->gearRatio[2] = 1.330;
    engineConfiguration->gearRatio[3] = 1.000;
    engineConfiguration->gearRatio[4] = 0.814;

    // These may need to change based on your real car
    engineConfiguration->driveWheelRevPerKm = 551;
    engineConfiguration->finalGearRatio = 4.3;
}

Referenced by applyEngineType().

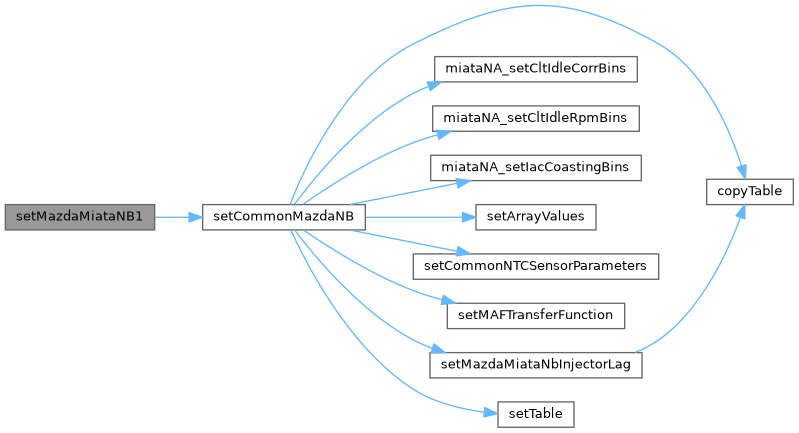

Here is the call graph for this function:

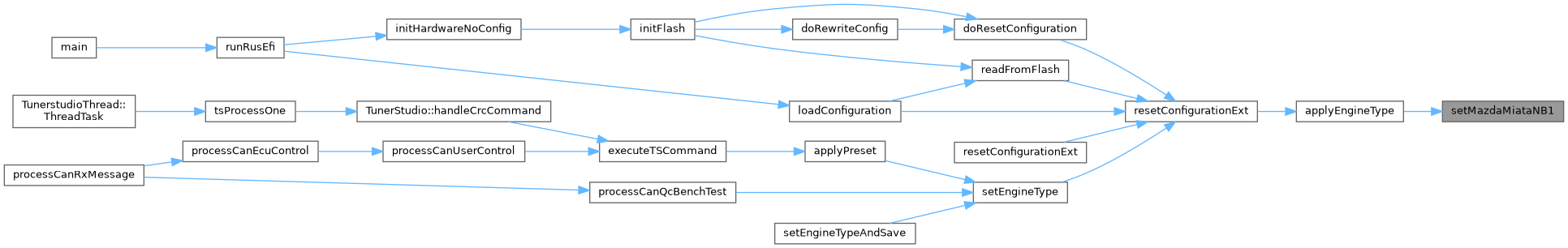

Here is the caller graph for this function:

setMazdaMiataNB2()

void setMazdaMiataNB2

(

)

set engine_type 69

Definition at line 477 of file mazda_miata_vvt.cpp.

                        {
    setMazdaMiataEngineNB2Defaults();
    strcpy(engineConfiguration->vehicleName, "H72 test");


    // set tps_min 90
    engineConfiguration->tpsMin = 110; // convert 12to10 bit (ADC/4)

}

Referenced by applyEngineType(), and setMazdaMiataNB2_36().

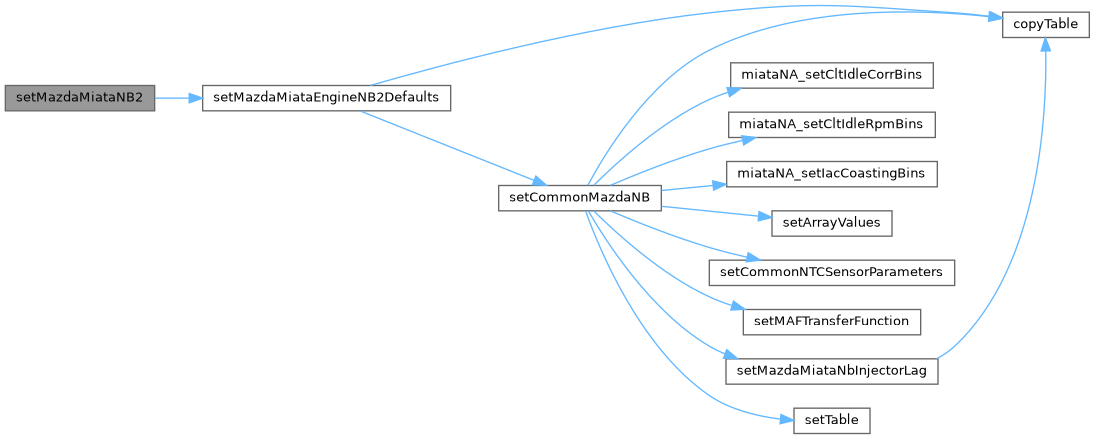

Here is the call graph for this function:

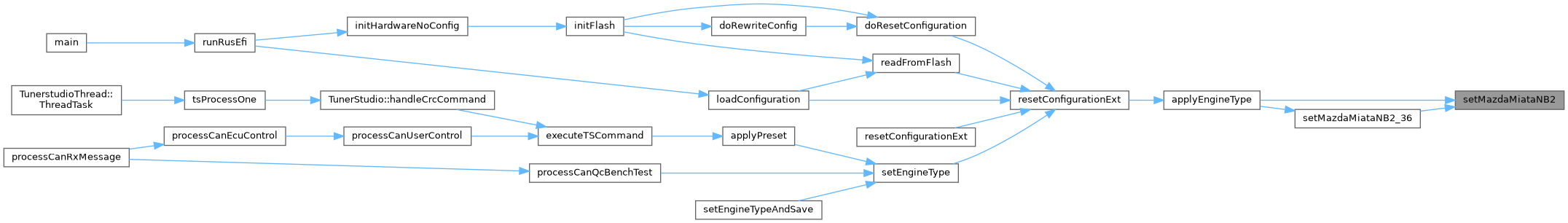

Here is the caller graph for this function:

setMazdaMiataNB2_36()

void setMazdaMiataNB2_36

(

)

Definition at line 487 of file mazda_miata_vvt.cpp.

                           {
    setMazdaMiataNB2();

    engineConfiguration->trigger.type = trigger_type_e::TT_TOOTHED_WHEEL_36_1;
    engineConfiguration->globalTriggerAngleOffset = 76;
}

Referenced by applyEngineType().

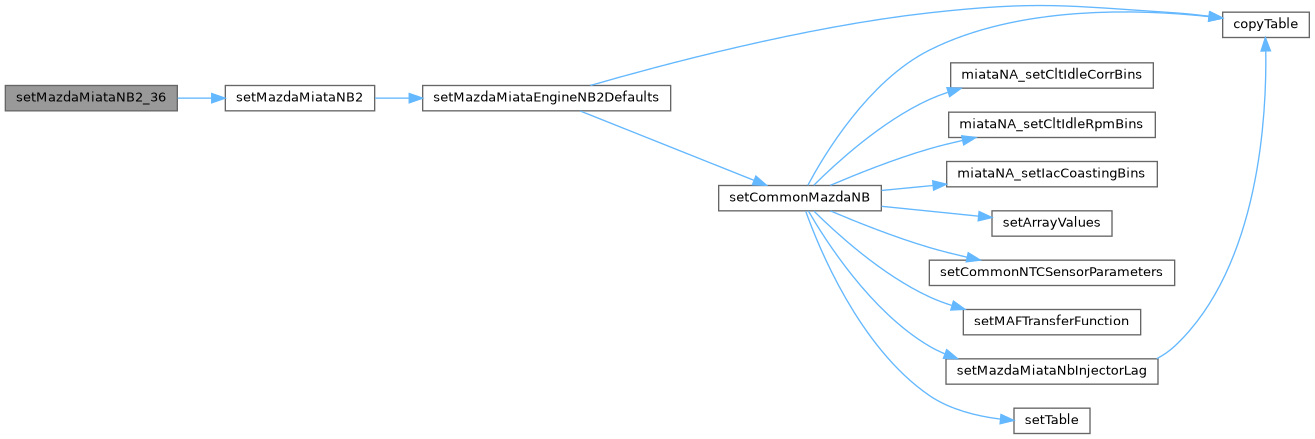

Here is the call graph for this function:

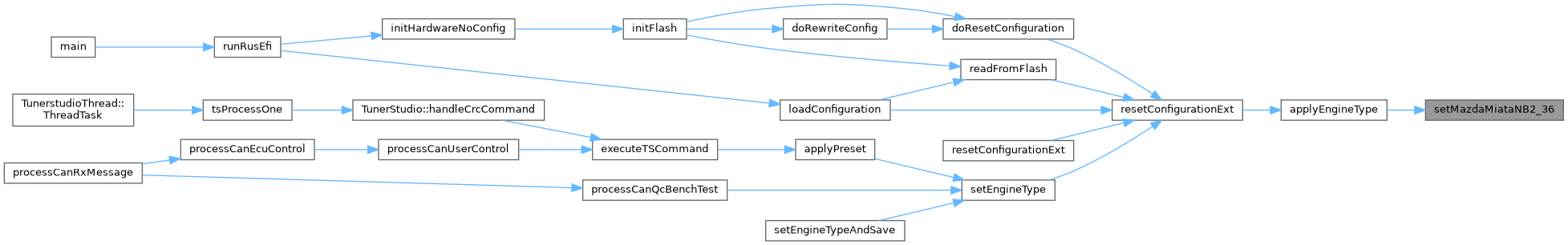

Here is the caller graph for this function:

setMazdaMiataNbInjectorLag()

static void setMazdaMiataNbInjectorLag ( )

static

Definition at line 226 of file mazda_miata_vvt.cpp.

                                         {
#if VBAT_INJECTOR_CURVE_SIZE == 8
static const float injectorLagVbattBins[VBAT_INJECTOR_CURVE_SIZE] = {
    6.0, 8.0, 10.0, 11.0, 12.0, 13.0, 14.0, 15.0
};
    copyArray(engineConfiguration->injector.battLagCorrBattBins, injectorLagVbattBins);
#endif // VBAT_INJECTOR_CURVE_SIZE
#if VBAT_INJECTOR_CURVE_PRESSURE_SIZE == 2
static const float injectorLagPressureBins[VBAT_INJECTOR_CURVE_PRESSURE_SIZE] = { 300, 600 };
    copyArray(engineConfiguration->injector.battLagCorrPressBins, injectorLagPressureBins);
#endif // VBAT_INJECTOR_CURVE_PRESSURE_SIZE
#if (VBAT_INJECTOR_CURVE_PRESSURE_SIZE == 2) && (VBAT_INJECTOR_CURVE_SIZE == 8)
static const float injectorLagCorrection[VBAT_INJECTOR_CURVE_PRESSURE_SIZE][VBAT_INJECTOR_CURVE_SIZE] = {
    { 4.0, 3.0, 2.0, 1.7, 1.5, 1.35, 1.25, 1.20 },
    { 4.0, 3.0, 2.0, 1.7, 1.5, 1.35, 1.25, 1.20 },
};
    copyTable(engineConfiguration->injector.battLagCorrTable, injectorLagCorrection);
#endif
}

Referenced by setCommonMazdaNB().

Here is the call graph for this function:

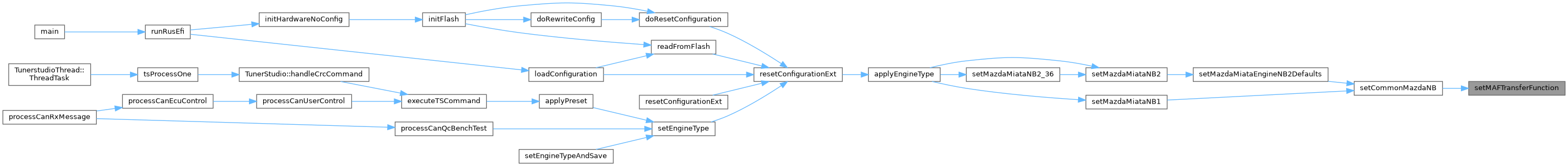

Here is the caller graph for this function:

setMiataNB2_Proteus_TCU()

void setMiataNB2_Proteus_TCU

(

)

https://github.com/rusefi/rusefi/wiki/HOWTO-TCU-A42DE-on-Proteus

Definition at line 402 of file mazda_miata_vvt.cpp.

                               {
    engineConfiguration->tcuEnabled = true;

    strcpy(engineConfiguration->engineCode, "NB2");
    strcpy(engineConfiguration->engineMake, ENGINE_MAKE_MAZDA);
    strcpy(engineConfiguration->vehicleName, "TCU test");

    engineConfiguration->trigger.type = trigger_type_e::TT_TOOTHED_WHEEL;
    engineConfiguration->trigger.customTotalToothCount = 10;
    engineConfiguration->trigger.customSkippedToothCount = 0;


    engineConfiguration->triggerInputPins[0] = Gpio::Unassigned;
    engineConfiguration->tcuInputSpeedSensorPin = PROTEUS_VR_1;

    engineConfiguration->vehicleSpeedSensorInputPin = PROTEUS_VR_2;

    engineConfiguration->driveWheelRevPerKm = 544;  // 205/50R15
    engineConfiguration->vssGearRatio = 4.3;
    engineConfiguration->vssToothCount = 22;

    // "Highside 2"
    engineConfiguration->tcu_solenoid[0] = Gpio::A8;
    // "Highside 1"
    engineConfiguration->tcu_solenoid[1] = Gpio::A9;

    // "Digital 1" green
    engineConfiguration->tcuUpshiftButtonPin = Gpio::C6;
    engineConfiguration->tcuUpshiftButtonPinMode = PI_PULLUP;
    // "Digital 6" white
    engineConfiguration->tcuDownshiftButtonPin = Gpio::E15;
    engineConfiguration->tcuDownshiftButtonPinMode = PI_PULLUP;

    // R
    config->tcuSolenoidTable[0][0] = 1;
    config->tcuSolenoidTable[0][1] = 0;
    // P/N
    config->tcuSolenoidTable[1][0] = 1;
    config->tcuSolenoidTable[1][1] = 0;
    // 1
    config->tcuSolenoidTable[2][0] = 1;
    config->tcuSolenoidTable[2][1] = 0;
    // 2
    config->tcuSolenoidTable[3][0] = 1;
    config->tcuSolenoidTable[3][1] = 1;
    // 3
    config->tcuSolenoidTable[4][0] = 0;
    config->tcuSolenoidTable[4][1] = 1;
    // 4
    config->tcuSolenoidTable[5][0] = 0;
    config->tcuSolenoidTable[5][1] = 0;

}

Referenced by applyEngineType().

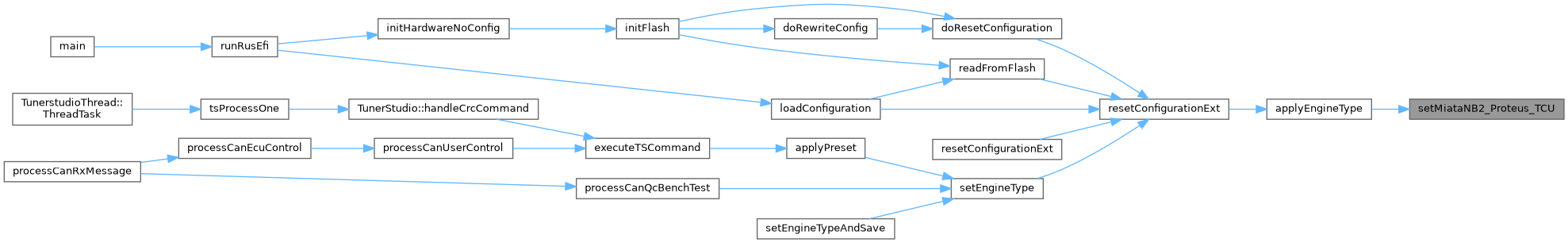

Here is the caller graph for this function:

Variable Documentation

ignition18vvtLoadBins

const float ignition18vvtLoadBins[IGN_LOAD_COUNT]

static

Initial value:

= {
        25.0 ,               29.10009765625 ,                34.0 ,              39.60009765625 ,
                 46.2001953125 ,                 53.89990234375 ,                62.7998046875 ,
                 73.2001953125 ,                 85.400390625 ,              99.5 ,              116.0 ,
                 135.30078125 ,              157.69921875 ,              183.900390625 ,                 214.400390625 ,
                 250.0}

Definition at line 128 of file mazda_miata_vvt.cpp.

                                                           {
        25.0 ,               29.10009765625 ,                34.0 ,              39.60009765625 ,
                 46.2001953125 ,                 53.89990234375 ,                62.7998046875 ,
                 73.2001953125 ,                 85.400390625 ,              99.5 ,              116.0 ,
                 135.30078125 ,              157.69921875 ,              183.900390625 ,                 214.400390625 ,
                 250.0};

Referenced by setCommonMazdaNB().

ignition18vvtRpmBins

const float ignition18vvtRpmBins[IGN_RPM_COUNT]

static

Initial value:

= {
        700.0,               850.0 ,                 943.0 ,
                 1112.0 ,                1310.0 ,                1545.0 ,
                 1821.0,                 2146.0,                 2530.0,
                 2982.0,                 3515.0 ,                4144.0 ,
                 4884.0 ,                5757.0 ,                6787.0,                 8000.0}

Definition at line 121 of file mazda_miata_vvt.cpp.

                                                          {
        700.0,               850.0 ,                 943.0 ,
                 1112.0 ,                1310.0 ,                1545.0 ,
                 1821.0,                 2146.0,                 2530.0,
                 2982.0,                 3515.0 ,                4144.0 ,
                 4884.0 ,                5757.0 ,                6787.0,                 8000.0};

Referenced by setCommonMazdaNB().

mafTransferKgH

const float mafTransferKgH[MAF_TRANSFER_SIZE]

static

Initial value:

= {
        0.00,
        0.00,
        1.00,
        3.00,
        8.00,
        19.00,
        45.00,
        100.00,
        175.00,
        350.00
}

Definition at line 203 of file mazda_miata_vvt.cpp.

                                                       {
        0.00,
        0.00,
        1.00,
        3.00,
        8.00,
        19.00,
        45.00,
        100.00,
        175.00,
        350.00
};

Referenced by setMAFTransferFunction().

mafTransferVolts

const float mafTransferVolts[MAF_TRANSFER_SIZE]

static

Initial value:

= {
        0.50,
        0.87,
        1.07,
        1.53,
        1.85,
        2.11,
        2.46,
        3.00,
        3.51,
        4.50
}

Definition at line 190 of file mazda_miata_vvt.cpp.

                                                         {
        0.50,
        0.87,
        1.07,
        1.53,
        1.85,
        2.11,
        2.46,
        3.00,
        3.51,
        4.50
};

Referenced by setMAFTransferFunction().

mapBased18vvtTimingTable

const uint8_t mapBased18vvtTimingTable[16][16]

static

Initial value:

= {

        {14,    13, 13, 16, 21, 25, 28, 31, 34, 36, 38, 39, 40, 40, 40, 41, },
        {14,    13, 13, 16, 21, 25, 28, 31, 34, 36, 38, 39, 40, 40, 40, 40, },
        {14,    13, 13, 16, 21, 24, 27, 30, 33, 35, 37, 38, 39, 40, 40, 40, },
        {15,    13, 13, 17, 21, 24, 27, 30, 33, 35, 36, 38, 38, 39, 39, 39, },
        {15,    13, 13, 18, 21, 24, 26, 29, 32, 33, 36, 37, 38, 38, 38, 39, },
        {15,    14, 14, 18, 21, 24, 26, 28, 30, 32, 34, 36, 37, 37, 38, 38, },
        {15,    15, 14, 19, 21, 23, 25, 27, 29, 31, 33, 34, 35, 36, 36, 37, },
        {16,    16, 15, 19, 21, 23, 24, 26, 28, 30, 31, 32, 33, 34, 34, 35, },
        {16,    17, 16, 19, 20, 22, 23, 24, 26, 28, 29, 31, 31, 32, 33, 33, },
        {16,    16, 17, 18, 19, 20, 21, 22, 23, 25, 26, 28, 28, 29, 30, 31, },
        {15,    15, 16, 16, 17, 18, 19, 20, 21, 23, 24, 25, 26, 27, 28, 29, },
        {13,    13, 14, 14, 15, 15, 17, 17, 19, 20, 22, 23, 24, 25, 26, 27, },
        {11,    11, 11, 12, 12, 13, 14, 15, 16, 17, 19, 20, 21, 22, 24, 25, },
        {8, 8,  9,  9,  9,  10, 11, 12, 13, 14, 16, 17, 18, 19, 21, 22, },
        {5, 5,  5,  5,  6,  7,  7,  8,  9,  10, 12, 13, 14, 16, 17, 18, },
        {1, 1,  1,  2,  2,  3,  3,  4,  5,  6,  7,  9,  10, 12, 13, 14, },
}

Definition at line 135 of file mazda_miata_vvt.cpp.

                                                        {
        /* Generated by TS2C on Tue Apr 18 21:43:57 EDT 2017*/
        {/* 0 25    *//* 0 700.0*/14,   /* 1 850.0*/13, /* 2 943.0*/13, /* 3 1112.0*/16,    /* 4 1310.0*/21,    /* 5 1545.0*/25,    /* 6 1821.0*/28,    /* 7 2146.0*/31,    /* 8 2530.0*/34,    /* 9 2982.0*/36,    /* 10 3515.0*/38,   /* 11 4144.0*/39,   /* 12 4884.0*/40,   /* 13 5757.0*/40,   /* 14 6787.0*/40,   /* 15 8000.0*/41,   },
        {/* 1 29.100    *//* 0 700.0*/14,   /* 1 850.0*/13, /* 2 943.0*/13, /* 3 1112.0*/16,    /* 4 1310.0*/21,    /* 5 1545.0*/25,    /* 6 1821.0*/28,    /* 7 2146.0*/31,    /* 8 2530.0*/34,    /* 9 2982.0*/36,    /* 10 3515.0*/38,   /* 11 4144.0*/39,   /* 12 4884.0*/40,   /* 13 5757.0*/40,   /* 14 6787.0*/40,   /* 15 8000.0*/40,   },
        {/* 2 34    *//* 0 700.0*/14,   /* 1 850.0*/13, /* 2 943.0*/13, /* 3 1112.0*/16,    /* 4 1310.0*/21,    /* 5 1545.0*/24,    /* 6 1821.0*/27,    /* 7 2146.0*/30,    /* 8 2530.0*/33,    /* 9 2982.0*/35,    /* 10 3515.0*/37,   /* 11 4144.0*/38,   /* 12 4884.0*/39,   /* 13 5757.0*/40,   /* 14 6787.0*/40,   /* 15 8000.0*/40,   },
        {/* 3 39.600    *//* 0 700.0*/15,   /* 1 850.0*/13, /* 2 943.0*/13, /* 3 1112.0*/17,    /* 4 1310.0*/21,    /* 5 1545.0*/24,    /* 6 1821.0*/27,    /* 7 2146.0*/30,    /* 8 2530.0*/33,    /* 9 2982.0*/35,    /* 10 3515.0*/36,   /* 11 4144.0*/38,   /* 12 4884.0*/38,   /* 13 5757.0*/39,   /* 14 6787.0*/39,   /* 15 8000.0*/39,   },
        {/* 4 46.200    *//* 0 700.0*/15,   /* 1 850.0*/13, /* 2 943.0*/13, /* 3 1112.0*/18,    /* 4 1310.0*/21,    /* 5 1545.0*/24,    /* 6 1821.0*/26,    /* 7 2146.0*/29,    /* 8 2530.0*/32,    /* 9 2982.0*/33,    /* 10 3515.0*/36,   /* 11 4144.0*/37,   /* 12 4884.0*/38,   /* 13 5757.0*/38,   /* 14 6787.0*/38,   /* 15 8000.0*/39,   },
        {/* 5 53.900    *//* 0 700.0*/15,   /* 1 850.0*/14, /* 2 943.0*/14, /* 3 1112.0*/18,    /* 4 1310.0*/21,    /* 5 1545.0*/24,    /* 6 1821.0*/26,    /* 7 2146.0*/28,    /* 8 2530.0*/30,    /* 9 2982.0*/32,    /* 10 3515.0*/34,   /* 11 4144.0*/36,   /* 12 4884.0*/37,   /* 13 5757.0*/37,   /* 14 6787.0*/38,   /* 15 8000.0*/38,   },
        {/* 6 62.800    *//* 0 700.0*/15,   /* 1 850.0*/15, /* 2 943.0*/14, /* 3 1112.0*/19,    /* 4 1310.0*/21,    /* 5 1545.0*/23,    /* 6 1821.0*/25,    /* 7 2146.0*/27,    /* 8 2530.0*/29,    /* 9 2982.0*/31,    /* 10 3515.0*/33,   /* 11 4144.0*/34,   /* 12 4884.0*/35,   /* 13 5757.0*/36,   /* 14 6787.0*/36,   /* 15 8000.0*/37,   },
        {/* 7 73.200    *//* 0 700.0*/16,   /* 1 850.0*/16, /* 2 943.0*/15, /* 3 1112.0*/19,    /* 4 1310.0*/21,    /* 5 1545.0*/23,    /* 6 1821.0*/24,    /* 7 2146.0*/26,    /* 8 2530.0*/28,    /* 9 2982.0*/30,    /* 10 3515.0*/31,   /* 11 4144.0*/32,   /* 12 4884.0*/33,   /* 13 5757.0*/34,   /* 14 6787.0*/34,   /* 15 8000.0*/35,   },
        {/* 8 85.400    *//* 0 700.0*/16,   /* 1 850.0*/17, /* 2 943.0*/16, /* 3 1112.0*/19,    /* 4 1310.0*/20,    /* 5 1545.0*/22,    /* 6 1821.0*/23,    /* 7 2146.0*/24,    /* 8 2530.0*/26,    /* 9 2982.0*/28,    /* 10 3515.0*/29,   /* 11 4144.0*/31,   /* 12 4884.0*/31,   /* 13 5757.0*/32,   /* 14 6787.0*/33,   /* 15 8000.0*/33,   },
        {/* 9 99.500    *//* 0 700.0*/16,   /* 1 850.0*/16, /* 2 943.0*/17, /* 3 1112.0*/18,    /* 4 1310.0*/19,    /* 5 1545.0*/20,    /* 6 1821.0*/21,    /* 7 2146.0*/22,    /* 8 2530.0*/23,    /* 9 2982.0*/25,    /* 10 3515.0*/26,   /* 11 4144.0*/28,   /* 12 4884.0*/28,   /* 13 5757.0*/29,   /* 14 6787.0*/30,   /* 15 8000.0*/31,   },
        {/* 10 116  *//* 0 700.0*/15,   /* 1 850.0*/15, /* 2 943.0*/16, /* 3 1112.0*/16,    /* 4 1310.0*/17,    /* 5 1545.0*/18,    /* 6 1821.0*/19,    /* 7 2146.0*/20,    /* 8 2530.0*/21,    /* 9 2982.0*/23,    /* 10 3515.0*/24,   /* 11 4144.0*/25,   /* 12 4884.0*/26,   /* 13 5757.0*/27,   /* 14 6787.0*/28,   /* 15 8000.0*/29,   },
        {/* 11 135.301  *//* 0 700.0*/13,   /* 1 850.0*/13, /* 2 943.0*/14, /* 3 1112.0*/14,    /* 4 1310.0*/15,    /* 5 1545.0*/15,    /* 6 1821.0*/17,    /* 7 2146.0*/17,    /* 8 2530.0*/19,    /* 9 2982.0*/20,    /* 10 3515.0*/22,   /* 11 4144.0*/23,   /* 12 4884.0*/24,   /* 13 5757.0*/25,   /* 14 6787.0*/26,   /* 15 8000.0*/27,   },
        {/* 12 157.699  *//* 0 700.0*/11,   /* 1 850.0*/11, /* 2 943.0*/11, /* 3 1112.0*/12,    /* 4 1310.0*/12,    /* 5 1545.0*/13,    /* 6 1821.0*/14,    /* 7 2146.0*/15,    /* 8 2530.0*/16,    /* 9 2982.0*/17,    /* 10 3515.0*/19,   /* 11 4144.0*/20,   /* 12 4884.0*/21,   /* 13 5757.0*/22,   /* 14 6787.0*/24,   /* 15 8000.0*/25,   },
        {/* 13 183.900  *//* 0 700.0*/8,    /* 1 850.0*/8,  /* 2 943.0*/9,  /* 3 1112.0*/9, /* 4 1310.0*/9, /* 5 1545.0*/10,    /* 6 1821.0*/11,    /* 7 2146.0*/12,    /* 8 2530.0*/13,    /* 9 2982.0*/14,    /* 10 3515.0*/16,   /* 11 4144.0*/17,   /* 12 4884.0*/18,   /* 13 5757.0*/19,   /* 14 6787.0*/21,   /* 15 8000.0*/22,   },
        {/* 14 214.400  *//* 0 700.0*/5,    /* 1 850.0*/5,  /* 2 943.0*/5,  /* 3 1112.0*/5, /* 4 1310.0*/6, /* 5 1545.0*/7, /* 6 1821.0*/7, /* 7 2146.0*/8, /* 8 2530.0*/9, /* 9 2982.0*/10,    /* 10 3515.0*/12,   /* 11 4144.0*/13,   /* 12 4884.0*/14,   /* 13 5757.0*/16,   /* 14 6787.0*/17,   /* 15 8000.0*/18,   },
        {/* 15 250  *//* 0 700.0*/1,    /* 1 850.0*/1,  /* 2 943.0*/1,  /* 3 1112.0*/2, /* 4 1310.0*/2, /* 5 1545.0*/3, /* 6 1821.0*/3, /* 7 2146.0*/4, /* 8 2530.0*/5, /* 9 2982.0*/6, /* 10 3515.0*/7,    /* 11 4144.0*/9,    /* 12 4884.0*/10,   /* 13 5757.0*/12,   /* 14 6787.0*/13,   /* 15 8000.0*/14,   },
};

Referenced by setCommonMazdaNB().

mapBased18vvtVeTable_NB_fuel_rail

const int8_t mapBased18vvtVeTable_NB_fuel_rail[16][16]

static

Initial value:

= {

        {35,    36, 37, 35, 36, 37, 33, 31, 25, 24, 24, 25, 26, 29, 33, 36, },
        {35,    37, 38, 37, 36, 37, 41, 39, 40, 37, 35, 36, 37, 35, 38, 40, },
        {37,    40, 39, 37, 38, 41, 45, 47, 54, 48, 47, 55, 55, 49, 50, 51, },
        {39,    44, 42, 40, 45, 48, 48, 52, 56, 53, 52, 58, 62, 57, 58, 58, },
        {45,    56, 49, 45, 54, 53, 55, 54, 57, 55, 57, 59, 62, 59, 63, 62, },
        {54,    61, 56, 52, 53, 58, 57, 59, 58, 58, 60, 64, 66, 64, 65, 63, },
        {60,    67, 66, 60, 59, 59, 61, 63, 63, 60, 62, 69, 71, 67, 65, 63, },
        {65,    70, 71, 67, 62, 61, 65, 63, 63, 64, 66, 69, 73, 71, 67, 65, },
        {70,    74, 73, 75, 71, 66, 66, 65, 67, 69, 68, 72, 76, 75, 66, 65, },
        {71,    75, 76, 74, 73, 72, 71, 70, 72, 72, 74, 76, 78, 76, 68, 64, },
        {75,    76, 78, 76, 73, 74, 74, 74, 77, 76, 77, 76, 77, 76, 69, 65, },
        {80,    80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, },
        {80,    80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, },
        {80,    80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, },
        {80,    80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, },
        {80,    80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, 80, },
}

Definition at line 87 of file mazda_miata_vvt.cpp.

                                                                {
        /* Generated by TS2C on Tue Apr 18 21:46:03 EDT 2017*/
        {/* 0 20    *//* 0 700.0*/35,   /* 1 820.0*/36, /* 2 950.0*/37, /* 3 1100.0*/35,    /* 4 1300.0*/36,    /* 5 1550.0*/37,    /* 6 1800.0*/33,    /* 7 2150.0*/31,    /* 8 2500.0*/25,    /* 9 3000.0*/24,    /* 10 3500.0*/24,   /* 11 4150.0*/25,   /* 12 4900.0*/26,   /* 13 5800.0*/29,   /* 14 6800.0*/33,   /* 15 8000.0*/36,   },
        {/* 1 25    *//* 0 700.0*/35,   /* 1 820.0*/37, /* 2 950.0*/38, /* 3 1100.0*/37,    /* 4 1300.0*/36,    /* 5 1550.0*/37,    /* 6 1800.0*/41,    /* 7 2150.0*/39,    /* 8 2500.0*/40,    /* 9 3000.0*/37,    /* 10 3500.0*/35,   /* 11 4150.0*/36,   /* 12 4900.0*/37,   /* 13 5800.0*/35,   /* 14 6800.0*/38,   /* 15 8000.0*/40,   },
        {/* 2 30    *//* 0 700.0*/37,   /* 1 820.0*/40, /* 2 950.0*/39, /* 3 1100.0*/37,    /* 4 1300.0*/38,    /* 5 1550.0*/41,    /* 6 1800.0*/45,    /* 7 2150.0*/47,    /* 8 2500.0*/54,    /* 9 3000.0*/48,    /* 10 3500.0*/47,   /* 11 4150.0*/55,   /* 12 4900.0*/55,   /* 13 5800.0*/49,   /* 14 6800.0*/50,   /* 15 8000.0*/51,   },
        {/* 3 35    *//* 0 700.0*/39,   /* 1 820.0*/44, /* 2 950.0*/42, /* 3 1100.0*/40,    /* 4 1300.0*/45,    /* 5 1550.0*/48,    /* 6 1800.0*/48,    /* 7 2150.0*/52,    /* 8 2500.0*/56,    /* 9 3000.0*/53,    /* 10 3500.0*/52,   /* 11 4150.0*/58,   /* 12 4900.0*/62,   /* 13 5800.0*/57,   /* 14 6800.0*/58,   /* 15 8000.0*/58,   },
        {/* 4 40    *//* 0 700.0*/45,   /* 1 820.0*/56, /* 2 950.0*/49, /* 3 1100.0*/45,    /* 4 1300.0*/54,    /* 5 1550.0*/53,    /* 6 1800.0*/55,    /* 7 2150.0*/54,    /* 8 2500.0*/57,    /* 9 3000.0*/55,    /* 10 3500.0*/57,   /* 11 4150.0*/59,   /* 12 4900.0*/62,   /* 13 5800.0*/59,   /* 14 6800.0*/63,   /* 15 8000.0*/62,   },
        {/* 5 46    *//* 0 700.0*/54,   /* 1 820.0*/61, /* 2 950.0*/56, /* 3 1100.0*/52,    /* 4 1300.0*/53,    /* 5 1550.0*/58,    /* 6 1800.0*/57,    /* 7 2150.0*/59,    /* 8 2500.0*/58,    /* 9 3000.0*/58,    /* 10 3500.0*/60,   /* 11 4150.0*/64,   /* 12 4900.0*/66,   /* 13 5800.0*/64,   /* 14 6800.0*/65,   /* 15 8000.0*/63,   },
        {/* 6 54    *//* 0 700.0*/60,   /* 1 820.0*/67, /* 2 950.0*/66, /* 3 1100.0*/60,    /* 4 1300.0*/59,    /* 5 1550.0*/59,    /* 6 1800.0*/61,    /* 7 2150.0*/63,    /* 8 2500.0*/63,    /* 9 3000.0*/60,    /* 10 3500.0*/62,   /* 11 4150.0*/69,   /* 12 4900.0*/71,   /* 13 5800.0*/67,   /* 14 6800.0*/65,   /* 15 8000.0*/63,   },
        {/* 7 63    *//* 0 700.0*/65,   /* 1 820.0*/70, /* 2 950.0*/71, /* 3 1100.0*/67,    /* 4 1300.0*/62,    /* 5 1550.0*/61,    /* 6 1800.0*/65,    /* 7 2150.0*/63,    /* 8 2500.0*/63,    /* 9 3000.0*/64,    /* 10 3500.0*/66,   /* 11 4150.0*/69,   /* 12 4900.0*/73,   /* 13 5800.0*/71,   /* 14 6800.0*/67,   /* 15 8000.0*/65,   },
        {/* 8 73    *//* 0 700.0*/70,   /* 1 820.0*/74, /* 2 950.0*/73, /* 3 1100.0*/75,    /* 4 1300.0*/71,    /* 5 1550.0*/66,    /* 6 1800.0*/66,    /* 7 2150.0*/65,    /* 8 2500.0*/67,    /* 9 3000.0*/69,    /* 10 3500.0*/68,   /* 11 4150.0*/72,   /* 12 4900.0*/76,   /* 13 5800.0*/75,   /* 14 6800.0*/66,   /* 15 8000.0*/65,   },
        {/* 9 85    *//* 0 700.0*/71,   /* 1 820.0*/75, /* 2 950.0*/76, /* 3 1100.0*/74,    /* 4 1300.0*/73,    /* 5 1550.0*/72,    /* 6 1800.0*/71,    /* 7 2150.0*/70,    /* 8 2500.0*/72,    /* 9 3000.0*/72,    /* 10 3500.0*/74,   /* 11 4150.0*/76,   /* 12 4900.0*/78,   /* 13 5800.0*/76,   /* 14 6800.0*/68,   /* 15 8000.0*/64,   },
        {/* 10 99   *//* 0 700.0*/75,   /* 1 820.0*/76, /* 2 950.0*/78, /* 3 1100.0*/76,    /* 4 1300.0*/73,    /* 5 1550.0*/74,    /* 6 1800.0*/74,    /* 7 2150.0*/74,    /* 8 2500.0*/77,    /* 9 3000.0*/76,    /* 10 3500.0*/77,   /* 11 4150.0*/76,   /* 12 4900.0*/77,   /* 13 5800.0*/76,   /* 14 6800.0*/69,   /* 15 8000.0*/65,   },
        {/* 11 116  *//* 0 700.0*/80,   /* 1 820.0*/80, /* 2 950.0*/80, /* 3 1100.0*/80,    /* 4 1300.0*/80,    /* 5 1550.0*/80,    /* 6 1800.0*/80,    /* 7 2150.0*/80,    /* 8 2500.0*/80,    /* 9 3000.0*/80,    /* 10 3500.0*/80,   /* 11 4150.0*/80,   /* 12 4900.0*/80,   /* 13 5800.0*/80,   /* 14 6800.0*/80,   /* 15 8000.0*/80,   },
        {/* 12 135  *//* 0 700.0*/80,   /* 1 820.0*/80, /* 2 950.0*/80, /* 3 1100.0*/80,    /* 4 1300.0*/80,    /* 5 1550.0*/80,    /* 6 1800.0*/80,    /* 7 2150.0*/80,    /* 8 2500.0*/80,    /* 9 3000.0*/80,    /* 10 3500.0*/80,   /* 11 4150.0*/80,   /* 12 4900.0*/80,   /* 13 5800.0*/80,   /* 14 6800.0*/80,   /* 15 8000.0*/80,   },
        {/* 13 158  *//* 0 700.0*/80,   /* 1 820.0*/80, /* 2 950.0*/80, /* 3 1100.0*/80,    /* 4 1300.0*/80,    /* 5 1550.0*/80,    /* 6 1800.0*/80,    /* 7 2150.0*/80,    /* 8 2500.0*/80,    /* 9 3000.0*/80,    /* 10 3500.0*/80,   /* 11 4150.0*/80,   /* 12 4900.0*/80,   /* 13 5800.0*/80,   /* 14 6800.0*/80,   /* 15 8000.0*/80,   },
        {/* 14 185  *//* 0 700.0*/80,   /* 1 820.0*/80, /* 2 950.0*/80, /* 3 1100.0*/80,    /* 4 1300.0*/80,    /* 5 1550.0*/80,    /* 6 1800.0*/80,    /* 7 2150.0*/80,    /* 8 2500.0*/80,    /* 9 3000.0*/80,    /* 10 3500.0*/80,   /* 11 4150.0*/80,   /* 12 4900.0*/80,   /* 13 5800.0*/80,   /* 14 6800.0*/80,   /* 15 8000.0*/80,   },
        {/* 15 220  *//* 0 700.0*/80,   /* 1 820.0*/80, /* 2 950.0*/80, /* 3 1100.0*/80,    /* 4 1300.0*/80,    /* 5 1550.0*/80,    /* 6 1800.0*/80,    /* 7 2150.0*/80,    /* 8 2500.0*/80,    /* 9 3000.0*/80,    /* 10 3500.0*/80,   /* 11 4150.0*/80,   /* 12 4900.0*/80,   /* 13 5800.0*/80,   /* 14 6800.0*/80,   /* 15 8000.0*/80,   },
};

Referenced by setCommonMazdaNB().

mazda_miata_nb2_LoadBins

const float mazda_miata_nb2_LoadBins[VE_LOAD_COUNT]

Initial value:

= {20.0, 25.0, 30.0, 35.0,
        40.0, 46.0, 54.0, 63.0,
        73.0, 85.0, 99.0, 116.0,
        135.0, 158.0, 185.0, 220.0}

Definition at line 113 of file mazda_miata_vvt.cpp.

                                                      {20.0, 25.0, 30.0, 35.0,
        40.0, 46.0, 54.0, 63.0,
        73.0, 85.0, 99.0, 116.0,
        135.0, 158.0, 185.0, 220.0}

Referenced by setCommonMazdaNB().

mazda_miata_nb2_RpmBins

const float mazda_miata_nb2_RpmBins[VE_RPM_COUNT]

Initial value:

= {700.0, 820.0, 950.0, 1100.0,
        1300.0, 1550.0, 1800.0, 2150.0,
        2500.0, 3000.0, 3500.0, 4150.0,
        4900.0, 5800.0, 6800.0, 8000.0}

Definition at line 107 of file mazda_miata_vvt.cpp.

                                                    {700.0, 820.0, 950.0, 1100.0,
        1300.0, 1550.0, 1800.0, 2150.0,
        2500.0, 3000.0, 3500.0, 4150.0,
        4900.0, 5800.0, 6800.0, 8000.0}

Referenced by setCommonMazdaNB().

SCRIPT_TABLE_vvt_target

const uint8_t SCRIPT_TABLE_vvt_target[VVT_TABLE_SIZE][VVT_TABLE_SIZE]

static

Initial value:

= {

        {1, 3,  10, 20, 27, 28, 11, 5,  },
        {3, 10, 19, 26, 30, 28, 11, 5,  },
        {7, 16, 24, 28, 30, 28, 11, 5,  },
        {11,    20, 27, 28, 30, 28, 11, 5,  },
        {13,    24, 31, 28, 30, 28, 11, 5,  },
        {15,    27, 33, 28, 30, 28, 11, 5,  },
        {17,    28, 33, 28, 30, 28, 11, 5,  },
        {17,    28, 33, 28, 30, 28, 11, 5,  },
}

Definition at line 73 of file mazda_miata_vvt.cpp.

                                                                               {
        /* Generated by TS2C on Mon Feb 13 19:11:32 EST 2017*/
        {/* 0 30    *//* 0 700.0*/1,    /* 1 1000.0*/3, /* 2 2000.0*/10,    /* 3 3000.0*/20,    /* 4 3500.0*/27,    /* 5 4500.0*/28,    /* 6 5500.0*/11,    /* 7 6500.0*/5, },
        {/* 1 40    *//* 0 700.0*/3,    /* 1 1000.0*/10,    /* 2 2000.0*/19,    /* 3 3000.0*/26,    /* 4 3500.0*/30,    /* 5 4500.0*/28,    /* 6 5500.0*/11,    /* 7 6500.0*/5, },
        {/* 2 50    *//* 0 700.0*/7,    /* 1 1000.0*/16,    /* 2 2000.0*/24,    /* 3 3000.0*/28,    /* 4 3500.0*/30,    /* 5 4500.0*/28,    /* 6 5500.0*/11,    /* 7 6500.0*/5, },
        {/* 3 60    *//* 0 700.0*/11,   /* 1 1000.0*/20,    /* 2 2000.0*/27,    /* 3 3000.0*/28,    /* 4 3500.0*/30,    /* 5 4500.0*/28,    /* 6 5500.0*/11,    /* 7 6500.0*/5, },
        {/* 4 70    *//* 0 700.0*/13,   /* 1 1000.0*/24,    /* 2 2000.0*/31,    /* 3 3000.0*/28,    /* 4 3500.0*/30,    /* 5 4500.0*/28,    /* 6 5500.0*/11,    /* 7 6500.0*/5, },
        {/* 5 75    *//* 0 700.0*/15,   /* 1 1000.0*/27,    /* 2 2000.0*/33,    /* 3 3000.0*/28,    /* 4 3500.0*/30,    /* 5 4500.0*/28,    /* 6 5500.0*/11,    /* 7 6500.0*/5, },
        {/* 6 82    *//* 0 700.0*/17,   /* 1 1000.0*/28,    /* 2 2000.0*/33,    /* 3 3000.0*/28,    /* 4 3500.0*/30,    /* 5 4500.0*/28,    /* 6 5500.0*/11,    /* 7 6500.0*/5, },
        {/* 7 85    *//* 0 700.0*/17,   /* 1 1000.0*/28,    /* 2 2000.0*/33,    /* 3 3000.0*/28,    /* 4 3500.0*/30,    /* 5 4500.0*/28,    /* 6 5500.0*/11,    /* 7 6500.0*/5, },
};

Referenced by setMazdaMiataEngineNB2Defaults().

vvt18LoadBins

const float vvt18LoadBins[VVT_TABLE_SIZE]

static

Initial value:

=
{30.0, 40.0, 50.0, 60.0, 70.0, 75.0, 82.0, 85.0}

Definition at line 69 of file mazda_miata_vvt.cpp.

{30.0, 40.0, 50.0, 60.0, 70.0, 75.0, 82.0, 85.0}

Referenced by setMazdaMiataEngineNB2Defaults().

vvt18RpmBins

const float vvt18RpmBins[VVT_TABLE_SIZE]

static

Initial value:

=
{700.0, 1000.0, 2000.0, 3000.0, 3500.0, 4500.0, 5500.0, 6500.0}

Definition at line 65 of file mazda_miata_vvt.cpp.

{700.0, 1000.0, 2000.0, 3000.0, 3500.0, 4500.0, 5500.0, 6500.0}

Referenced by setMazdaMiataEngineNB2Defaults().

Go to the source code of this file.
